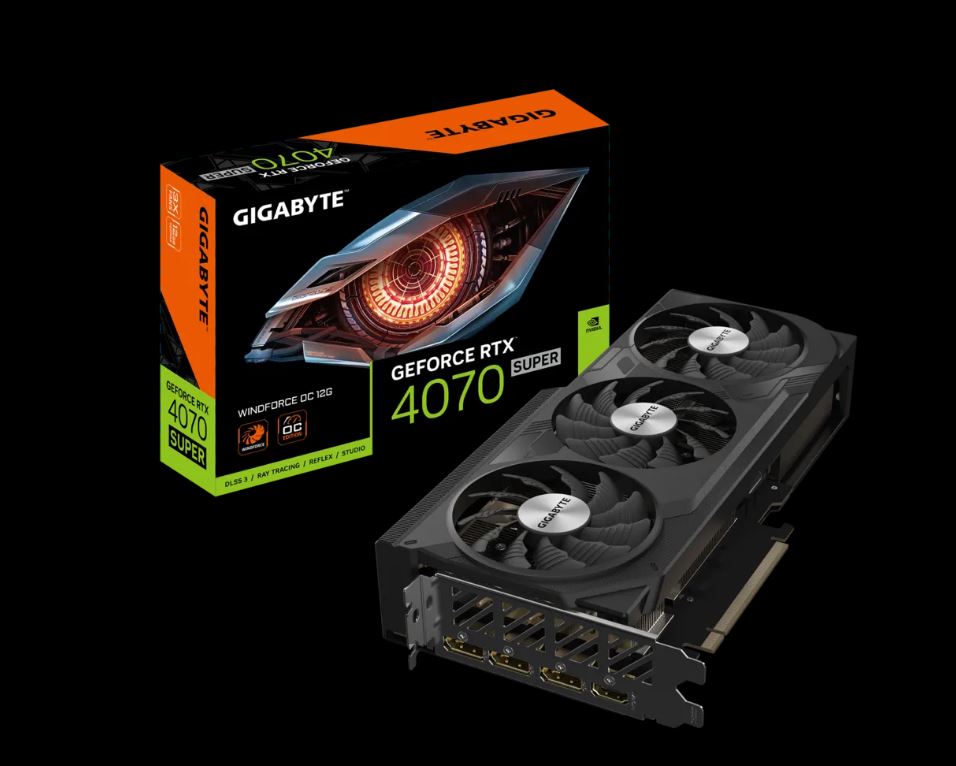

Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12G, 2505 MHz, CUDA 7168, 21 Gbps, GDDR6X, 192 bit, PCI-E 4.0, PSU 700W, DisplayPort 1.4a *3 HDMI 2.1a * GV-N407SWF3OC-12GD
,gravity=Center,allowExpansion)
Collect 1278 Everyday Rewards points
Collect 1278 Everyday Rewards points
VCG-N407SWF3OC-12GD
Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12G, 2505 MHz, CUDA 7168, 21 Gbps, GDDR6X, 192 bit, PCI-E 4.0, PSU 700W, DisplayPort 1.4a *3 HDMI 2.1a *
SPECIFICATION
Graphics Processing
GeForce RTX 4070 SUPER
Core Clock
2505 MHz (Reference card: 2475 MHz)
CUDA Cores
7168
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=261 W=126 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
16 pin *1
Output
DisplayPort 1.4a *3
HDMI 2.1a *1
Accessories
1. Quick guide
2. One 16 pin two 8-pin power adaptor
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4070 SUPER
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
Protection metal back plate
Designed to Give You Superpowers
New Streaming Multiprocessors
Up to 2X performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4X performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores
Up to 2X ray tracing performance
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
GTIN: 4719331354169
