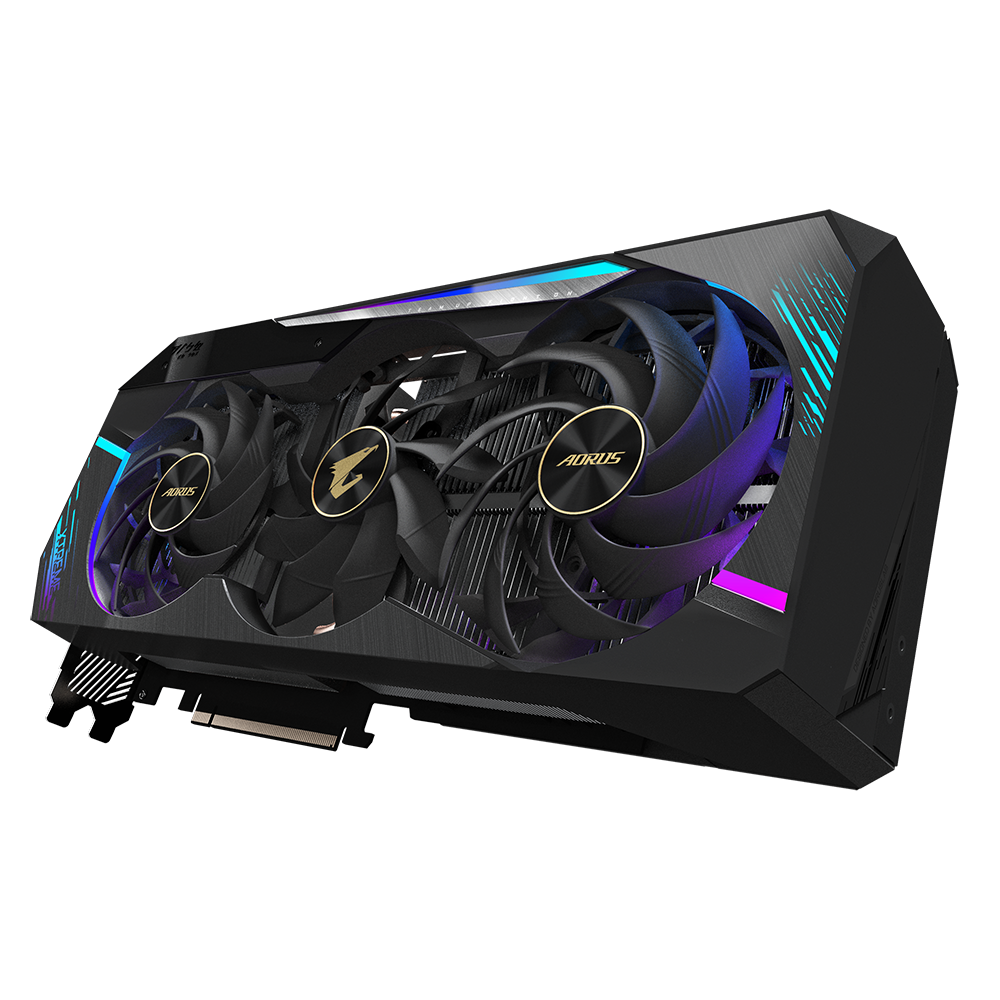

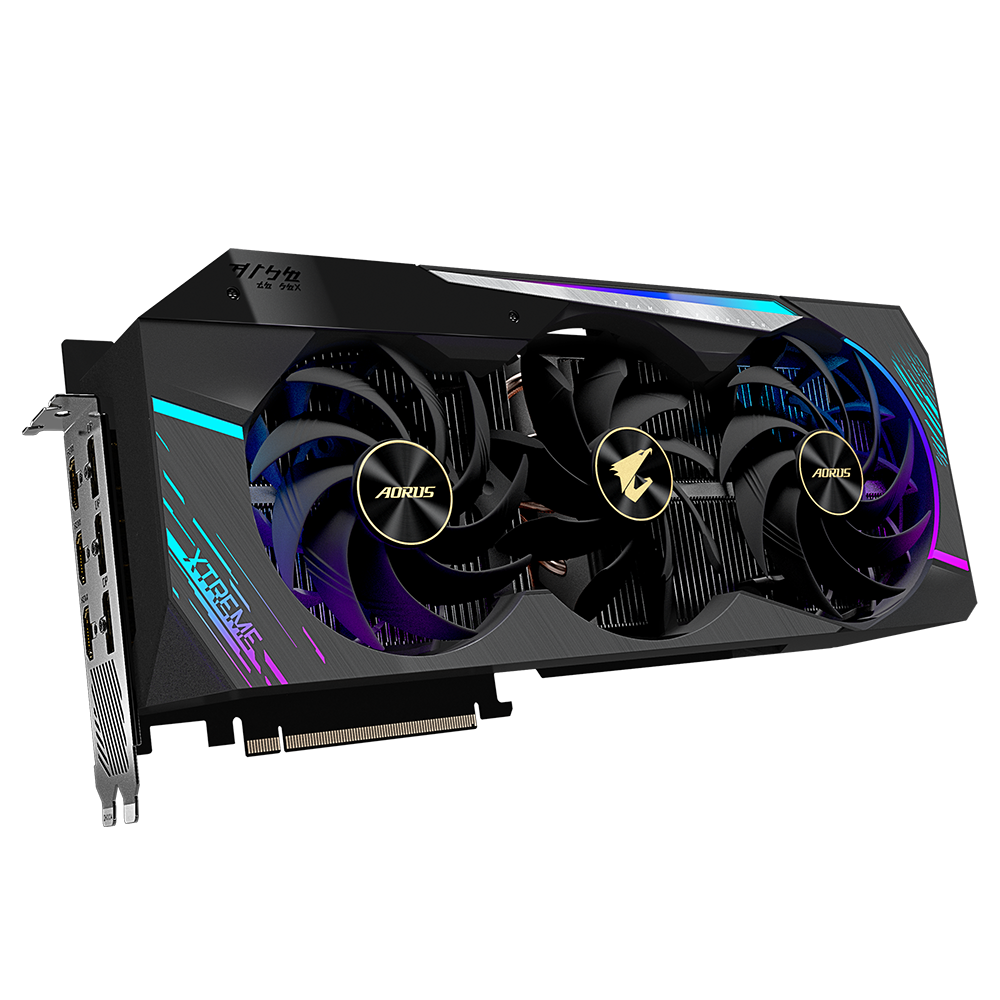

Gigabyte RTX3090 AORUS Geforce RTX 3090 XTREME 24G

KEY FEATURE

NVIDIA Ampere Streaming Multiprocessors

2nd Generation RT Cores

3rd Generation Tensor Cores

Powered by GeForce RTX™ 3090

Integrated with 24GB GDDR6X 384-bit memory interface

MAX-COVERED cooling

LCD Edge View

RGB Fusion 2.0

6 video outputs

Protection metal back plate

4 years warranty (Online registration required)

CORE CLOCK

1860 MHz (Reference Card: 1695 MHz)

NVIDIA Ampere Architecture

The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

DIRECTX 12 ULTIMATE

Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.

DESIGN CONCEPT

In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.

Welcome to the Digital Code Era.

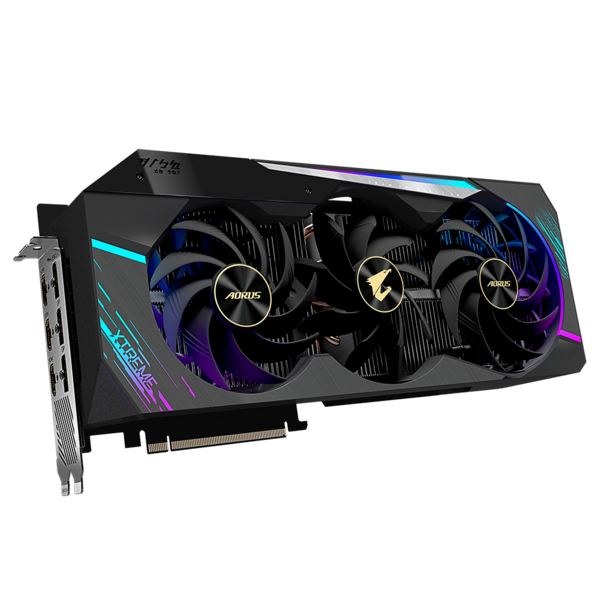

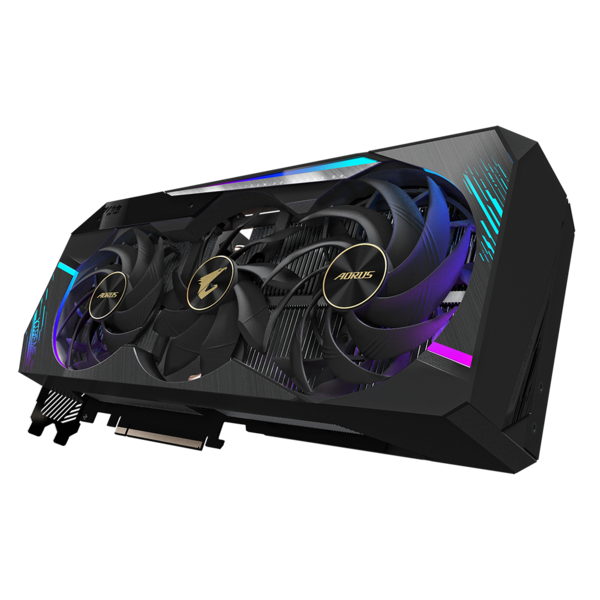

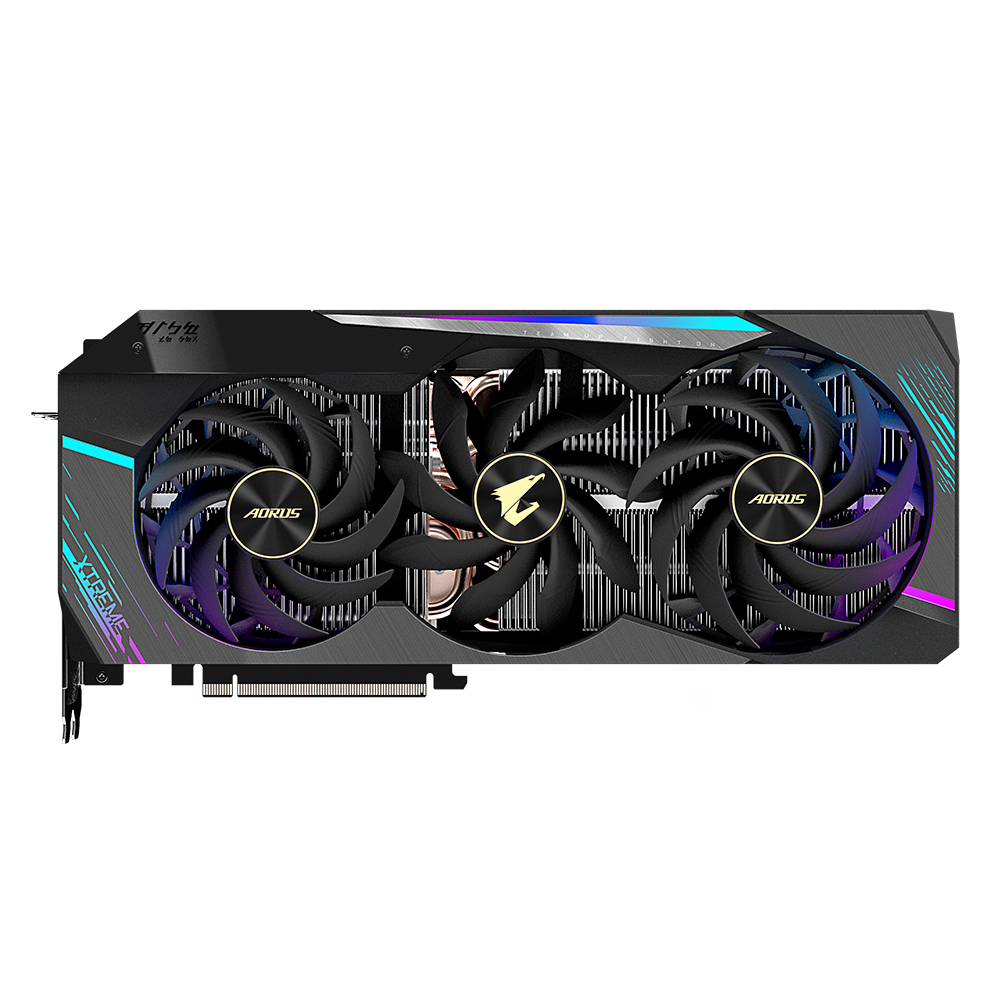

MAX-COVERED COOLING

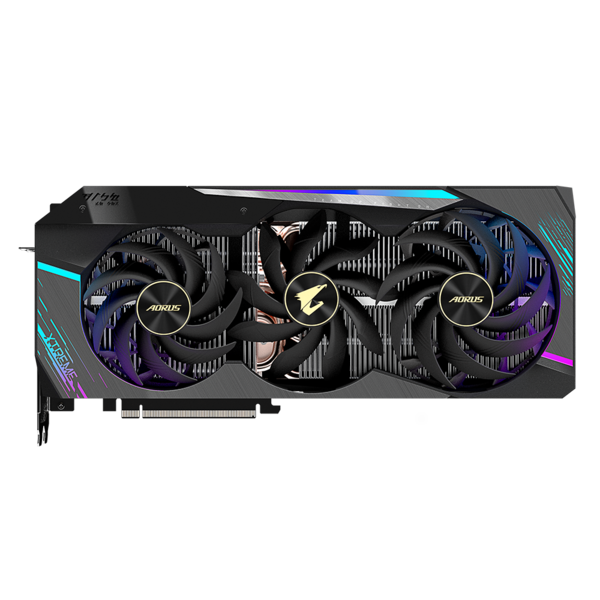

The Max-Covered cooling features 2x 115mm and 1x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.

UNIQUE BLADE STACK FANS

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

WIND CLAW DESIGN

Reinforce and channel the airflow to completely cover the heat sink.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

VAPOR CHAMBER & HEAT PIPE

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

ANGULAR FIN DESIGN

The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

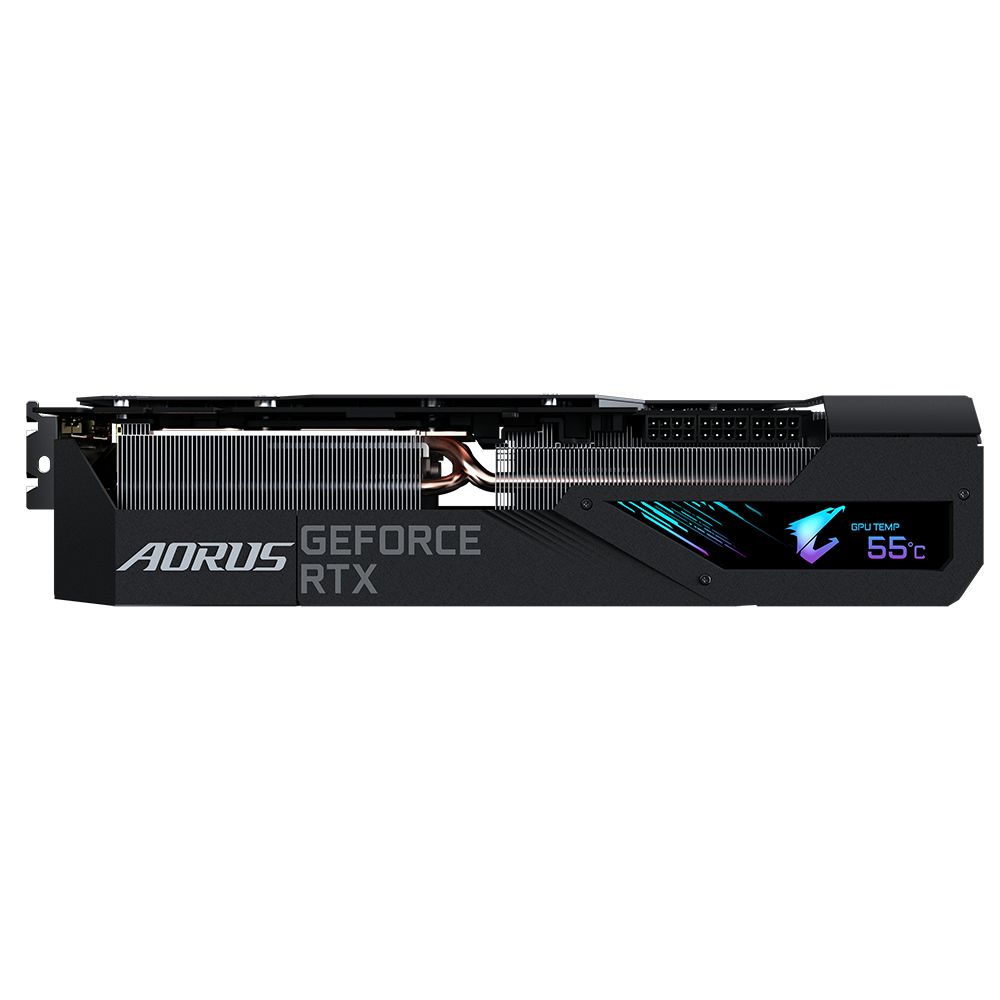

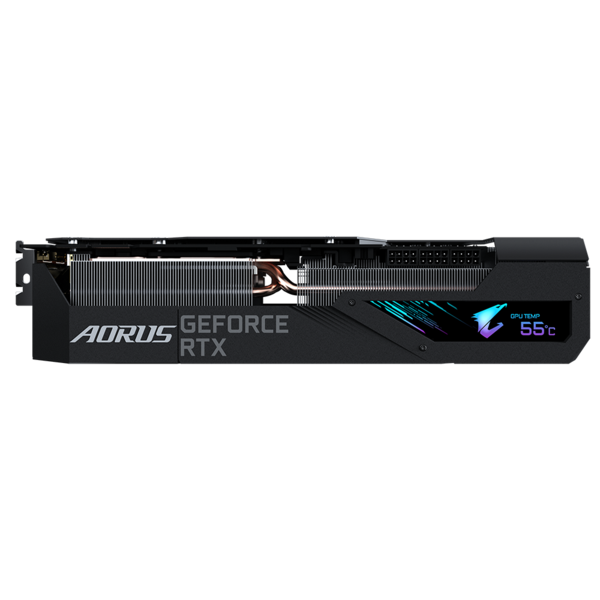

LCD EDGE VIEW

The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.

ENTHUSIAST

Various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE

GeForce RTX™ 3090 with 24G memory and 936 GB/s memory bandwidth has 10496 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

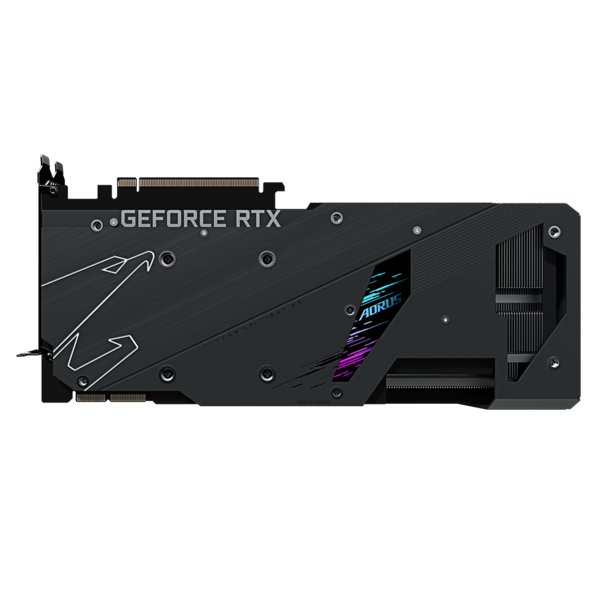

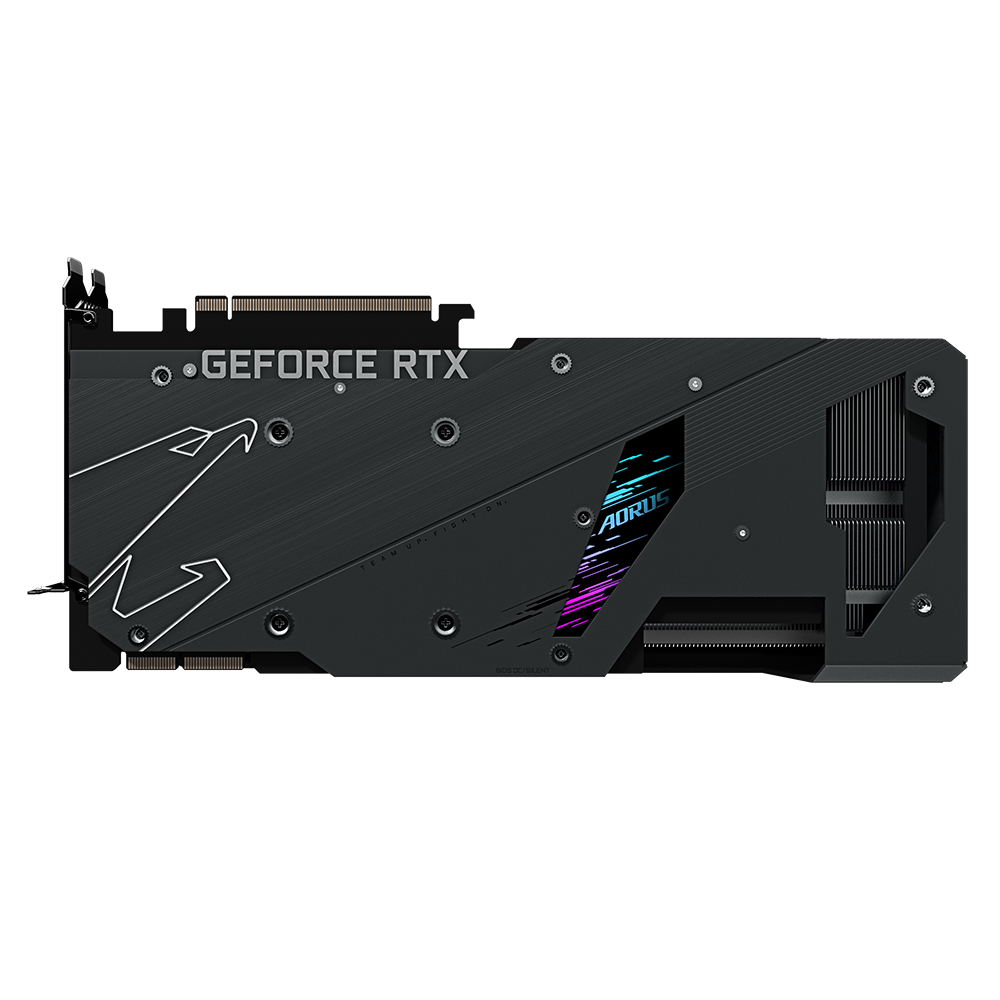

METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

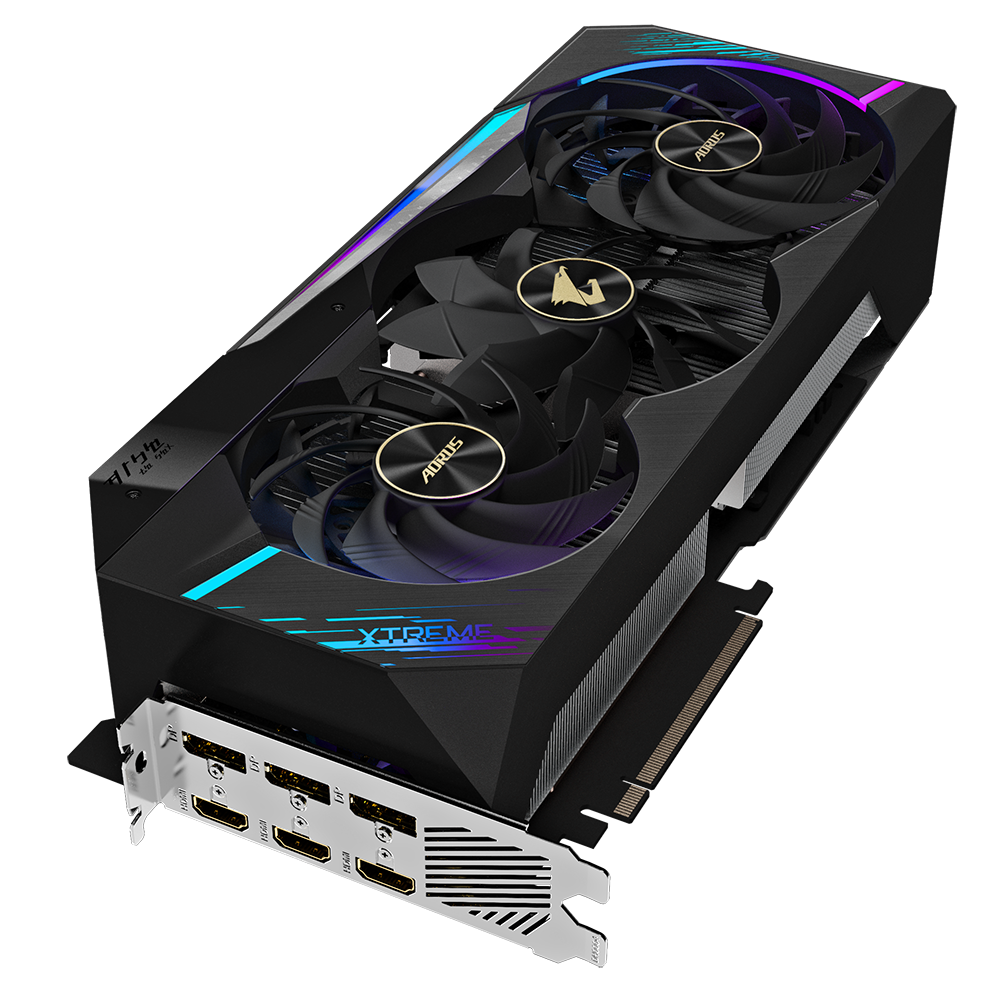

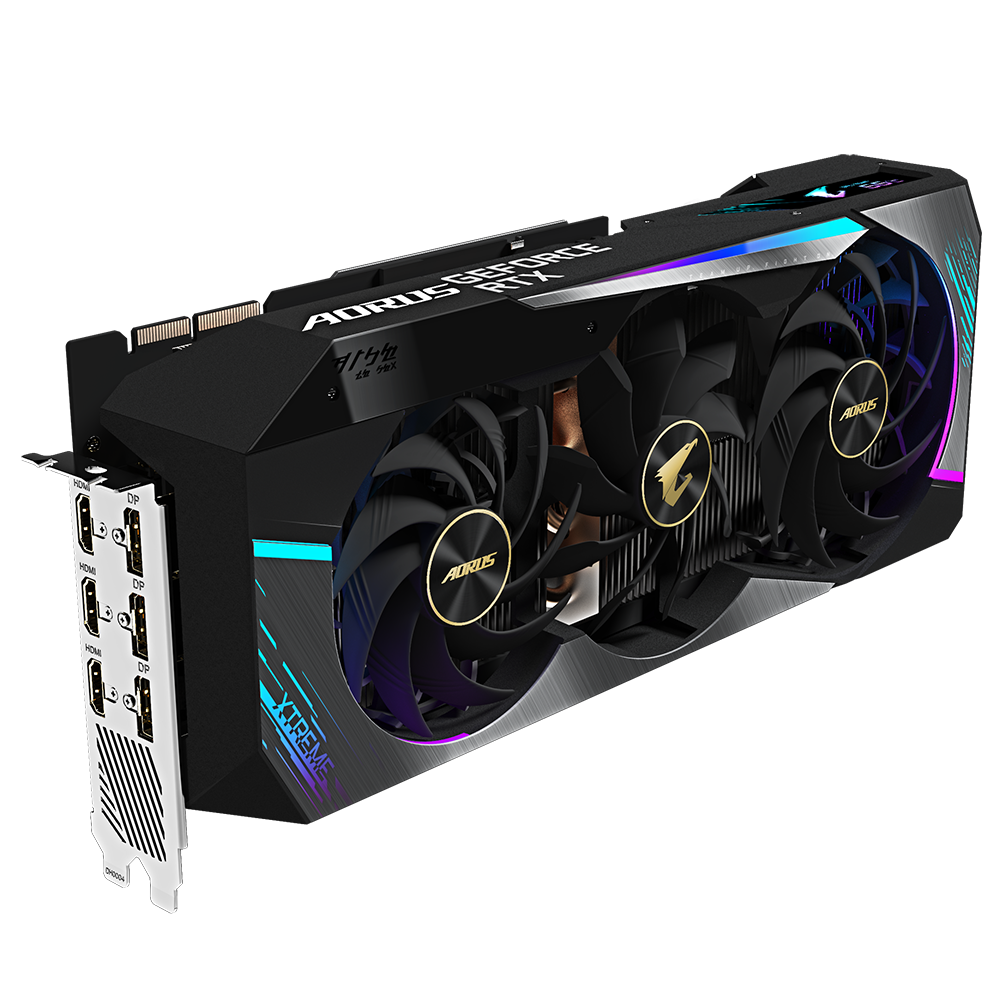

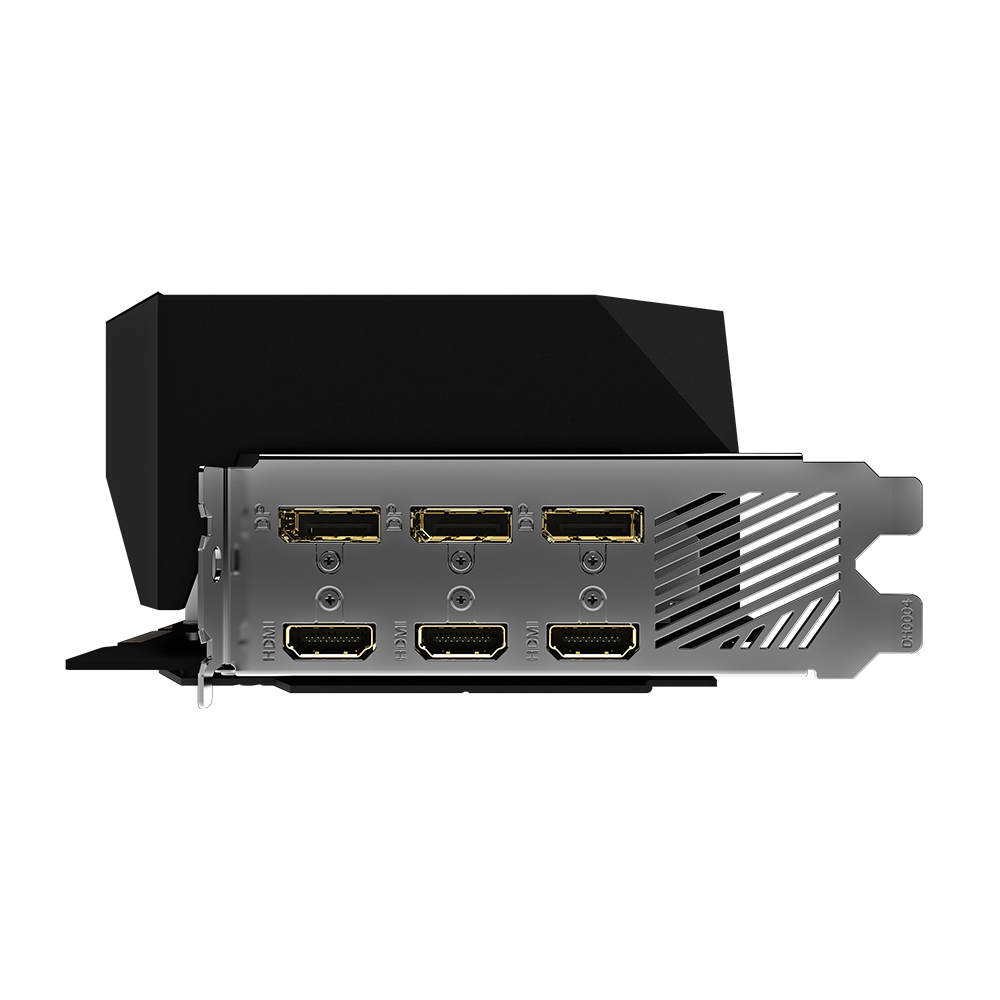

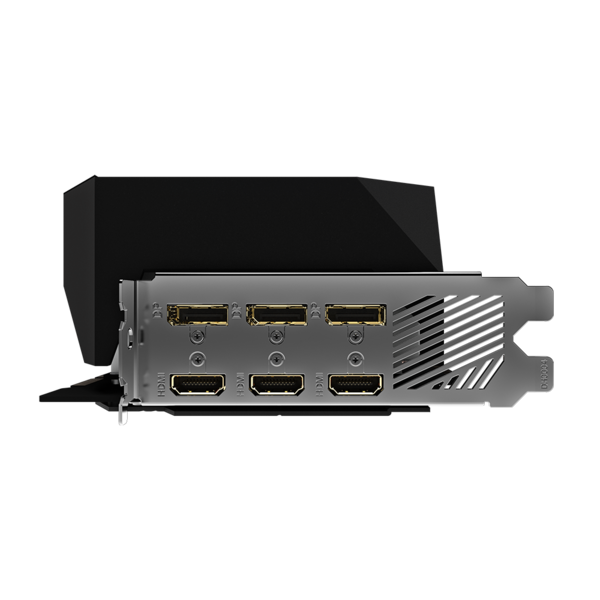

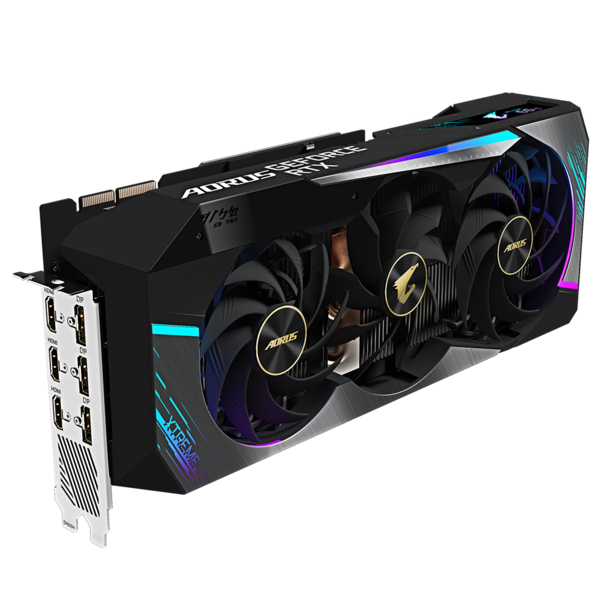

6 OUTPUTS

You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)

POWER INDICATORS

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

NVIDIA NVLINK™ SUPPORT

Support for NVIDIA NVLink™ (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in your gaming.

Unscrew the screws and remove the top left front cover before plugging in the NVLink Bridge.

EXCELLENCE

Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.

ULTRA DURABILITY

The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

PCB COATING

Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.

Moisture resistant - prevents unwanted conduction paths and board damage.

Corrosion resistant - protects from salt spray, humidity, and corrosion.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

INTUITIVE AORUS ENGINE

Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.

WARRANTY 4 YEARS

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

Graphics Processing GeForce RTX™ 3090

Core Clock 1860 MHz (Reference Card: 1695 MHz)

CUDA® Cores 10496

Memory Clock 19500 MHz

Memory Size 24 GB

Memory Type GDDR6X

Memory Bus 384 bit

Memory Bandwidth (GB/sec) 936 GB/s

Digital max resolution 7680x4320

Multi-view 4

Card size L=319 W=140 H=70 mm

PCB Form ATX

DirectX 12 Ultimate

OpenGL 4.6

Recommended PSU 850W

Power Connectors 8 pin*3

Output DisplayPort 1.4a *3, HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)

SLI Support 2‎-way NVIDIA NVLINK™

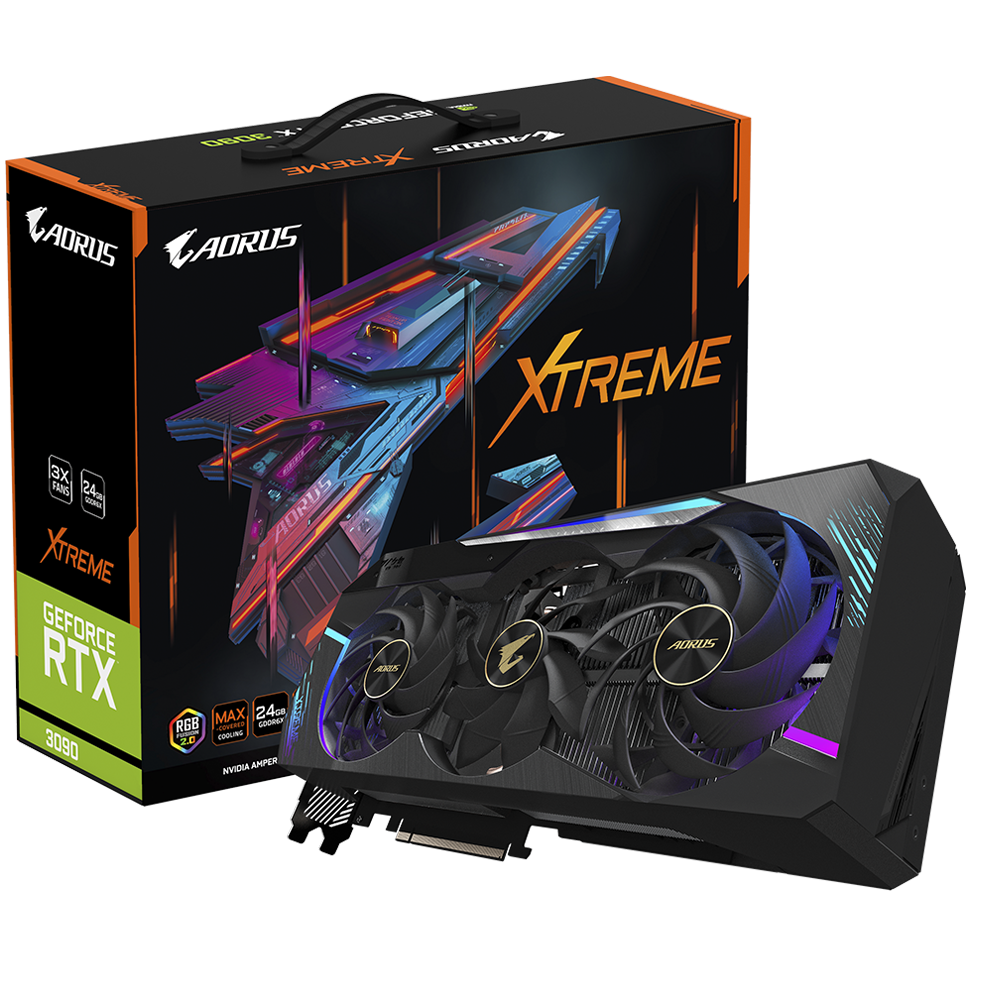

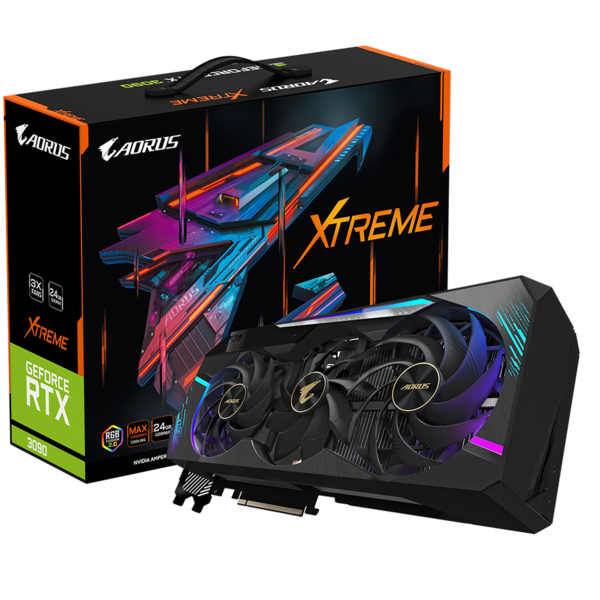

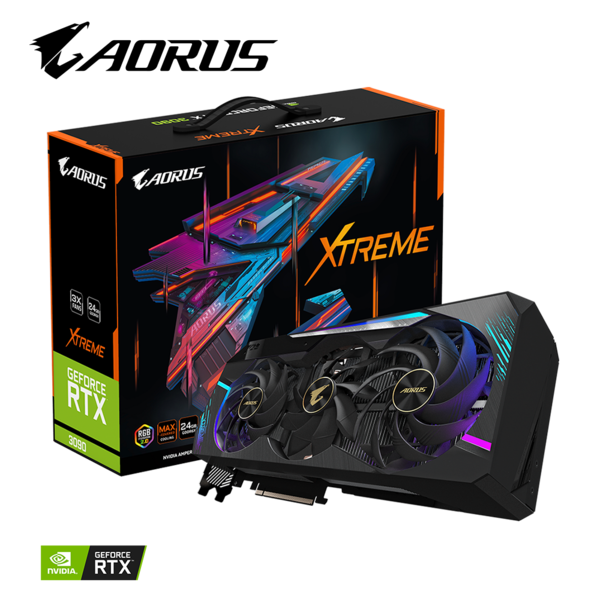

Accessories 1. Quick guide 2. 4-year warranty registration 3. Metal sticker 4. Xtreme robot limited edition
