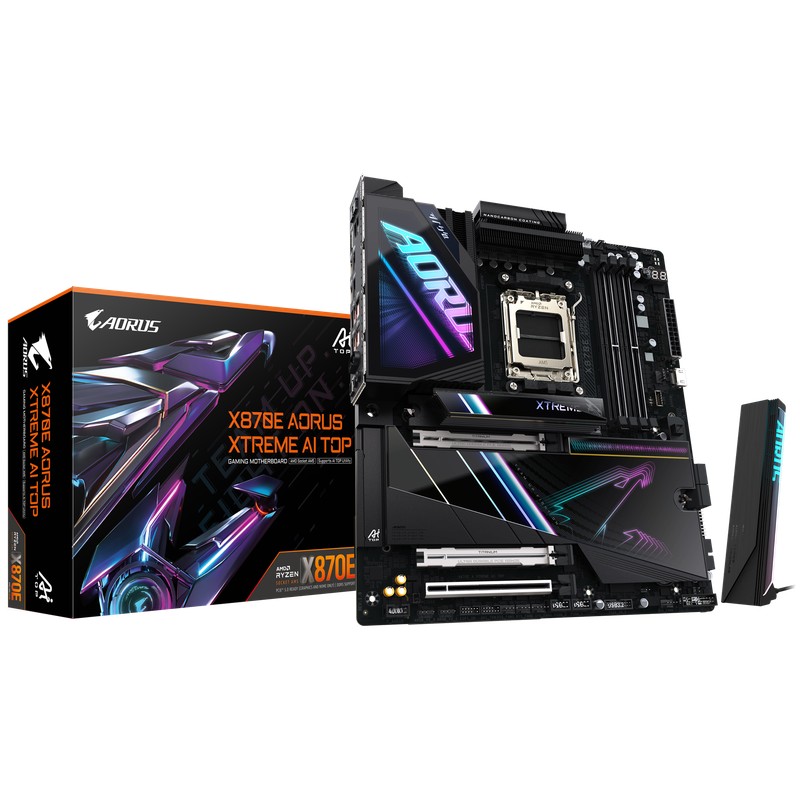

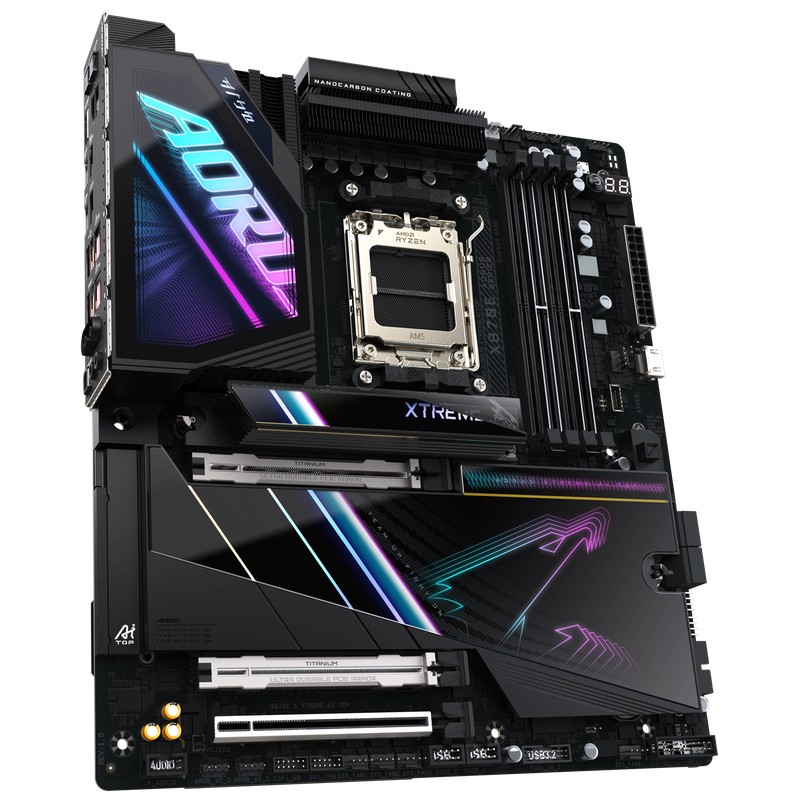

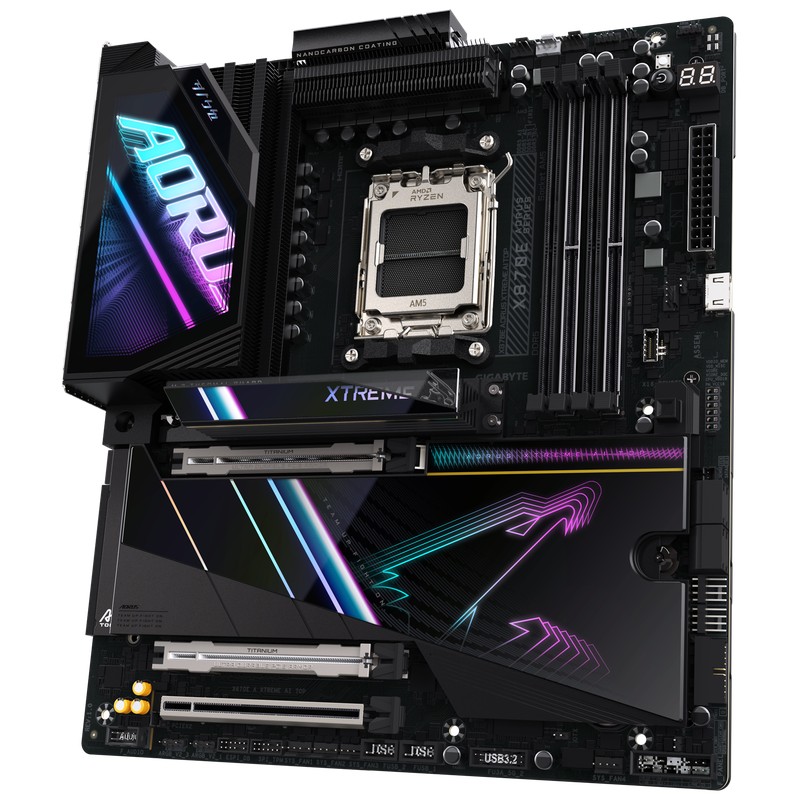

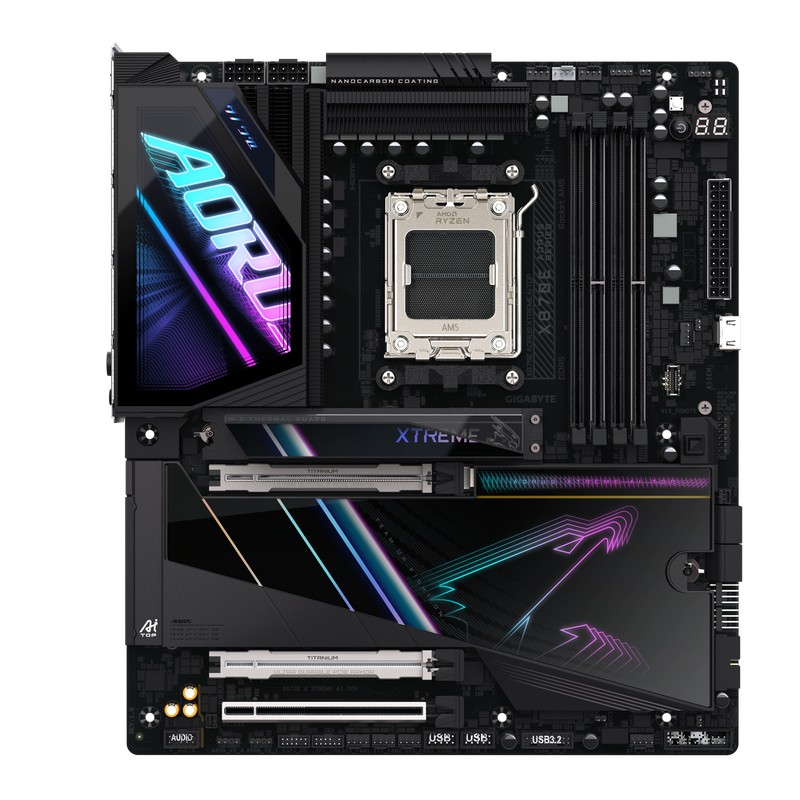

Gigabyte X870E AORUS XTREME AI TOP AMD ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 6 items left!
$1825.70

Collect 1825 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
Gigabyte X870E AORUS XTREME AI TOP AMD ATX Motherboard

Gigabyte X870E AORUS XTREME AI TOP (rev. 1.x) - Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for...

Features:
  • Training your own AI on your desk
  • DDR5 OC up to 8800MT/s
  • AMD Socket AM5 :Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 18+2+2 phases VRM solution
  • Dual Channel DDR5 :4*DIMMs with AMD EXPOMemory Module Support
  • DDR Wind Blade :Enhanced Active Cooling for Memory Modules
  • M.2 EZ-Match :Magnetic alignment for easy installation of large heatsinks
  • WIFI EZ-Plug :Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus :PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click :M.2 heatsinks with screwless design
  • Sensor Panel Link :Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI :Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage :4*M.2 slots, including PCIe 5.0 / 4.0
  • Efficient Thermal :VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
  • Blazing Fast Networks :Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with ARGB
  • Extended Connectivity :Dual USB4 Type-C with DP-Alt, HDMI
  • DTS :X Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
  • Titanium PCIe UD Slot X :PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards
Specifications:
  • CPU :AMD Socket AM5, support for:
    AMD Ryzen 9000 Series Processors/
    AMD Ryzen 8000 Series Processors/
    AMD Ryzen 7000 Series Processors
    * Please refer to "CPU Support List" for more information.
  • Chipset :AMD X870E
  • Memory :Support for DDR5 8800(O.C.) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
    Dual channel memory architecture
    Support for ECC and non-ECC Un-buffered DIMM memory modules
    Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    (The CPU andmemory configurationmay affect the supportedmemory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics :Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
    - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
    * Support for DisplayPort 1.4 version and HDR.
    Integrated Graphics Processor with AMD Radeon Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
    * Support for HDMI 1.4 version.
    (Graphics specifications may vary depending on CPU support.)
  • Audio :Realtek ALC1220 CODEC
    * The front panel line out jack supports DSD audio.
    ESS ES9118 DAC chip
    Support for DTS:X Ultra
    High Definition Audio
    2/4/5.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
  • LAN :2 x Marvell AQtion AQC113C 10GbE LAN chips
    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module :Qualcomm Wi-Fi 7 QCNCM865 (PCB rev. 1.0)
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
    *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
  • Expansion Slots :1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD.
    If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode
    * The PCIEX8 slot becomes unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)
    * The PCIEX2 slot shares bandwidth with the M2E_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2E_SB connector
  • Storage Interface :1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    2 x M.2 connectors (M2D_SB, M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen 9000 Series Processors..
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB :CPU+ASMedia USB4 controller:
    - 2 x USB4 USB Type-C ports on the back panel
    CPU:
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:
    - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors :1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    4 x M.2 Socket 3 connectors
    2 x temperature sensor headers
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x HDMI port (Note)
    1 x Trusted PlatformModule header (For the GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    Voltage Measurement Points
    (Note) Actual support may vary by CPU.

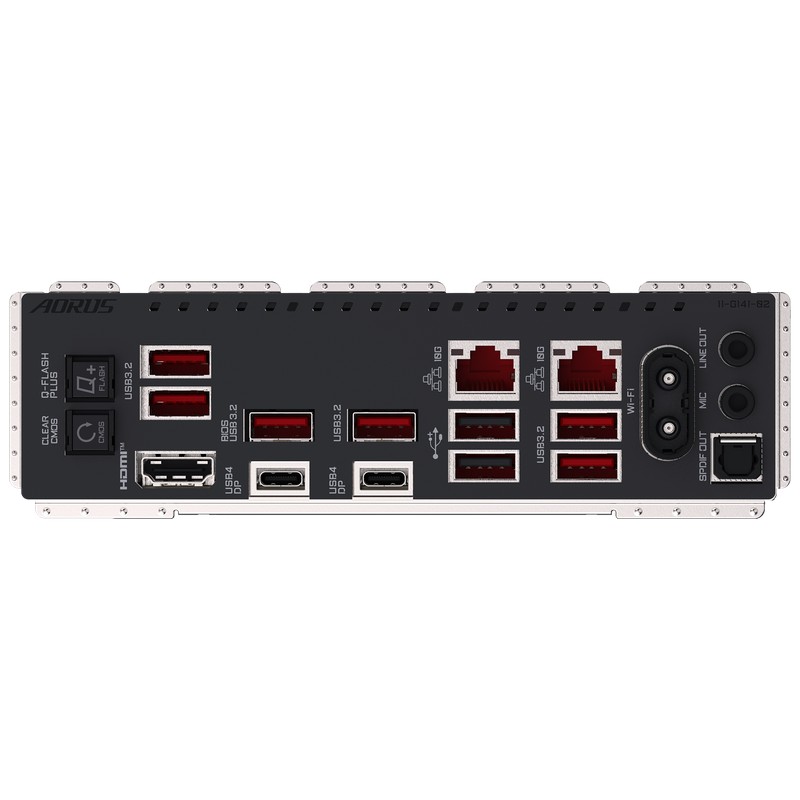

  • Back Panel Connectors :1 x Q-Flash Plus button
    1 x Clear CMOS button
    1 x HDMI port (Note)
    2 x USB4 USB Type-C ports (DisplayPorts (Note))
    6 x USB 3.2 Gen 2 Type-A ports (red)
    2 x USB 2.0/1.1 ports
    2 x RJ-45 ports
    2 x antenna connectors (2T2R)
    1 x optical S/PDIF Out connector
    2 x audio jacks
    (Note) Actual support may vary by CPU.
  • I/O Controller :iTE I/O Controller Chip
  • H/W Monitoring :Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
    Noise detection
  • BIOS :1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software :Norton Internet Security (OEM version)
    LAN bandwidth management software
    * Service discontinued as a result of contract termination by the software provider.
  • Operating System :Support for Windows 11 64-bit
  • Form Factor :E-ATX Form Factor; 30.5cm x 26.9cm

GTIN: 4719331866150
