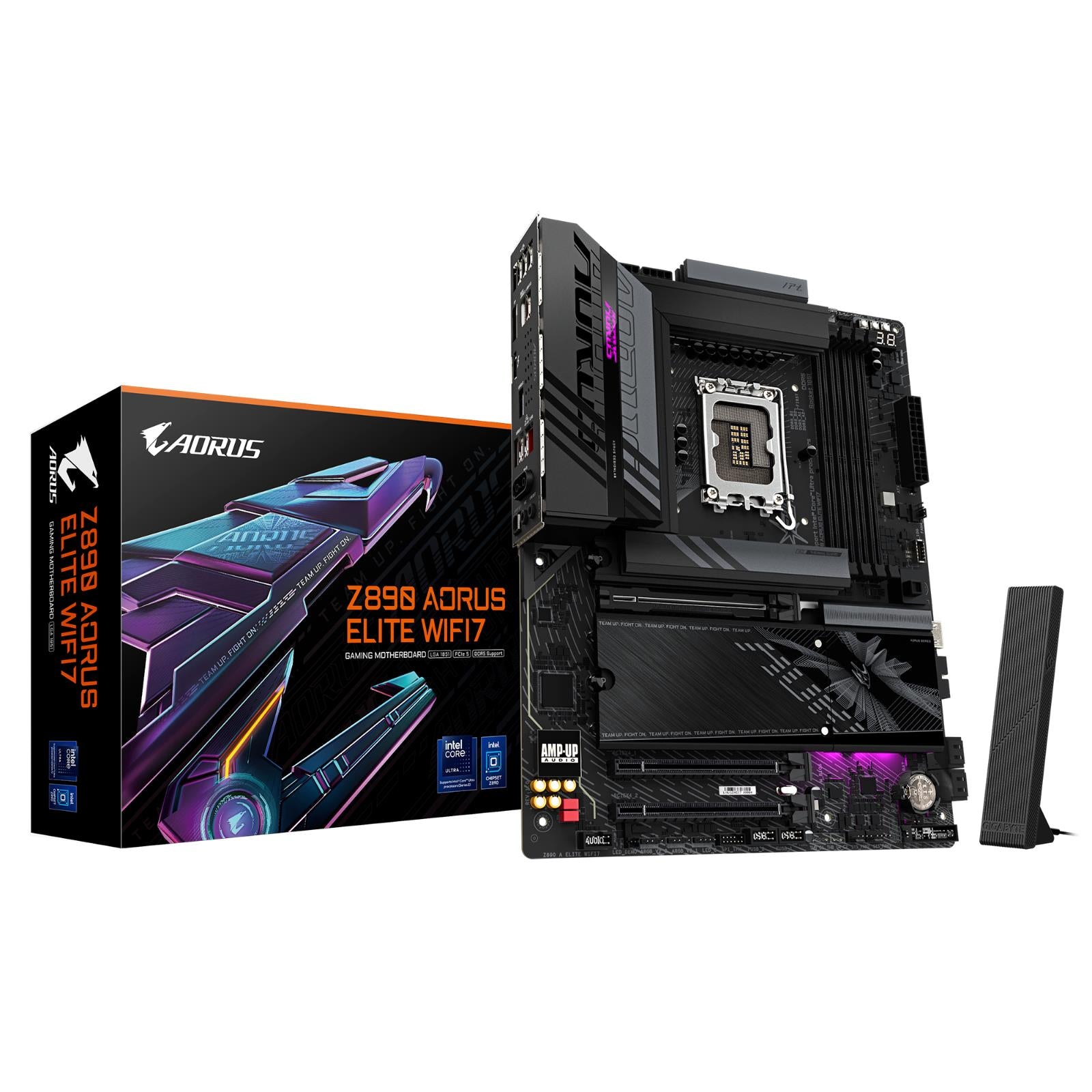

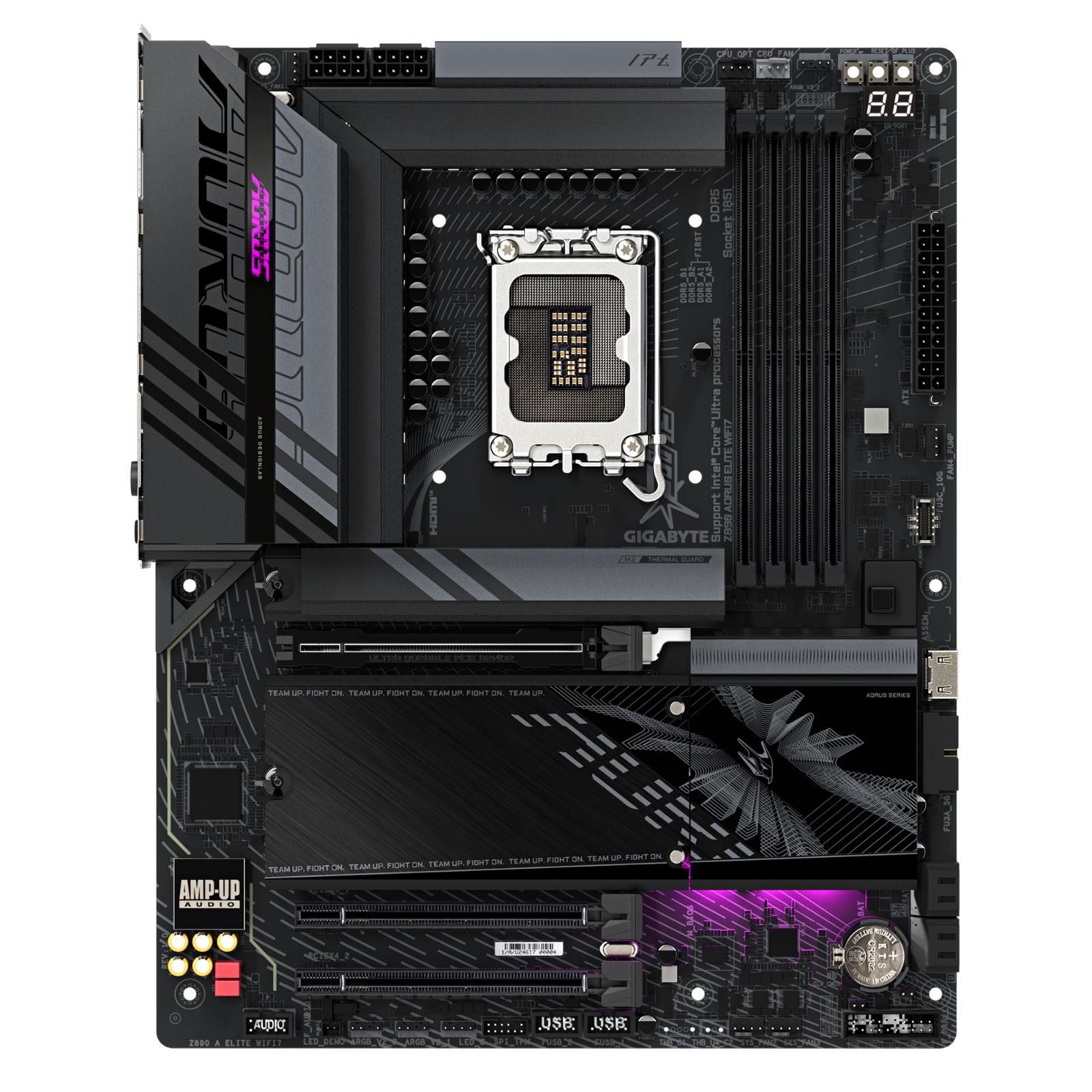

Model: GA-Z890-A-ELITE-WIFI7
Key Features:
- Supports Intel(R) Core(TM) Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users
- Premium Compatibility: 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: THUNDERBOLT(TM) 4 Type-C with DP-Alt, DisplayPort
- High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications:
- Audio: Realtek(R) ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
- Chipset: Intel(R) Z890 Express Chipset
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm

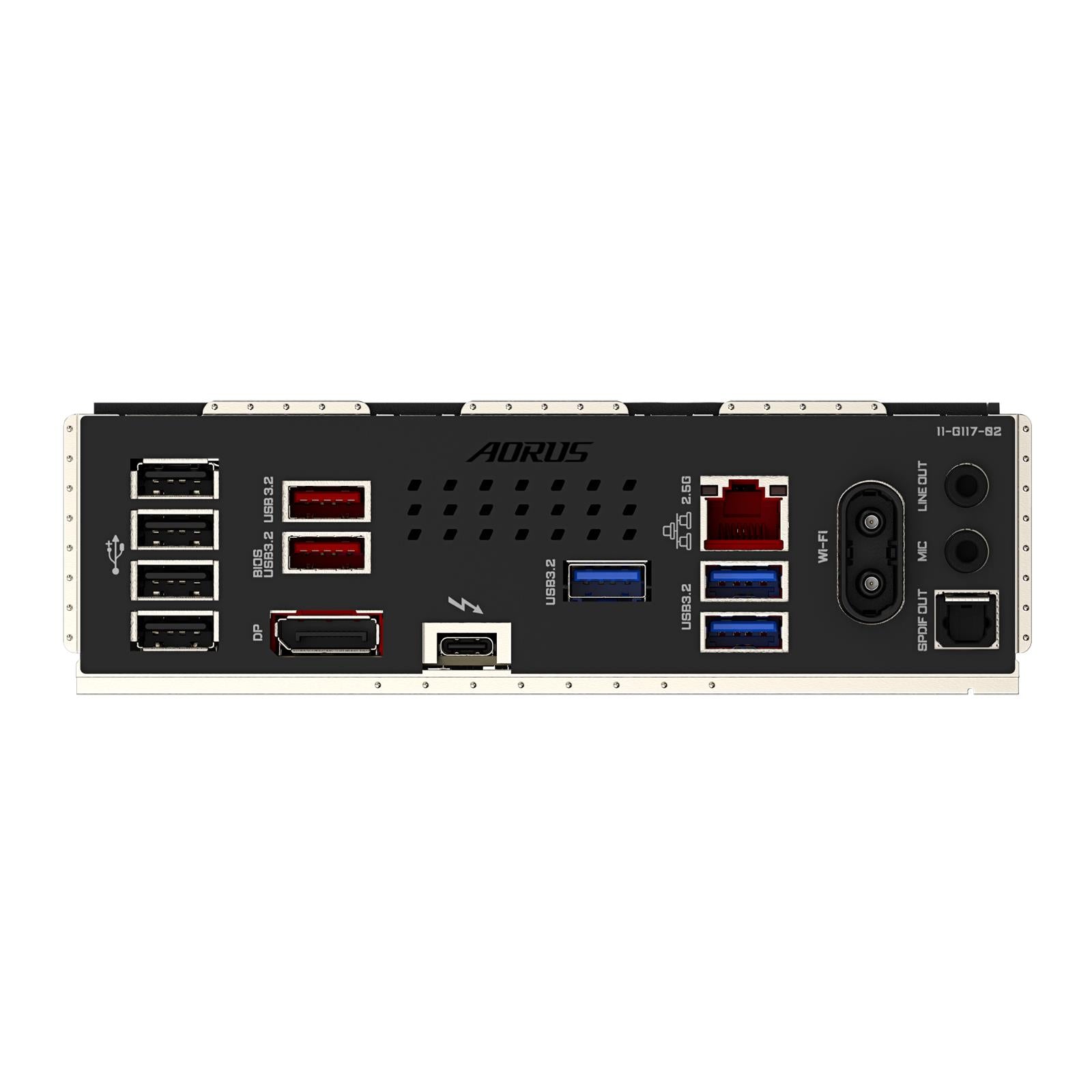

- I/O Connectors: Back Panel Connectors: 1 x Intel(R) Thunderbolt(TM) 4 connectors (USB Type-C(R) ports), 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 2 x antenna connectors (2T2R), 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
- Integrated CPU Graphics: Integrated Graphics Processor-Intel(R) HD Graphics support: - 1 x Intel(R) Thunderbolt(TM) 4 connector (USB4(R) USB Type-C(R) port), supporting DisplayPort and Thunderbolt(TM) video outputs When a Thunderbolt(TM) monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- LAN: Realtek(R) 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- PCI Slots: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
- Processor Support: LGA1851 socket: Support for Intel(R) Core(TM) Ultra Processors
- RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- RAM Type/Bus/Max: Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module
- Socket: LGA1851 socket: Support for Intel(R) Core(TM) Ultra Processors
- Storage Interface: CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
- Wireless & Bluetooth: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek(R) Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
