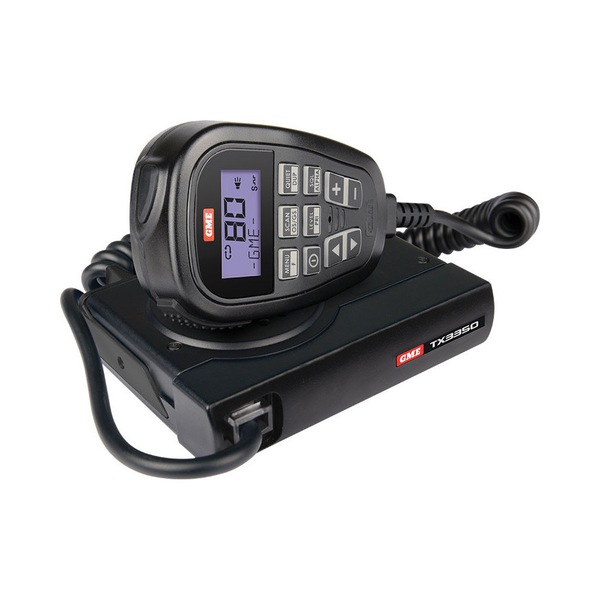

GME TX3350 Compact UHF CB Radio with SoundPath

Image 1
Image 2
$549

Collect 549 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

The XRS family is a new Australian Made radio platform designed to be smart, adaptable and rugged.


Enabled by Bluetooth(R) wireless technology, XRSTM is the first of a new generation of connected UHF radios with unique features never before seen.


Much like a smart device, the XRS family are software upgradable via the app, keeping customers up to date with the latest features and technology.

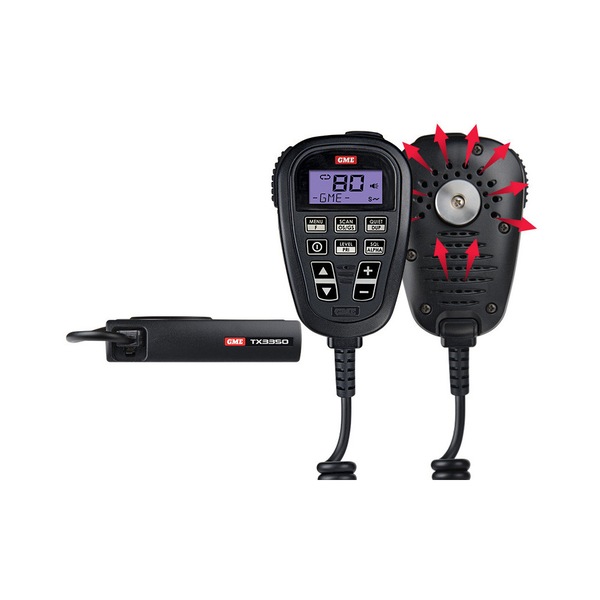

The new XRS Connect professional grade speaker microphone features a powerful 2 watt speaker, customisable buttons and a high contrast OLED screen guaranteeing crystal clear, anti-glare display.


The all new XRSTM Portable Pack is perfect for casual users and owners of high-end vehicles who do not wish to permanently install a UHF radio in their vehicle.


The XRS-330CP comes with everything you need to get started - the premium XRS-330C UHF CB Radio, suction cup mount, 12V Accessory lead, 2.1dBi magnetic antenna and all mounting hardware - contained within a handy carry case for convenient storage when the radio is not in use.


For more information please visit the XRS Connect UHF CB radio microsite


Genuine GME 5 year warranty, plus download and register the new XRS Connect App and receive one year additional warranty.


Visit Google Play or the App Store and search 'XRS Connect'.


GENERAL

Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX 476.425-477.4125 MHz Number of Channels 80 Channel Spacing 12.5 kHz Operation Mode Simplex or half Duplex with repeater talk around. Scanning Speed 25 ms per channel (40 channels per second) Antenna Impedance 50 Ohms nominal Nominal Battery Voltage 12 volts DC Operating Voltage Range 10-16 volts DC Battery Polarity Negative Earth Standard Test Voltage 13.8 volts DC Overvoltage Protection 30 volts DC max. At 18 volts DC the RF power is reduced, and the words 'Hi DC' flash. Reverse Voltage Protection Diode Crowbar Overcurrent Protection In-line 2 amp fuse Operating Temperature -10oC to 60oC

TRANSMITTER

RF Output 5 watts Spurious Emission < - 70 dBc Frequency Error < 1.5 kHz Modulation FM Maximum Deviation < 2.5 kHz at + 20 dB limiting Transmit Frequency Response +6 dB per octave 300 Hz to 3 kHz +1-3 dB Demodulated Audio Signal to Noise > 45 dB unweighted Current Consumption 1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies 38.85 MHz, 450 kHz Sensitivity - 122 dBm for 12 dB SINAD unweighted Selectivity - 6 dB at + 3.5 kHz, 60 dB at 12.5 kHz Intermodulation Immunity -72 dB Blocking Immunity -98 dB Spurious Response Immunity 70 dB Audio Output Power 3 watts average into 4 Ohms Audio Signal to Noise > 45 dB unweighted Current consumption < 175 mA muted 750 mA Full volume Conducted Spurious Emission < - 70 dBm

MECHANICAL SPECIFICATIONS

Dimensions 21 (H) x 100 (L) x 87 (D) mm Weight 450 grams Antenna SO239 panel socket External Speaker 3.5 mm mono jack Microphone Port 6 Way telephone style with rubber strain relief

GTIN: 9319493241878
