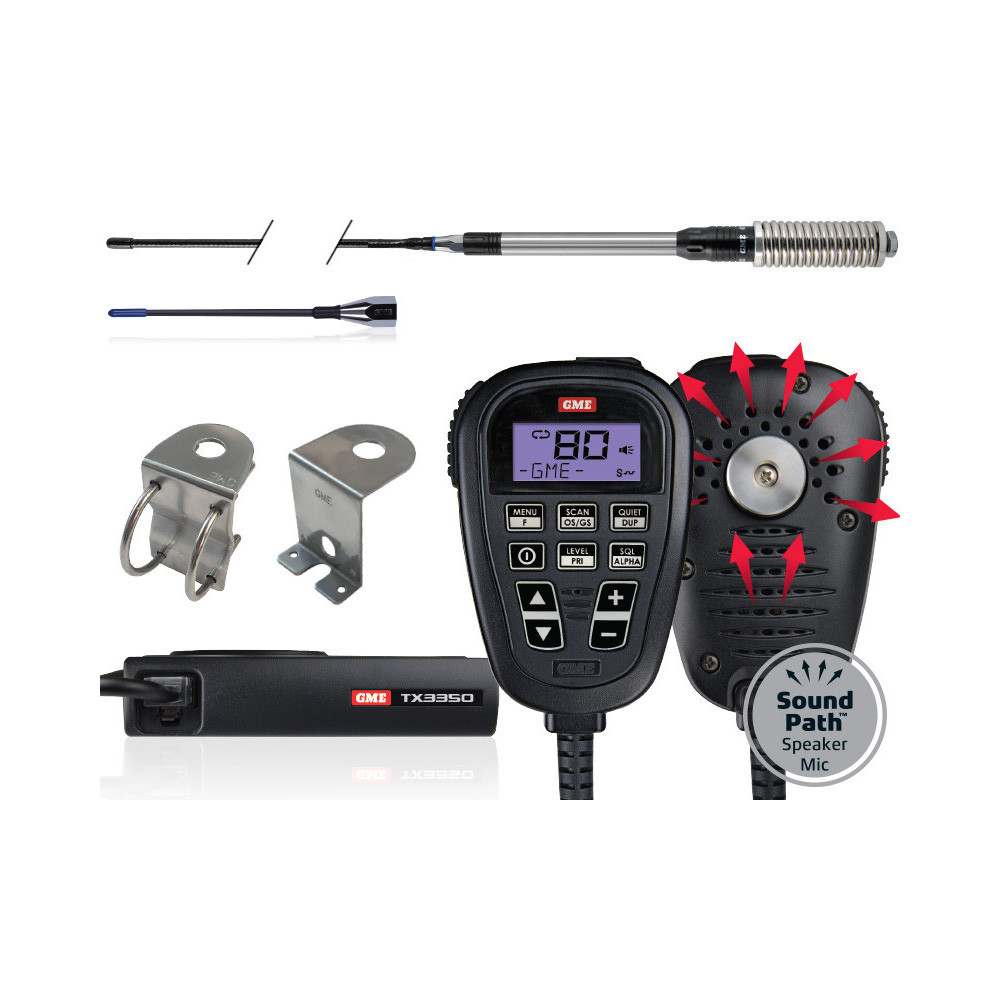

The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath(TM) full function LCD Speaker Microphone.
The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath(TM) diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.
The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.
Product Details
Product Specifications
GENERAL
Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX 476.425 - 477.4125 MHz Number of Channels 80 UHF CB Channel Spacing 12.5 kHz Operation Mode simplex channels 1-80, Semi Duplex channels 1?????, 41-48 Scanning Speed 20 channels per second Antenna Impedance 50 Ohms nominal Nominal Battery Voltage 13.8 volts DC Operating Voltage Range 10-15 volts DC Overvoltage Protection 25 volts DC max At 18 volts DC the RF power is reduced, and the words 'Hi DC' flash. Overcurrent Protection In-line 2A Fuse Frequency stability 2.5 PPM Modulation FMTRANSMITTER
RF Output 5.0 watts max Maximum Deviation < 2.5 kHz at + 20 dB limiting Transmit Frequency Response +6 dB per octave, 300 Hz to 3 kHz + 1-3 dB Current Consumption 1.5 amps with 50 Ohms terminationRECEIVER
Intermediate Frequencies 1st - 21.54, MHz 2nd - 450 kHz Sensitivity - 123 dBm for 12 dB SINAD unweighted Selectivity - 6 dB at + 3.5 kHz, ?????60 dB at 12.5 kHz Intermodulation Immunity 73 dB Blocking Immunity 100 dB Spurious Response Immunity 70 dB Audio Output Power 3 watts average into 4 Ohms Current consumption < 180 mA muted 600 mA @ max. A.F output Receive Frequency ????? dB/Octave de?????emphasis, 300 Hz to 3 kHz + 1-3 dB Conducted Spurious Emission < - 57 dBmMECHANICAL SPECIFICATIONS
Dimensions 102 (W) x 87 (D) x 23 (H) mm Weight 158 gramsOrders will be shipped within 2-5 business days and It will be delivered within 10-15 days.
