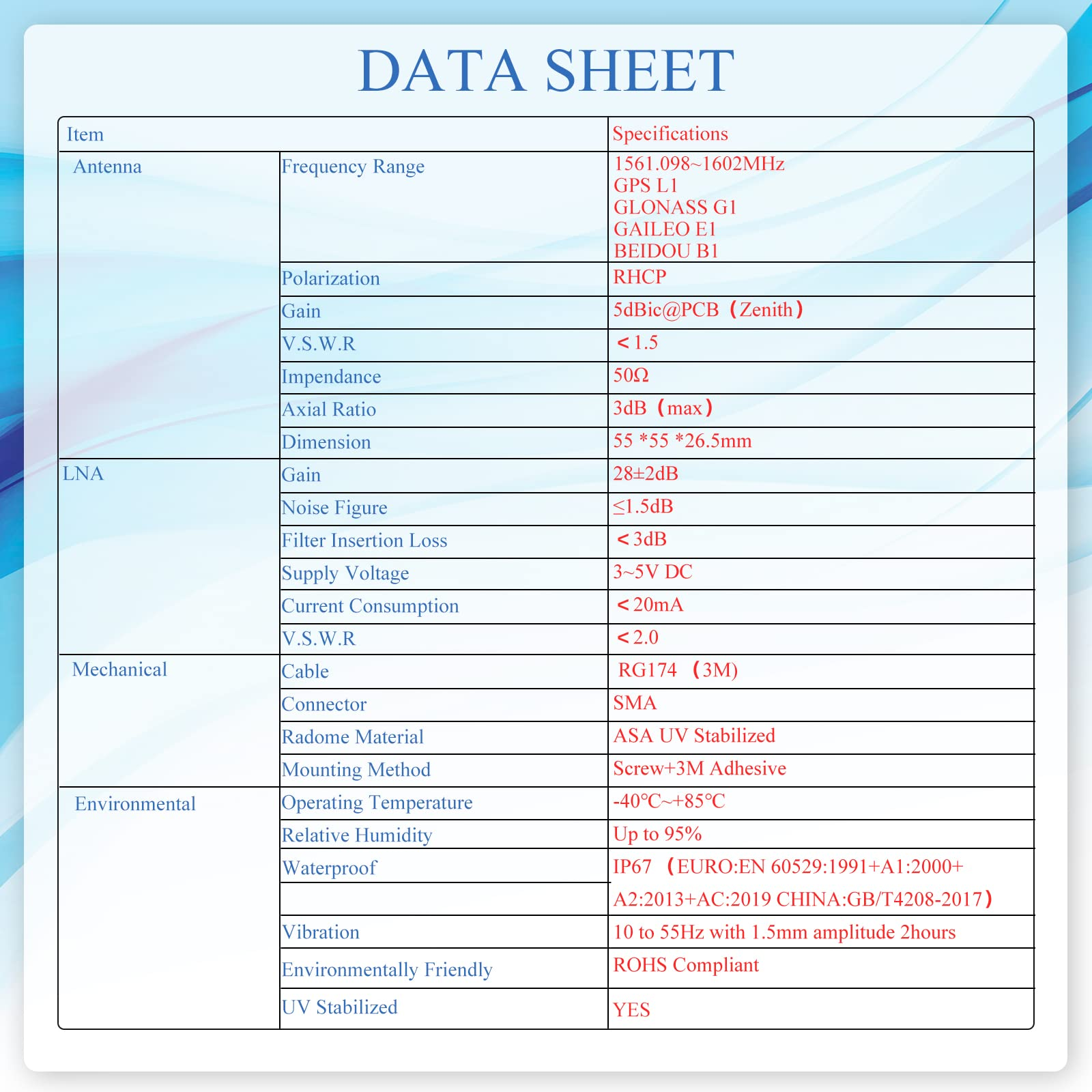

Specifications:

Operation Capability

Genuine IP67 Waterproof: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201

GNSS all 4 satellites L1/E1/B1/G1 bands supported, just plug the antenna in.

• Multiple Satellite protocol backup channels.
• AN_GNSS_401 product design is a project supervised by Australian Chartered Engineer.

Brand Name: Maswell

RF Outlet is Australian selling channel for Maswell antennas.

Centre Frequency 1561-1602MHz GPS L1 band GLONASS G1 band BEIDOU B1 band GAILEO G1 band
V.S.W.R(5m) 1.5 : 1

Band Width ±5MHz
Impendence 50 ohm

Polarization Type RHCP

LNA/Filter

LNA Gain(Without cable) 28±2 dB Typical

Noise Figure 1.5dB

DC Voltage 2.2~5V

DC current 5~15 mA

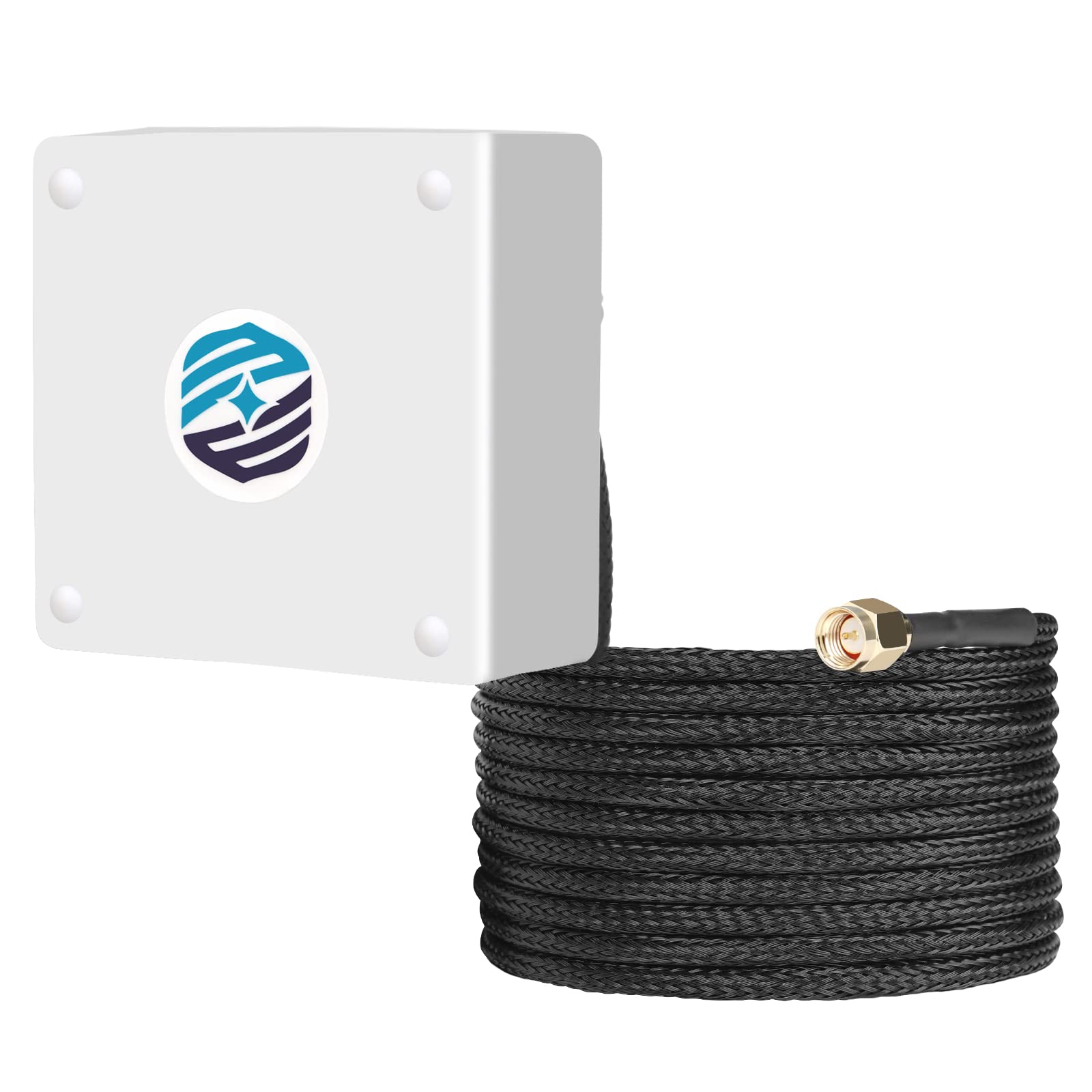

Cable RG174 (3m)
Connector SMA male

Housing White

Working Temp -40Degrees Celsius~+85Degrees Celsius

Humidity 55%~75%RH

Water proof

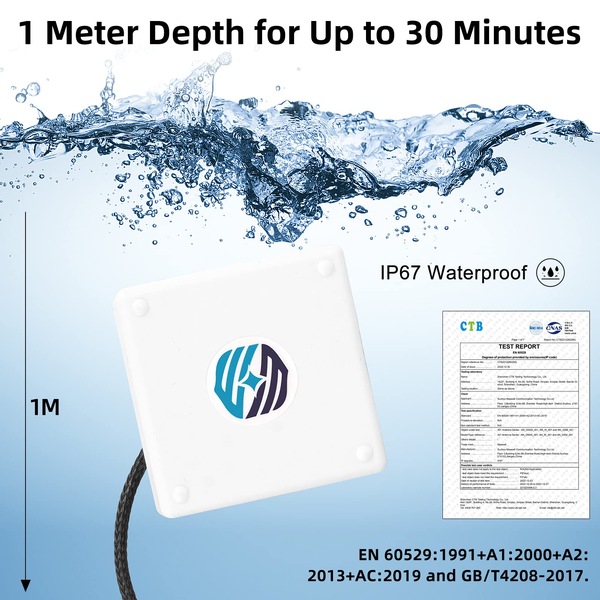

Waterproof Grade: IP 67

EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 67 Standard PASSED: GB/T4208-201

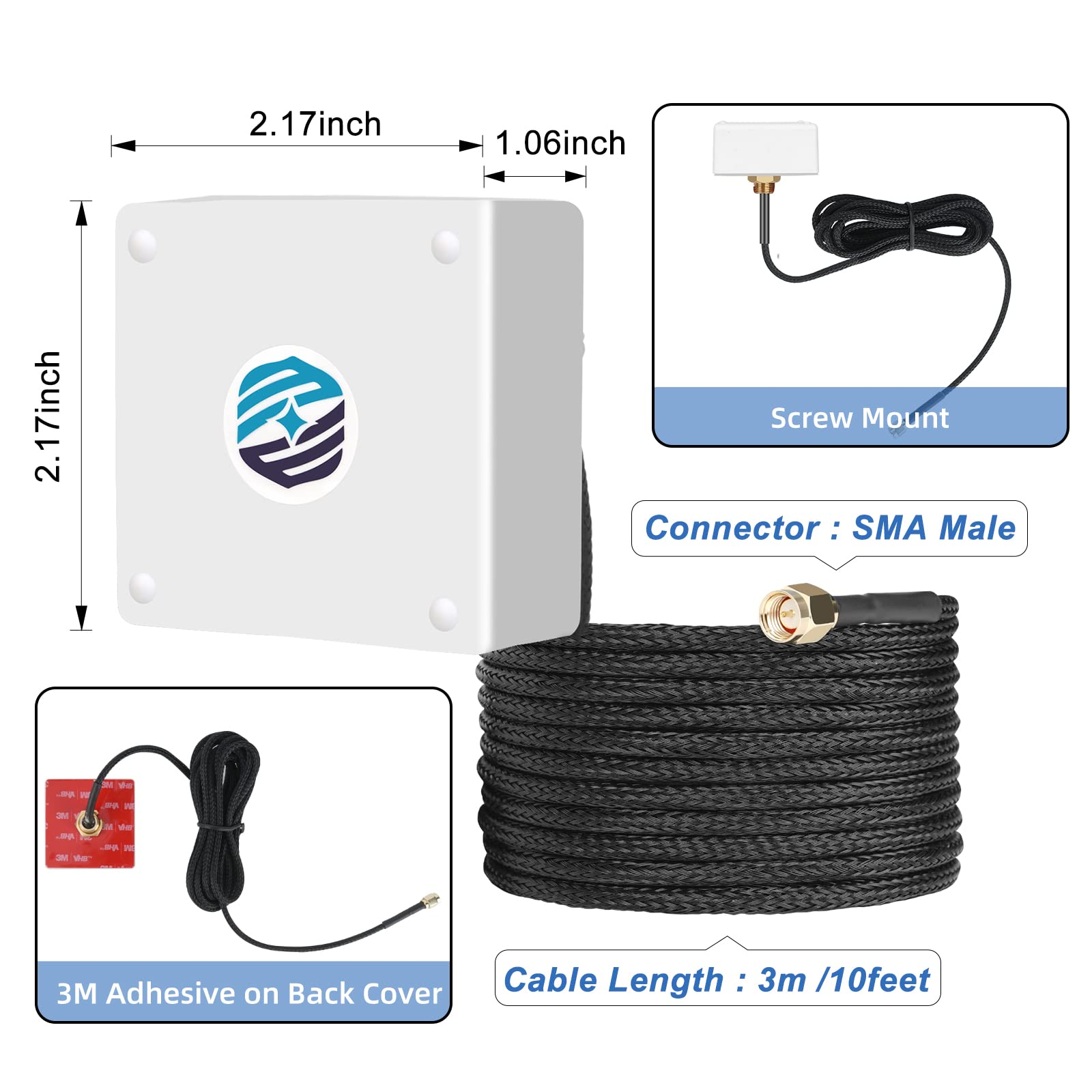

Size: 55mm *55mm*26.5mm

Mounting type: M12 Screw and 3M adhesive

Square shape with M12 screw and 3M adhesive mounting for various outdoor installations.

Ideal for GPS or GLONASS GAILEO BEIDOU position signal boosting in vehicular or machinery M2M applications.

Works with GPS Sensors and GPS Speedometers and Sensors SAAS or other brands.

Multiple Satellites backup for your tracking requirements.
