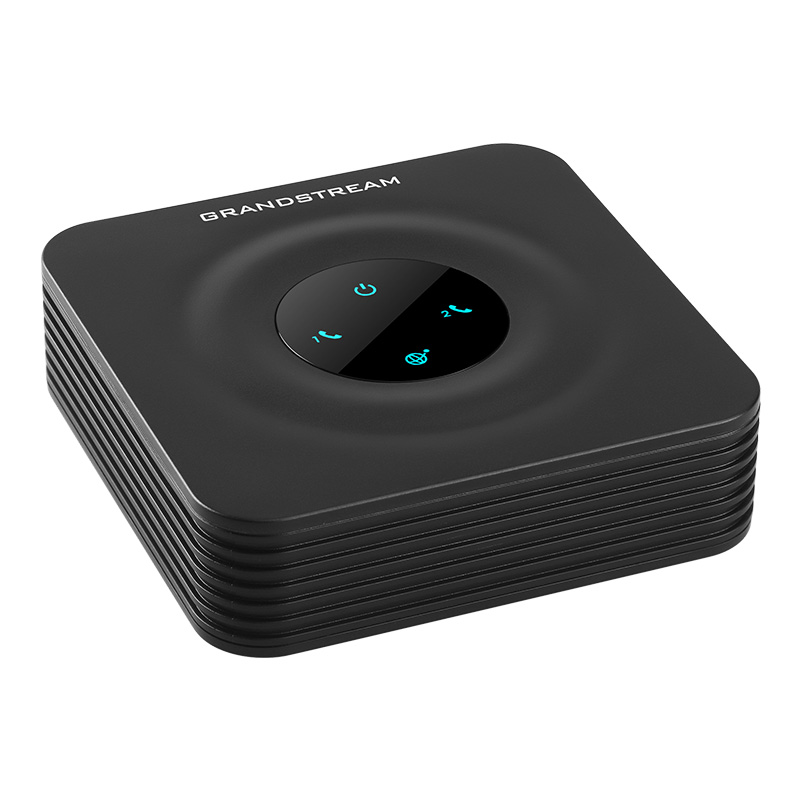

Grandstream 2 Port VoIP Adapter (HT802)

Image 1
Hurry! 5 items left!
$87.40

Collect 87 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Umart Online
Secure ways to pay at checkout

Grandstream 2 Port VoIP Adapter
The HT802 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT802 comes with 2 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

  • Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port

  • TLS and SRTP security encryption technology to protect calls and accounts

  • Automated provisioning options include TR-069 and XML config files

  • Supports 3-way voice conferencing

  • Failover SIP server automatically switches to secondary server if main server loses connection

  • Supports T.38 Fax for creating Fax-over-IP

  • Supports a wide range of caller ID formats

  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning




SPECIFICATIONS:

Telephone Interfaces

Two (2) RJ11 FXS ports

Network Interfaces

One (1) 10/100Mbps auto-sensing ethernet ports (RJ45)

LED Indicators

POWER, INTERNET, PHONE1, PHONE2

Factory Reset Button

Yes

Telephony Features

Caller ID display or block, call waiting, flash, blind or attended transfer, forward,

hold, do not disturb, 3-way conference

Voice Codecs

G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B,

G.726-32, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation

Fax Over IP

T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax

Pass-through

Short/Long Haul Ring Load

2 REN: Up to 1km on 24 AWG

Caller ID

Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID


Dial Methods

DTMF, Pulse

Disconnect Methods

Busy Tone, Polarity Reversal/Wink, Loop Current

Network Protocols

TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP,

NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS,

SRTP, SNMP, TR-069, IMS/3GPP, IPoE

QoS

Layer 2 (802.1Q VLAN, SIP/RTP 802.1p), Layer 3 (ToS, DiffServ, MPLS)

DTMF Method

In-audio, RFC2833 and/or SIP INFO

Provisioning and Control

HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES

encryption, syslog

Media

SRTP

Control

TLS/SIPS/HTTPS

Management

Syslog support, SSH, remote management using web browser

Universal Power Supply

Input: 100-240VAC, 50-60Hz

Output: 5.0VDC/1.0A

Environmental

Operational: 32º – 104ºF or 0º – 40ºC

Storage: 14º – 140ºF or -10º – 60ºC

Humidity: 10 – 90% Non-condensing

Dimension and Weight

100mm x 100mm x 29.5mm, 114g (without package)

Compliance

FCC 15B, AS/NZS CISPR22, AS/NZS60950, EN55022, EN55024, EN60950, EN61000-3-

2, EN61000-3-3, UL (Power supply)

K.21




SKU: 77361
