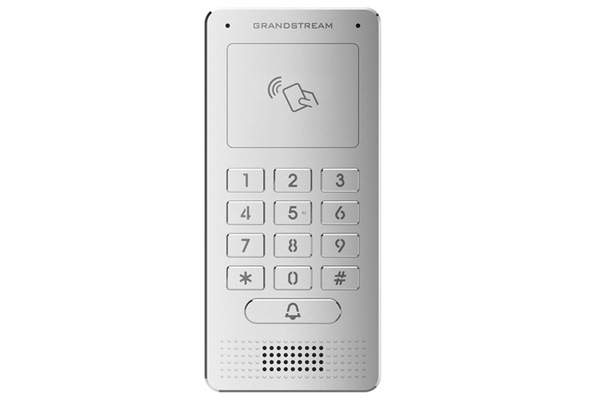

Grandstream GDS3705 HD IP Audio Door System
  • HD audio options
  • 1.5m of audio input
  • 3m of audio output
  • Built-in RFID chip reader
  • Keyless entry
  • Supports SIP calls to IP phones
  • Built with metal casing
  • Weatherproof
  • Vandal resistant
  • Integrated PoE
  • Built-in dual microphone
  • HD loudspeaker
  • Advanced AEC offers intercom functionality



  • Network - 10M/100M Auto-sensing
  • PoE - PoE IEEE 802.3af Class3
  • Supply Voltage - 12VDC /1A (AC power adapter not included)
  • SIP/VoIP - Support Yes, broad interoperability
  • Voice Codecs - G.711μ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC, ANC
  • Audio Input - Integrated dual microphones up to 1.5m
  • Audio Output - HD loudspeaker 2W, up to 3m
  • Built-in Key Pad - 12+1 Metal keys with Blue LED backlight
  • RFID - EM4100 (125kHz)
  • RFID Number Supported - Up to 2,000 recommended
  • Input - 2 Optocoupler Input, Vin < 15V, for door sensor or other low voltage devices
  • Output - 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage devices
  • Expansion Interface - RS485, Wiegand (26 bits) input and output
  • Waterproof Certification - IP66 (EN60529)
  • Vandal Resistance - IK09 (IEC62262)
  • Temperature Range - -30°C to 60°C
  • Mounting - Wall-Surface, In-Wall
  • Dimension (HxWxD) and Weight - In wall 217mm x 120mm x 11.6mm; On Wall 173mm x 80mm x 36mm 0.635Kg
  • Compliance - FCC: Part 15 subpart B;Part15C;MPE CE: EN55032 Class B; EN61000-3-2; EN61000-3-3; EN50130; EN300 330; EN301 489-1/-3; EN60950-1; EN62311 RCM: AS/NZS CISPR32;AS/NZS4268;AS/NZ60950 IC:ICES-003;RSS310


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 6947273702511
