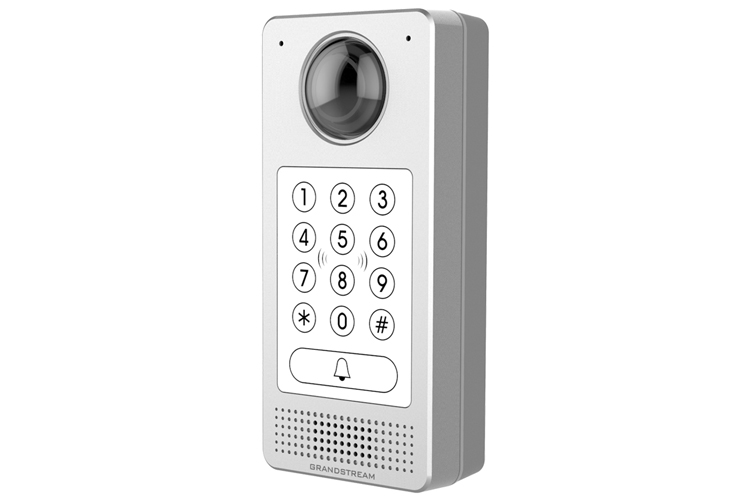

Grandstream GDS3710 1080p HD IP Video Door System

Image 1
Hurry! 1 items left!
$399

Collect 399 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout

Popular Products

Grandstream GDS3710 HD IP Video Door System
  • Powerful video resolutions up to 1080p
  • Built-in RFID chip reader
  • Keyless entry
  • SIP video streaming to NVRs
  • Video intercom stations
  • Built with metal casing
  • Weatherproof
  • Vandal resistant
  • Built-in hemispheric camera
  • 180-degree wall-to wall coverage
  • Supports motion detection
  • Integrated PoE
  • Built-in microphone & speaker
  • ONVIF Profile S compliant



  • Video Compression - H.264 High Profile / Main Profile / Base Profile, Motion JPEG
  • Image Sensor Resolution - 1/2.7”, 2 Megapixel, 1920H x 1080V
  • Lens Type - 1/2”, F2.5, FOV: 180°(W) x 150°(H)
  • Day & Night - White LEDs with smart brightness control
  • Max Video Resolution - 1920x1080
  • Max Frame Rate - 30 frames per second
  • Minimum Illumination - 0.5Lux
  • Wide Dynamic Range - Yes, up to 120db
  • Video Bit Rates - 128 Kbps to 4 Mbps, multi-rate for preview & recording
  • Embedded Analytics - Motion detection (up to 4 privacy masks)
  • Snapshots - Triggered upon events, sent via email and/or FTP
  • Multi-Stream Resolution - High-performance streaming server allowing multiple simultaneous access Primary video stream: 1920 x 1080 resolution for continuous full HD recording Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls Third video stream: 320 x 240 resolution for smartphone applications
  • Network Protocol - TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP/ RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
  • SIP/VoIP Support - Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
  • Voice Codecs - G.711µ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC
  • QoS - Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
  • Security - User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256- bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q
  • Upgrade/ Provisioning - Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 (Pending) or AES encrypted XML configuration file
  • Audio Input - Built-in microphone, up to 1.5m with AEC
  • Audio Output - Built-in HD loudspeaker (2 watts), sound quality suitable for up to 3 m
  • Button - 12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
  • RFID - 125KHz: EM4100 (1 RFID card and 1 RFID key fob included)
  • RFID Number Supported - Up to 2,000 recommended
  • Alarm Input - Yes, 2 Optocoupler, Vin < 15V, for door sensor or other low voltage devices
  • Alarm Output - Yes, 2 Relay, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage devices
  • Network Interface - 10M/100M auto-sensing
  • Expansion Interface - RS485, Wiegand (26 bits) input and output
  • Dimensions (H x W x D) and Weight - 173mm(H) x 80mm(W) x 36mm(D) 0.6Kg
  • Power Supply - PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)
  • Interoperability - ONVIF (Profile S)
  • Ingress Protection - Weather proof, vandal resistant, with support for extra back reinforcing metal plate
  • Temperature and Humidity - Operation: -30°C to 60°C (-22°F to 140°F), Storage: -35°C to 60°C (-31°F to 140°F), Humidity: 10% to 90% Non-condensing
  • Protection Class - IP66 (EN60529), IK09 (IEC62262)
  • Compliance - FCC: Part 15 subpart B Class B; Part 15 C; MPE CE: EN 55032 Class B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330; EN 301489; EN 62311 RCM: AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1 IC: ICES-003; RSS310


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 6947273702177
