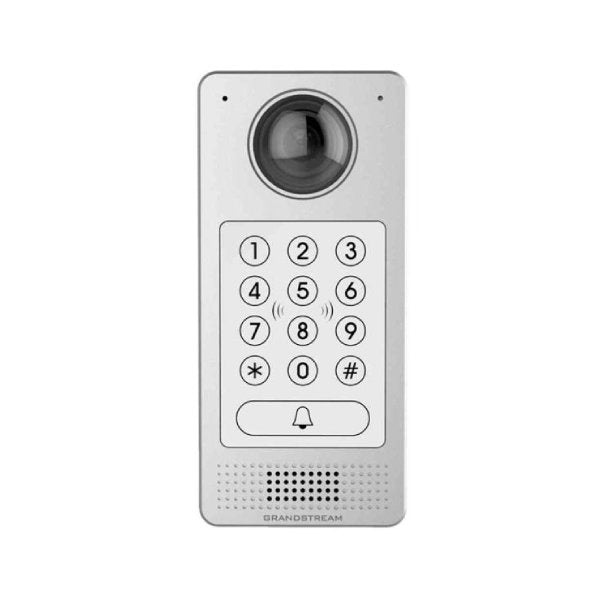

GRANDSTREAM GDS3710 FHD KEYLESS VIDEO IP DOOR SYSTEM

The GDS3710 is an IP Video Door System that also serves as a hi gh-definition IP surveillance camera and VoIP intercom to offer facility access control and security monitoring for buildings of all sizes.

This powerful IP Video Door System offers a 180-degree video viewing angle for wall-to-wall coverage, has a built-in RFID chip reader for secure keyless entry, includes a built-in microphone and speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices.

The GDS3710 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance in all lighting conditions. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones, SIP endpoints and the GDS management software.

The GDS3710 is equipped with integrated PoE for seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and more. The combination of the GDS3710, Grandstream’s GXP21xx IP phones, GXV video phones, GS-Wave mobile app, and GVR350x NVR products provide a complete solution for access control, video intercom, and security recording needs.

FEATURES

Powerful video resolutions up to 1080p

Built-in RFID chip reader for keyless entry

SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously

Built with a metal casing to make it weatherproof and vandal resistant

Built-in hemispheric camera allows for 180-degree wall-to wall coverage

Supports motion detection

Integrated PoE to power the device and provide a network connection

Built-in microphone and speaker offers voice options and intercom functionality

SPECIFICATIONS

Manufacturer's Product Code: GDS3710

Video Compression: H.264 High Profile / Main Profile / Base Profile, Motion JPEG

Image Sensor Resolution: 1/2.7”, 2 Megapixel, 1920H x 1080V

Field Angle (FOV): 1/2”, F2.5, FOV: 180°(W) x 150°(H)

Multi-Stream Resolution: High-performance streaming server allowing multiple simultaneous access; Primary video stream: 1920 x 1080 resolution for continuous full

HD recording; Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls;

Third video stream: 320 x 240 resolution for smartphone applications

Illumination: 0.5Lux

Supported Maximum Video Resolution and Frame Rate: 1920x1080, 30 frames per second

Video Bit Rate: 32 Kbps to 8 Mbps, multi-rate for preview & recording

Audio Input & Output: Built-in microphone, up to 1.5m with AEC; Built-in HD loudspeaker, sound quality suitable for up to 3 m

Alarm Input & Output: Yes, 2 channels, Vin < 15V, for door sensor or other devices; 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other devices

Snapshots: Triggered upon events, sent via email and/or FTP

Wide Dynamic Range (WDR) Support: Yes, up to 120db

Network Interface: 10M/100M auto-sensing 802.3af PoE

Buttons: 12-key touchpad plus a capacitive doorbell button, each with individual LED illumination

RFID: 125KHz: EM4100 (1 RFID card and 1 RFID key fob included), supports up to 1000 key fobs - max 500 recommended for optimal performance

SIP/VoIP Support: Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms

Dimensions: 173mm(H) x 80mm(W) x 36mm(D)

PACKAGE CONTENTS

1 x Grandstream Gds3710 Fhd Keyless Video Ip Door System
