Grandstream GWN7062 (AX1800) Dual-Band WiFi 6 Router 1GbE x5 / USB 3.0 x1
Grandstream GWN7062 Enterprise Dual-WAN Long Range Wi-Fi 6 (802.11ax) Gigabit VPN Router. The GWN7062 is a secure dual-band router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices, and remote workers, the GWN7062 provides dual-band 2×2 MU-MIMO with DL/UL OFDMA technology and supports wireless Mesh networking and wired AP connections. It features a powerful 64-bit 1.2GHz quad-core processor to provide Wi-Fi speeds up to 1.77 Gbps with up to 256 wireless devices, allowing the GWN7062 to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more.
It supports VPN to allow remote employees to securely connect to the corporate network from home or branch offices. The GWN7062 also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. To ensure easy installation and management, the GWN7062 includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. By combining accelerated Wi-Fi speeds, mesh networking, and wired AP connections with advanced features including VPN, beamforming technology, and intelligent QoS, the GWN7062 is the ideal router for a growing home network.
- Dual-band 2×2 MU-MIMO with DL/UL OFDMA technology
- 64-bit 1.2GHz quad-core processor
- Qualcomm Wi-Fi Chipset
- Provides Wi-Fi speeds up to 1.77 Gbps to support up to 256 wireless devices
- Up to 32 total SSIDs, 16 per radio
- 1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports; 1x USB 3.0 port, 1x Reset button, 1x Sync button
- Embedded controller can manage itself and up to 50 Grandstream GWN Series APs
- Supports Mesh networks with Grandstream access points to provide network expansion
- Built-in VPN support
- Secure cloud provisioning through GWN.Cloud
Wi-Fi 6 for SMBs and Homes
The GWN7062 provides a blazing fast Wi-Fi network for up to 256 concurrent clients, supported by a 64-bit 1.2GHz quad-core processor.
VPN, Wi-Fi, and Mesh Networks
Build wired, Wi-Fi, VPN, and mesh networks with the GWN7062. This allows the device to provide flexibility and reliability.
High-Performance Business & Home Networks
The GWN7062 was designed to power smart offices, home automation, 4K Ultra HD streaming, web meetings, video conferences, online gaming, and more.
Free, Centralized Cloud Management
Deploy and manage the GWN7062, and all Grandstream solutions, centrally from the cloud using the free Grandstream Device Management System (GDMS).
Manufacturer's Code
GWN7062
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
4 individual internal antennas, 2 per band, 2.4GHz: maximum gain 4.5dBi, 5 GHz: maximum gain 5dBi
Frequency Bands
2.4GHz radio: 2400 – 2483.5 MHz, (2412-2472MHz are channel central frequency range; 2400-2483.5MHz is Frequency band), 5GHz radio: 5150 - 5850 MHz
Channel Bandwidth
2.4G: 20 and 40 MHz, 5G: 20, 40 and 80 MHz
Wi-Fi and System Security
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control, lockdown via digital signatures, unique security certificate and random default password per device MIMO2×2:2 2.4GHz 2×2:2 5GHz
Coverage Range
Up to 175 meters
Maximum TX Power
5GHz: 26dBm 2.4GHz: 27dBm
Maximum Receiver Sensitivity
2.4GHz: -97dBm, 5GHz: -93dBm
Memory and NAT Sessions
512MB RAM, 120K NAT sessions
NAT Routing & IPSec VPN Performance
2 Gbps NAT routing and 850Mbps IPSec VPN performance
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Wireless Clients
Up to 256 wireless clients

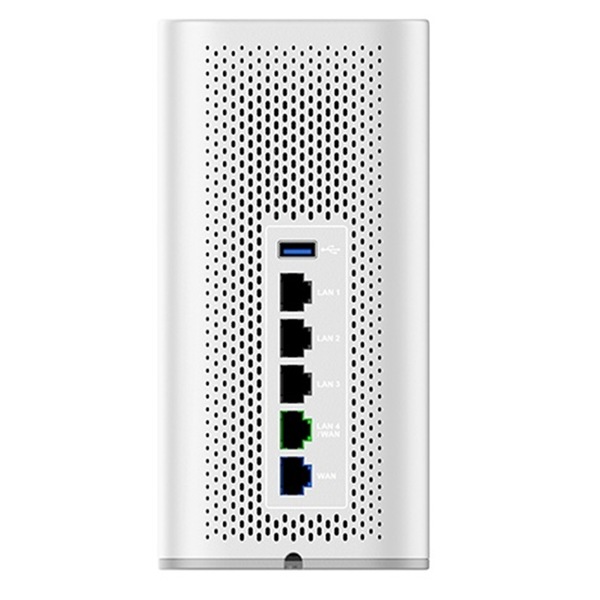

Network Interfaces
1x Gigabit Ethernet WAN port, 1x Gigabit Ethernet port (WAN/LAN configurable), and 3x Gigabit Ethernet LAN ports

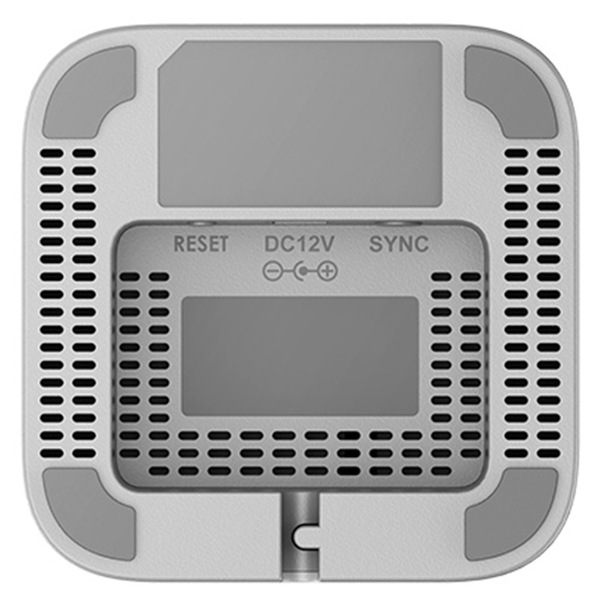

Auxiliary Ports
1x USB 3.0 port, 1x Reset button, 1x SYNC button
Mounting
Desktop

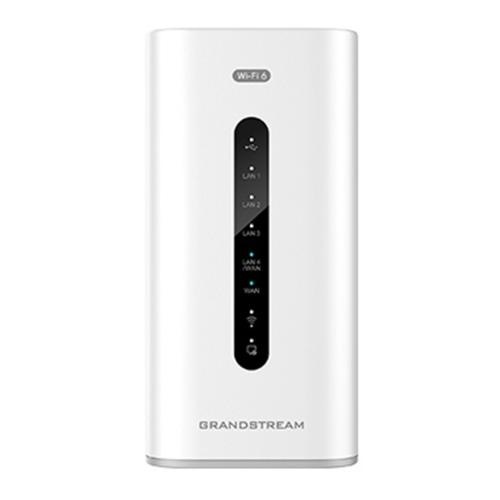

LEDs
1 tri-color LED and 7 single-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Firewall
DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
VPN
Client: L2TP, PPTP, IPSec, OpenVPN, Server: IPSec, OpenVPN
Network Management
GWN7062 embedded controller can manage it self and up to 50 GWN Aps, GWN.Cloud offers a free cloud management platform for unlimited GWN7062 routers and GWN APs (coming soon)
Power and Green Energy Efficiency
Universal power adaptor included, Input 100-240VAC 50-60Hz Output: 12VDC 1.5A (18W)
Environmental
Operation: 0°Cto 50°C, Storage: -30°C to 60°C, Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 95mm(L)x95mm(W)x193mm(H); Unit Weight: 690g
Compliance
FCC, CE, RCM, IC, UKCA
- MPN: GWN7062
