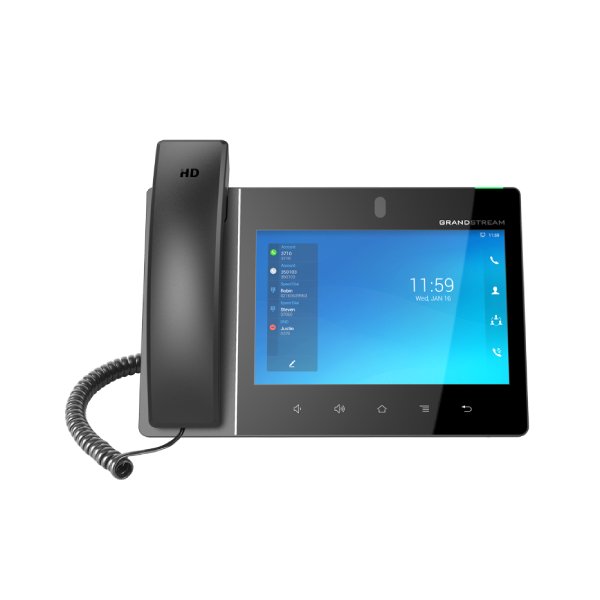

GRANDSTREAM GXV3480 8INCH SMART TOUCHSCREEN ANDROID VIDEO PHONE

The Grandstream GXV3480 IP Video Phone for Android combines a 16-line IP video phone with a multi-platform video conferencing solution and the functionality of an Android tablet to offer an all-in-one communications solution. The phone features a 8” 1280x800 capacitive touch screen IPS LCD, 2 Mega pixel camera, dual microphone, dual Gigabit ports with PoE/PoE+, HD audio and HD video, integrated Wi-Fi 6 (802.11 a/b/g/n/ac/ax) & Bluetooth 5.0, rich peripheral interfaces.

It also runs on Android 11 and offers instant access to hundreds of thousands of Android apps. By combining a state-of-the-art IP video phone, an advanced video conferencing solution, and the functionality of an Android tablet, the GXV3480 offers business throughout the world a powerful desktop communication and productivity solution.

FEATURES

16 Lines with up to 16 SIP accounts

Built-in 2 megapixel camera for video calling with privacy shutter

Runs on the Android 11 operating system

Bluetooth 5.0 for syncing with mobile devices and connecting Bluetooth headsets

Integrated dual-band Wi-Fi 6 (2.4GHz & 5GHz)

Dual-mic HD speakerphone with advanced echo cancellation & excellent double-talk performance for any scenario

64-bit quad-core processor, 4GB RAM, and 16GB Flash

8’’ (1280x800) capacitive 10-point touch screen IPS LCD

Peripherals include HDMI-in/out, USB Type-C, 3.5mm headset jack, EHS (Plantronics headsets)

12-way HD audio conferencing & 3-way 1080p 30fps HD video capability

SPECIFICATIONS

Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces: Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+

Graphic Display: 8" 1280x800 capacitive touch screen (10 points) IPS LCD

Camera: Tiltable 2 megapixel CMOS camera with privacy shutter, 1080p 30fps

Bluetooth: Yes, integrated Bluetooth 5.0

Wi-Fi: Yes, dual-band (2.4GHz & 5GHz) with 802.11ac a/b/g/n/ac/ax 2T2R, Wi-Fi Display & Airplay

Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 Port (Type-C), HDMI-out, HDMI-in

Feature Keys: 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK

Voice Codecs and Capabilities: Wide-band Opus, wide-band G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video Codecs and Capabilities: H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bit rate up to 4Mbps, 3-way video conference (1080p@30fps), BFCP, people video(up to 1080p@30fps) + content video(up to 1080p@15fps), anti-flickering, and auto exposure

Telephony Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 12-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, XML customization of screen, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over

Sample Applications: Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc. Support third-party Android apps, API/SDK available for advanced custom application development

Android: Runs Android 11

Applications Deployment: Supports Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control

HD Audio: Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

Base Stand: Integrated stand with multiple adjustable angles

QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support

Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency: Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W), Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 (USB enabled only when power supply or PoE+ is used)

PACKAGE CONTENTS

1 x Grandstream Gxv3480 8Inch Smart Touchscreen Android Video Phone
1 x Handset with cord
1 x 12V Power Supply
1 x Desk Stand
1 x Network cable
1 x Screen cleaning cloth
1 x Quick installation guide
1 x Brochure
1 x GPL license
