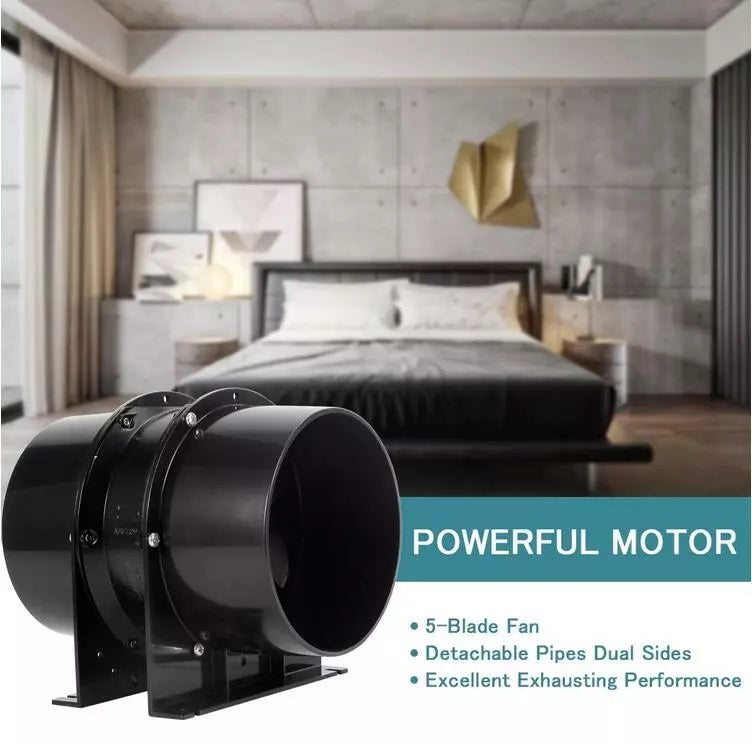

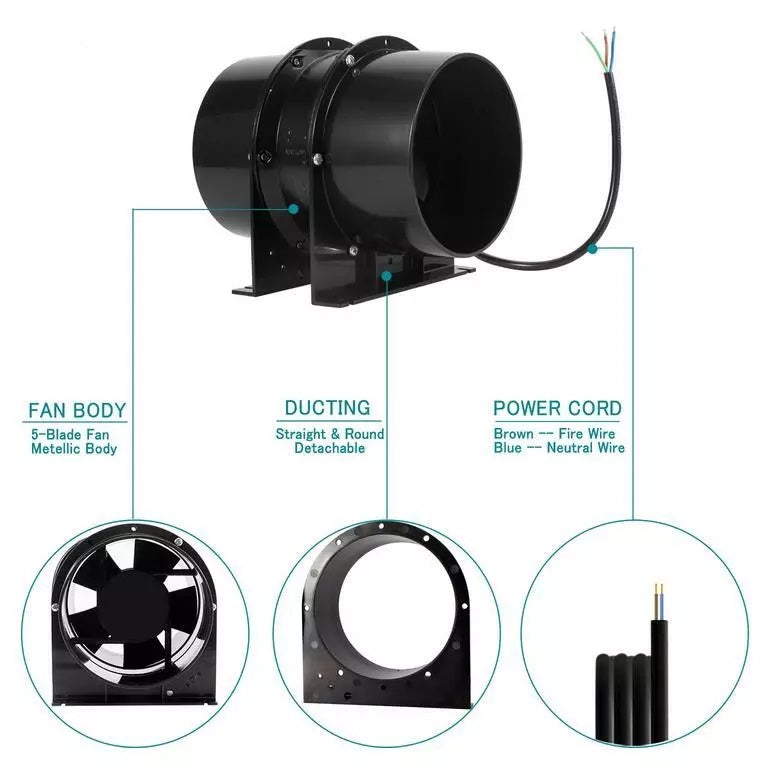

Silent Axial Fan Description

This Silent Axial Fan changed the traditional method of airflow transportation. It is suitable for greenhouse, growing tent (hydroponics), hospital rooms, commercial cooling, household and horticulture ventilation applications for air clean and temperature control.

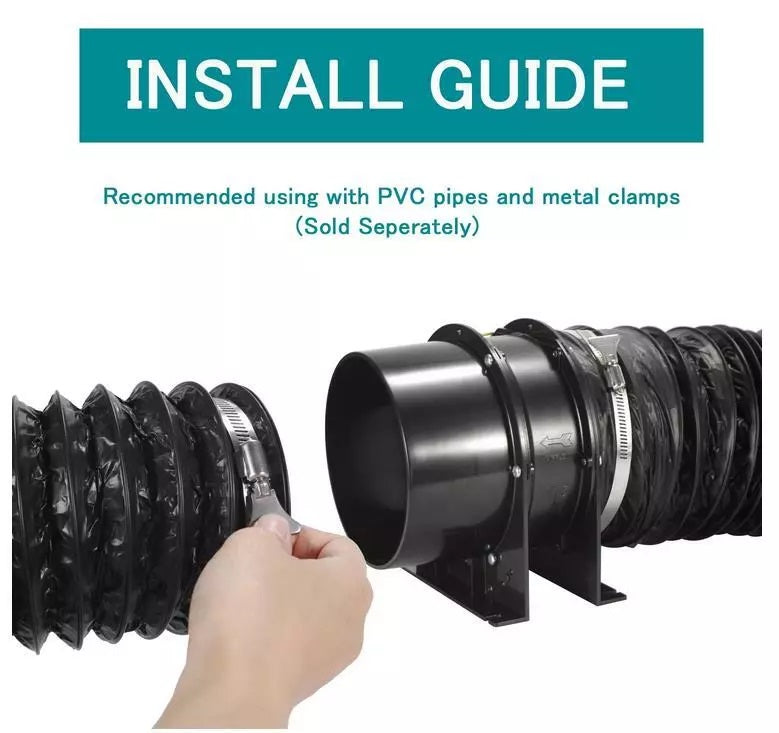

Direction of air in the fan is the same as air in the tube. Duct fan is installed into tube at the same axis, which is easy to install, and saving space, easy for maintenance. No need fan room.

Light and small volume, running smoothly, lower noise, high air volumes, significant static pressure capability, higher pressure.

Silent Axial Fan Features

• QUALITY MATERIAL: Galvanized aluminum alloy housing to resist atmospheric corrosion from humidity. The motor features a permanently lubricated ball bearing that operates quietly and requires no maintenance.
• EXHAUST AND INTAKE AIR: Making fresh air to rooms in a quick and reasonably quiet way, circulate fresh air, control humidity, excess heat, smell and air quality in grow area.
• FAN VENTILATION SPECS: Voltage 220-240V, Power 35 W, Airflow 323m³/h, Speed 2500 RPM. For indoor use only in environment with max temperatures not exceeding 70℃/158℉.
• MULTI-ENVIRONMENT: A suit for grow tents, green rooms, hydroponics, basements, attics, hospital rooms, commercial cooling, and industrial applications.

Silent Axial Fan Specification

• Flange: 6"/150mm Diam.
• Voltage: 220-240V
• Power: 36W
• Frequency: 50(Hz)
• Air flow: 323m³/h
• Noise: 45db
• Speed: 2500 RPM
• Current: 0.26Amps
• Housing: Aluminum + ABS, Ball bearing.
• Blade Material: Plastic
• Insulation class: F
• Protection class: IP44
• Operating temperature range: -20℃~70℃

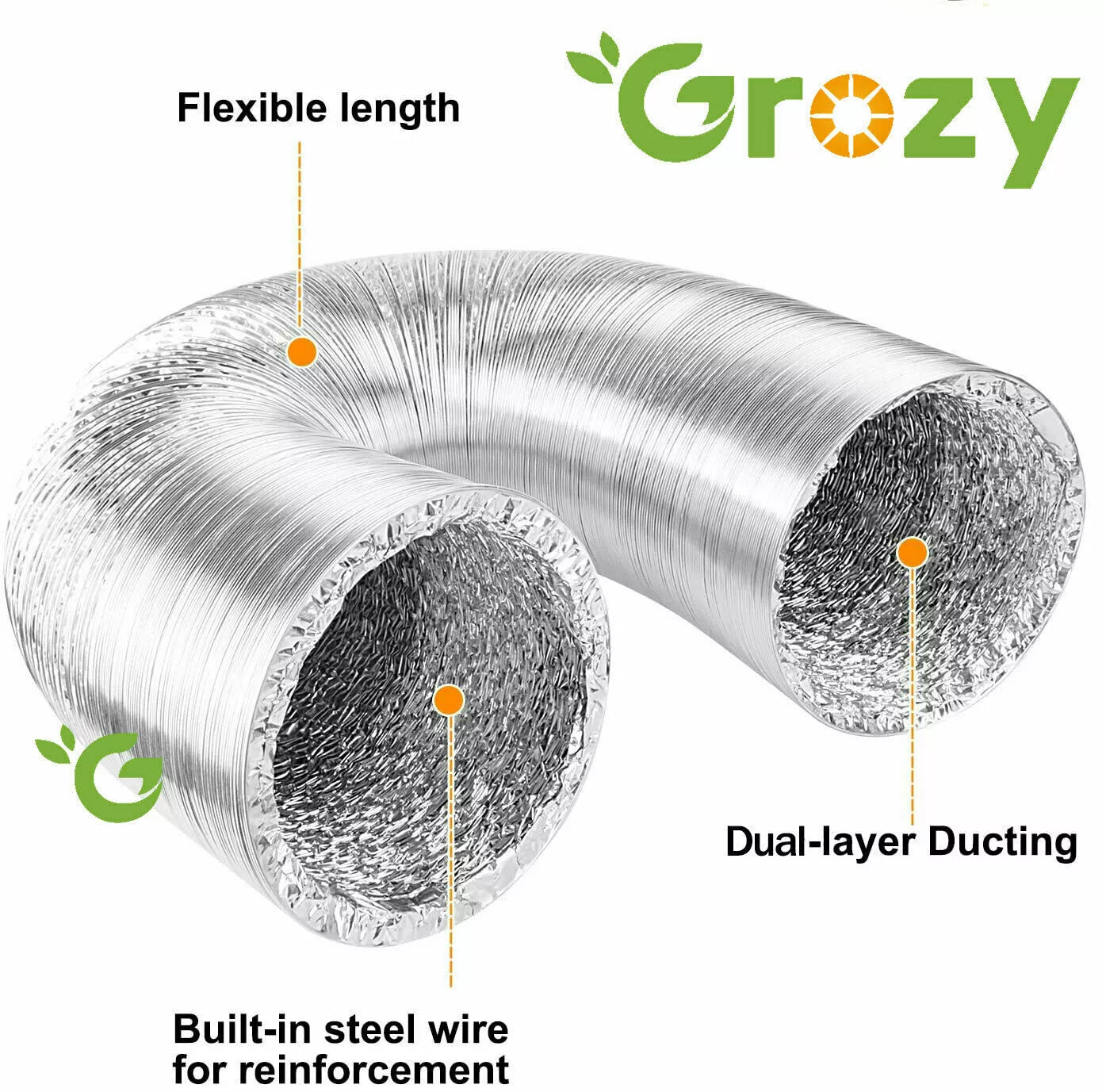

Ducting Features

• Ducting Material: High-quality Aluminum (High-Temperature Resistant & Corrosion Resistant & Long Lasting).
• Dual-layer thickness (Aluminum Foil + PET): Flame-retardant coating; Fire-resistant material.
• Temperature ranges from -30 to 250 degrees Celsius.

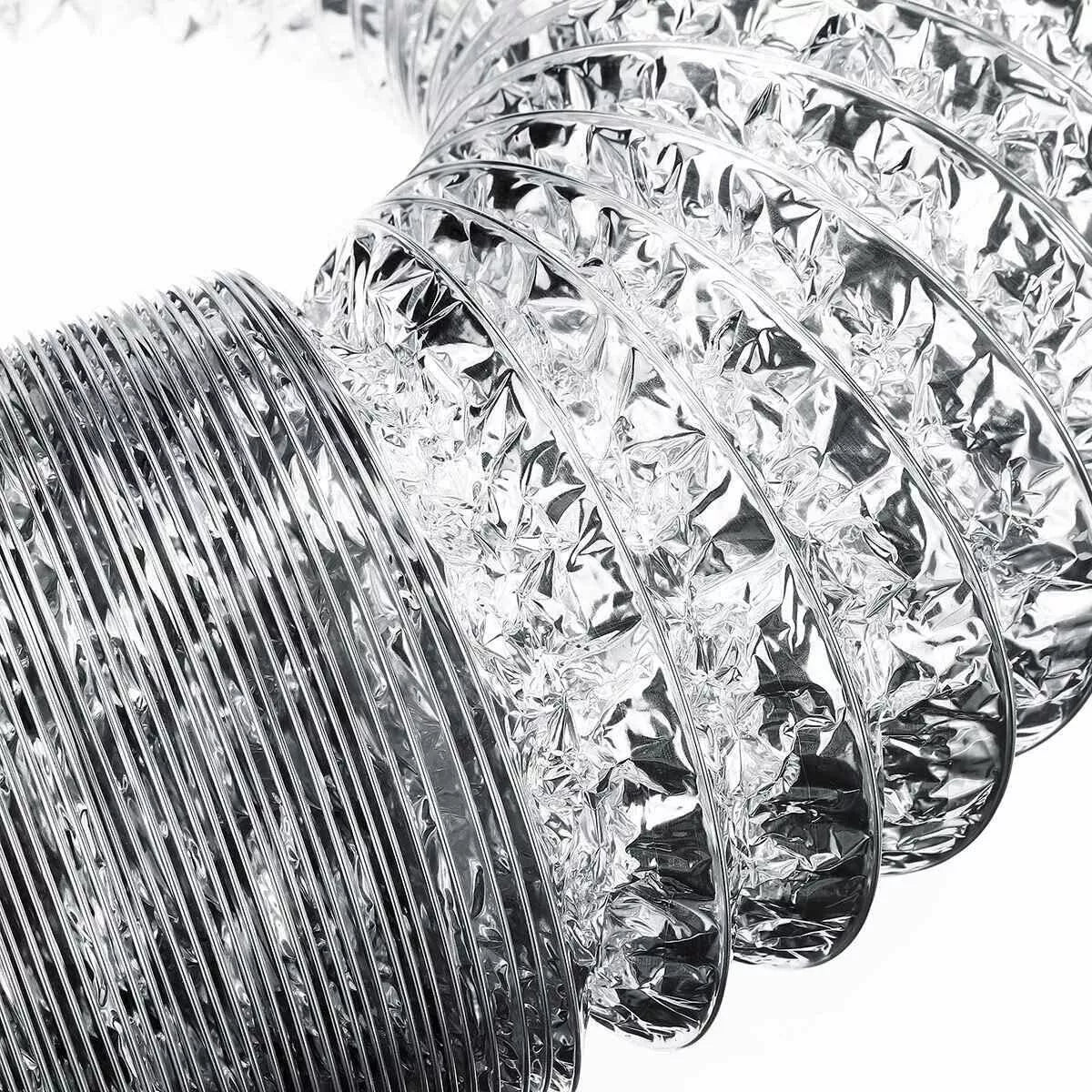

• Built-in high tensile steel spiral-wire reinforced structure for durability
• Flexible length for exhaust fan blower / inline fan;

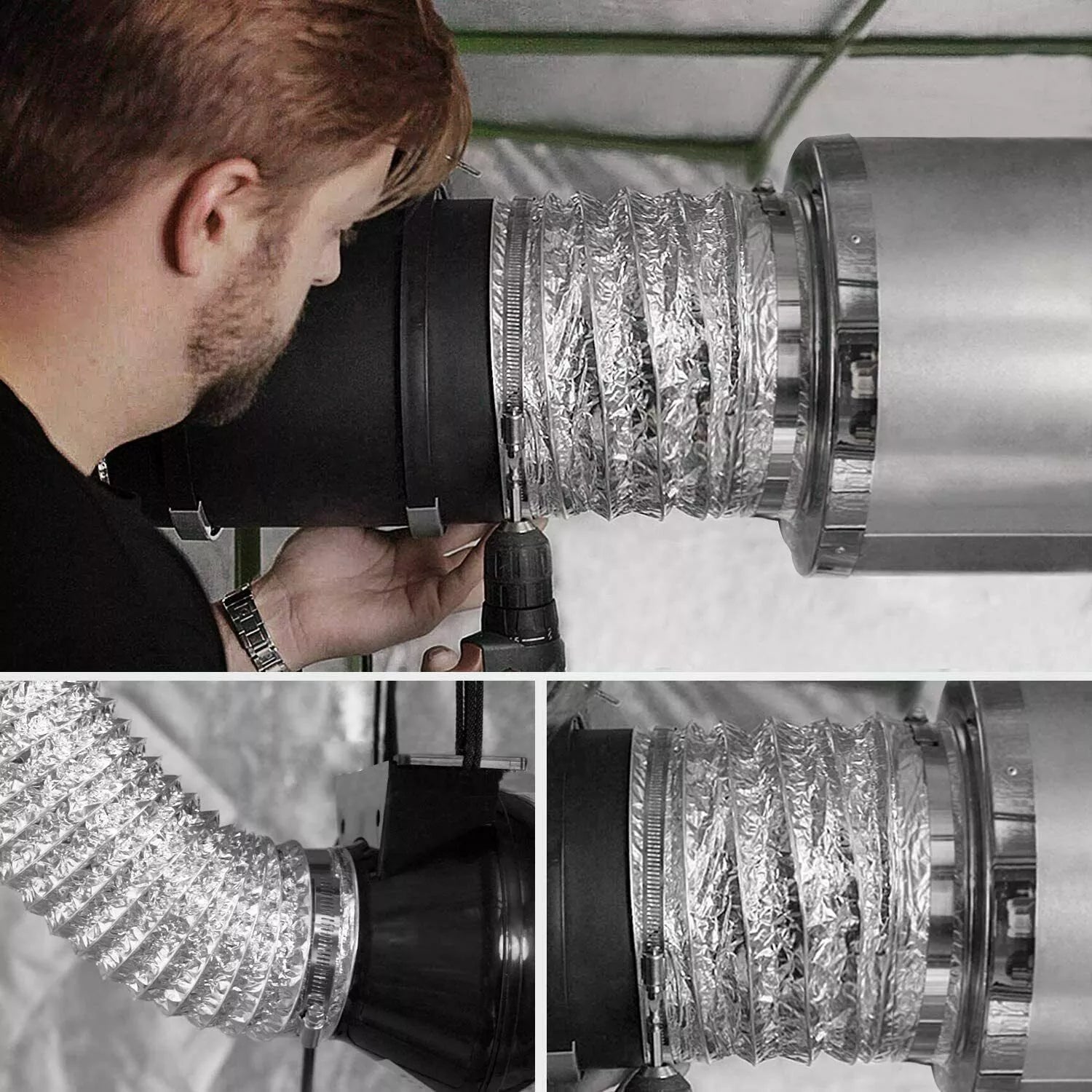

• Quick and easy to install
• Application Scenarios: It can be used in conjunction with mechanical ventilation, air conditioning systems, extractor fans, cooker hoods, etc.

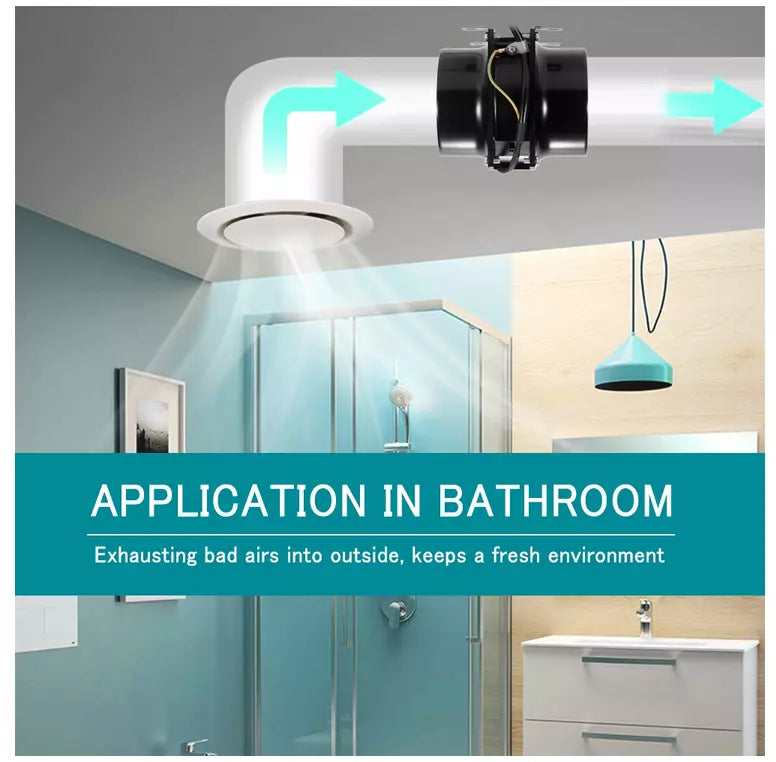

• Ideal for heating, ventilation, and air conditioning (HVAC), bath and general ventilating applications

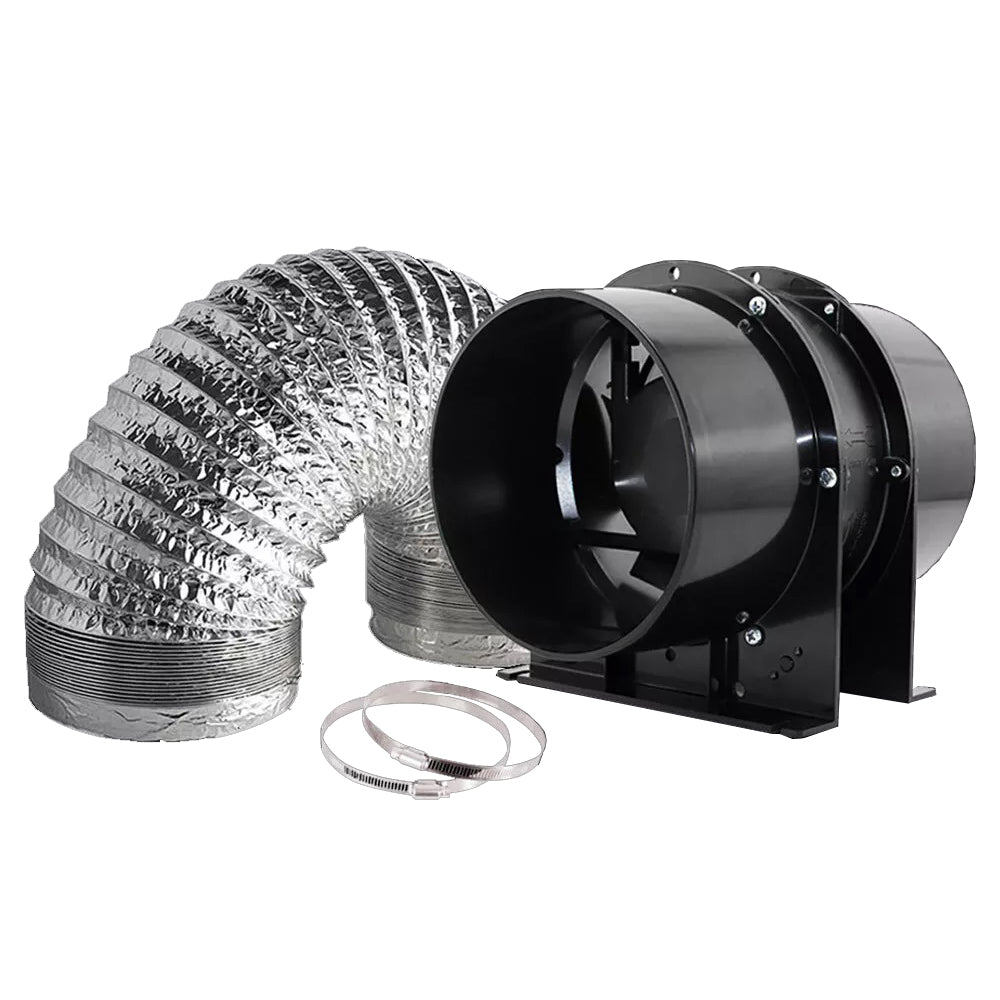

Package Included

1 x  6"/150mm Inline Axial Fan

1 x  6"/150mm Aluminum Ducting 5M

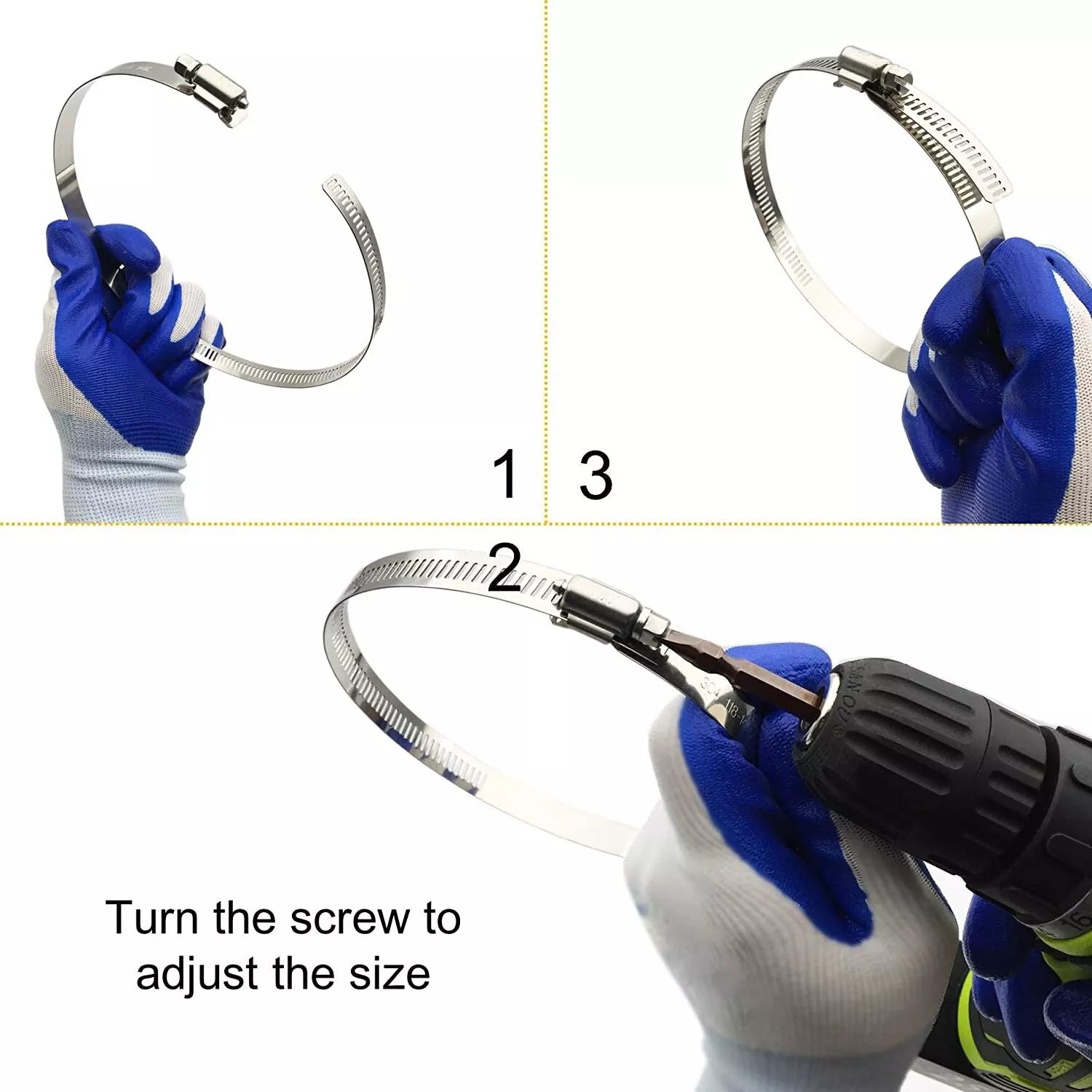

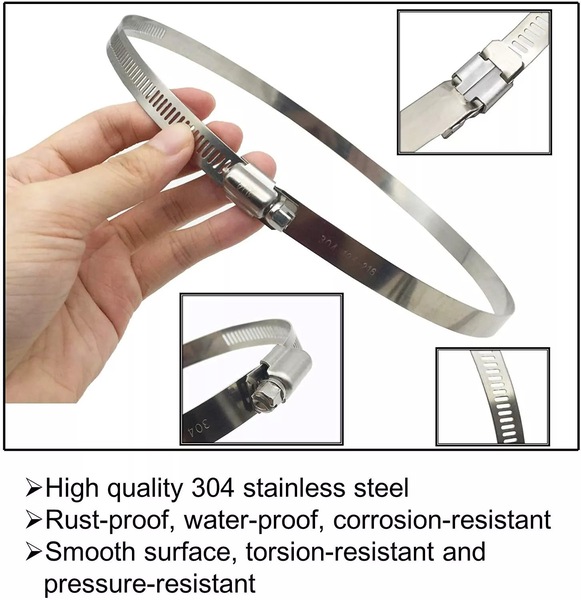

2 x  6"/150mm Steel Hose Clamps
