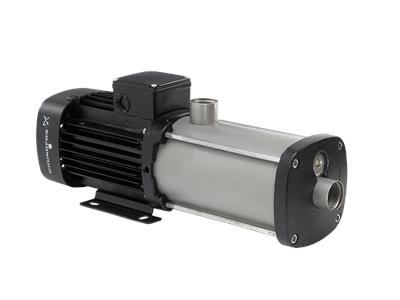

CM is a compact horizontal multistage centrifugal pump, close-coupled with a:
3-phase, 220-240D/380-415Y V, 50 Hz. Foot mounted motor. The pump is with axial suction port and radial discharge port including a special designed mechanical shaft seal in the solution AQQV. Shaft, impellers, chambers and filling plugs are made of stainless steel. Suction and discharge are made of Stainless steel.
The CM can also operate as a CME by connecting the motor to a CUE. Please find more information in the CUE part of Win/WebCAPS.
Â
| Controls: | ||
| Frequency converter: | Â Â | None |
| Liquid: | ||
| Pumped liquid: | Â Â | Water |
| Liquid temperature range: |   | -20 .. 90 °C |
| Selected liquid temperature: |   | 20 °C |
| Density: |   | 998.2 kg/m³ |
| Technical: | ||
| Pump speed on which pump data are based: | Â Â | 2900 rpm |
| Rated flow: |   | 10 m³/h |
| Rated head: | Â Â | 38.03 m |
| Primary shaft seal: | Â Â | AQQV |
| Code for shaft seal: | Â Â | AQQV |
| Approvals: | Â Â | CE,EAC,UKCA |
| Approvals for drinking water: | Â Â | WRAS,ACS,NSF61,UBA |
| Curve tolerance: | Â Â | ISO9906:2012 3B |
| Materials: | ||
| Pump housing: | Â Â | Stainless steel |
| Â | Â Â | EN 1.4401 |
| Â | Â Â | AISI 316 |
| Impeller: | Â Â | Stainless steel |
| Â | Â Â | EN 1.4401 |
| Â | Â Â | AISI 316 |
| Installation: | ||
| Range of ambient temperature: |   | -20 .. 55 °C |
| Maximum operating pressure: | Â Â | 16 bar |
| Max pressure at stated temp: |   | 16 bar / 90 °C |
| Type of connection: | Â Â | Rp |
| Size of inlet connection: | Â Â | 1 1/2 inch |
| Size of outlet connection: | Â Â | 1 1/2 inch |
| Outlet position: | Â Â | 12 |
| Electrical data: | ||
| Motor standard: | Â Â | IEC |
| Frame size: | Â Â | 90LE |
| IE efficiency class: | Â Â | IE3 |
| Rated power - P2: | Â Â | 2.2 kW |
| Mains frequency: | Â Â | 50 Hz |
| Suitable for 50/60 Hz (Yes/No): | Â Â | N |
| Rated voltage: | Â Â | 3 x 220-240D/380-415Y V |
| Service factor: | Â Â | 1.00 |
| Rated current: | Â Â | 8.00/4.60 A |
| Starting current: | Â Â | 840-920 % |
| Rated speed: | Â Â | 2890-2910 rpm |
| Enclosure class (IEC 34-5): | Â Â | IP55 |
| Insulation class (IEC 85): | Â Â | F |
| Ex-protection standard: | Â Â | NONE |
| Cable included (Yes/No): | Â Â | N |
| Others: | ||
| Terminal box position: | Â Â | 12 |
| Minimum efficiency index, MEI ?: | Â Â | 0.52 |
| Net weight: | Â Â | 29.4 kg |
| Gross weight: | Â Â | 32 kg |
| Country of origin: | Â Â | TW |
