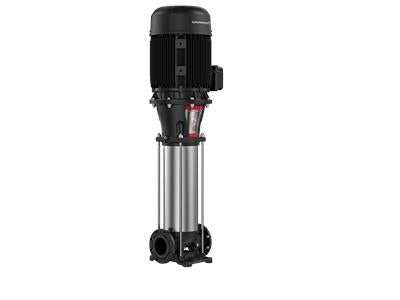

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | -20 .. 120 °C | |
| Selected liquid temperature: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Pump speed on which pump data are based: | 2951 rpm | |
| Rated flow: | 155 m³/h | |
| Rated head: | 19.1 m | |
| Pump orientation: | Vertical | |
| Shaft seal arrangement: | Single | |
| Primary shaft seal: | HQQE | |
| Code for shaft seal: | HQQE | |
| Approvals: | CE,EAC,UKCA,SEPRO | |
| Approvals for drinking water: | ACS | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Base: | Ductile cast iron | |
| EN 1563 EN-GJS-500-7 | ||
| ASTM A536-84 65-45-12 | ||
| Impeller: | Stainless steel | |
| EN 1.4301 | ||
| AISI 304 | ||
| Bearing: | WC/WC | |
| Support bearing: | Graflon | |
| Material certified according to: | European standards | |
| Installation: | ||
| Maximum ambient temperature: | 60 °C | |
| Maximum operating pressure: | 16 bar | |
| Max pressure at stated temp: | 16 bar / 120 °C | |
| Type of connection: | DIN | |
| Size of inlet connection: | DN 150 | |
| Size of outlet connection: | DN 150 | |
| Pressure rating for connection: | PN 16 | |
| Flange size for motor: | FF300 | |
| Electrical data: | ||
| Motor standard: | IEC | |
| Motor type: | 160MB | |
| Rated power - P2: | 11 kW | |
| Power (P2) required by pump: | 11 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-415D/660-690Y V | |
| Rated current: | 20,8-19,8/12,0-11,8 A | |
| Starting current: | 660-780 % | |
| Cos phi - power factor: | 0.88-0.84 | |
| Rated speed: | 2940-2950 rpm | |
| IE Efficiency class: | IE3 | |
| Motor efficiency at full load: | 91.2 % | |
| Motor efficiency at 3/4 load: | 91.8 % | |
| Motor efficiency at 1/2 load: | 91.3-91.2 % | |
| Number of poles: | 2 | |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting | |
| Insulation class (IEC 85): | F | |
| Motor No: | 85U17524 | |
| Controls: | ||
| Frequency converter: | None | |
| Others: | ||
| Terminal box position: | 6 | |
| Minimum efficiency index, MEI ?: | 0.70 | |
| Net weight: | 229 kg | |
| Gross weight: | 293 kg | |
| Shipping volume: | 1.14 m³ | |
| Danish VVS No.: | 386032011 | |
| Thrust handling device (Yes/No): | N | |
| Country of origin: | DK | |
| Custom tariff no.: | 8413709062 |
