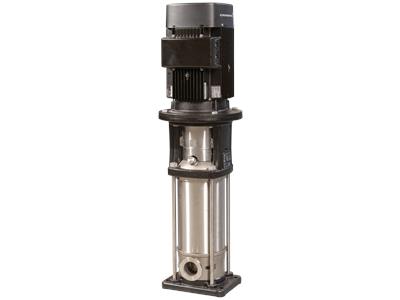

Grundfos CRI5: 3 X 220-240D/380-415Yv Vertical Multistage Pumps In 304 Stainless Steel

From$1742.40

Collect 1742 Everyday Rewards points

Log in to MyDeal to link your card

$15.00 Australia-wide (per-item)

Sold & shipped by Sprinklerpros

Secure ways to pay at checkout

Ambient temperature: 0°C to +40°C
Liquid temperature: -20°C to +120°C max.
Connections (CA): Flexi-clamp to oval connections (requires 2 x RP 1 1/4 threaded adaptor P/N 96449747)
Maximum operating pressure (CA): 16 bar (with threaded adaptor)
Connections (FGJ): DIN DN25/DN32 – Compatible with DIN/ANSI/JIS slotted flanges
Maximum operating pressure (FGJ): 25 bar
Shaft seal: HQQE - Cartridge seal / Silicon carbide / Silicon carbide / EPDM (others on request)
Enclosure class: IP 55
Motor efficiency: Three-phase motors 0.75 kW and above are IE3-compliant
Supply frequency: 50 Hz
For variable frequency operation, Grundfos motor types MG71 and MG80, up to 1.1kW/2 pole connected 3 x 380- 415YV, must be fitted with a sine wave filter. Alternative motor variant is available on request.

Estimated Delivery Time Frame:7-14 business days

Reference ID: 14906289
