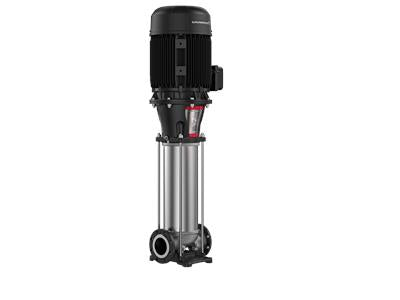

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Â
| Liquid: | ||
| Pumped liquid: | Â Â | Water |
| Liquid temperature range: |   | -20 .. 90 °C |
| Selected liquid temperature: |   | 20 °C |
| Density: |   | 998.2 kg/m³ |
| Technical: | ||
| Pump speed on which pump data are based: | Â Â | 2973 rpm |
| Rated flow: |   | 255 m³/h |
| Rated head: | Â Â | 28.9 m |
| Pump orientation: | Â Â | Vertical |
| Shaft seal arrangement: | Â Â | Single |
| Primary shaft seal: | Â Â | HQQV |
| Code for shaft seal: | Â Â | HQQV |
| Approvals: | Â Â | CE,UKCA,SEPRO |
| Approvals for drinking water: | Â Â | ACS |
| Curve tolerance: | Â Â | ISO9906:2012 3B |
| Materials: | ||
| Base: | Â Â | Stainless steel |
| Â | Â Â | EN 1.4408 |
| Â | Â Â | ASTM A351 CF8M |
| Impeller: | Â Â | Stainless steel |
| Â | Â Â | EN 1.4401 |
| Â | Â Â | AISI 316 |
| Bearing: | Â Â | WC/WC |
| Support bearing: | Â Â | Graflon |
| Material certified according to: | Â Â | European standards |
| Installation: | ||
| Maximum ambient temperature: |   | 40 °C |
| Maximum operating pressure: | Â Â | 16 bar |
| Max pressure at stated temp: |   | 16 bar / 90 °C |
| Type of connection: | Â Â | DIN |
| Size of inlet connection: | Â Â | DN 200 |
| Size of outlet connection: | Â Â | DN 200 |
| Pressure rating for connection: | Â Â | PN 16 |
| Flange size for motor: | Â Â | FF350 |
| Electrical data: | ||
| Motor standard: | Â Â | IEC |
| Motor type: | Â Â | 200L |
| Rated power - P2: | Â Â | 30 kW |
| Power (P2) required by pump: | Â Â | 30 kW |
| Mains frequency: | Â Â | 50 Hz |
| Rated voltage: | Â Â | 3 x 380-420D/660Y V |
| Rated current: | Â Â | 54,28-49,1/31,3 A |
| Starting current: | Â Â | 729 % |
| Cos phi - power factor: | Â Â | 0.90 |
| Rated speed: | Â Â | 2950 rpm |
| IE efficiency: | Â Â | IE3 93,3% |
| IE Efficiency class: | Â Â | IE3 |
| Motor efficiency at full load: | Â Â | 93.3 % |
| Motor efficiency at 3/4 load: | Â Â | 93.5 % |
| Motor efficiency at 1/2 load: | Â Â | 92.5 % |
| Number of poles: | Â Â | 2 |
| Enclosure class (IEC 34-5): | Â Â | 55 (Protect. water jets/dust) |
| Insulation class (IEC 85): | Â Â | F |
| Motor No: | Â Â | 99490088 |
| Controls: | ||
| Frequency converter: | Â Â | None |
| Others: | ||
| Terminal box position: | Â Â | 6 |
| Minimum efficiency index, MEI ?: | Â Â | 0.70 |
| Net weight: | Â Â | 485 kg |
| Gross weight: | Â Â | 632 kg |
| Shipping volume: |   | 2.04 m³ |
| Thrust handling device (Yes/No): | Â Â | N |
| Country of origin: | Â Â | SG |
| Custom tariff no.: | Â Â | 8413709062 |
