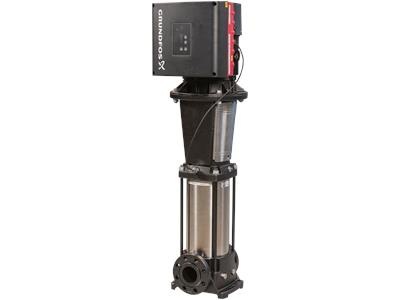

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | -20 .. 90 °C | |
| Selected liquid temperature: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Pump speed on which pump data are based: | 3555 rpm | |
| Rated flow: | 114 m³/h | |
| Rated head: | 23.6 m | |
| Pump orientation: | Vertical | |
| Shaft seal arrangement: | Single | |
| Primary shaft seal: | HQQV | |
| Code for shaft seal: | HQQV | |
| Approvals: | CE,UKCA,SEPRO | |
| Approvals for drinking water: | ACS,WRAS | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Base: | Stainless steel | |
| EN 1.4408 | ||
| ASTM A351 CF8M | ||
| Impeller: | Stainless steel | |
| EN 1.4401 | ||
| AISI 316 | ||
| Bearing: | WC/WC | |
| Support bearing: | Graflon | |
| Material certified according to: | European standards | |
| Installation: | ||
| Maximum ambient temperature: | 50 °C | |
| Maximum operating pressure: | 16 bar | |
| Max pressure at stated temp: | 16 bar / 90 °C | |
| Type of connection: | DIN | |
| Size of inlet connection: | DN 100 | |
| Size of outlet connection: | DN 100 | |
| Pressure rating for connection: | PN 16 | |
| Flange size for motor: | FF300 | |
| Electrical data: | ||
| Motor standard: | IEC | |
| Motor type: | 160MH | |
| Rated power - P2: | 11 kW | |
| Power (P2) required by pump: | 11 kW | |
| Over/undersize motor: | Standard motor size | |
| Mains frequency: | 50 / 60 Hz | |
| Rated voltage: | 3 x 380-500 V | |
| Service factor: | 0.00 | |
| Rated current: | 20.3-16.0 A | |
| Cos phi - power factor: | 0.93-0.90 | |
| Rated speed: | 360-4000 rpm | |
| IE Efficiency class: | IE5 | |
| Motor efficiency at full load: | 93.1 % | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Motor No: | 93079537 | |
| Controls: | ||
| Frequency converter: | Built-in | |
| Pressure sensor: | Y | |
| Others: | ||
| Terminal box position: | 6 | |
| Minimum efficiency index, MEI ?: | 0.70 | |
| Net weight: | 206 kg | |
| Gross weight: | 207 kg | |
| Shipping volume: | 1140 m³ | |
| Thrust handling device (Yes/No): | N | |
| Country of origin: | AU | |
| Custom tariff no.: | 8413709062 | |
