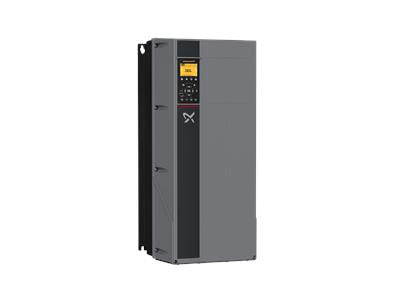

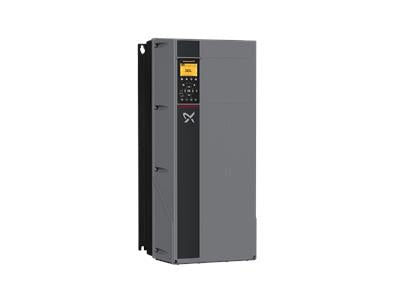

Grundfos CUE: IP 55 Single Phase External Frequency Converter

Image 1
Limited Stock
From$3172.40

Collect 3172 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout

CUE is a complete range of external frequency converters designed for speed control of a wide range of Grundfos pumps. CUE has a built-in PI controller and offers the same functionality and user-interface as Grundfos E-pumps. CUE solutions can thus be seen as an extension to the E-pump range. By choosing a CUE-solution, you will get the following benefits:

  • Grundfos E-pump functionality and user-interface
  • application- and pump-family-related functions
  • increased comfort compared to fixed-speed pumps
  • very easy installation and commissioning compared to standard frequency converters
  • speed control of pumps up to 250 kW
  • speed control of pumps installed in potentially explosive environments.

CUE offers the following inputs and output:

  • RS-485 GENIbus
  • an analog 0-10 V input for external setpoint
  • an analog 0/4-20 mA input for sensor
  • four digital inputs for various functions, for instance external start/stop
  • two signal relays (C/NO/NC).

Accessories:
Input/output add-on board Provides additional input:

  • one 0/4-20 mA analog input for an additional sensor
  • one 0-20 mA analog output
  • two inputs for Pt100/Pt1000 temperature sensors, for instance for bearing monitoring.

Motor filters:
For reduction of dU/dt and peak voltages to the motor windings and for reduction of the acoustic noise generated in the motor, a number of motor filters are offered:

  • dU/dt filters , 11-250 kW
  • Sine wave filters, 0.55-250 kW.



Technical:
Safety function:    None
RFI filter type EN 61800-3:    C1
Coating grade IEC721 3-3:    3C2
Approvals:    CE, CULUS, C-TICK
Cable gland entry:    Standard cable entry

Installation:
Range of ambient temperature:    0 .. 45 °C
Relative humidity:    5-95 %
Backplate (Yes/No):    N

Electrical data:
Rated power - P2:    1.1 kW
Mains frequency:    50 / 60 Hz
Rated voltage:    1 x 200-240 V
Rated current:    6.6 A
Maximum current consumption:    6.6 A
Efficiency at full load:    96 %
Enclosure class (IEC 34-5):    IP55
Mains input type:    Direct Connection

Others:
Net weight:    14 kg
Gross weight:    14.2 kg
Danish VVS No.:    382994511
Country of origin:    DK
Custom tariff no.:    8413709062
