The Grundfos Hydro Solo-E booster is a booster set consisting of one Grundfos CRIE pump fitted with isolating valve, non-return valve, discharge pipe, pressure transmitter/pressure switch, pressure gauge and diaphragm tank.
Hydro Solo-E booster sets are supplied as complete, pre-assembled and thoroughly tested booster sets, ready to install.

Specification:

Ambient temperature : From 0°C to +40°C
Liquid temperature : From 0°C to +60°C
Max. operating pressure : 16 bar
Power supply : 1~ is 1 x 200-240 Volt N, PE 50 Hz
                      3~ is 3 x 380-415 Volt, PE 50 Hz
Base Plate : CRIE1-20 Stainless steel AISI 304, CRIE32-64 and all CUE models on Galvanised base plate
Manifold : Stainless steel AISI 316
Valving : Isolation valve and non-return valve
Tank : Included in the scope of supply
Includes : Discharge pressure transmitter & pressure gauge
Pump mechanical seal : HQQE (Balanced cartridge seal with O-Ring / Silicon Carbide / Silicon Carbide / EPDM)
Enclosure class : IP 55
Motor efficiency : IE5 (CRIE64 systems are IE3) 1x200-240 Volt Motors above 1.5 kW use 240 Volt CUE variable speed drives with an IE3 motor efficiency
Motor Speed : Up to 3500 rpm
Note : P2 is nominal motor power
Warranty : 2 Years

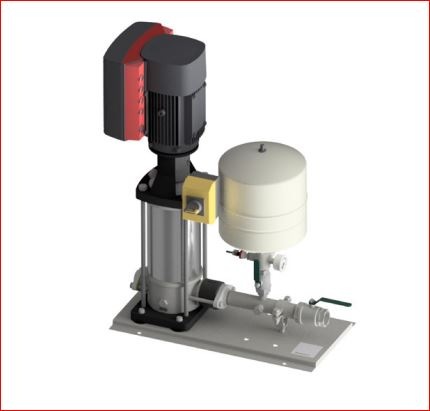

The product image shown is for illustration purpose only
