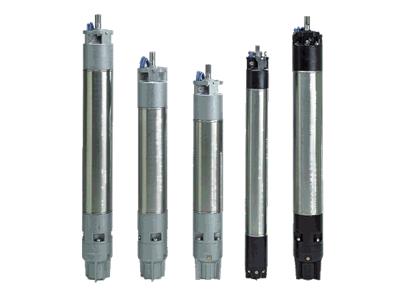

The motor is a 3-phase motor of the wet winded rewindable type with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
| Liquid: | ||
| Max liquid t at 0.15 m/sec: | 40 °C | |
| Max liquid t at 0.5 m/sec: | 45 °C | |
| Technical: | ||
| Shaft seal for motor: | CER/CARBON | |
| Motor version: | T45 | |
| Materials: | ||
| Motor: | Cast iron | |
| DIN W.-Nr. 0.6025 | ||
| ASTM Class 35-40 | ||
| Rubber: | NBR | |
| Installation: | ||
| Motor diameter: | 8 inch | |
| Electrical data: | ||
| Motor type: | MMS8000 | |
| Rated power - P2: | 92 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 400-415 V | |
| Voltage tolerance: | +6/-10 % | |
| Rated current: | 181-176 A | |
| Starting current: | 660-710 % | |
| Cos phi - power factor: | 0.90-0.88 | |
| Rated speed: | 2870-2890 rpm | |
| Rated full-load torque: | 306 Nm | |
| Locked-rotor torque: | 210-230 % | |
| Breakdown torque: | 310-330 % | |
| Moment of inertia: | 0.0662 kg m² | |
| Motor efficiency at full load: | 86.5-87.1 % | |
| Motor efficiency at 3/4 load: | 87.7-87.9 % | |
| Motor efficiency at 1/2 load: | 86.8-86.6 % | |
| Start. method: | direct-on-line | |
| Enclosure class (IEC 34-5): | IP68 | |
| Built-in temp. transmitter: | no | |
| Winding resistance: | 0.111 Ohm | |
| Windings: | PE2/PA | |
| Others: | ||
| Net weight: | 283 kg | |
| Shipping volume: | 0.239 m³ | |
| Country of origin: | IT | |
| Custom tariff no.: | 85015300209806953 | |
