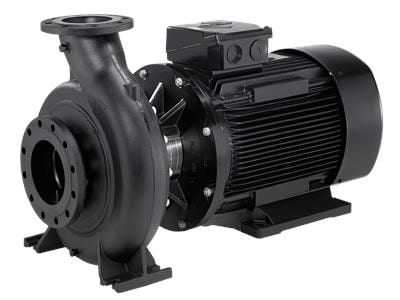

Grundfos NB 40-315 2-Pole NB Close Coupled End-Suction Pump (EN 733)

From$11286

Collect 11286 Everyday Rewards points

Log in to MyDeal to link your card

$15.00 Australia-wide (per-item)

Sold & shipped by Sprinklerpros

Secure ways to pay at checkout

NB: with fixed speed motor.

NBE: variable speed motor, with built-in frequency converter - available on request

End-suction close-coupled pumps according to EN 733

Specification:

Ambient temperature : 0°C to +40°C

Liquid temperature : Clean water / Glycol: -25°C to +120°C

Shaft seal : Clean water / Glycol: BQQE (Rubber bellows seal / Silicon carbide / Silicon carbide / EPDM) - Others on request

Supply voltage : Up to 3 kW - 3 x 220-240 Volt D/380-415 Volt Y 50 Hz

From 4 kW to 5.5 kW - 3 x 380-415 Volt D 50 Hz

From 7.5 kW - 3 x 380-415 Volt D/660-690 Volt Y 50 Hz

Efficiency class : IE3

Enclosure class : IP55

Material : Cast iron housing / Bronze impeller / Stainless steel AISI 304 shaft / Brass wear ring

Connections : DIN Flange

Base Plate : Available on request - refer to Page 4.33

Variable Speed Option : Available on request

Motor Speed : 2900 rpm

Warranty : 2 Years

Estimated Delivery Time Frame:7-14 business days

Reference ID: 13347684
