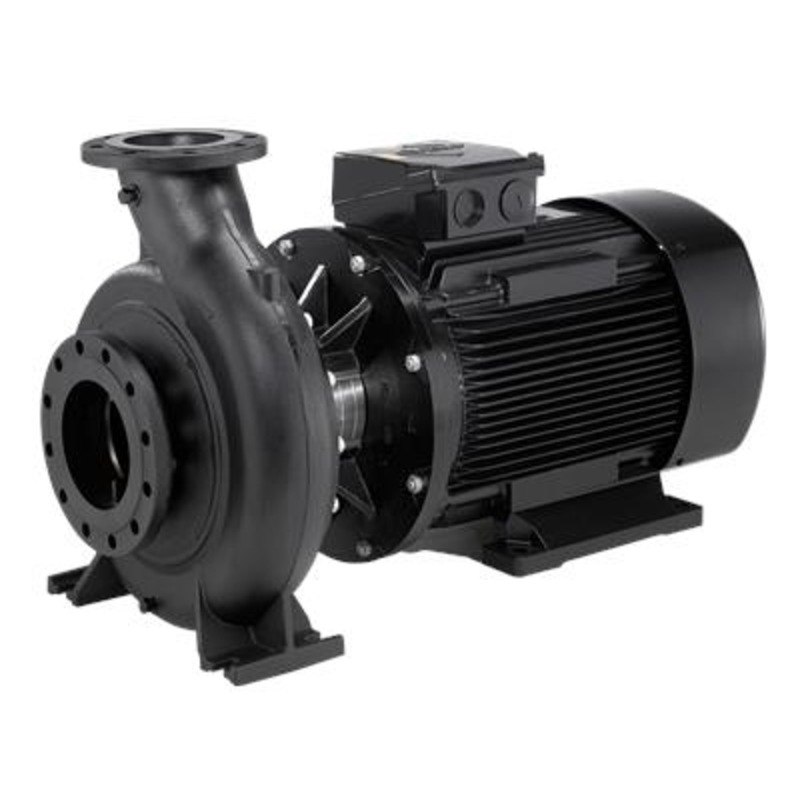

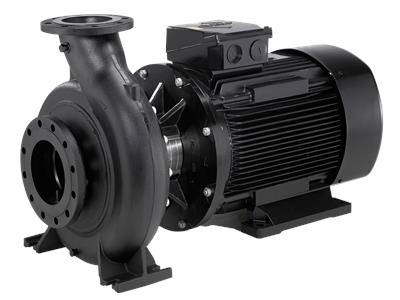

Grundfos NBG Close Coupled End Suction Pump Standard 10065200 to 10065250 (ISO 2858)

Grundfos NBG Close Coupled End Suction Pump Standard 10065200 to 10065250 (ISO 2858)

Price	From $3711.40
	Collect 3711 Everyday Rewards points Log in to MyDeal to link your card
Model	Please select an option
Shipping	$15.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Non-self priming, single-stage centrifugal pump according to AS2129 table E.

The pump is for the pumping of thin, clean or slightly contaminated liquids without abrasive or long-fibred solids.

The pump is directly coupled with an IEC-flanged 3-phase AC motor.

The impeller is hydraulically as well as dynamically balanced.

The pump has the following characteristics:

flange dimensions according to EN 1092-2,
Cast iron volute pump housing,
stainless steel shaft and Cast iron impeller and bronze wear rings,
unbalanced mechanical shaft seal according to EN 12756.

Controls:
Frequency converter:		None
Pressure sensor:		N

Liquid:
Pumped liquid:		Water
Liquid temperature range:		-25 .. 120 °C
Selected liquid temperature:		60 °C
Density:		983.2 kg/m³

Technical:
Pump speed on which pump data are based:		1450 rpm
Rated flow:		46 m³/h
Rated head:		8.2 m
Actual impeller diameter:		170 mm
Nominal impeller diameter:		200
Type of impeller:		Standard
Shaft seal arrangement:		Single
Primary shaft seal:		BQQE
Code for shaft seal:		BQQE
Curve tolerance:		ISO9906:2012 3B2
Bearing design:		Standard

Materials:
Pump housing:		Cast iron
		EN-GJL-250
		ASTM class 35
Wear ring:		Bronze
		CuSn10-C
Impeller:		Cast iron
		EN-GJL-200
		ASTM class 30
Internal pump house coating:		CED
Shaft:		Stainless steel
		EN 1.4401
		AISI 316

Installation:
Maximum ambient temperature:		40 °C
Maximum operating pressure:		16 bar
Pipe connection standard:		AS2129 table E
Size of inlet connection:		DN 100
Size of outlet connection:		DN 65
Pressure rating for connection:		PN 16
Bearing lubrication:		Grease
Pump housing with feet (Yes/No):		Yes
Support block (Yes/No):		N

Electrical data:
Motor type:		WEG
Rated power - P2:		1.5 kW
Mains frequency:		50 Hz
Rated voltage:		3 x 220-240/380-415 V
Rated current:		5,54-3,21/5,45-3,15 A
Cos phi - power factor:		0.83-0.77
Rated speed:		1445-1455 rpm
IE efficiency:		IE3 85,6% - IE3 86,1%
IE Efficiency class:		IE3
Motor efficiency at full load:		85.6-86.1 %
Motor efficiency at 3/4 load:		86.2-85.7 %
Number of poles:		4
Enclosure class (IEC 34-5):		IP55
Insulation class (IEC 85):		F
Motor No:		99737188

Others:
Minimum efficiency index, MEI ?:		0.70
Net weight:		69 kg
Gross weight:		86 kg
Shipping volume:		0.315 m³
Country of origin:		CN
Custom tariff no.:		8413709062
Language on pump nameplate:		GB
