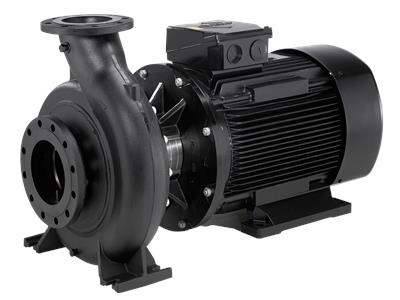

Non-self priming, single-stage centrifugal pump according to AS2129 table E.
The pump is for the pumping of thin, clean or slightly contaminated liquids without abrasive or long-fibred solids.
The pump is directly coupled with an IEC-flanged 3-phase AC motor.
The impeller is hydraulically as well as dynamically balanced.
The pump has the following characteristics:
|
| Controls: | ||
| Frequency converter: | None | |
| Pressure sensor: | N | |
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | -25 .. 120 °C | |
| Selected liquid temperature: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Pump speed on which pump data are based: | 1460 rpm | |
| Rated flow: | 372.6 m³/h | |
| Rated head: | 10.04 m | |
| Actual impeller diameter: | 220 mm | |
| Nominal impeller diameter: | 250 | |
| Type of impeller: | Standard | |
| Shaft seal arrangement: | Single | |
| Primary shaft seal: | BQQE | |
| Code for shaft seal: | BQQE | |
| Curve tolerance: | ISO9906:2012 3B | |
| Bearing design: | Standard | |
| Materials: | ||
| Pump housing: | Cast iron | |
| EN-GJL-250 | ||
| ASTM class 35 | ||
| Wear ring: | Bronze | |
| CuSn10-C | ||
| Impeller: | Cast iron | |
| EN-GJL-200 | ||
| ASTM class 30 | ||
| Internal pump house coating: | CED | |
| Shaft: | Stainless steel | |
| EN 1.4401 | ||
| AISI 316 | ||
| Installation: | ||
| Maximum ambient temperature: | 40 °C | |
| Maximum operating pressure: | 16 bar | |
| Pipe connection standard: | AS2129 table E | |
| Size of inlet connection: | DN 200 | |
| Size of outlet connection: | DN 150 | |
| Pressure rating for connection: | PN 16 | |
| Bearing lubrication: | Grease | |
| Pump housing with feet (Yes/No): | Yes | |
| Support block (Yes/No): | N | |
| Electrical data: | ||
| Motor type: | WEG | |
| Rated power - P2: | 15 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-415 V | |
| Rated current: | 29.5-28.3 A | |
| Starting current: | 630 % | |
| Cos phi - power factor: | 0.84-0.80 | |
| Rated speed: | 1460 rpm | |
| IE efficiency: | IE3 92.1% - IE3 92,1% | |
| IE Efficiency class: | IE3 | |
| Motor efficiency at full load: | 92.1 % | |
| Motor efficiency at 3/4 load: | 92.2-91.2 % | |
| Number of poles: | 4 | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Motor No: | 99174317 | |
| Others: | ||
| Minimum efficiency index, MEI ?: | 0.68 | |
| Net weight: | 275 kg | |
| Gross weight: | 308 kg | |
| Shipping volume: | 0.951 m³ | |
| Country of origin: | CN | |
| Custom tariff no.: | 8413709062 | |
| Language on pump nameplate: | GB |
