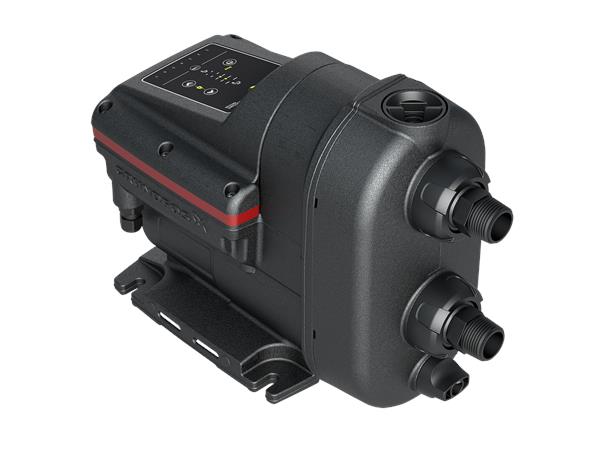

GRUNDFOS SCALA2 is a robust, composite, variable speed pump that adjusts performance according to water demand, providing constant pressure to all taps. The fully integrated pump includes a motor, tank, sensor, drive and non-return valve in one compact unit that is quick and easy to install. The SCALA2 is self-priming, allowing for use from both above and below ground water sources and the water-cooled motor ensures quiet operation.
Specifications:
Liquid temperature : 0°C-+45°C
Amblent temperature : 0°C-+55°C
Supply voltage : 1 x 240 Volt 50 Hz
AdJustable constant pressure : Min 1.5 bar/max 4 bar (from water tank)
Maxlmum Inlet pressure : 6 bar- 1.5 bar required to reach 5.5 bar
Nominal flow : 3 m3/h (3-4 taps)
Enclosure class : Suitable for outdoor installation (IP X4D)
Scope of dellvery : Non return valves (inlet/outlet), cable 2 m with plug
Nolse pressure level : Low noise levels (47 dB(A))
The product image shown is for illustration purpose only
|
P2 [kW)
|
In [A] |
Outlet |
Inlet |
Rated Flow [m3/h] |
Rated Head [m] |
| 55 |
28 |
1? M |
1? M |
3 |
27 |
