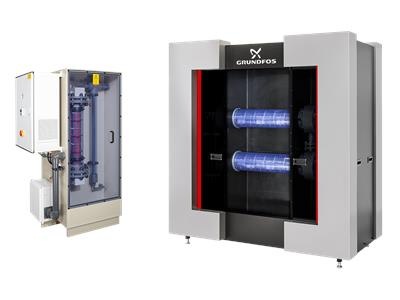

Modular designed system for electrolytic generation of high quality, low concentration sodium hypochlorite. The system is pre-piped and -wired and functionally tested ex-works. Only salt (sodium chloride), water and electrical power are required for proper operation. Salt is inexpensive, safe to handle and to store. Special safety room requirements are not demanded. The robust design of the system requires low maintenance and ensures long operation times. Control of the systems is done via user friendly digital display with system information in different languages.

Vertical position of the electrolyser cell and dual containment for electrolyser chamber and vent pipework with forced airflow ensure safe operation. Optional accessories are brine and product tanks with automatic level control.

Housed in sealed chamber with constant airflow Clear PVC tubular electrode casing for ease of viewing whilst in operation Electrodes are made of expanded titanium substrate with extra heavy proprietary catalytic metal oxide coating for cold water application (above 5 °C) Hydrogen degassing column to allow the release of hydrogen to the exterior vent, preventing its passage into the product storage tank. Incorporating sensor to inhibit production in the unlikely event of blockage and fully dual contained pipework leading to the exterior vent. Hydraulic chamber:
Positive displacement brine pump to allow for wide range of adjustment of accurately reproducible brine flow rates Flowmeter fitted with water flow switch to operate in fail safe mode to stop the process if flow is below minimum acceptable level Adjustable water control valve to set accurately reproducible dilution ratio Operating water pressure reducing valve with gauge and stainless steel strainer Kinetico water softening system, water operated rated for continuous soft water output, designed to reduce water hardness to below 20mg/l as CaCO3 Soft water sample valve Brine salinity test valve Product test valve Control Panel:
Lockable plastic enclosure IP54 fitted with door interlocked isolator and air-cooling Display Interface showing operating status plus amps, volts, hours run and cell temperature Tank top up, manual and remote inhibit facilities Fault displays: High Amps, Low Amps, High Cell Temperature, Bund Flood, High Panel Temperature, Ventilation Failure, Water Flow Failure.
System volt free alarm contacts
