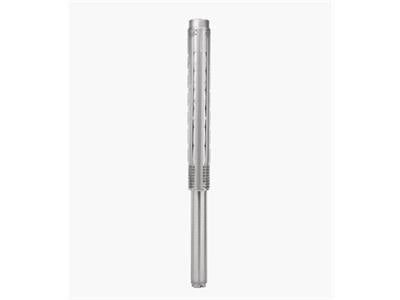

Grundfos SP 125-N: 10 Inch SUBMERSIBLE PUMP IN STAINLESS STEEL AISI 316

Image 1
From$23389.30

Collect 23389 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout
  • Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.

    The motor is a 3-phase motor with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.



    Liquid:
    Pumped liquid:    Water
    Liquid temperature range:    -15 .. 40 °C
    Max liquid t at 0.15 m/sec:    40 °C
    Selected liquid temperature:    20 °C
    Density:    998.2 kg/m³

    Technical:
    Pump speed on which pump data are based:    2900 rpm
    Rated flow:    125 m³/h
    Rated head:    13 m
    Shaft seal for motor:    SIC/SICFKM
    Approvals:    CE,EAC,UKCA,SEPRO,MOROCCO
    Curve tolerance:    ISO9906:2012 3B
    Motor version:    T40
    Return valve:    YES

    Materials:
    Pump:    Stainless steel
         EN 1.4401
         AISI 316
    Impeller:    Stainless steel
         EN 1.4401
         AISI 316
    Motor:    Stainless steel
         DIN W.-Nr. 1.4539
         AISI 904L

    Installation:
    Maximum ambient pressure:    60 bar
    Maximum operating pressure:    60 bar
    Maximum outlet pressure:    2.1 bar
    Type of connection:    Rp
    Size of connection:    6 inch
    Motor diameter:    6 inch
    Minimum borehole diameter:    215 mm

    Electrical data:
    Motor type:    MS6000
    Motor flange design:    Grundfos
    Rated power - P2:    7.5 kW
    Power (P2) required by pump:    7.5 kW
    Mains frequency:    50 Hz
    Rated voltage:    3 x 380-400-415 V
    Rated current:    17.8-17.2-17.2 A
    Starting current:    460-510-530 %
    Cos phi - power factor:    0.84-0.82-0.79
    Rated speed:    2850-2870-2880 rpm
    Start. method:    direct-on-line
    Enclosure class (IEC 34-5):    IP68
    Insulation class (IEC 85):    F
    Built-in temp. transmitter:    yes
    Length of cable:    5 m
    Power cable type:    FLAT
    Motor No:    78195612
    Windings:    Enamelled

    Others:
    Net weight:    73.1 kg
    Gross weight:    97.4 kg
    Shipping volume:    0.179 m³
    Country of origin:    DK
    Custom tariff no.:    8413709019182742
    Environmental approvals:    WEEE
