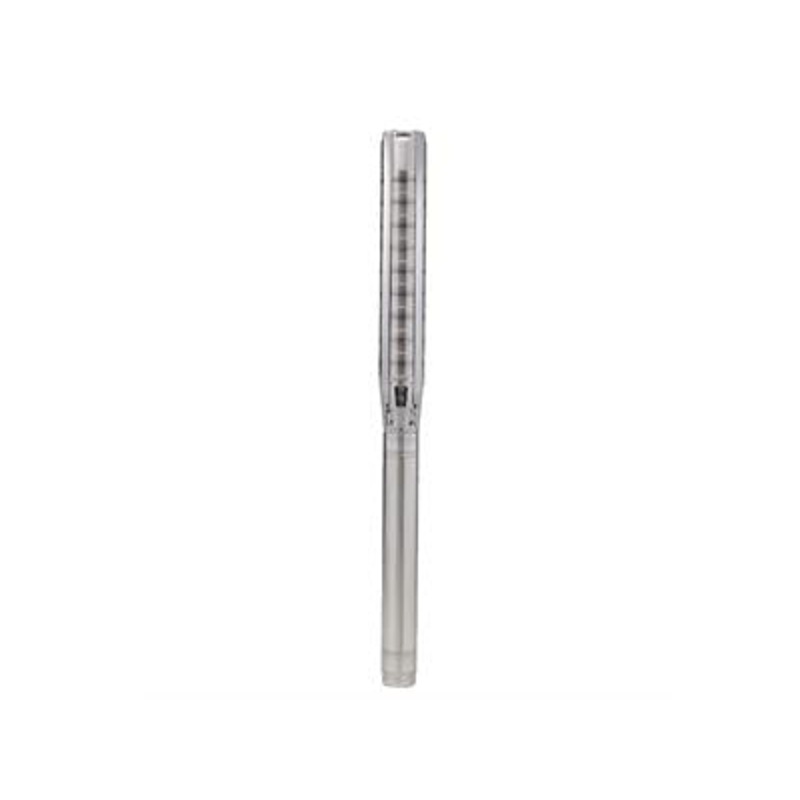

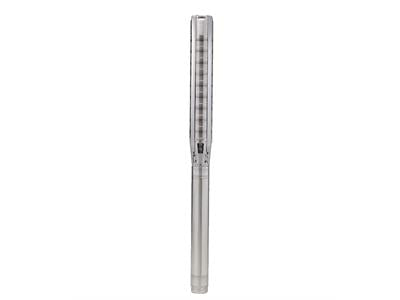

Grundfos SP 18 Hydraulics 6" Hydraulic End Only In Stainless Steel Aisi 304

Multi-stage submersible pump for raw water supply,groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.



Liquid:
Pumped liquid:		Water
Liquid temperature range:		-15 .. 60 °C
Selected liquid temperature:		20 °C
Density:		998.2 kg/m³
Technical:
Pump speed on which pump data are based:		2900 rpm
Rated flow:		18 m³/h
Rated head:		7 m
Approvals:		CE,EAC,UKCA,SEPRO,MOROCCO
Approvals for drinking water:		ACS,DM174
Curve tolerance:		ISO9906:2012 3B
Return valve:		YES
Materials:
Pump:		Stainless steel
		EN 1.4301
		AISI 304
Impeller:		Stainless steel
		EN 1.4301
		AISI 304
Installation:
Maximum operating pressure:		60 bar
Maximum outlet pressure:		1.1 bar
Type of connection:		Rp
Size of connection:		2 1/2 inch
Motor diameter:		4 inch
Minimum borehole diameter:		140 mm
Electrical data:
Motor flange design:		Grundfos
Power (P2) required by pump:		0.55 kW
Others:
Minimum efficiency index, MEI ?:		0.70
Net weight:		4.7 kg
Gross weight:		7.3 kg
Shipping volume:		0.032 m³
Country of origin:		AU
Custom tariff no.:		8413709019182742
