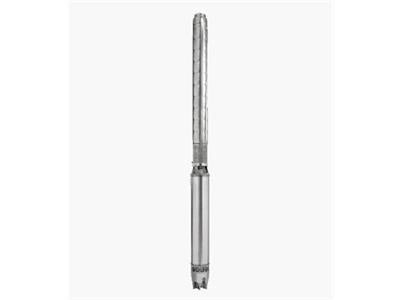

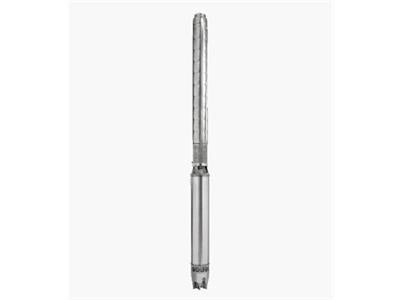

Grundfos SP 215-N: 10 Inch SUBMERSIBLE PUMP IN STAINLESS STEEL AISI 316

Image 1
From$25423.20

Collect 25423 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout
  • Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.

    The motor is a 3-phase motor with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.



    Liquid:
    Pumped liquid:    Water
    Liquid temperature range:    -15 .. 50 °C
    Max liquid t at 0.5 m/sec:    50 °C
    Selected liquid temperature:    20 °C
    Density:    998.2 kg/m³

    Technical:
    Pump speed on which pump data are based:    2900 rpm
    Rated flow:    215 m³/h
    Rated head:    41 m
    Shaft seal for motor:    SIC/SIC
    Approvals:    CE,EAC,UKCA,SEPRO,MOROCCO
    Curve tolerance:    ISO9906:2012 3B
    Motor version:    T50
    Return valve:    YES

    Materials:
    Pump:    Stainless steel
         EN 1.4401
         AISI 316
    Impeller:    Stainless steel
         EN 1.4401
         AISI 316
    Motor:    Stainless steel
         DIN W.-Nr. 1.4401

    Installation:
    Maximum ambient pressure:    60 bar
    Maximum operating pressure:    60 bar
    Maximum outlet pressure:    6.6 bar
    Type of connection:    Rp
    Size of connection:    6 inch
    Motor diameter:    6 inch
    Minimum borehole diameter:    246 mm

    Electrical data:
    Motor type:    MMS6
    Motor flange design:    Grundfos
    Rated power - P2:    37 kW
    Power (P2) required by pump:    37 kW
    Mains frequency:    50 Hz
    Rated voltage:    3 x 400-415 V
    Service factor:    1.00
    Rated current:    83-79 A
    Starting current:    450-490 %
    Cos phi - power factor:    0.87-0.86
    Rated speed:    2810-2830 rpm
    Start. method:    direct-on-line
    Enclosure class (IEC 34-5):    IP68
    Motor No:    96879456
    Windings:    PE2/PA

    Others:
    Net weight:    169 kg
    Gross weight:    204 kg
    Shipping volume:    0.295 m³
    Country of origin:    DK
    Custom tariff no.:    8413709019182742
    Environmental approvals:    WEEE

Estimated Delivery Time Frame:7-14 business days
