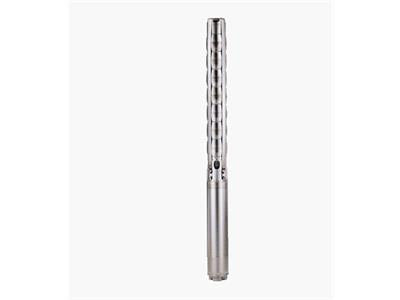

Grundfos SP 60-R: 6" Submersible Pump In Stainless Steel Aisi 904 L

Image 1
From$13835.80

Collect 13835 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout
  • Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.

    The motor is a 3-phase motor with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.



    Liquid:
    Pumped liquid:    Water
    Liquid temperature range:    -15 .. 40 °C
    Selected liquid temperature:    20 °C
    Density:    998.2 kg/m³

    Technical:
    Pump speed on which pump data are based:    2900 rpm
    Rated flow:    60 m³/h
    Rated head:    4 m
    Approvals:    CE,EAC,UKCA,SEPRO,MOROCCO
    Approvals for motor:    CE,EACMOROCCO,UKCA,SEPRO,RCM
    Curve tolerance:    ISO9906:2012 3B
    Motor version:    T40
    Return valve:    YES

    Materials:
    Pump:    Stainless steel
         EN 1.4539
         AISI 904L
    Impeller:    Stainless steel
         EN 1.4539
         AISI 904L
    Motor:    Stainless steel
         EN 1.4539
    Shaft seal:    SiC/SiC

    Installation:
    Maximum ambient pressure:    60 bar
    Maximum operating pressure:    60 bar
    Maximum outlet pressure:    1.1 bar
    Type of connection:    Rp
    Size of connection:    4 inch
    Motor diameter:    4 inch
    Minimum borehole diameter:    150 mm

    Electrical data:
    Motor type:    MS4000
    Motor flange design:    Grundfos
    Rated power - P2:    1.5 kW
    Power (P2) required by pump:    1.5 kW
    Mains frequency:    50 Hz
    Rated voltage:    3 x 380-400-415 V
    Rated current:    4-4-4.1 A
    Starting current:    400-430-440 %
    Cos phi - power factor:    0.83-0.78-0.74
    Rated speed:    2840-2860-2870 rpm
    Method of start:    Direct-on-line (DOL)
    Enclosure class (IEC 34-5):    IP68
    Insulation class (IEC 85):    F
    Ex-protection standard:    NONE
    Thermal protection:    External
    Built-in temp. transmitter:    Yes
    Length of cable:    1.7 m
    Power cable type:    FLAT
    Motor No:    7C193706
    Windings:    Enameled

    Others:
    Minimum efficiency index, MEI ?:    0.40
    Net weight:    21.1 kg
    Gross weight:    23.7 kg
    Shipping volume:    0.032 m³
    Country of origin:    AU
    Custom tariff no.:    8413709019182742
    Environmental approvals:    WEEE

Estimated Delivery Time Frame:7-14 business days
