Grundfos UP, UPS N circulator pumps have a corrosion-free stainless-steel pump housing and are recommended for domestic hot-water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required.
Specifications
|
Speed no |
3 |
|
Head max |
60 dm |
|
TF class |
110 |
|
Approvals on nameplate |
CE,EAC,WEEE,RCM |
|
Materials |
 |
|
Pump housing |
Stainless steel |
| Â |
DIN W.-Nr. 1.4301 |
|
Impeller |
Composite, PES/PP |
|
Installation |
 |
|
Amb. max at 80 dgr C liquid |
40 °C |
|
Maximum operating pressure |
10 bar |
|
Pipe connection |
G 1 1/2 |
|
Pressure rating |
PN 10 |
|
Port-to-port length |
180 mm |
|
Liquid |
 |
|
Pumped liquid |
Water |
|
Liquid temperature range |
2 .. 110 °C |
|
Selected liquid temperature |
60 °C |
|
Density |
983.2 kg/m³ |
|
Electrical data |
 |
|
Power input in speed 1 |
50 W |
|
Power input in speed 2 |
55 W |
|
Max. power input |
60 W |
|
Mains frequency |
50 Hz |
|
Rated voltage |
1 x 230 V |
|
Current in speed 1 |
0.21 A |
|
Current in speed 2 |
0.25 A |
|
Current in speed 3 |
0.28 A |
|
Capacitor size - run |
2.5 µF |
|
Enclosure class (IEC 34-5) |
IP44 |
|
Insulation class (IEC 85) |
F |
|
Built-in motor protection |
NONE |
|
Thermal protec |
Impedance protected |
|
Controls |
 |
|
Pos term box |
9H |
|
Others |
 |
|
Net weight |
2.9 kg |
|
Gross weight |
3.1 kg |
|
Shipping volume |
0.004 m³ |
|
Danish VVS No. |
380481061 |
|
Swedish RSK No. |
5803097 |
|
Finnish LVI No. |
4615616 |
|
Norwegian NRF no. |
9042215 |
|
Country of origin |
RS |
|
Custom tariff no. |
8413709062 |
 Suitable for

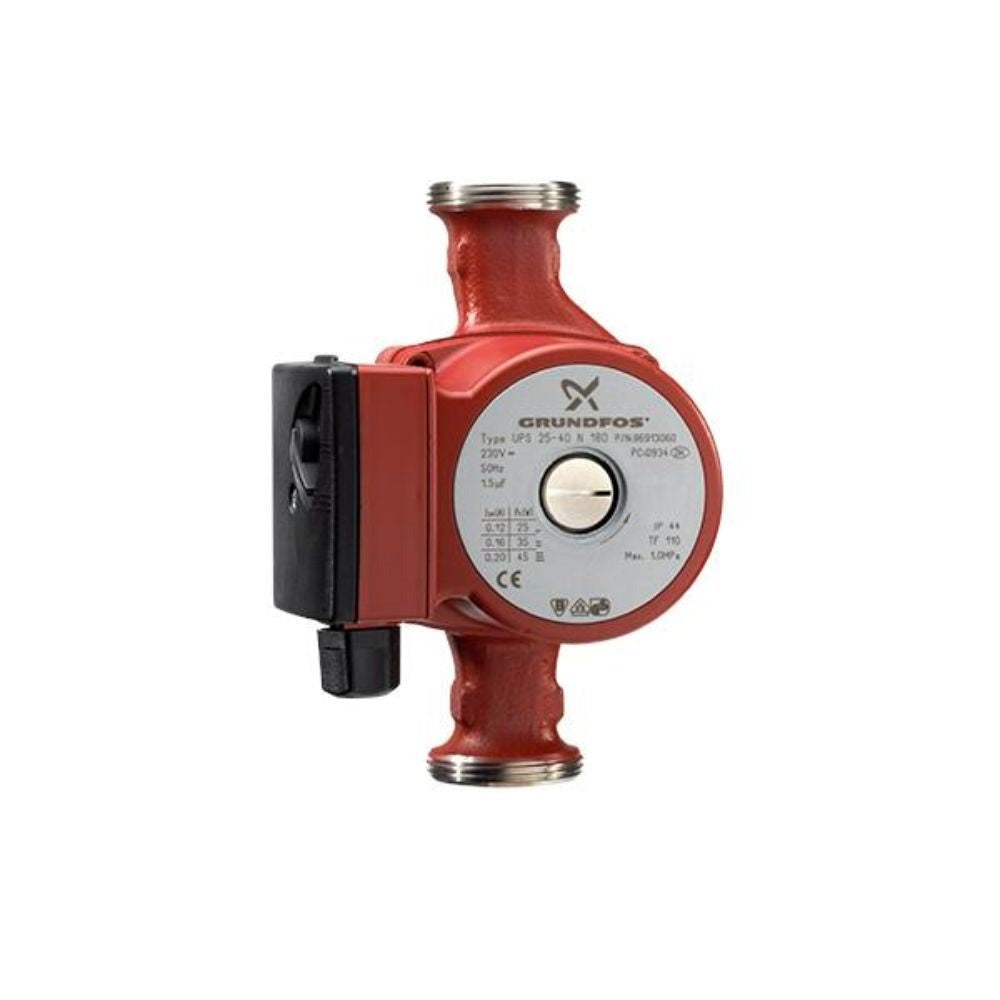

The product image shown is for illustration purpose only
SKU: UPS25-80-N-180
