Description:

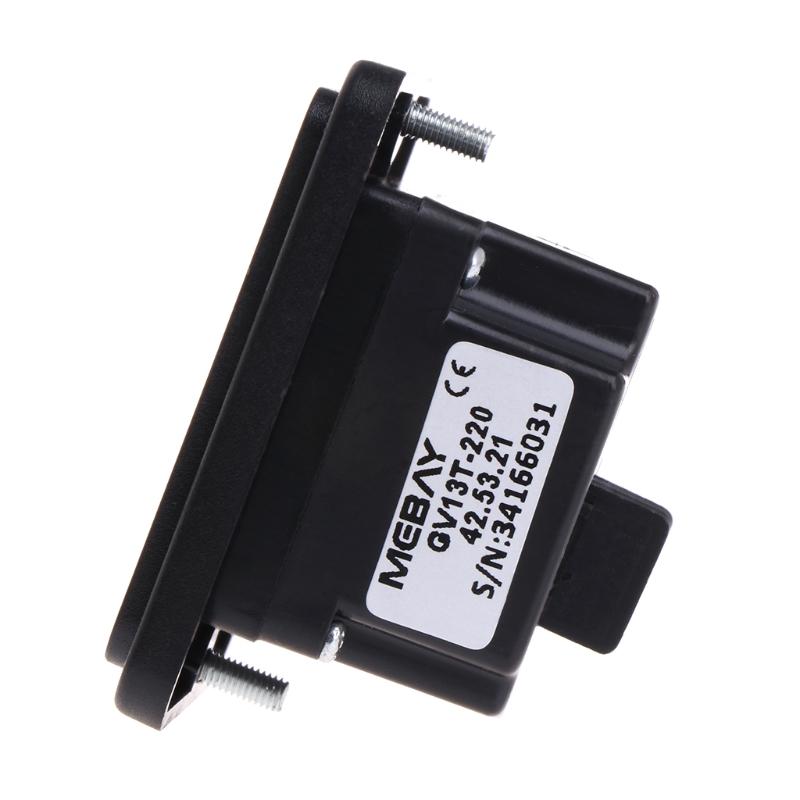

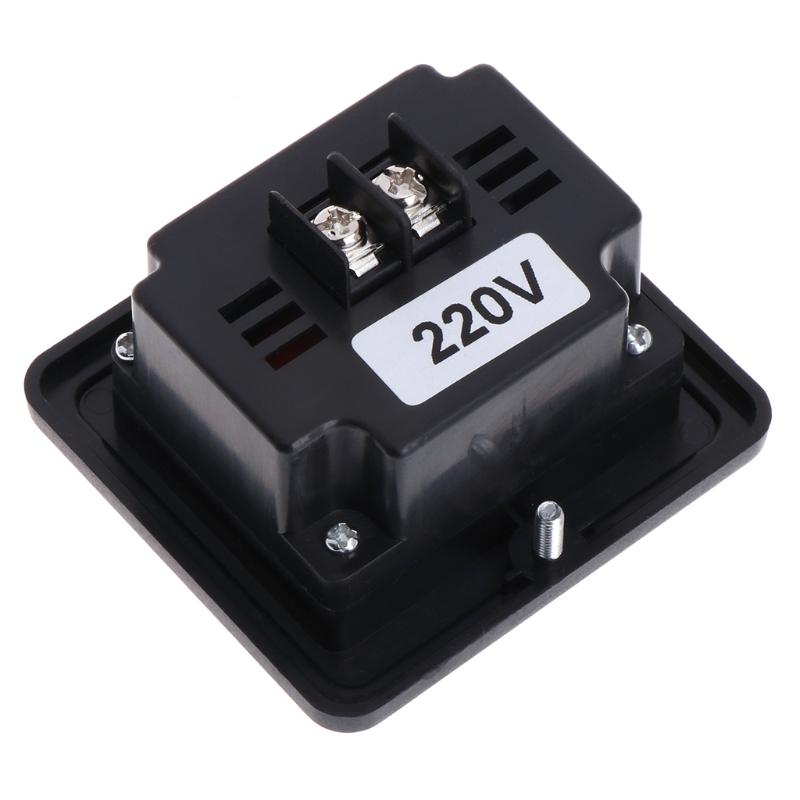

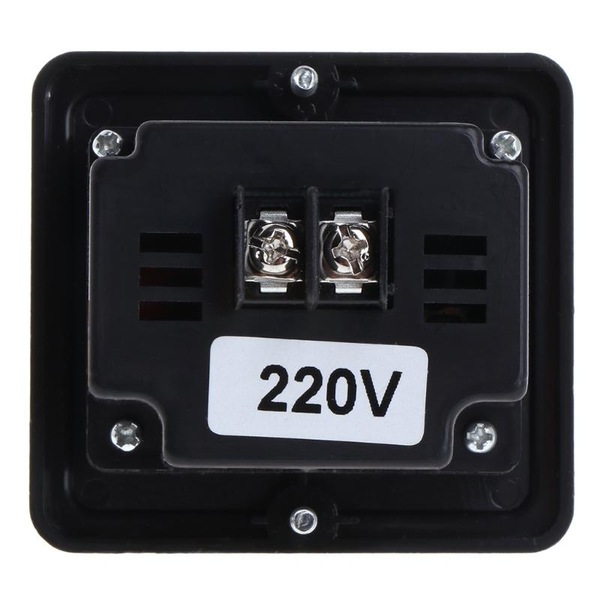

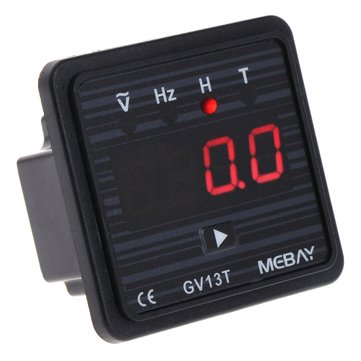

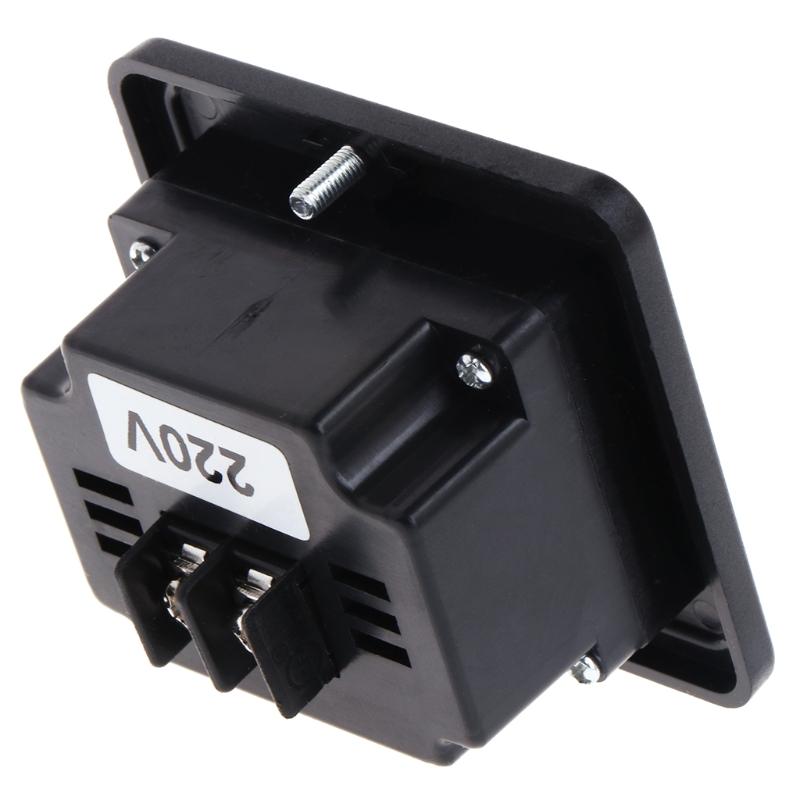

GV13T is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.

Features:

Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;

Results shown by 4-position digital LED tube

Self-recycling of parameters

with Page Turning Buttons

Extra working power is not needed

Parameter demonstration

Phase voltage (V)

Frequency (Hz)

Accumulating time(H)

Current Time(T)

Specification:

Working Power:AC 185~265V

Cumulative running time: 0-9999H

Consuming Power:MAX 1W

Recycling Time:Voltage:5s,Frequency:5s

Accumulating time:2s

Temperature:-20~~75

Volume size (W * H * D): 58mm * 54mm * 41mm

Mounting hole (W * H): 47mm * 37mm

Weight:50g

Package include:

1 * GV13T Digital Voltmeter Frequency Hour Meter
