[H610M GAMING WIFI DDR4] Motherboard, for Intel CPU, LGA1700, Micro-ATX

[H610M GAMING WIFI DDR4] Motherboard, for Intel CPU, LGA1700, Micro-ATX

Limited Stock!

Price	$190.62
	Collect 190 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$14.95 Australia-wide (per item)
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

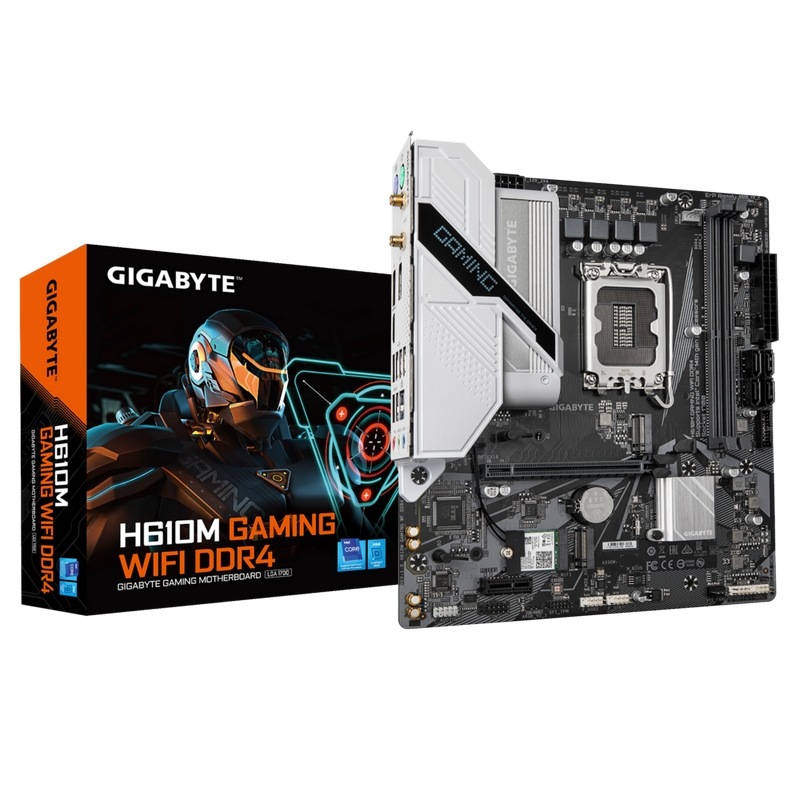

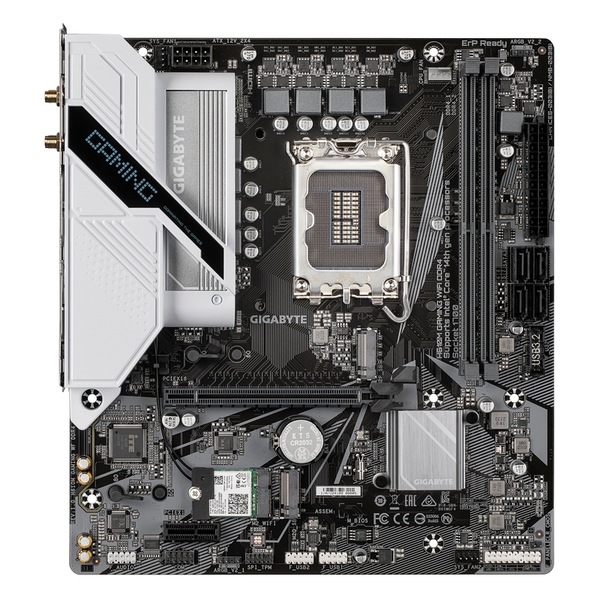

Gigabyte H610M GAMING WIFI DDR4(rev. 1.0)

Features:

Supports Intel® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: Wi-Fi 802.11ac & GbE LAN
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
Precision Control: Multiple temperature/fan speed control points for precise fan curve.
Dual Curve Mode: Slope/Stair dual mode for different user scenario.
Fan Stop: Fan can stop completely below users' specified temperature point.
Intuitive user interface
Modularized control
Auto update

Specifications:

CPU :LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset :Intel® H610 Express Chipset
Memory :Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data
rate (speed), and number of DRAM modules, please refer to "Memory Support
List" on GIGABYTE's website for more information.)
Onboard Graphics :Integrated Graphics Processor-Intel® HD Graphics support:
- 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio :Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure

7.1-channel audio, access the audio software for audio settings.
LAN :Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module :Intel® Wireless- AC 9560 (PCB rev. 1.0)
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support 11ac 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots :CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface :Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support)
(M2Q_SB)
- 4 x SATA 6Gb/s connectors
USB :Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+2 USB 2.0 Hubs:
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through
the internal USB header)
Internal I/O Connectors :1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
2 x addressable RGB Gen2 LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

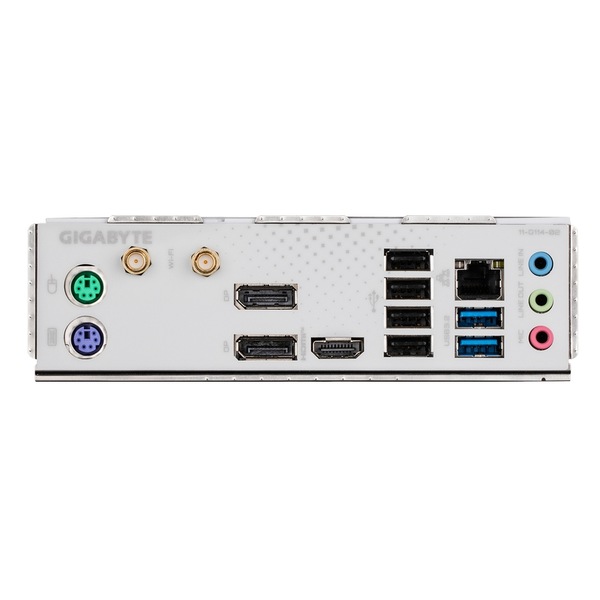

Back Panel Connectors :1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x SMA antenna connectors (2T2R)
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller :iTE® I/O Controller Chip
H/W Monitoring :Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan

you install.
BIOS :1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features :Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard
specifications.
Support for Q-Flash
Bundled Software :Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System :Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor :Micro ATX Form Factor; 24.4cm x 22.0cm
