Highlights

Android 11.0

With the newest OS generation of smart TV box Amlogic S905X4 64-bit quad core ARM? Cortex? A55, G31? MP2 GPU processor, support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle with WiFi 2.4G/5G contains Bluetooth.

4GB DDR332GB EMMC

Huge storage provides plentiful room for the operation and operation of the software. Enough storage system can download various apps, and games; allow access to with browsers like Firefox, browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc. Easy and quick connection and simple operation.

4K Ultra HD

Taste of true-to-life pictures and high-dynamic-range technology can provide users enjoy the most high-definition the real picture quality, superior quality built-in sound and a unique sound system.

Support Multi Media Formats

Support various video and picture decoding or encoding; support Supports MP3, AAC, WMA, RM, FLAC, Ogg, and programmable with 7.1/5.1 down-mixing; Support HD JPEG, BMP, GIF, PNG, TIF images.

Specification

General

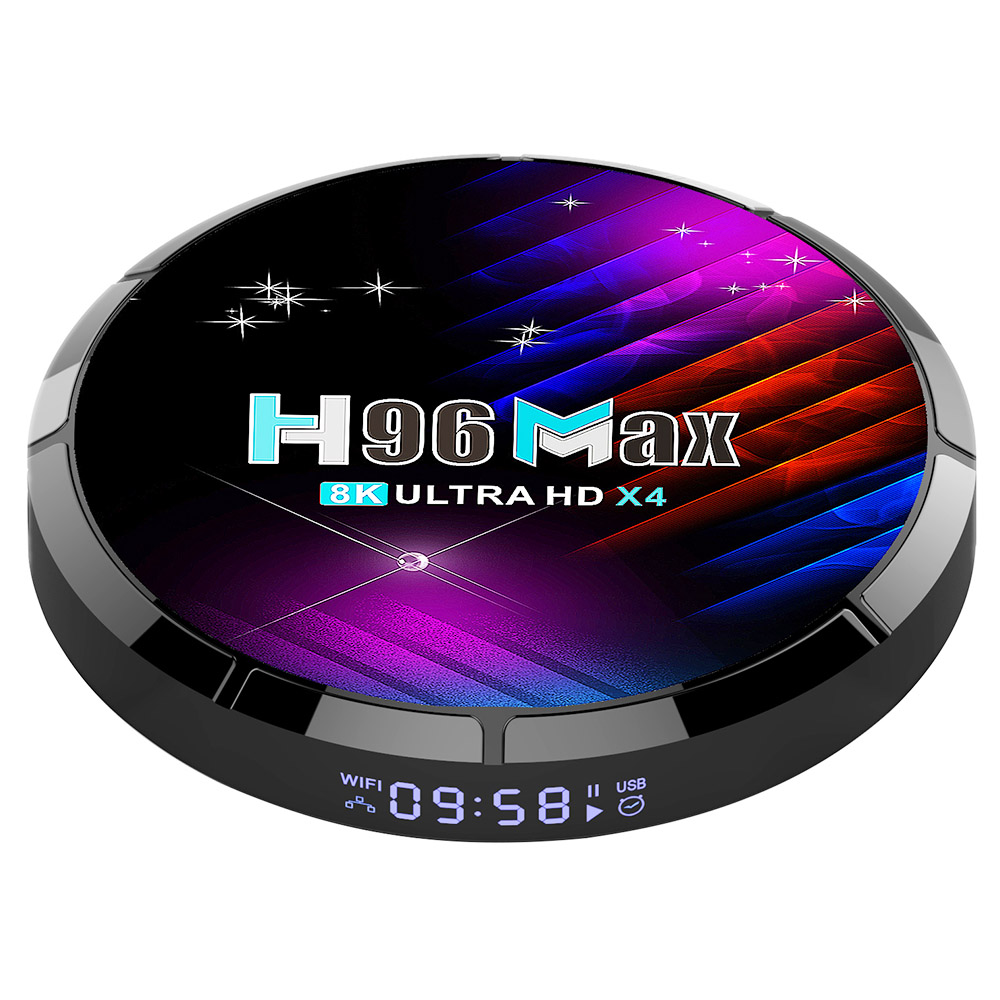

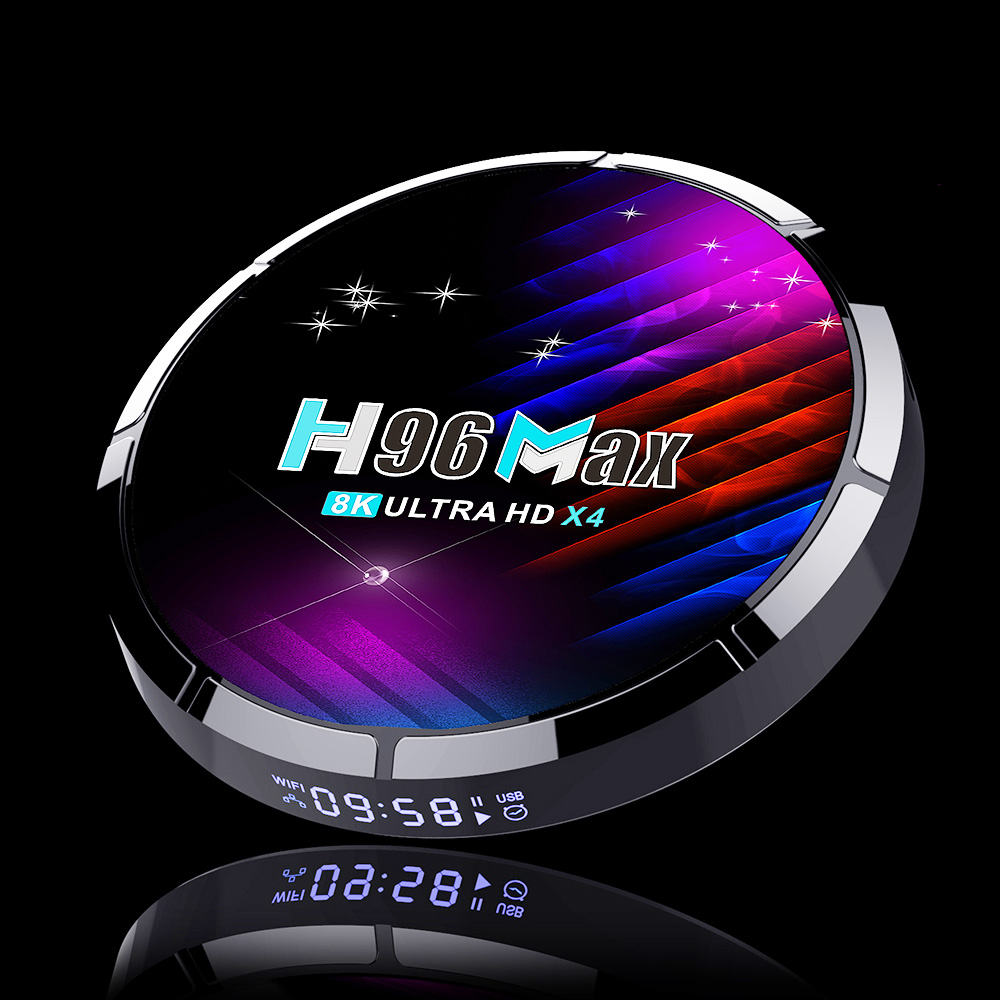

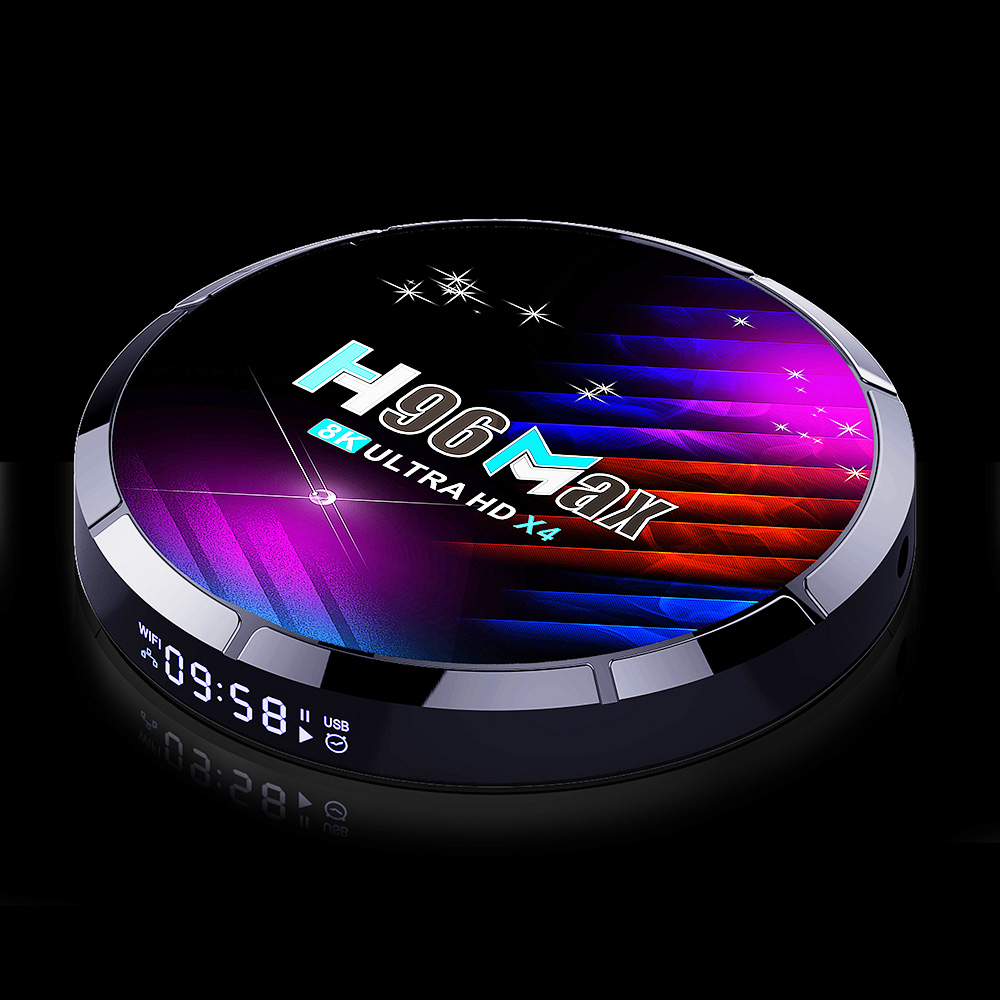

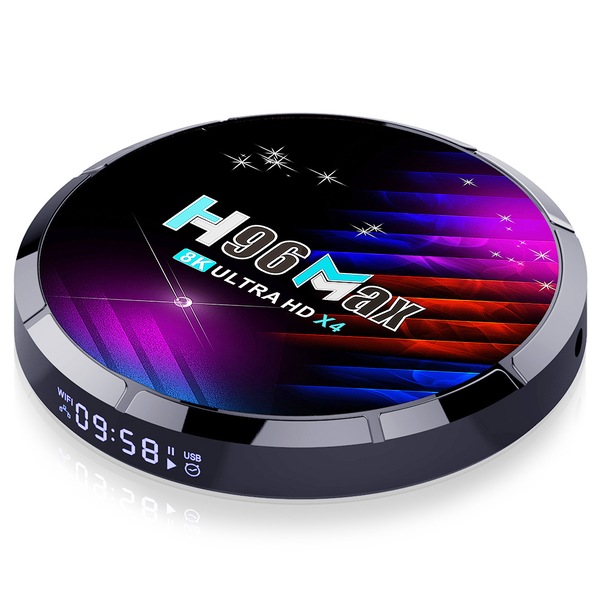

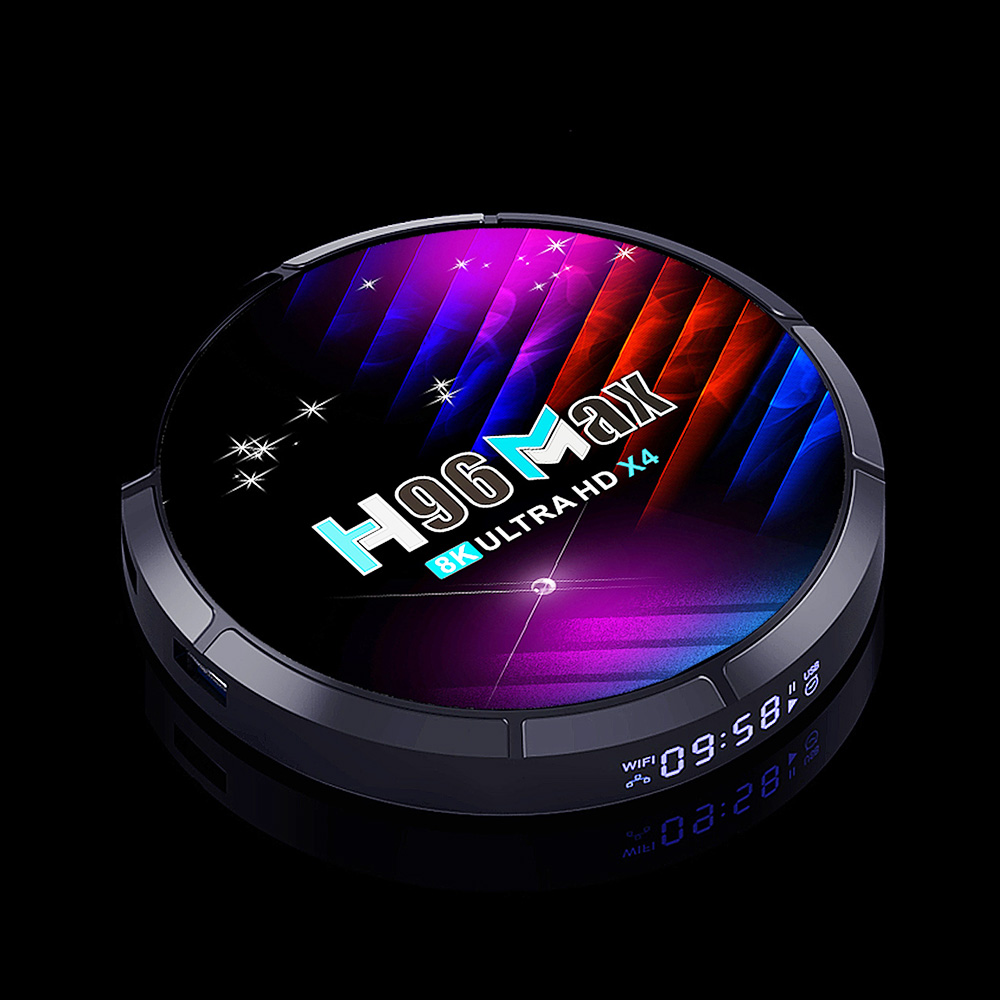

Model: H96 Max X4 Type: TV Box GPU: G31? MP2 GPU System: Android 11.0 CPU: Amlogic S905X4 64-bit quad core ARM? Cortex? A55 Core: Quad Core ARM Cortex A53 Memory: 4GB DDR3 Flash: 32GB eMMC

Media Supported

Video/Picture Decoding:

AV1 MP-10@L5.1 up to 4Kx2K@60fps

VP9 Profile-2 up to 4Kx2K@60fps

H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

AVS2-P2 Profile up to 4Kx2K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Video/Picture Encoding:

Independent JPEG and H.264 encoder with configurable performance/bit-rate

JPEG image encoding

H.265 video encoding up to 1080P@60fps with low latency

H.264 video encoding up to 1080P@30fps with low latency

Audio��

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Low-power VAD

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output

3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch

Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs

Built-in stereo audio DAC

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

Image��HD JPEG, BMP, GIF, PNG, TIF

Language��English French German Spanish Italian etc multilateral languages

Product Details

WiFi: IEEE 802.11 a/b/g/n/ac ; 2.4G + 5G (ac)

Bluetooth: BT 4.0 (Support Voice Remote)

Power: DC 5V/2A

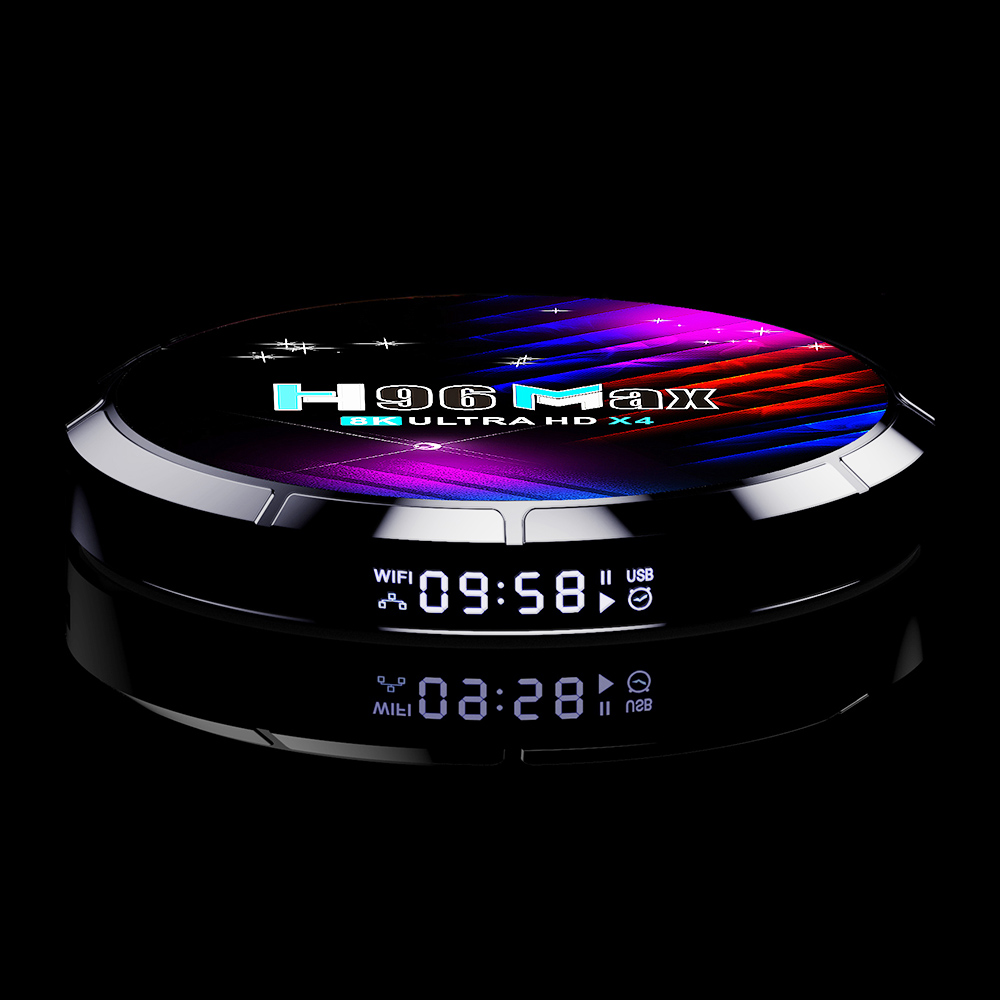

LED indicator: Blue (when working)

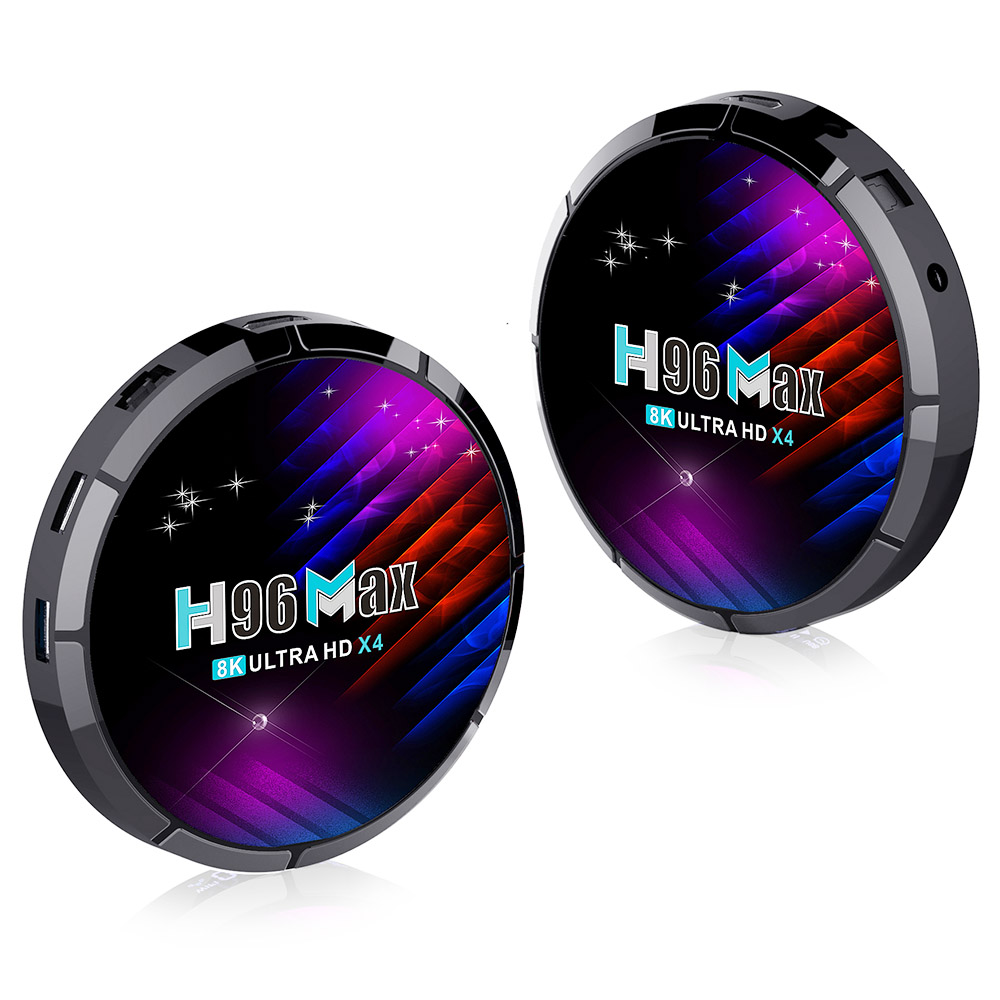

Ports��

1*HDMI: HDMI 2.1, Support HDMI CEC, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60 max resolution output

1*AV OUT: 480i/576i standard definition output

2*USB: 1 * USB 3.0; 1*USB 2.0

1*IR Receiver: Remote Receiver Connect

1*RJ45: Ethernet Interface; Support 100M/1000M

1*TF CARD: Support 4GB/8GB/16GB/32GB/64GB

SPDIF: Support

1*DC: 5V/2A

Applications��

Online: Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.

Apps: Apps download freely from Android market, amazon app store, etc.

Medium: Local Media playback, Support HDD, U Disc, TF Card.

Talk online: Support SKYPE video call, MSN, Facebook, Twitter, QQ etc

Others: Support Email, office suit, etc.

Support DLNA function

Support 2.4G wireless mouse/keyboard

Dimensions and Weight

Package weight: 0.4 kg

Package size (L x W x H):192 x 123 x 63mm

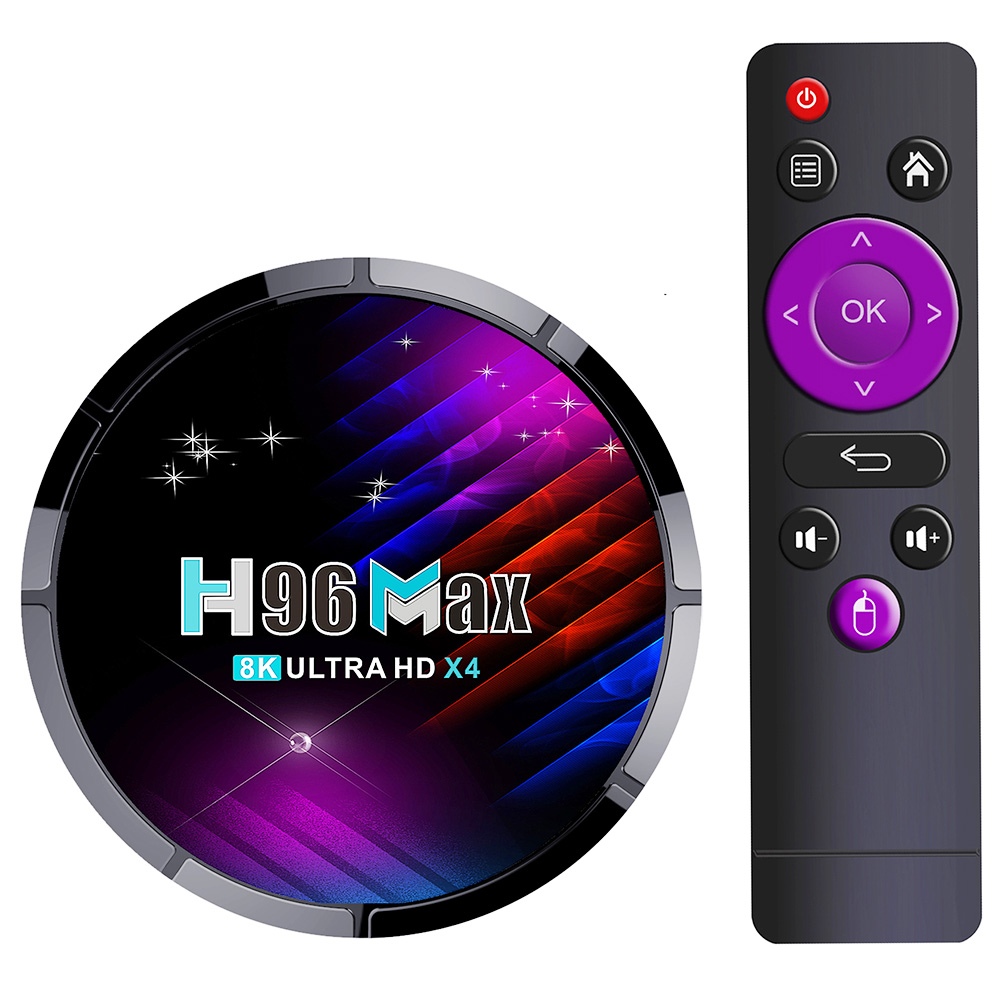

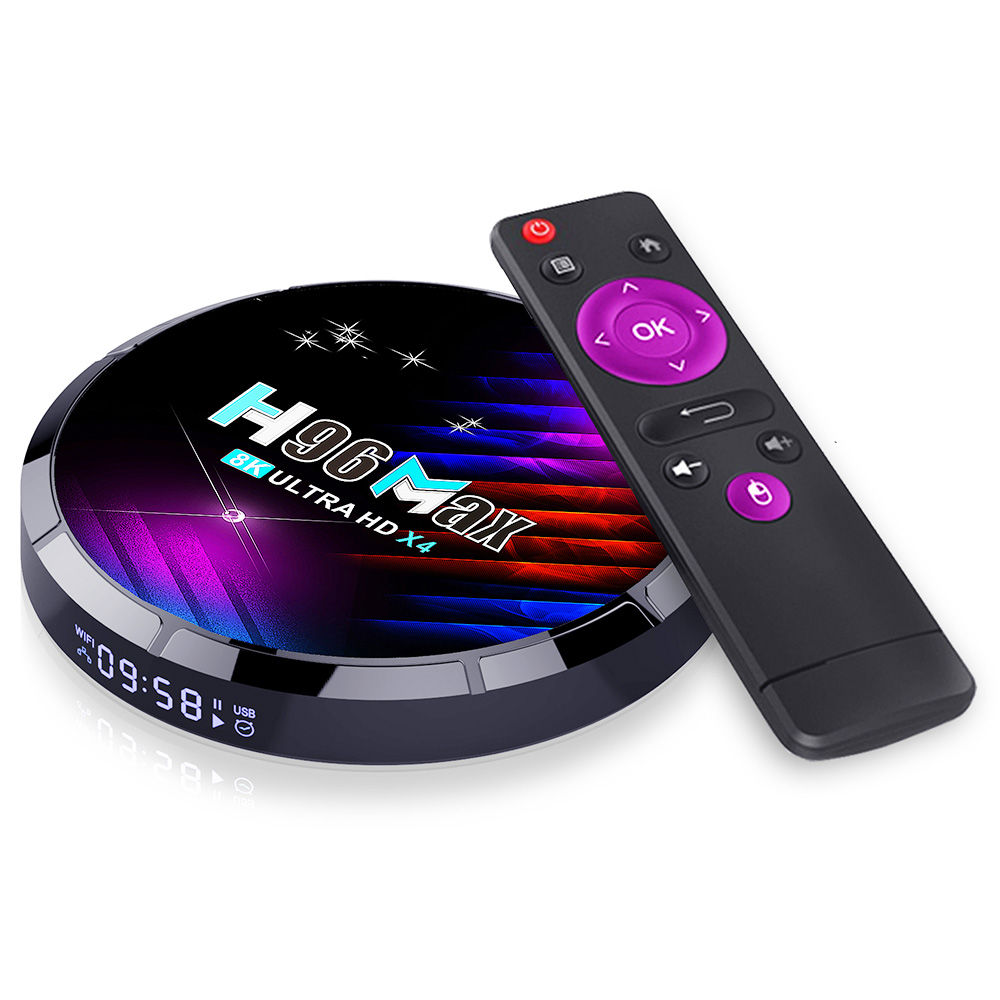

Package Contents

1 x HDMI cable

1 x IR Remote

1 x User Manual

1 x Package box

1 x Power adapter
