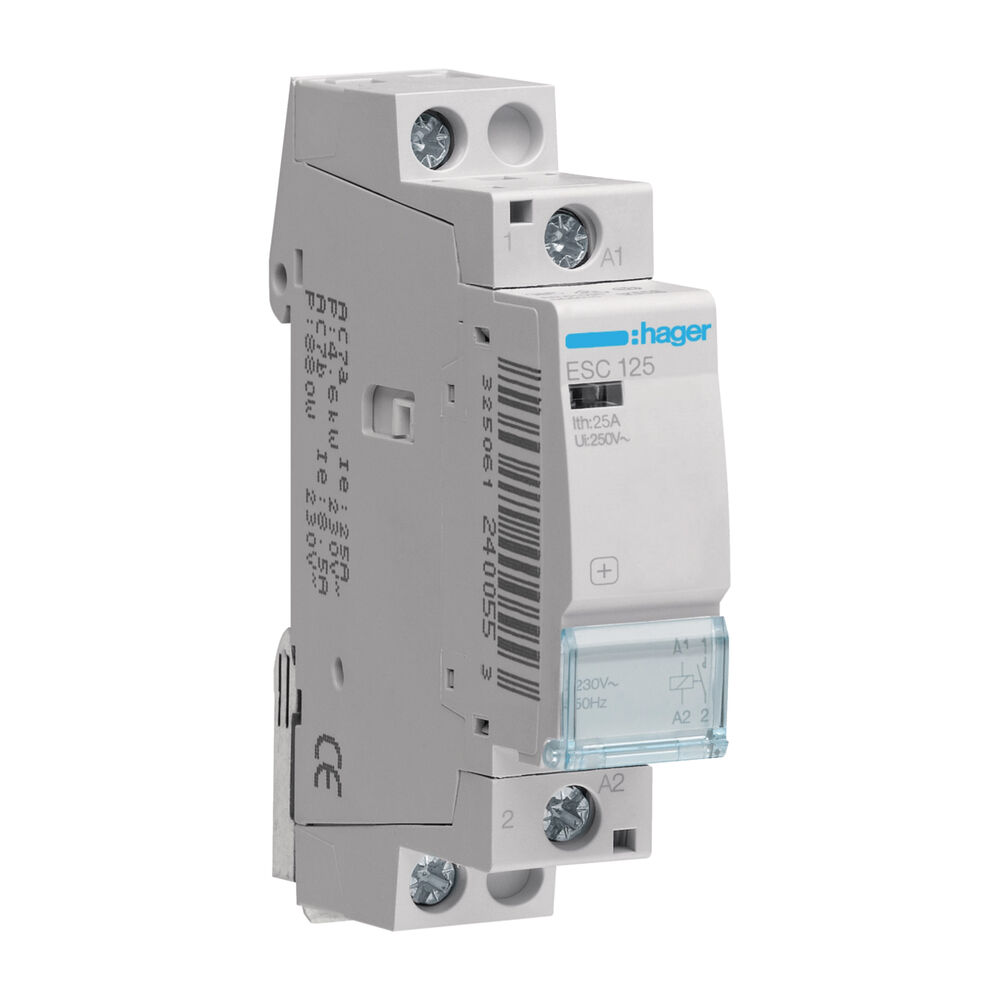

The Hager ESC125 is a compact, DIN rail-mounted contactor designed for reliable remote switching of electrical circuits up to 25A. With a 230V AC coil and a single normally open (1NO) contact configuration, it's ideal for controlling lighting, heating, ventilation, and motor loads in both residential and commercial settings.

Key Features:

• Rated Current: 25A (AC1)
• Control Voltage: 230V AC, 50Hz
• Contact Configuration: 1 Normally Open (1NO)
• Compact Design: 1-module width (17.85 mm) for space-saving DIN rail installations
• High Durability: Mechanical endurance of 100,000 operations; electrical endurance of 30,000 cycles
• Energy Efficient: Low operating consumption of 2.9 VA
• Safe Operation: Rated impulse withstand voltage of 4 kV
• Operating Temperature Range: -10°C to +50°C

Specifications:

• Model Number: ESC125
• Rated Operational Voltage (Ue): 230V AC
• Rated Insulation Voltage (Ui): 250V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Inrush Power Absorbed: 10.7 VA
• Total Power Loss Under IN: 2.5 W
• Dimensions: Height: 83 mm; Width: 17.85 mm; Depth: 60 mm
• Mounting: DIN rail (1 module width)
• Conductor Size: Flexible: 1–6 mm²; Rigid: 1–10 mm²
• Compliance: RoHS and REACH compliant

Applications:

• Lighting Control: Automate indoor and outdoor lighting systems
• Heating Systems: Manage electric heaters or underfloor heating
• Ventilation: Control fans and air handling units
• Motor Loads: Operate pumps, compressors, and other motor-driven equipment
• Home Automation: Integrate into smart home systems for enhanced control

The Hager ESC125 offers a reliable and efficient solution for controlling electrical circuits in various applications. Its compact design, robust performance, and compatibility with standard DIN rail systems make it a valuable component for both new installations and upgrades.
