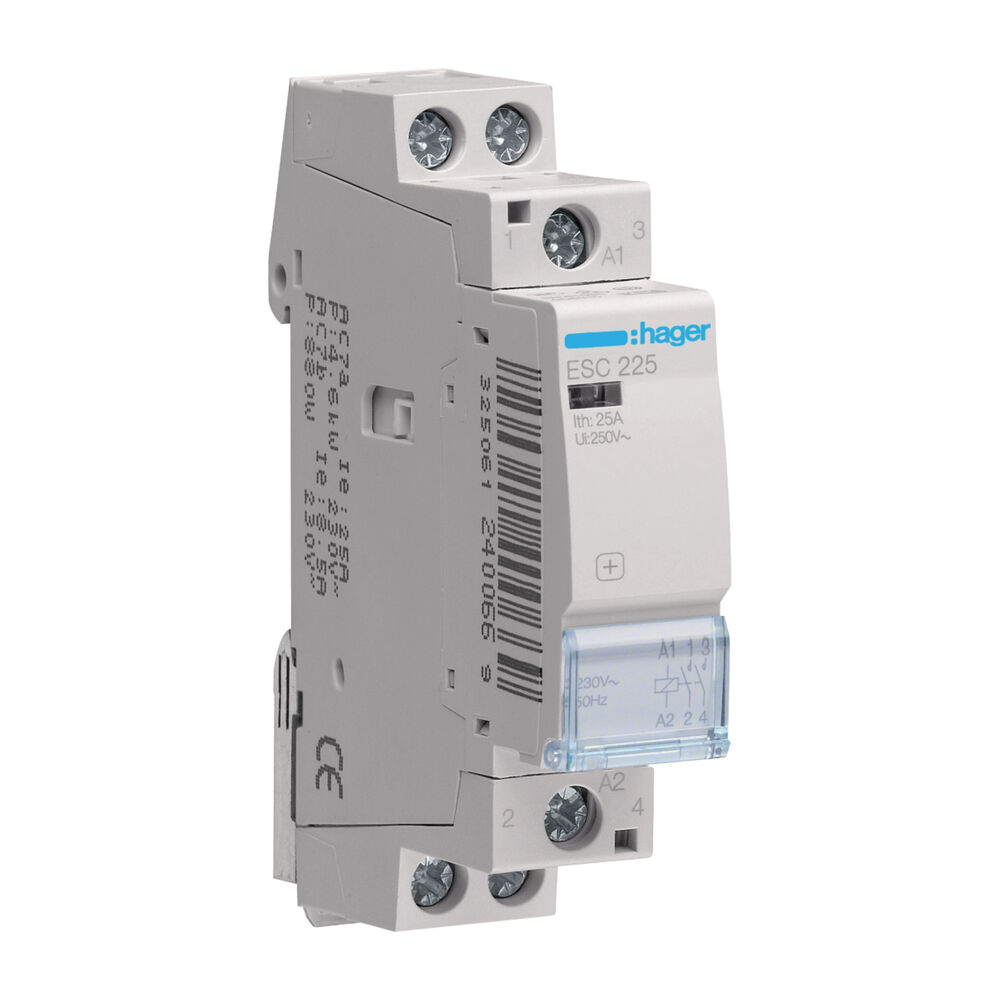

The Hager ESC225 is a compact and reliable DIN rail-mounted contactor designed for efficient control of electrical circuits up to 25A. With its 230V AC coil and two normally open (2NO) contact configuration, it's ideal for managing lighting, heating, ventilation, and motor loads in both residential and commercial settings.

Key Features:

• Rated Operational Voltage: 230V AC, 50Hz
• Rated Current: 25A (AC1)
• Contact Configuration: 2 Normally Open (2NO)
• Compact Design: 1-module width (17.85 mm) for space-saving DIN rail installations
• High Durability: Mechanical endurance of 100,000 operations; electrical endurance of 30,000 cycles
• Low Power Consumption: Operating consumption of 2.9 VA
• Impulse Withstand Voltage: Rated at 4 kV for enhanced safety
• Operating Temperature Range: -10°C to +50°C

Specifications:

• Model Number: ESC225
• Rated Insulation Voltage (Ui): 250V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Inrush Power Absorbed: 10.7 VA
• Total Power Loss Under IN: 4 W
• Dimensions: Height: 83 mm; Width: 17.85 mm; Depth: 60 mm
• Mounting: DIN rail (1 module width)
• Conductor Size: Flexible: 1–6 mm²; Rigid: 1–10 mm²
• Compliance: RoHS and REACH compliant

Applications:

• Lighting Control: Automate indoor and outdoor lighting systems
• Heating Systems: Manage electric heaters or underfloor heating
• Ventilation: Control fans and air handling units
• Motor Loads: Operate pumps, compressors, and other motor-driven equipment
• Home Automation: Integrate into smart home systems for enhanced control

The Hager ESC225 offers a reliable and efficient solution for controlling electrical circuits in various applications. Its compact design, robust performance, and compatibility with standard DIN rail systems make it a valuable component for both new installations and upgrades.
