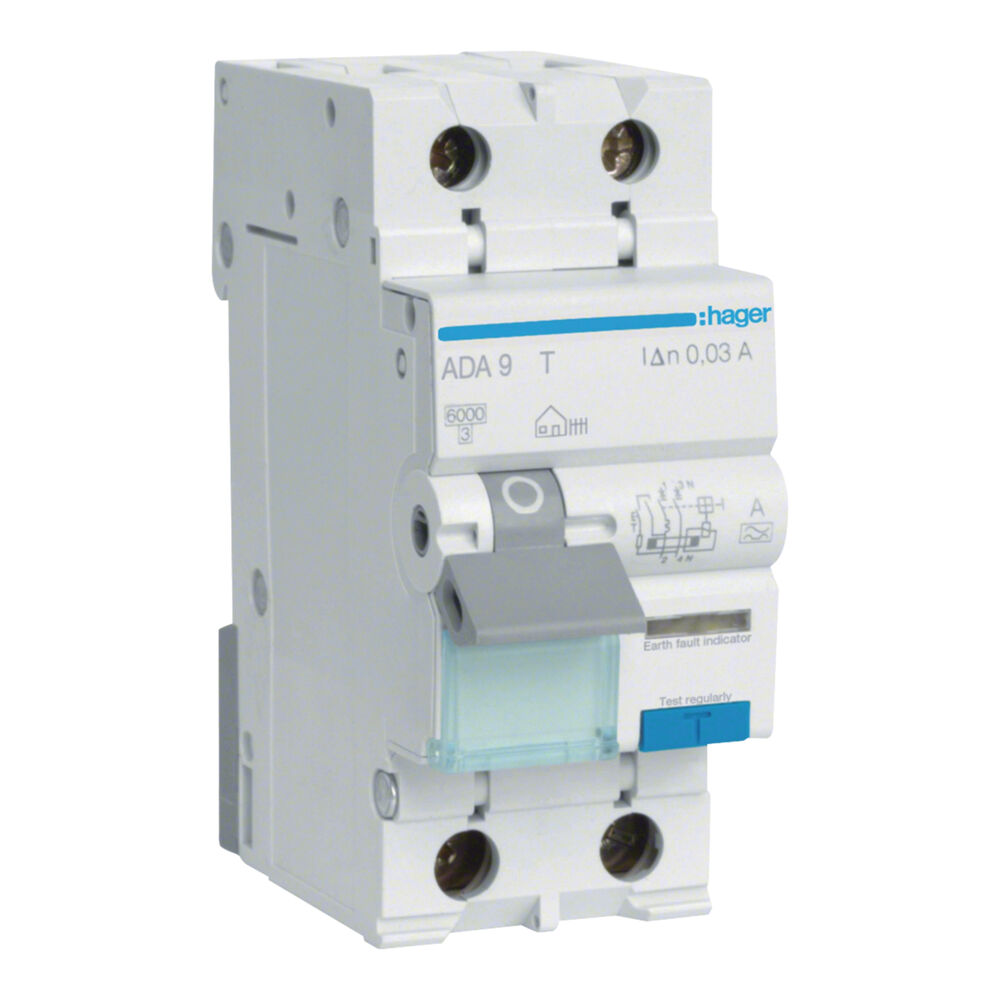

Hager ADA9 T 2 Pole RCBO Safety Switch – 6kA, C Curve, 30mA Type A

Combine circuit protection and residual current safety in one compact device with the Hager ADA9T Series RCBO. This 2-pole RCBO (Residual Current Breaker with Overcurrent protection) has current ratings from 10A to 40A, 6kA breaking capacity, and Type A 30mA RCD protection, making it ideal for safeguarding lighting and power circuits in residential and commercial installations.

Key Features:

• RCBO Functionality (MCB + RCD): Provides both overload/short-circuit protection and residual current protection in a single module.
• 2P (1P+N) Configuration: Disconnects both active and neutral conductors for enhanced safety and compliance.
• Type A RCD: Detects both AC and pulsating DC residual currents, ideal for protecting modern appliances and electronics.
• C Curve Tripping Characteristic: Designed to handle moderate inrush currents from inductive loads like motors and lighting systems.
• 6kA Breaking Capacity: High interrupt rating for use in general domestic and light commercial switchboards.
• Compact DIN Rail Mounting: Slim 18mm module width fits easily into standard DIN rail enclosures.
• Test Button Included: Allows periodic functional testing of RCD component as per safety regulations.

Specifications:

• Model: ADA9 T
• Available in Rated Current: 10A, 16A, 20A, 25A, 32A, 40A
• Poles: 2 (1P+N)
• Breaking Capacity: 6kA
• Tripping Curve: C Curve
• RCD Sensitivity: 30mA
• RCD Type: A (AC and pulsating DC)
• Mounting: DIN rail
• Standards: AS/NZS 61009.1 compliant
• Width: 35mm
• Test Function: Manual test button included

Applications:

• Residential Installations: Ideal for lighting, small appliance, and power point circuits and high power induction cooktops.
• Light Commercial: Suited for retail, office, and light industrial switchboards with C Curve protection needs.
• RCD Compliance: Suitable for installations requiring RCD protection under Australian safety standards.
• Retrofit & New Builds: Perfect for switchboard upgrades or new fitouts with limited space.

The Hager ADA9 T RCBO is a dependable, compact safety switch solution – combining overload protection and life-saving RCD protection in one trusted device.
