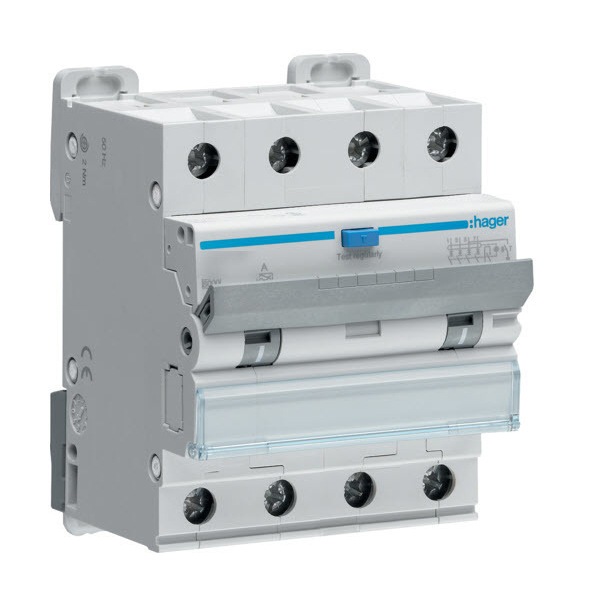

Hager 3 Phase RCBO 4P 6kA

Image 1
Limited Stock
$168.10

Collect 168 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout
  • Number of modules: 4
  • Number of poles: 4 P
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA
  • Curve: C
  • Rated operational voltage Ue: 240/415 V
  • Rated current: 16 A / 20 A / 25A / 32A / 40A
  • Rated residual operating current: 30 mA
  • Residual current type: A
  • Frequency: 50 Hz
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4 kV
  • Electric endurance in number of cycles: 2000
  • Number of mechanical operations: 4000
  • Tightening torque: 2Nm
  • Height of installed product: 84 mm
  • Width of installed product: 71 mm
  • Depth of installed product: 70 mm
  • Standard text: IEC 61009-1 ; AS/NZ 61009-1
  • Fixing mode: Din-Rail
  • Surge current strength (waves 8/20µs): 3 kA
  • Operating temperature: -25 to 40 °C

Estimated Delivery Time Frame:1 - 7 Business Days
