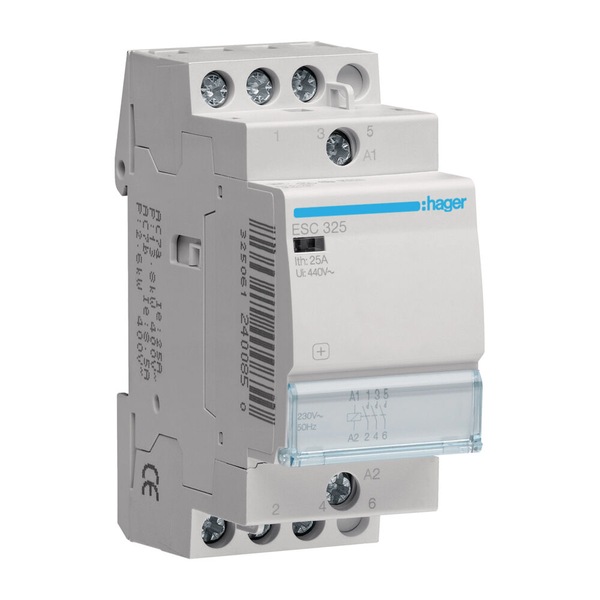

The Hager ESC325 is a 3-pole, 25A modular contactor designed for efficient remote switching of electrical circuits. With its 230V AC coil and three normally open (3NO) contacts, this DIN rail-mounted device is ideal for managing lighting, heating, ventilation, and motor loads in residential, commercial, and industrial settings.

Key Features:

• Rated Current: 25A (AC1)
• Contact Configuration: 3 Normally Open (3NO)
• Control Voltage: 230V AC, 50Hz
• Compact Design: 2-module width (35.75 mm) for efficient DIN rail installation
• High Durability: Mechanical endurance of 1,000,000 operations; electrical endurance of 30,000 cycles
• Low Power Consumption: Operating consumption of 3.4 VA
• Impulse Withstand Voltage: Rated at 4 kV for enhanced safety
• Operating Temperature Range: -10°C to +50°C

Specifications:

• Model Number: ESC325
• Rated Operational Voltage (Ue): 400V AC
• Rated Insulation Voltage (Ui): 440V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Inrush Power Absorbed: 21 VA
• Total Power Loss Under IN: 6 W
• Dimensions: Height: 83 mm; Width: 35.75 mm; Depth: 60 mm
• Mounting: DIN rail (2-module width)
• Conductor Size: Flexible: 1–6 mm²; Rigid: 1–10 mm²
• Compliance: RoHS and REACH compliant

Applications:

• Lighting Control: Automate indoor and outdoor lighting systems
• Heating Systems: Manage electric heaters or underfloor heating
• Ventilation: Control fans and air handling units
• Motor Loads: Operate pumps, compressors, and other motor-driven equipment
• Home Automation: Integrate into smart home systems for enhanced control

The Hager ESC325 offers a reliable and efficient solution for controlling electrical circuits in various applications. Its compact design, robust performance, and compatibility with standard DIN rail systems make it a valuable component for both new installations and upgrades.
