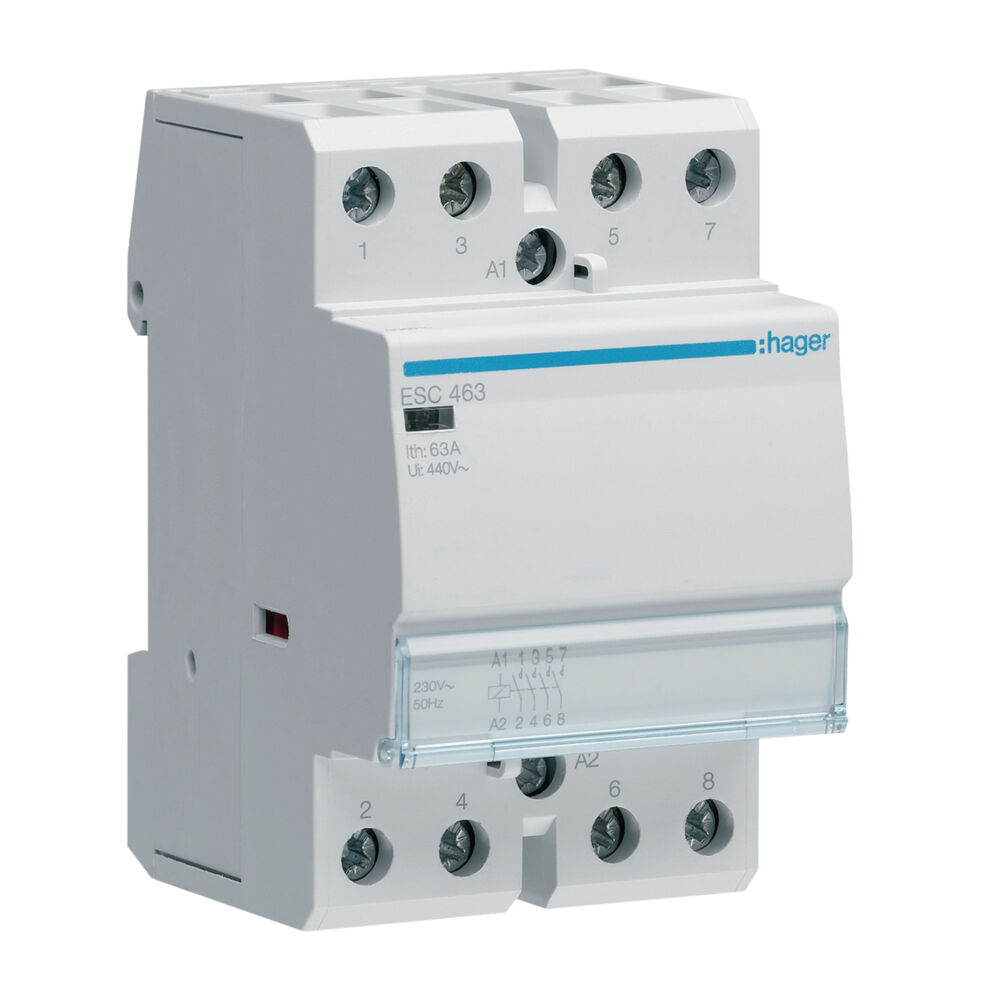

The Hager ESC463 is a robust 4-pole, 63A modular contactor engineered for reliable remote switching of electrical circuits. With its 230V AC coil and four normally open (4NO) contacts, this DIN rail-mounted device is ideal for managing lighting, heating, ventilation, and motor loads in residential, commercial, and industrial settings.

Key Features:

• High Switching Capacity: Rated for 63A (AC1), suitable for heavy-duty applications.
• 4NO Contact Configuration: Four normally open contacts for versatile control.
• 230V AC Coil: Standard control voltage compatible with common systems.
• Compact Design: 3-module width (54 mm) for efficient DIN rail installation.
• High Durability: Mechanical endurance of 100,000 operations; electrical endurance of 30,000 cycles.
• Low Power Consumption: Operating consumption of 5.7 VA.
• Impulse Withstand Voltage: Rated at 4 kV for enhanced safety.
• Operating Temperature Range: -10°C to +50°C.
• Compliance: RoHS and REACH compliant.

Specifications:

• Model Number: ESC463
• Rated Operational Voltage (Ue): 400V AC
• Rated Insulation Voltage (Ui): 440V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Inrush Power Absorbed: 62.5 VA
• Total Power Loss Under IN: 21.5 W
• Dimensions: Height: 85 mm; Width: 54 mm; Depth: 60 mm
• Mounting: DIN rail (3-module width)
• Conductor Size: Flexible: 1.5–16 mm²; Rigid: 1.5–25 mm²
• Contact Rating (AC7A): 11.6 kW at 230V, 35 kW at 400V
• Contact Rating (AC7B): 3.3 kW at 230V, 10 kW at 400V

Applications:

• Lighting Control: Automate indoor and outdoor lighting systems.
• Heating Systems: Manage electric heaters or underfloor heating.
• Ventilation: Control fans and air handling units.
• Motor Loads: Operate pumps, compressors, and other motor-driven equipment.
• Home Automation: Integrate into smart home systems for enhanced control.

The Hager ESC463 offers a reliable and efficient solution for controlling electrical circuits in various applications. Its robust performance, compact design, and compatibility with standard DIN rail systems make it a valuable component for both new installations and upgrades.
