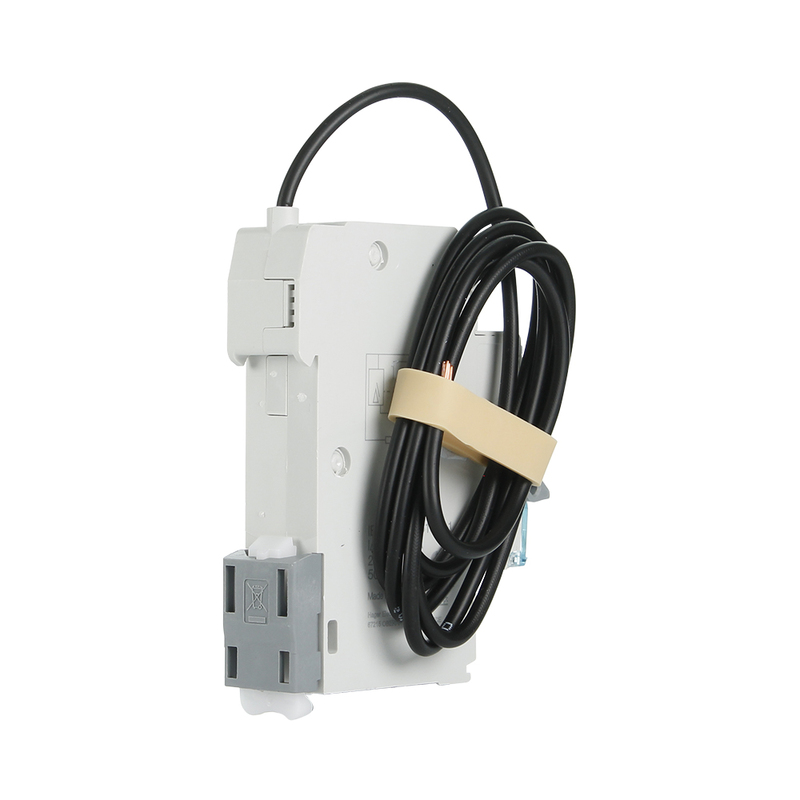

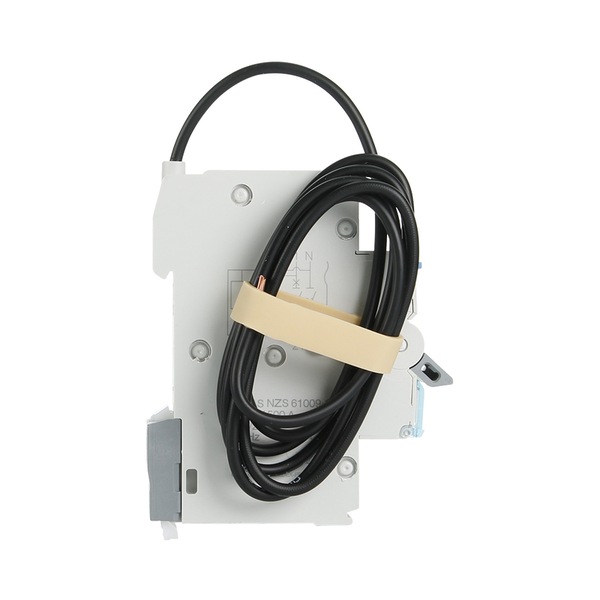

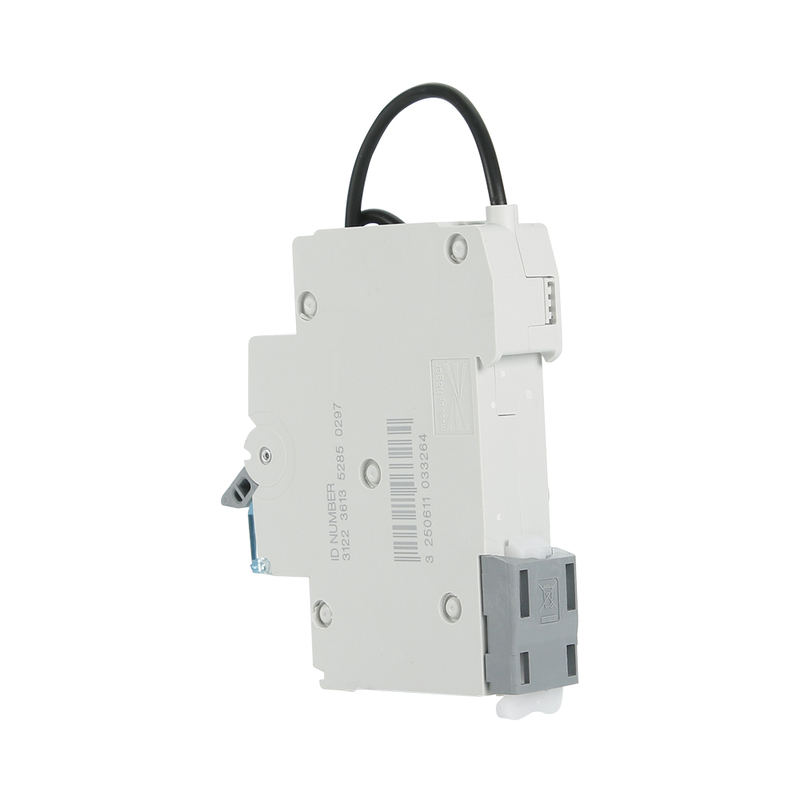

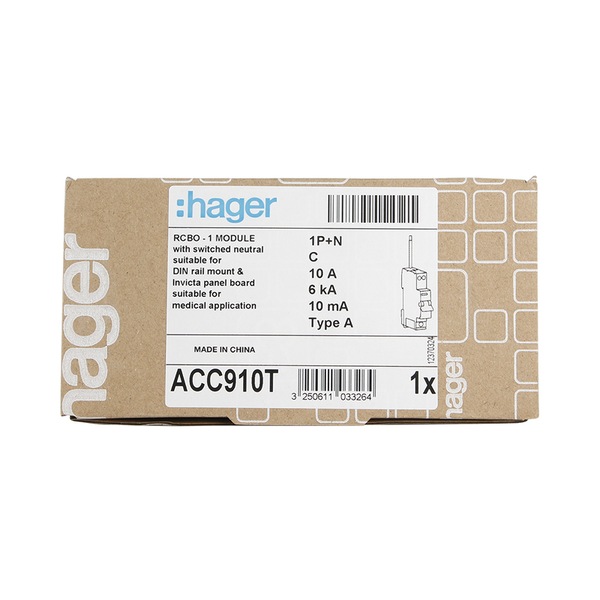

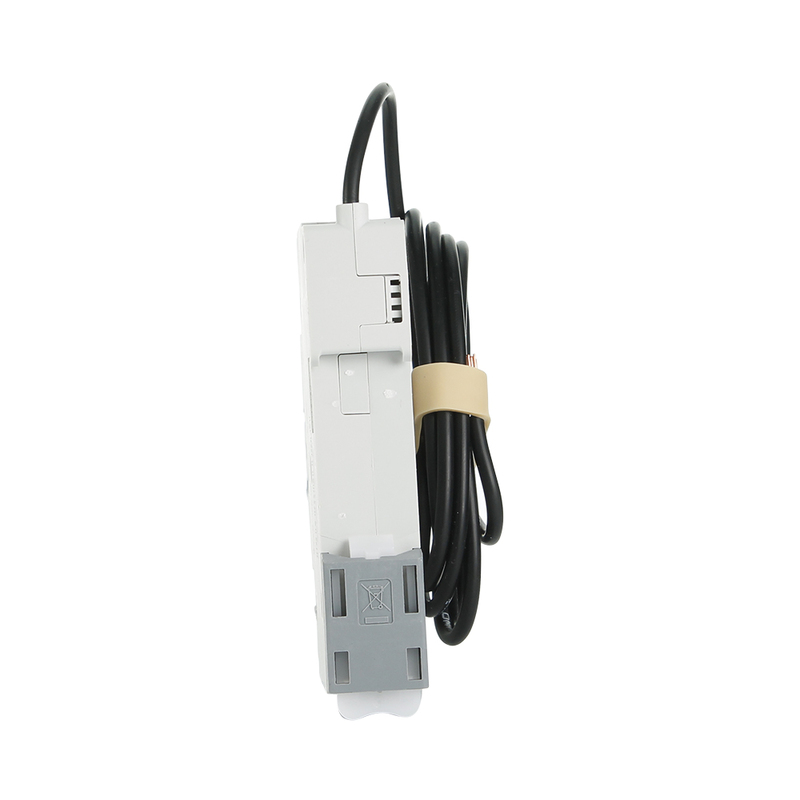

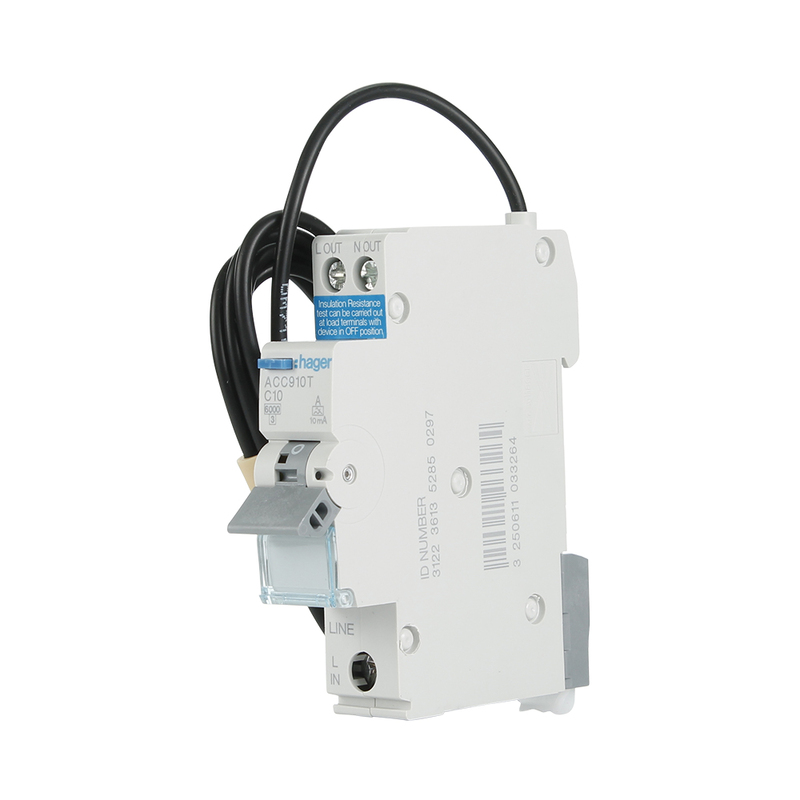

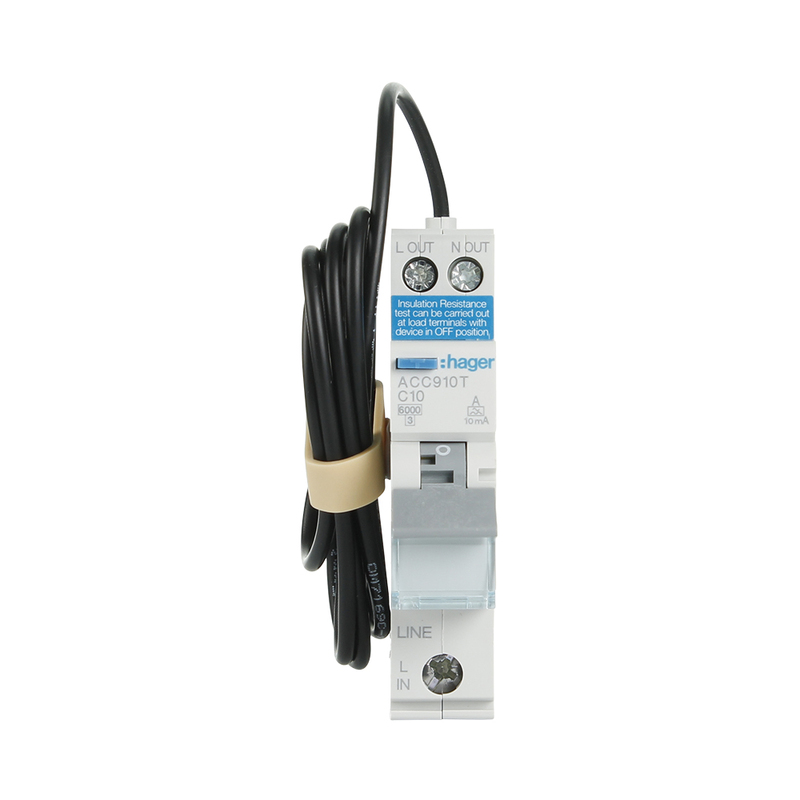

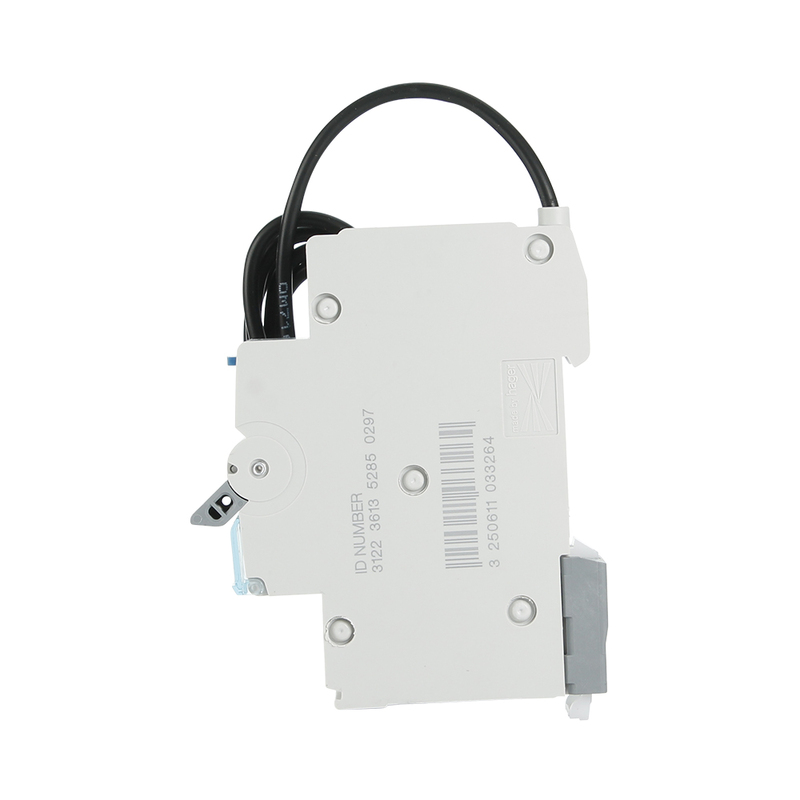

The Hager ACC910T is a 10A 1P+N RCBO breaker designed to offer protection against overload, short circuits, and earth leakage. Rated at 10mA residual operating current and 6kA short circuit breaking capacity, this RCBO is ideal for use in residential and commercial applications. It is equipped with a C curve for moderate inrush current and is designed for installation on DIN rail type O.
With a rated operational voltage of 230/240V, the ACC910T ensures reliable electrical protection. Its compact design allows for easy installation and supports flexible and rigid conductor connections. This RCBO detects residual current type A, providing effective protection against AC and pulsating DC currents.
Q: What is the rated short circuit breaking capacity of this RCBO?
A: The Hager ACC910T has a short circuit breaking capacity of 6kA.
Q: What type of residual current does this breaker detect?
A: It detects residual current type A, which includes AC and pulsating DC currents.
Q: Can this RCBO be used in residential installations?
A: Yes, it is suitable for both residential and commercial applications, providing reliable circuit protection.
Q: What is the rated current of this RCBO?
A: The RCBO is rated at 10A.
| Specification | Details |
|---|---|
| Neutral position | Right |
| Number of protected poles | 1 |
| Number of poles | 2 P |
| Type of pole | 1P+N |
| Fixing mode | DIN rail type O (symmetrical) |
| Curve | C |
| Number of modules | 1 |
| Rated short circuit breaking capacity Icn AC according IEC60898-1 | 6 kA |
| Rated operational voltage Ue | 230 / 240 V |
| Type of supply voltage | AC |
| Frequency | 50 Hz |
| Rated insulation voltage | 440 V |
| Max operating voltage | 264 V |
| Rated impulse withstand voltage | 4 kV |
| Rated residual operating current | 10 mA |
| Rated current | 10 A |
| Withstand not tripping on 8-20 μs wave | 0.2 kA |
| Breaking and opening capacity | 4.5 kA |
| Min/max threshold value of the AC thermal operation | 1.13 / 1.45 In |
| Magnetic regulating current | 5 / 10 In |
| Total power loss under IN | 4.04 W |
| Power loss per pole at In | 2.13 W |
| Electric endurance in number of cycles | 10,000 |
| Number of mechanical operations | 20,000 |
| Standards | IEC 61009-1; AS/NZS 61009-1 |
| Protection index IP | IP20 |
| Residual current type | A |
| REACH conform | No |
| Halogen free | No |
| Operating temperature | -25…70 °C |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 2 |
| Class of energy limitation I²t | 3 |
| Altitude | 2000 m |
| Storage/transport temperature | -25…80 °C |
