Description:

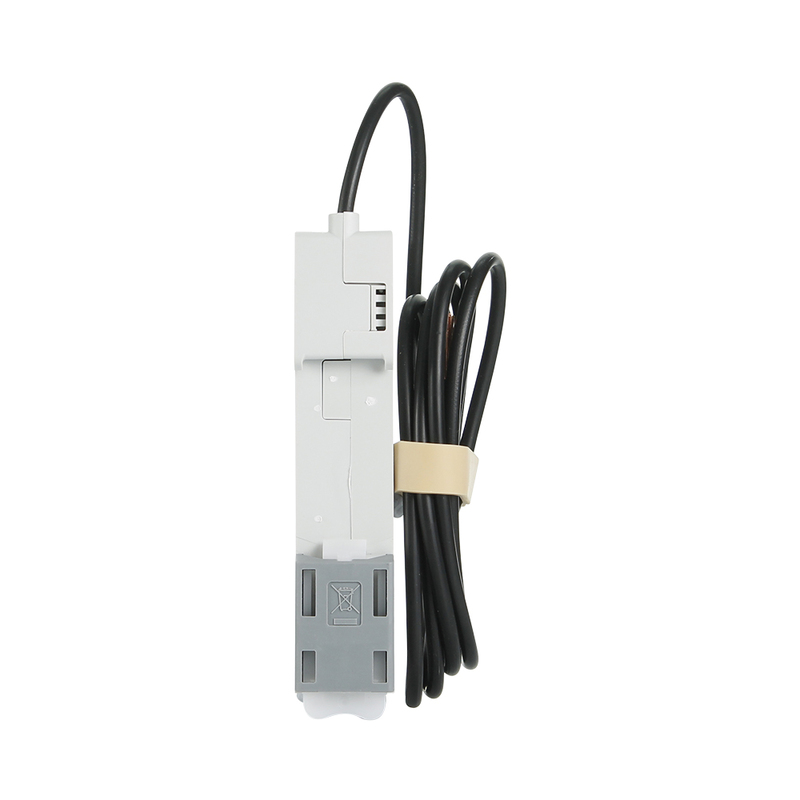

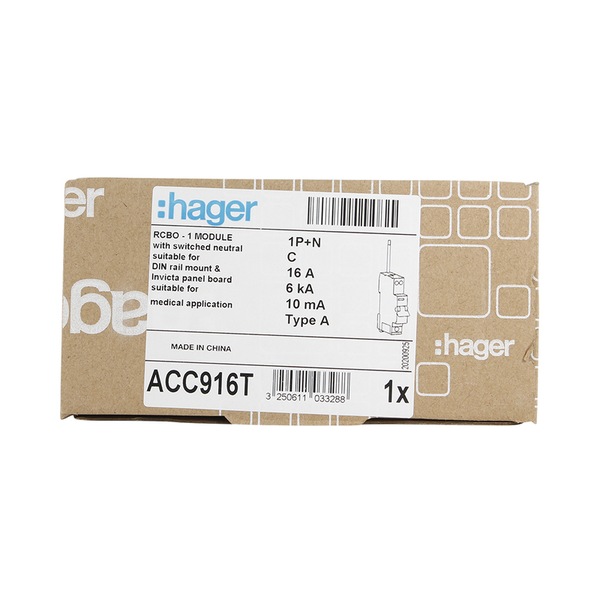

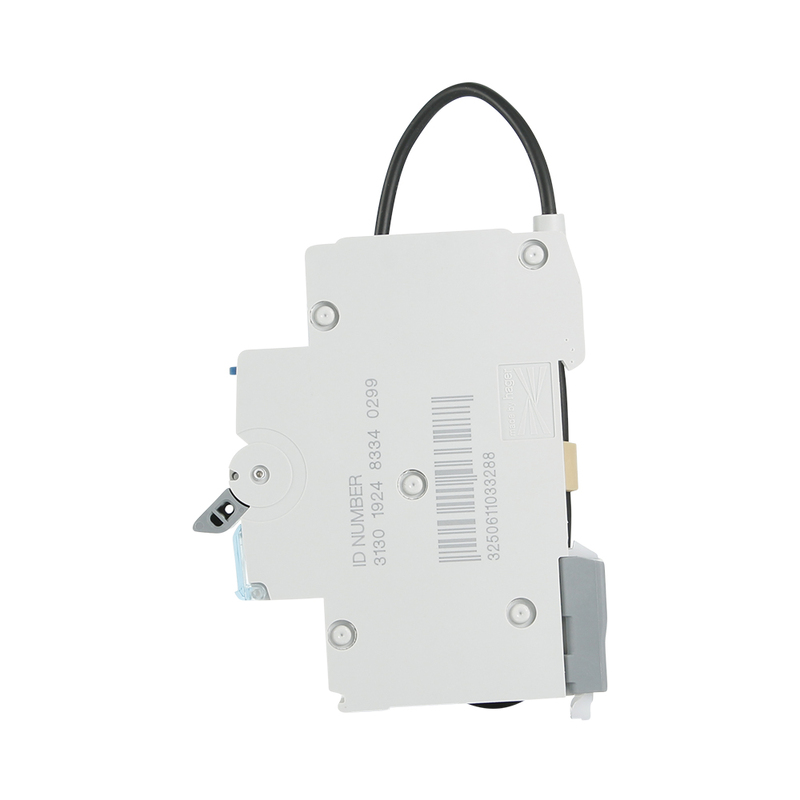

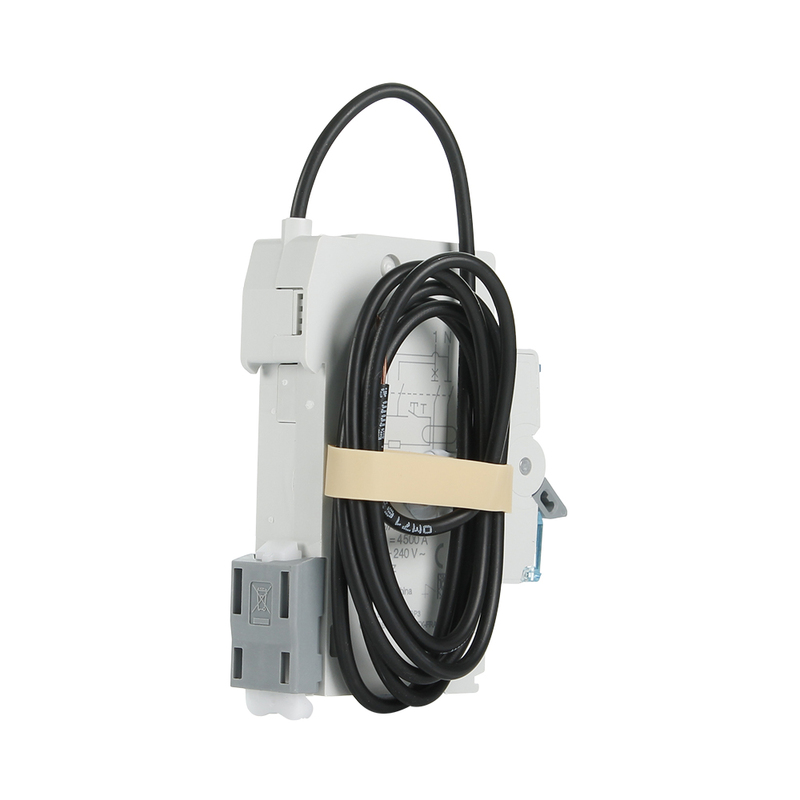

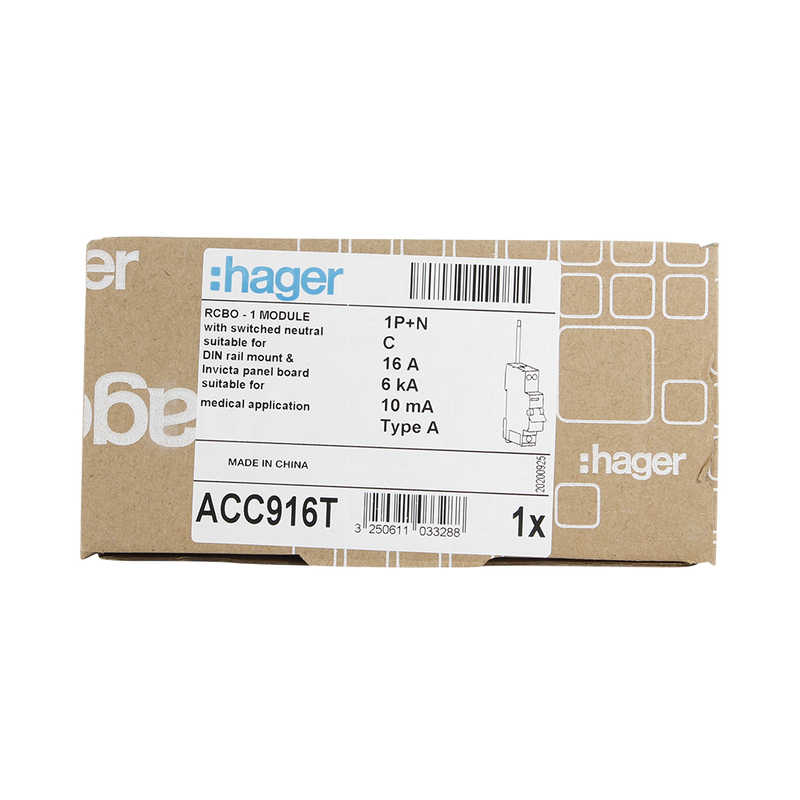

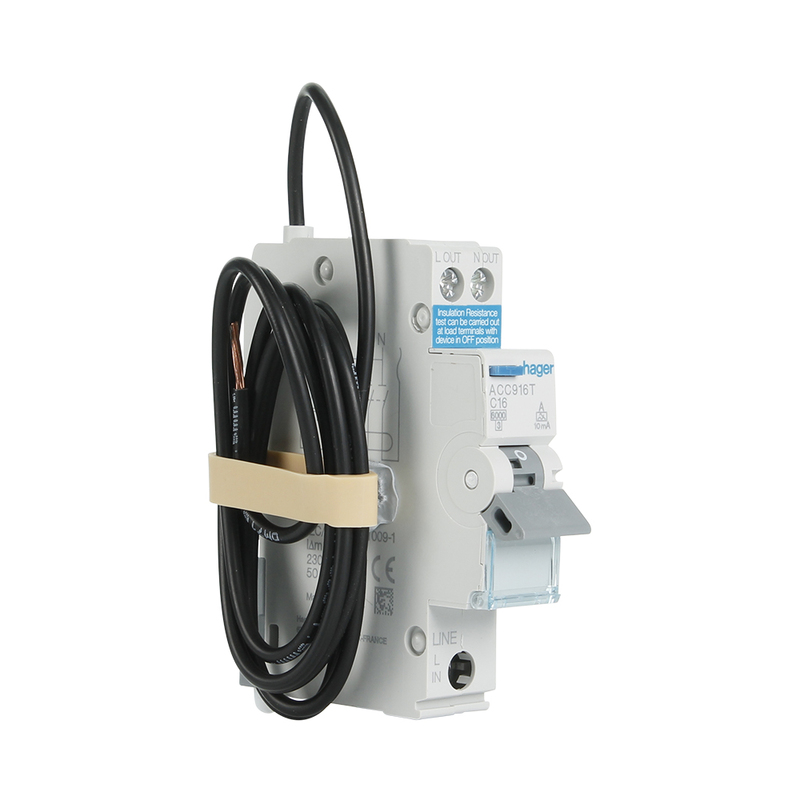

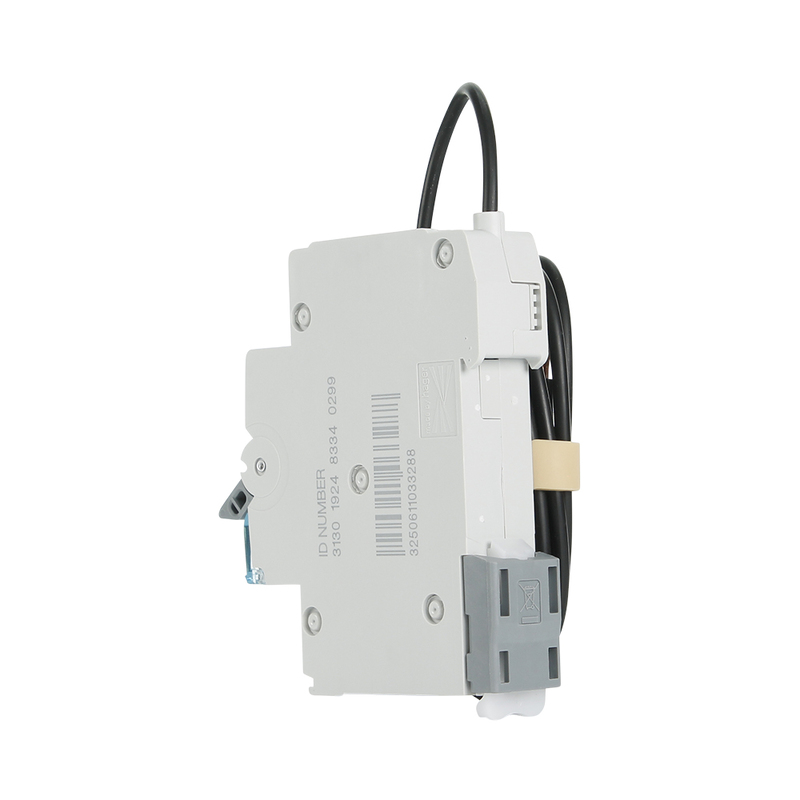

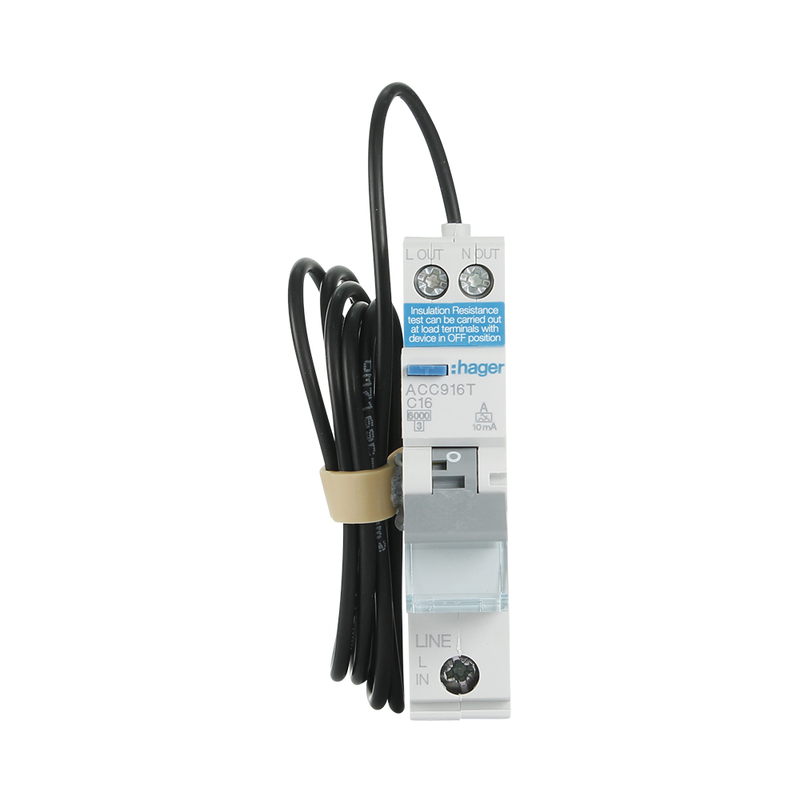

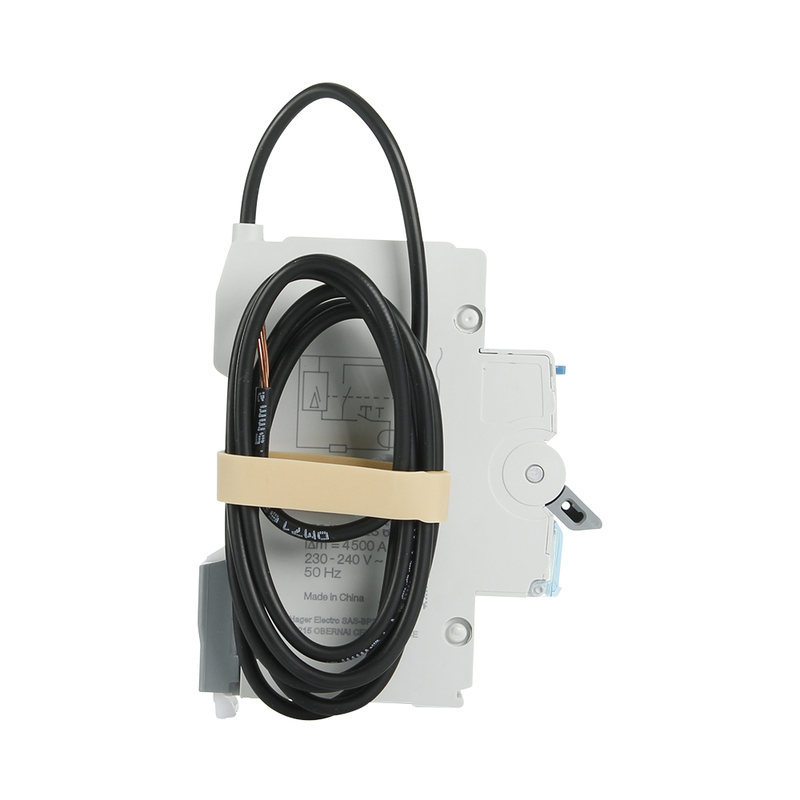

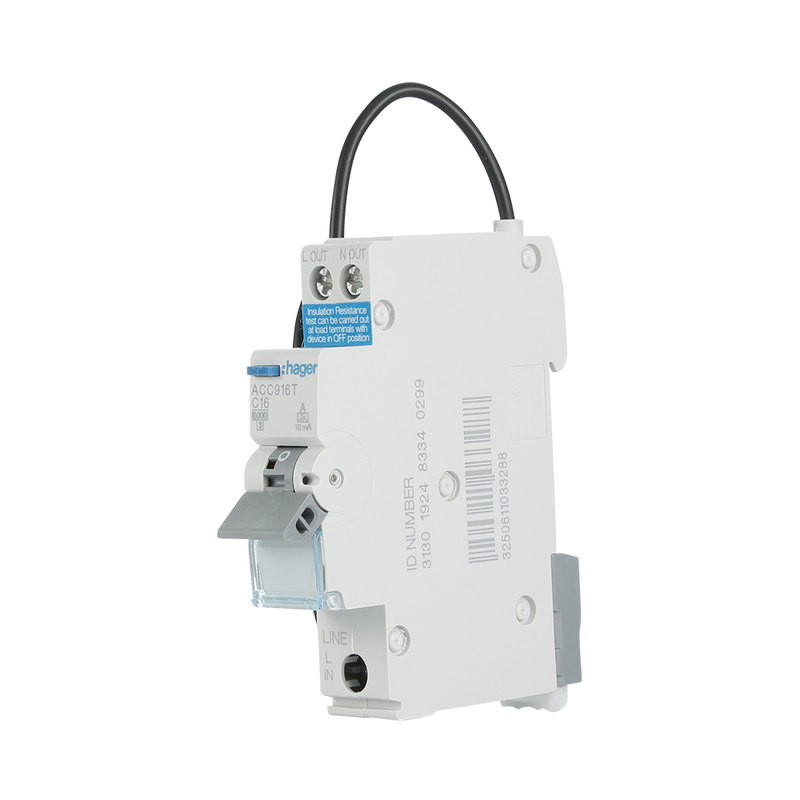

The Hager ACC916T is a C Curve 1 Pole + Neutral RCBO that protects and controls power and lighting circuits. The ACC916T RCBO is rated at 6kA and is suitable for commercial and industrial applications.

10mA Applications (Type I):
Suitable for medical applications, socket outlets in homecare scenarios and patient care environments are required to be protected by Type I RCDs.

Examples include:

• Homecare applications (e.g. protecting the socket for home dialysis machines)
• Socket outlets of patient areas (e.g. medical centres, pathologies, optometries etc.)

Features:

• Number of poles: 2P
• Type of pole: 1P+N
• Rated current: 16 A
• Rated operational voltage Ue: 230 / 240 V
• Frequency: 50 Hz
• Rated residual operating current: 10 mA
• RCBO C curve din rail mounted
• Rated insulation voltage 440 V
• Max operating voltage 264 V
• Rated impulse withstand voltage 4 kV
• Depth of installed product: 70 mm
• Height of installed product: 85 mm
• Width of installed product: 17.7 mm
