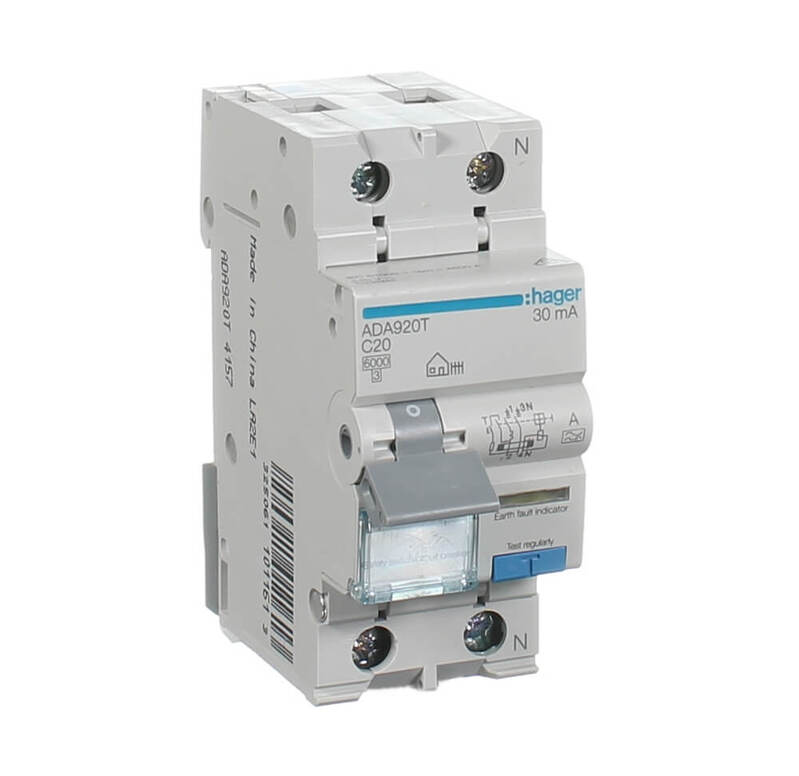

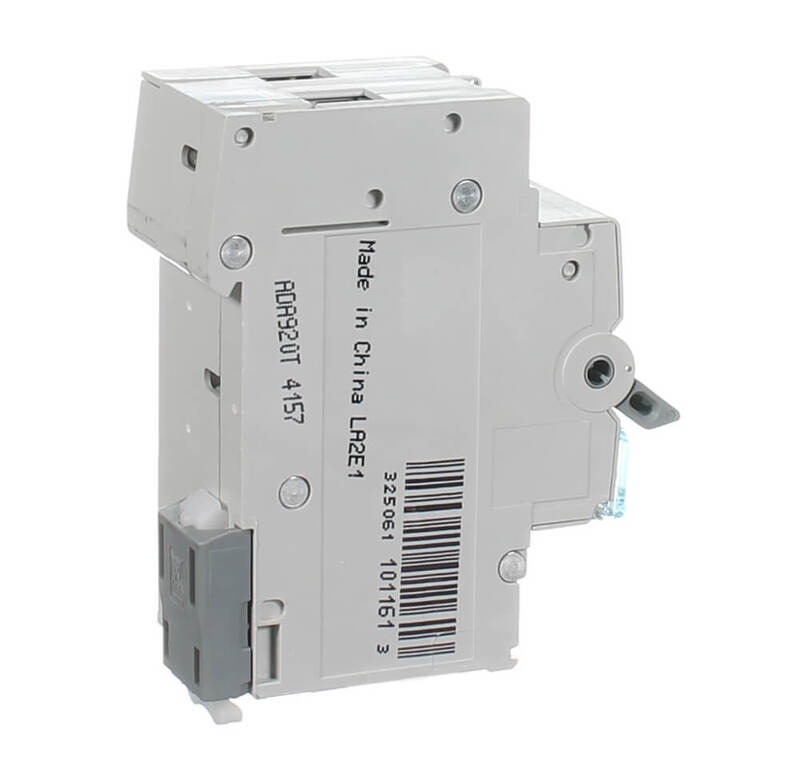

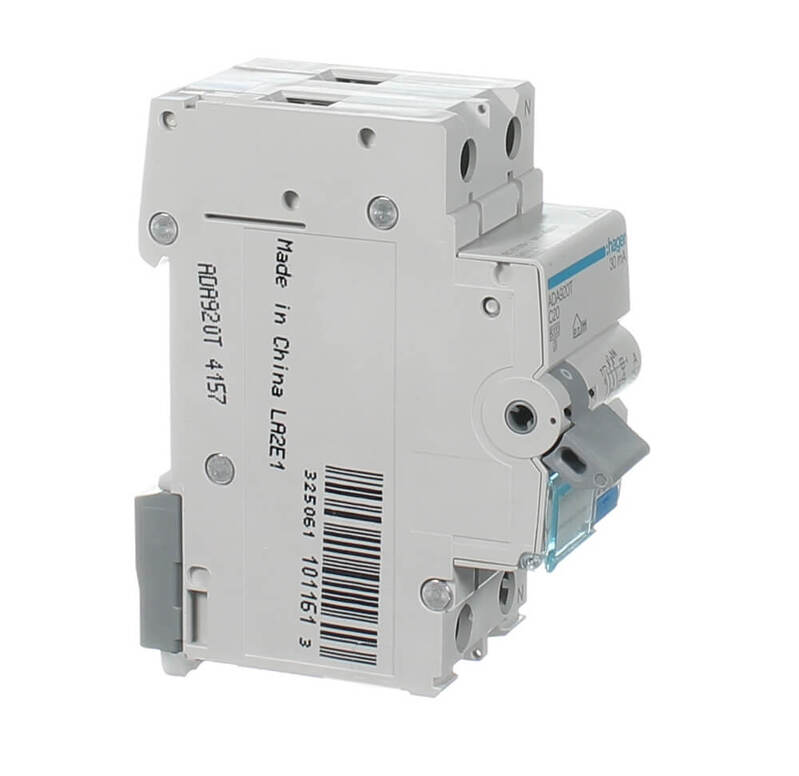

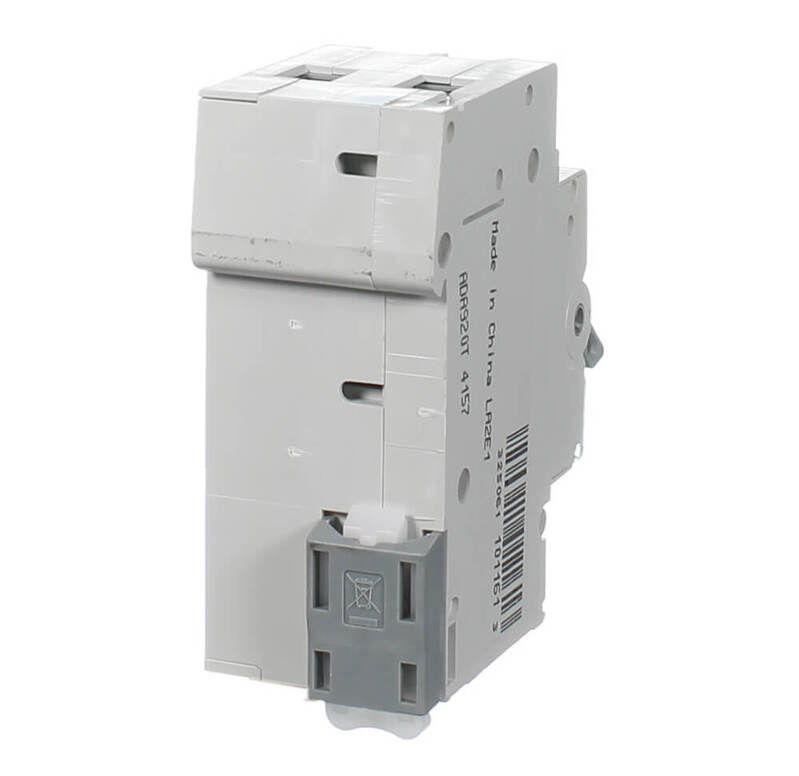

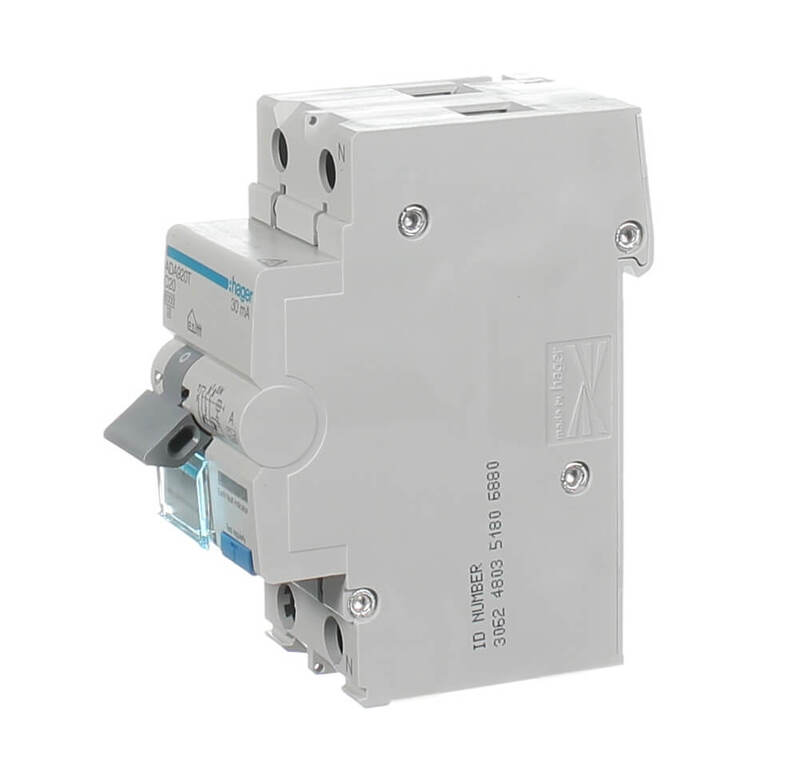

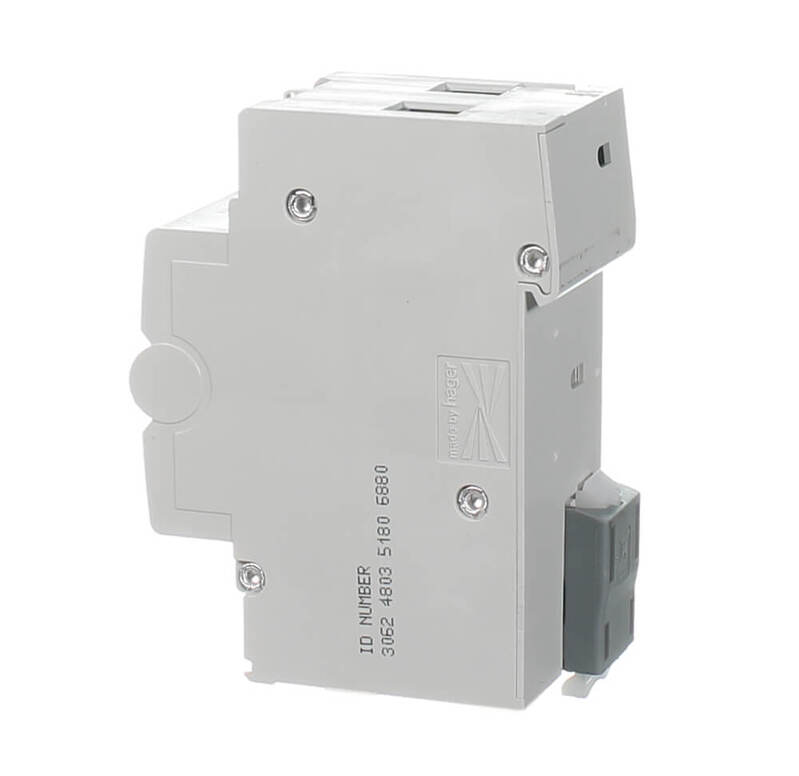

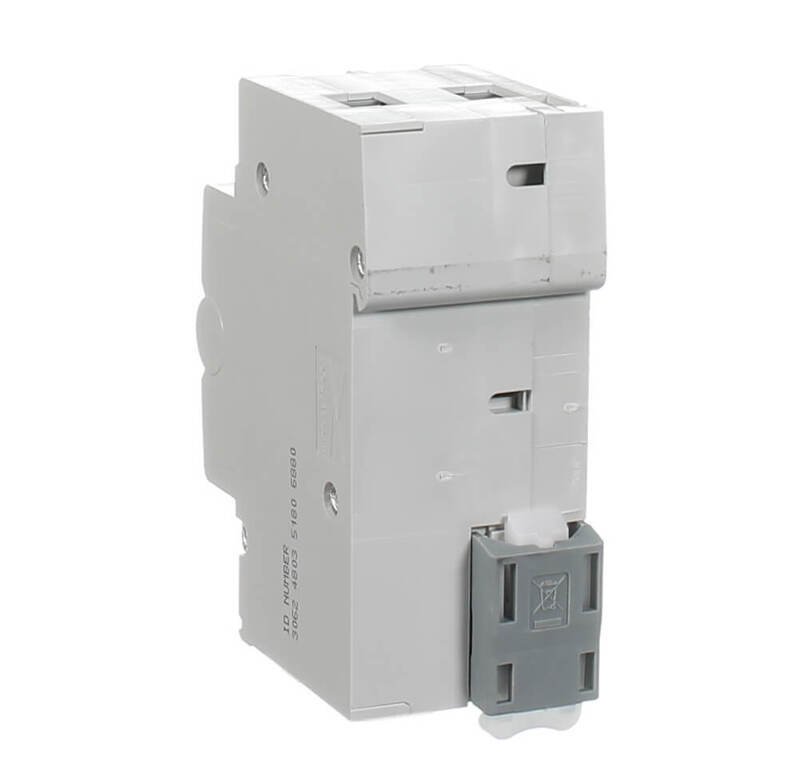

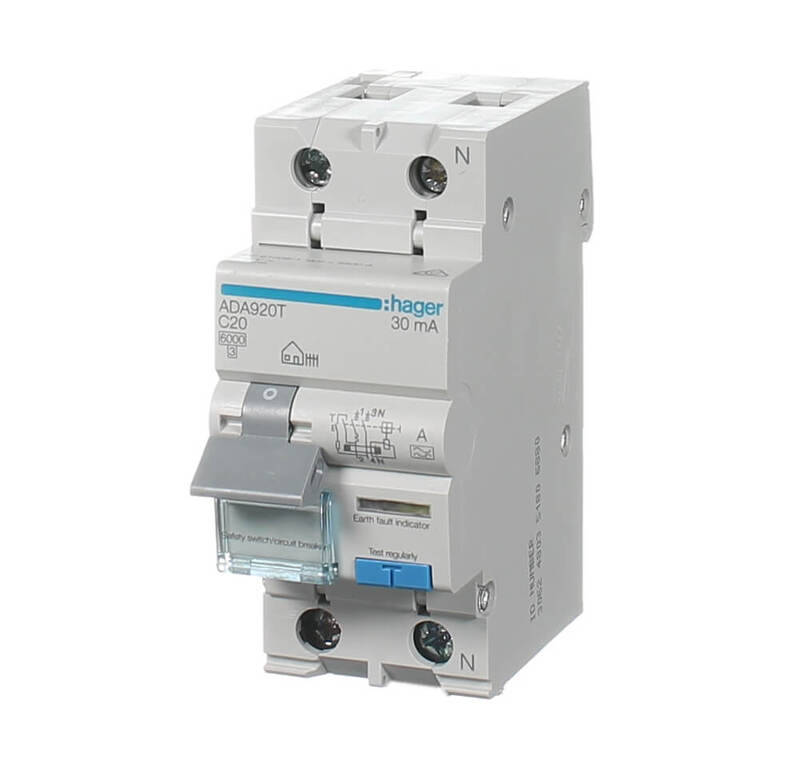

The Hager ADA920T 20 amp 2 pole RCBO is a C Curve safety switch all in one unit. It has a 6kA rating ideal for commercial and residential applications. The RCD/MCB combo will protect property and life should current be detected leaking to earth within 30mA. The switch has an inbuilt test switch and is easily reset after the fault is rectified.

The ADA920T is generally installed on 1 phase circuits to protect motors, appliances and control equipment.

Features

• Rated current 20 A
• Breaking Current 6 kA
• Number of modules 2
• Number of poles 2 P
• Curve C
• Rated operational AC voltage 240 V
• Rated residual operating current 30 mA
• Residual current type A
• Frequency 50 Hz
• Rated insulation voltage 500 V
• Rated impulse withstand voltage 4000 V
• Operating temperature -25 to 40 °C
• Electric endurance in number of cycles 2000
• Number of mechanical operations 2000
• Connection cross-sect. rigid cable 1 / 25mm²
• Connection cross-sect. flexible cable 1 / 16mm²
• Tightening torque 2,1Nm
• Height of installed product 83 mm
• Width of installed product 35 mm
• Depth of installed product 68 mm
