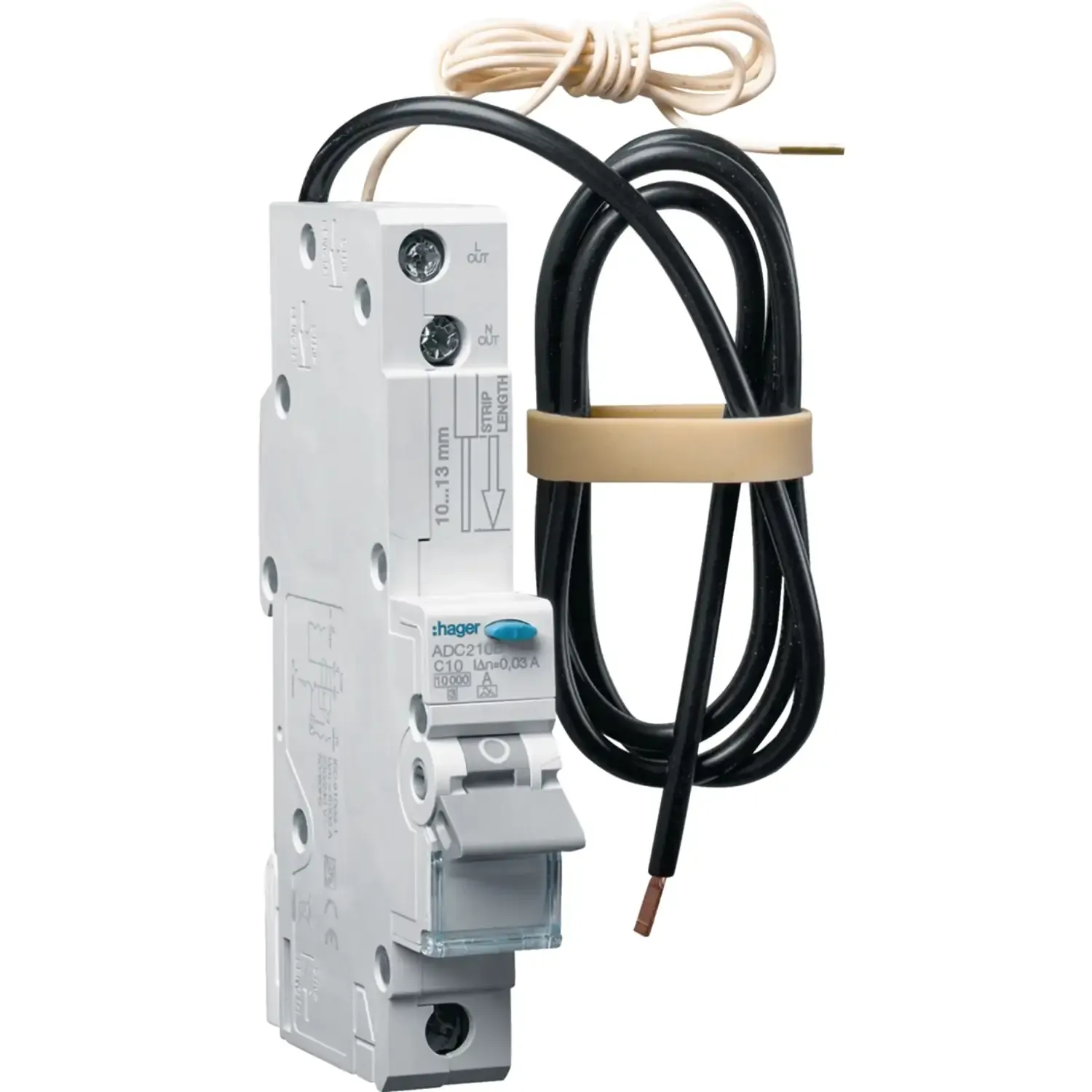

The Hager ADC210B is a compact 10A single-pole RCBO combining overcurrent and residual current protection in one DIN-mountable unit. With a 10kA breaking capacity, 30mA Type A earth leakage detection, and a C Curve tripping profile, it suits most residential and light commercial switchboards.

Rated for 230-240V AC, it features top screw terminals and a bottom biconnect connection, accepts up to 25mm² conductors, and offers excellent durability with up to 10,000 mechanical operations. Designed to perform in ambient temperatures from -5°C to 40°C, it provides safe, long-lasting protection with a slim 1-module profile.

ADC210B Features

• Combined Protection: 10A overload + 30mA Type A residual current protection
• High Breaking Capacity: 10kA short-circuit rating for demanding circuits
• C Curve Trip: Suited for general-purpose loads with moderate inrush currents
• Compact DIN Mount: 1-module wide with screw/biconnect terminals
• Durable & Versatile: Supports up to 25mm² cable, IP20 rated, -5°C to 40°C range

ADC210B FAQ

Q: Is this suitable for residential switchboards?
A: Yes, it fits most DIN rail boards and meets typical residential requirements.

Q: What type of RCD protection does it offer?
A: It’s a Type A RCD, detecting both AC and pulsating DC leakage currents.

Q: Will it fit large conductors?
A: Yes, it supports both flexible and solid cables up to 25mm².
