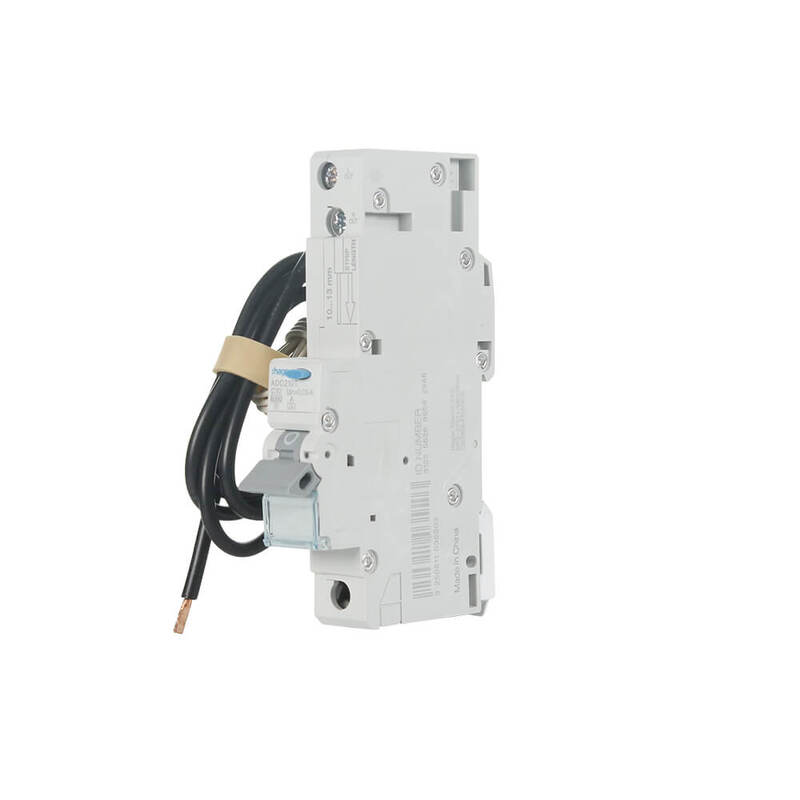

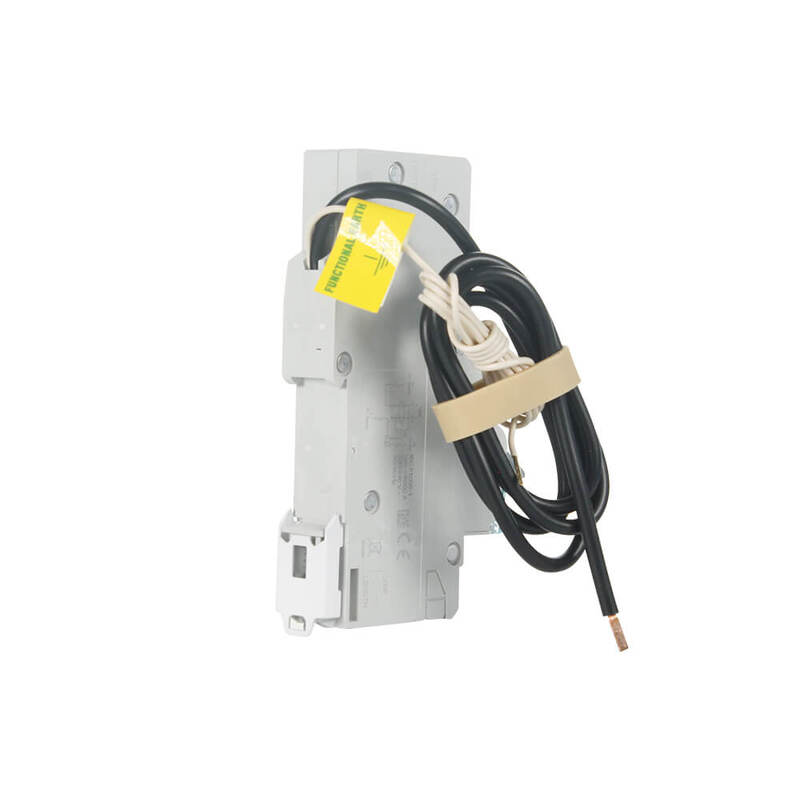

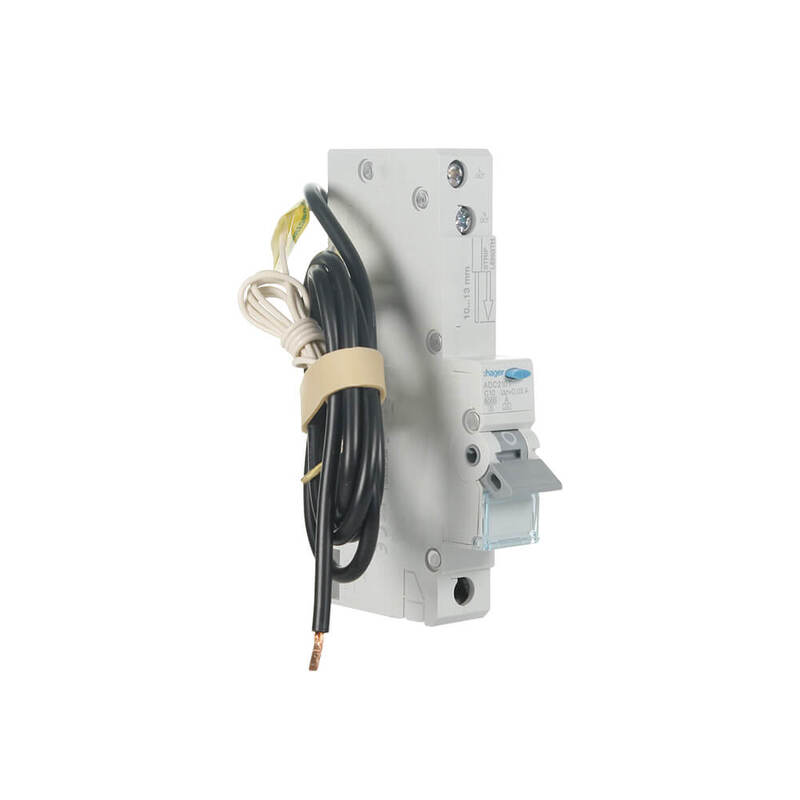

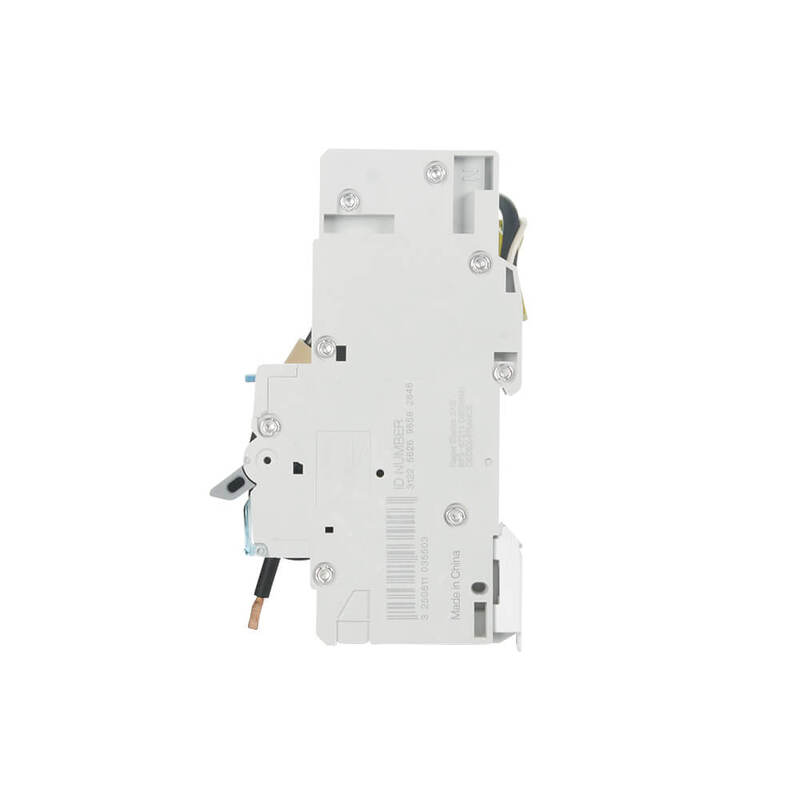

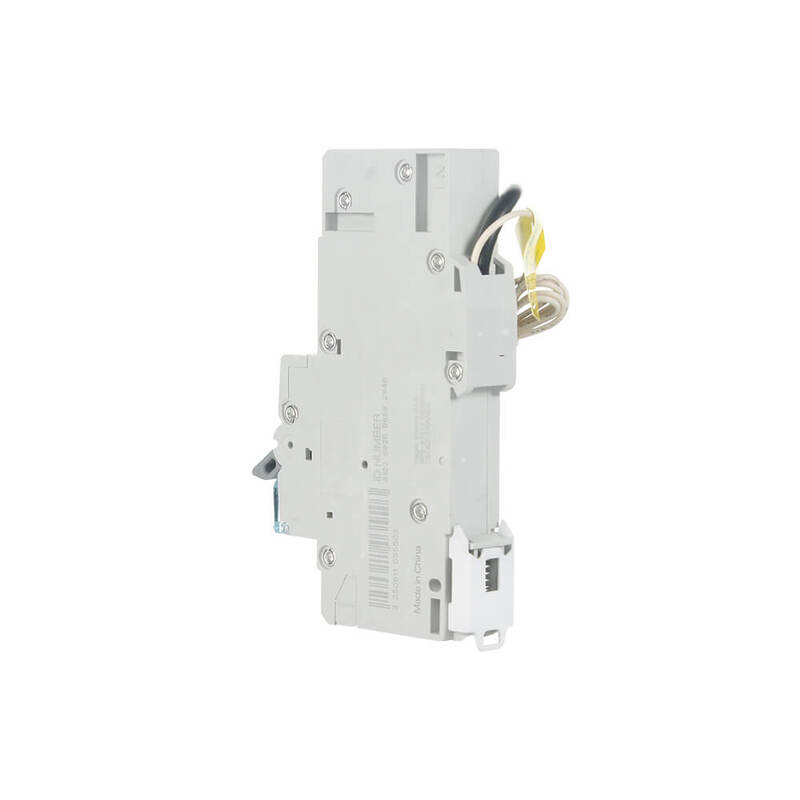

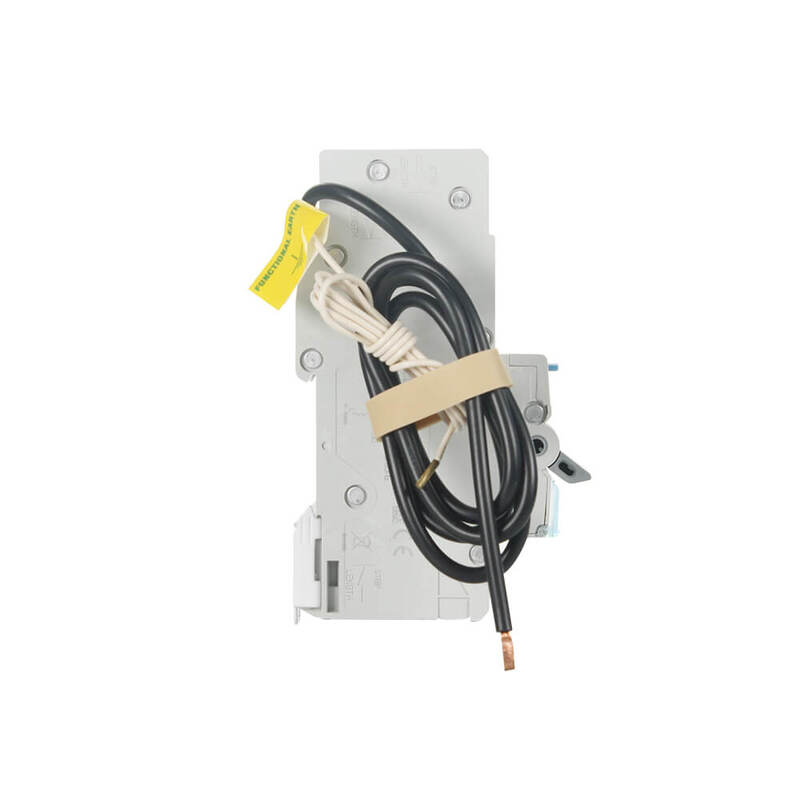

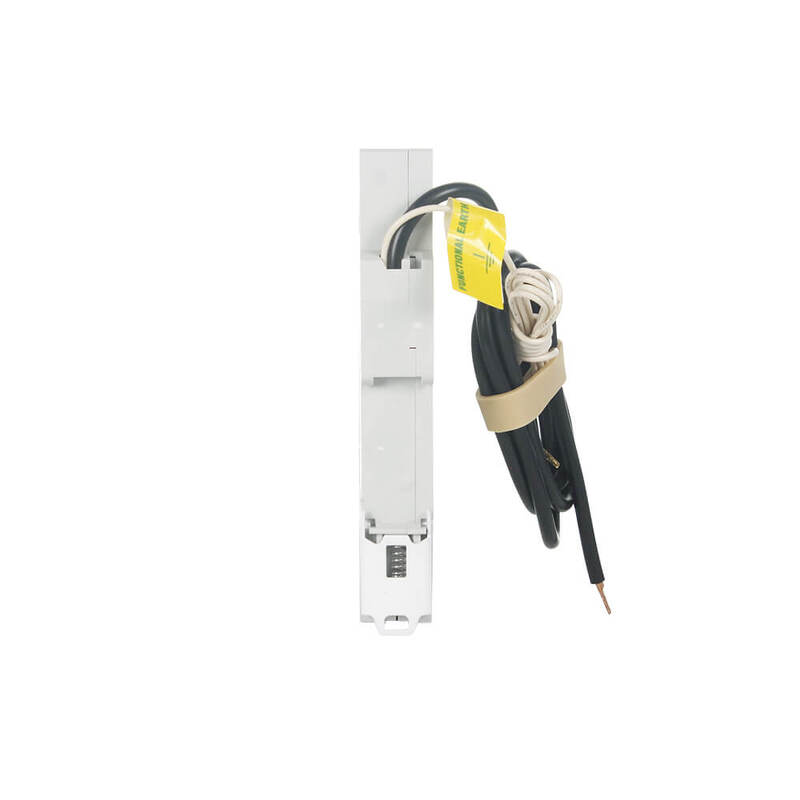

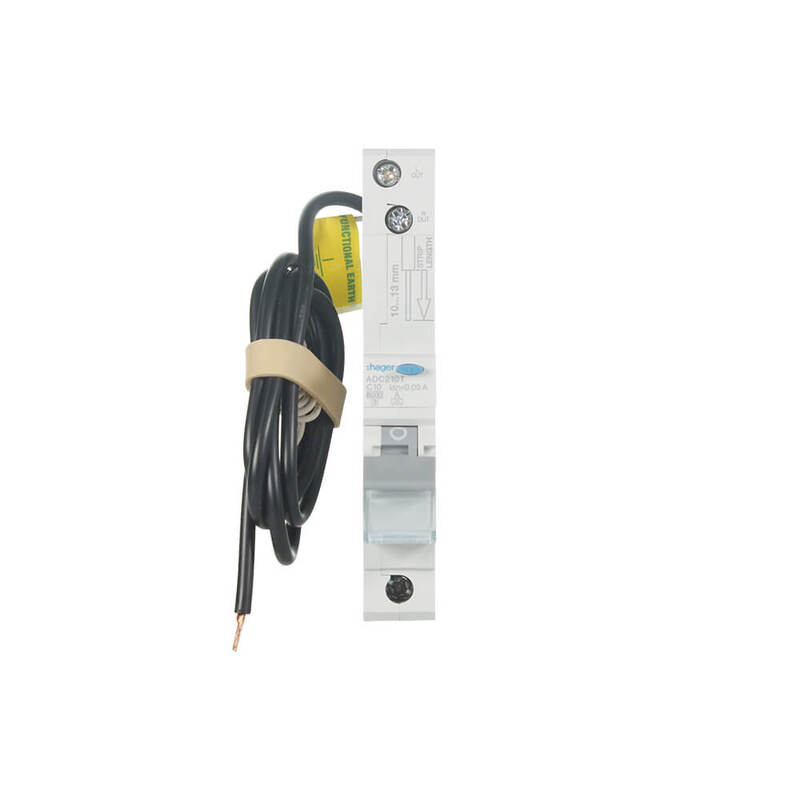

Hager ADC210T | 10A Single Pole RCBO Breaker | 30mA 6ka

Description:

The Hager ADC210T is a high-quality 10A Single Pole RCBO Breaker designed to provide optimal protection for electrical circuits. With a 30mA trip sensitivity and a rated short circuit breaking capacity of 6kA according to IEC60898-1, this device is engineered for safety and reliability. Its compact design, featuring a single pole and one module, makes it suitable for a wide range of applications, particularly in residential and commercial settings. The RCBO is designed for DIN rail mounting, offering easy installation and compatibility with standard electrical panels.

Features:

• Enhanced Protection: Offers a 30mA rated residual operating current and a 6kA breaking and opening capacity, ensuring comprehensive protection against electrical faults.
• Versatile Installation: DIN rail type O (symmetrical) fixing mode allows for straightforward integration into electrical installations.
• Reliable Performance: Rated operational voltage of 230 / 240 V AC and suitable for both AC supply, with a frequency range of 50/60 Hz.
• Durable Construction: Boasts an electrical endurance of 2000 cycles and mechanical operations up to 10000, ensuring long-term reliability.
• Safe Operation: Complies with IEC 61009-1 standards, offering a safe operational temperature range of -5 to 40 °C and a degree of pollution 2 according to IEC standards.
• Compact Dimensions: Measures 115mm in height, 17.8mm in width, and 70mm in depth, making it a space-efficient choice for electrical panels.

FAQ:

Q: What is the trip sensitivity of the Hager ADC210T?
A: The RCBO features a 30mA trip sensitivity, providing precise protection against residual currents.

Q: Can the Hager ADC210T be used in both residential and commercial installations?
A: Yes, its specifications make it suitable for a wide range of applications, ensuring safety and compliance in both residential and commercial settings.

Q: Is the RCBO easy to install?
A: Designed for DIN rail mounting, it offers a straightforward installation process, suitable for electricians familiar with electrical panel setups.

Q: How does the Hager ADC210T ensure long-term durability?
A: With an electrical endurance of 2000 cycles and up to 10000 mechanical operations, it is built for durability and sustained performance.
