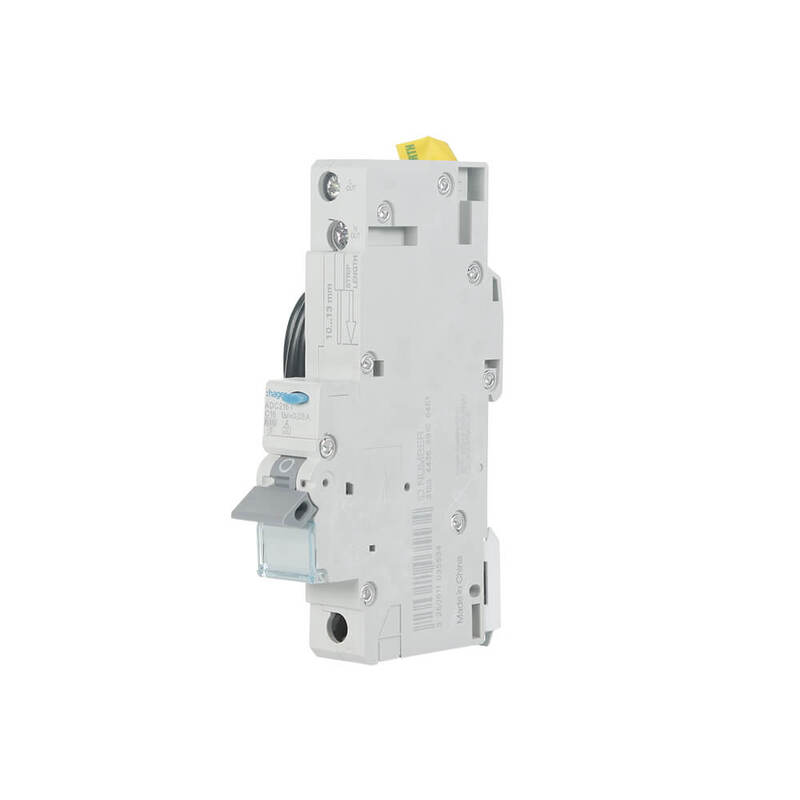

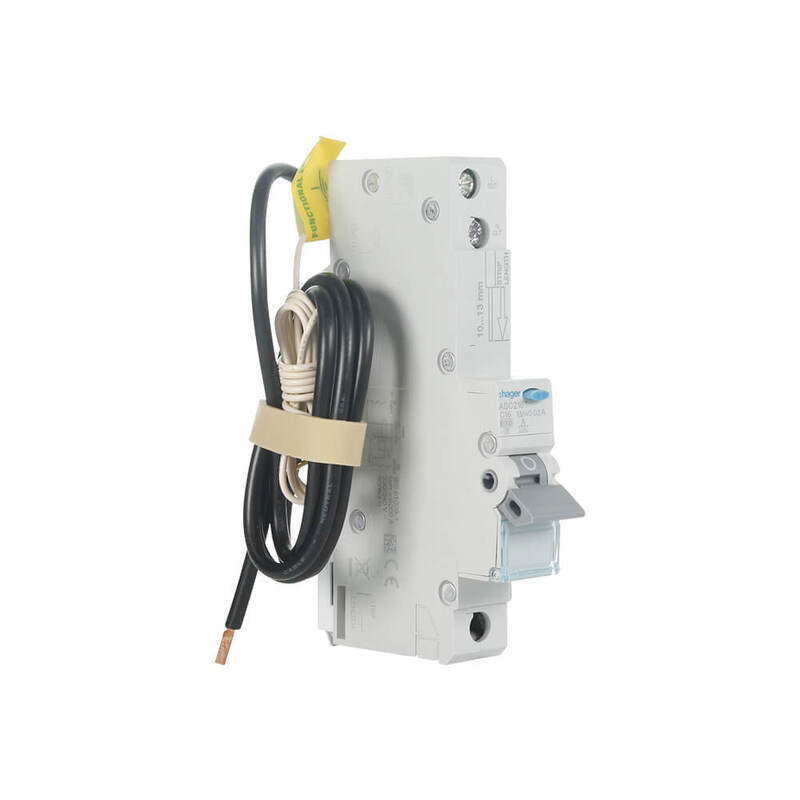

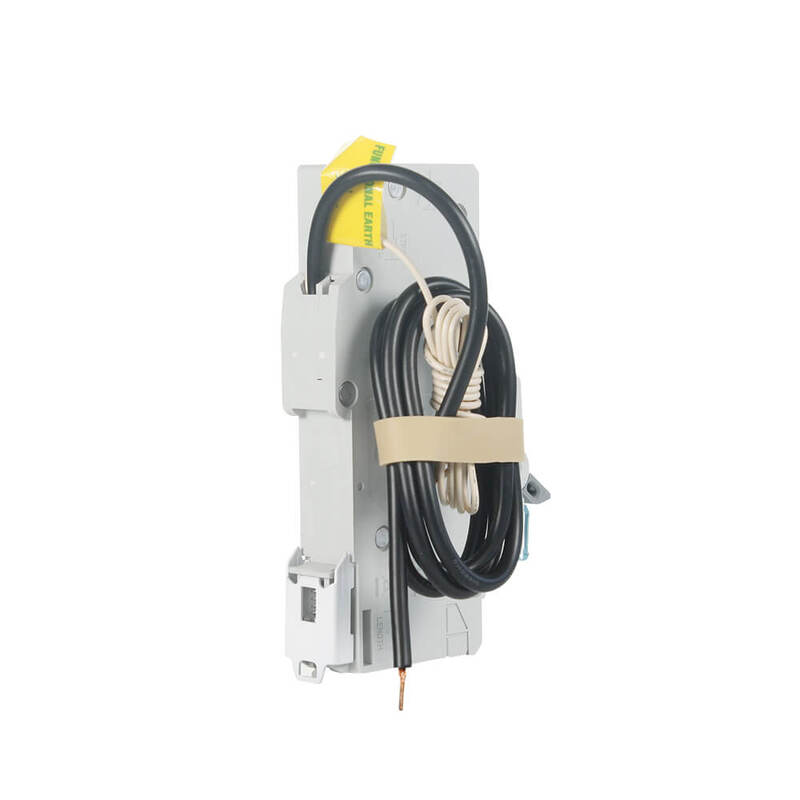

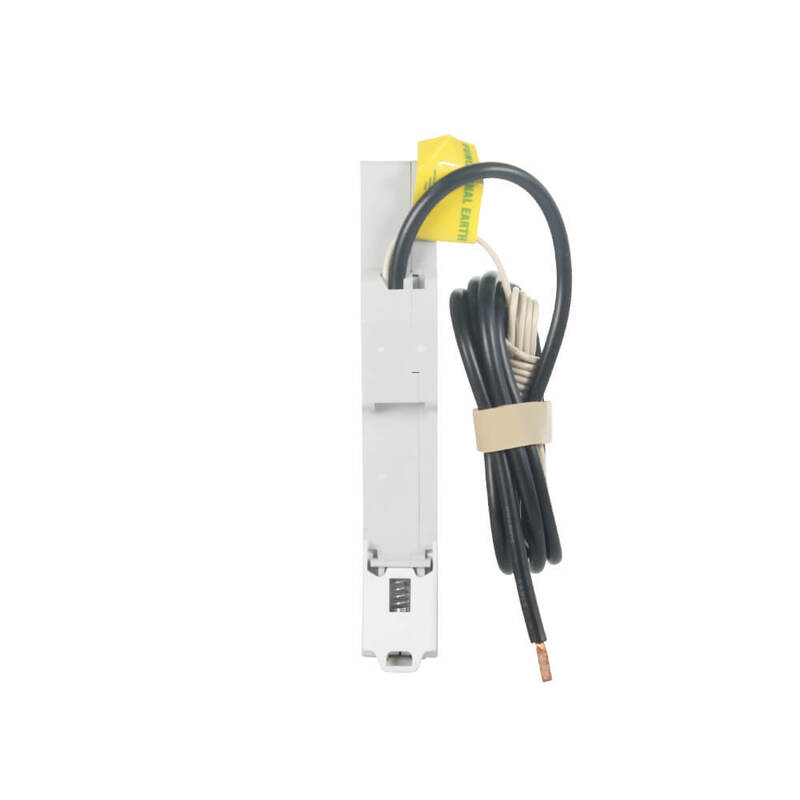

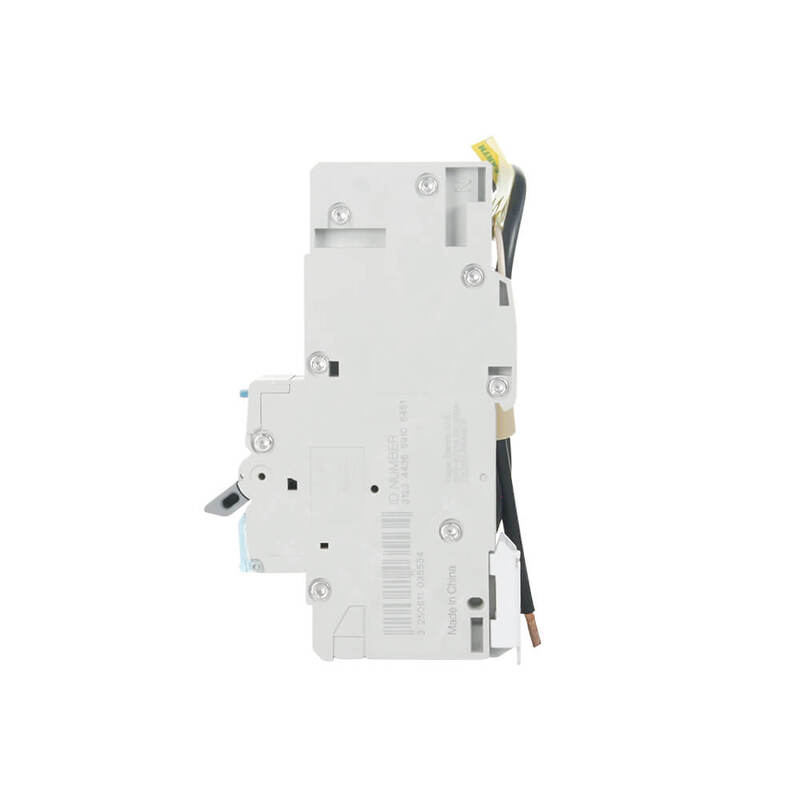

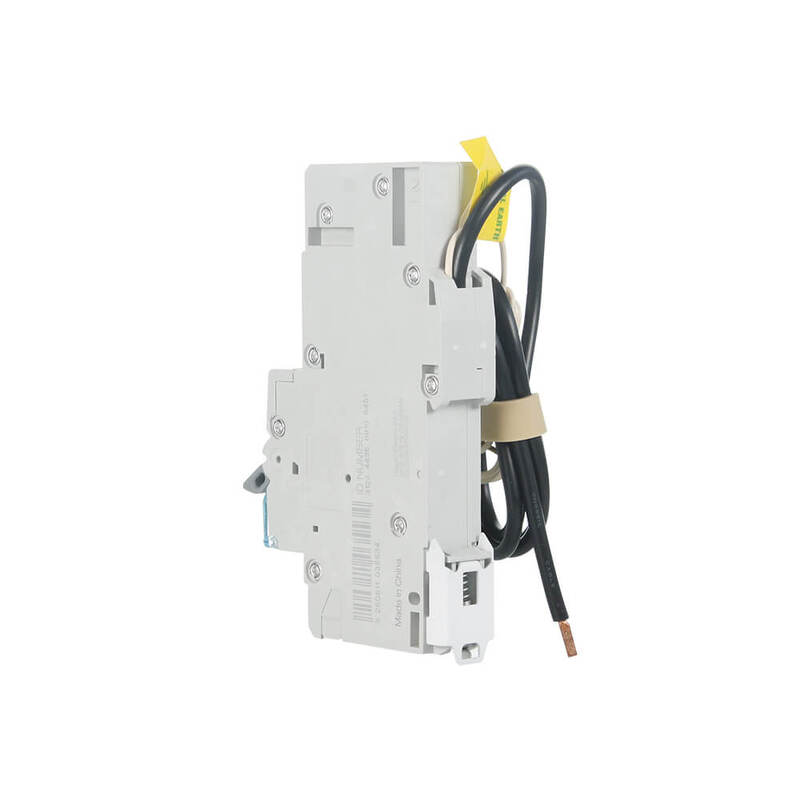

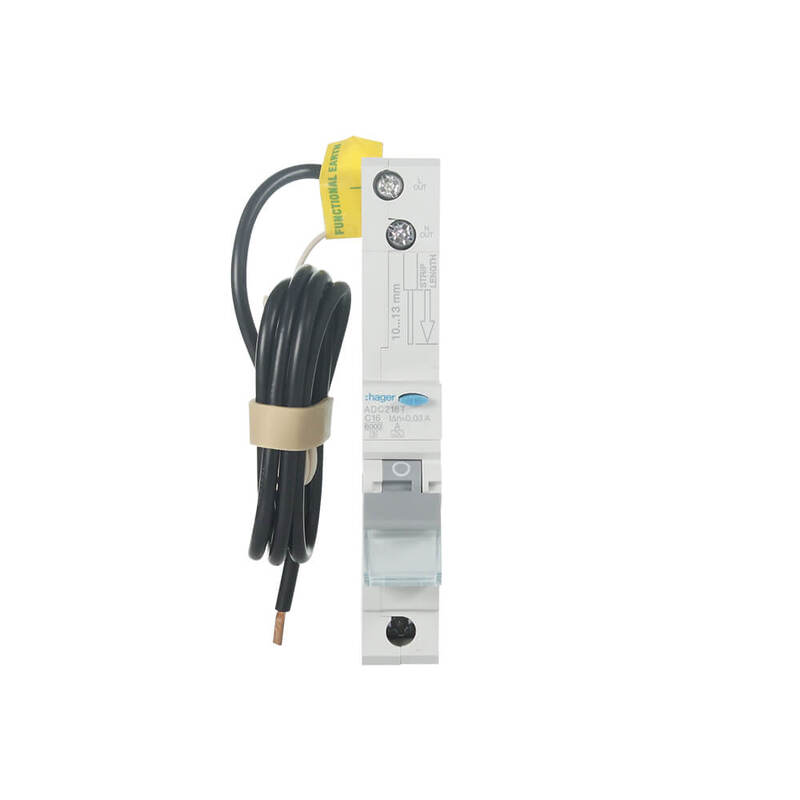

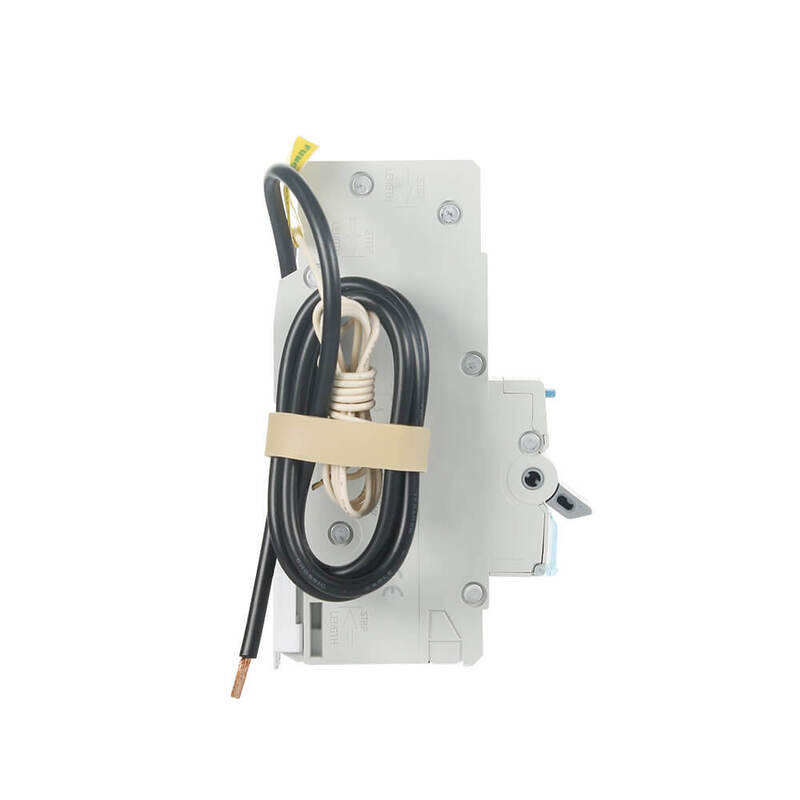

Hager ADC216T | 16A Single Pole RCBO Breaker | 30mA 6ka

Description:

The Hager ADC216T is a robust 16A Single Pole RCBO Breaker designed to meet the rigorous demands of electrical safety in both residential and commercial settings. With a 30mA rated residual operating current and a 6kA rated short circuit breaking capacity, this RCBO offers exceptional protection against electrical faults. Its compact, single-module design facilitates easy installation on DIN rails, making it a versatile choice for electricians looking to enhance circuit protection.

Features:

• Advanced Protection: 30mA trip sensitivity and 6kA interrupt capacity for comprehensive protection against earth faults and short circuits.
• Versatile Application: Rated for 230/240 V AC with a frequency of 50/60 Hz, making it suitable for a wide range of electrical installations.
• Durable and Reliable: Withstands up to 2000 electrical cycles and 10000 mechanical operations, ensuring longevity and consistent performance.
• Temperature Adaptability: Operates efficiently within a -5…40 °C range, with rated current adjustments from -25°C at 20.81A to 70°C at 13.6A, accommodating various environmental conditions.
• Safety Standards: Complies with EN 61009-1 standards and boasts an IP20 protection index, ensuring safe operation and installation.
• Easy Integration: DIN rail type O (symmetrical) fixing mode with C curve characteristics for straightforward setup in electrical panels.

FAQ:

Q: What does the 30mA trip sensitivity mean for the Hager ADC216T?
A: It indicates the RCBO's ability to detect residual currents as low as 30mA, quickly tripping to prevent electrical shock or fire hazards.

Q: Can the Hager ADC216T be used in all types of buildings?
A: Yes, its specifications make it suitable for a variety of installations, including homes, offices, and commercial spaces, ensuring safety across different electrical demands.

Q: Is the installation of the Hager ADC216T RCBO straightforward?
A: Designed for DIN rail mounting and featuring clear terminal alignments, it allows for easy installation, making it a convenient choice for electricians.

Q: How does the Hager ADC216T handle temperature variations?
A: Its rated current can adjust based on temperature, ensuring reliable operation in environments ranging from -25°C to 70°C.
