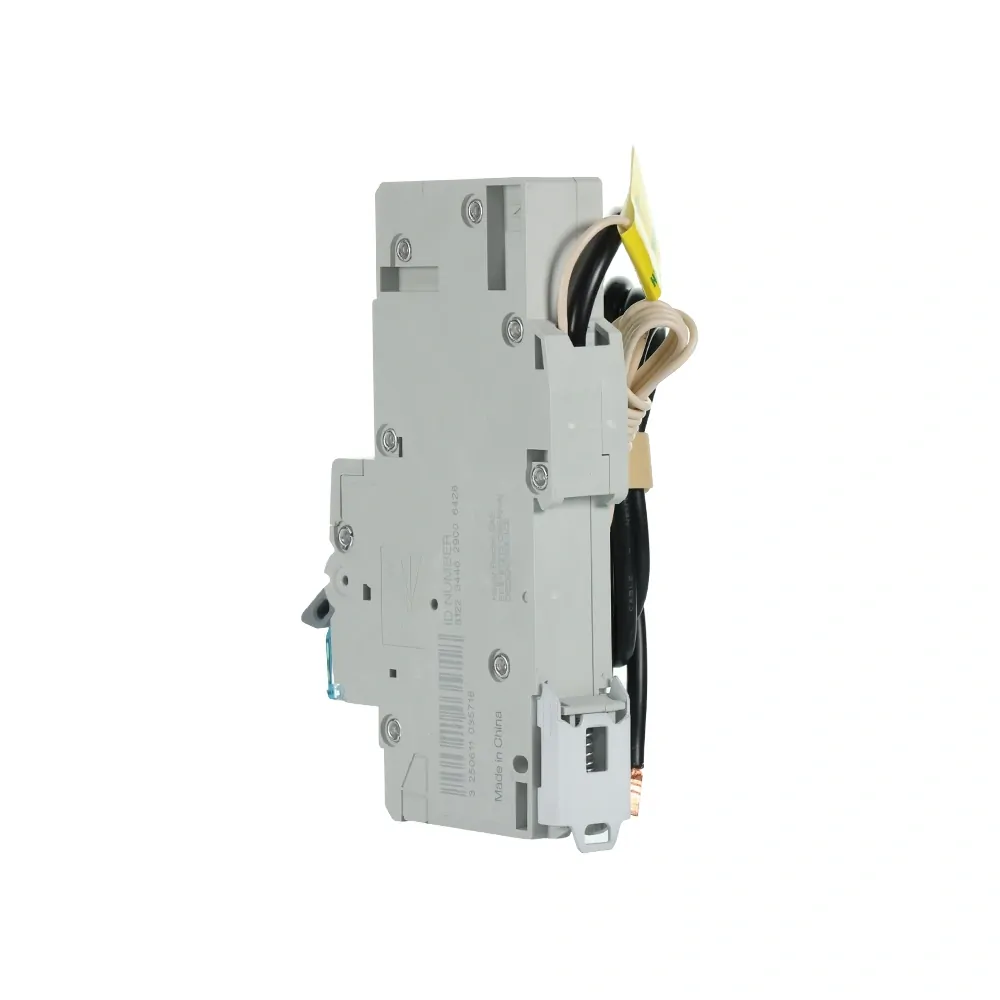

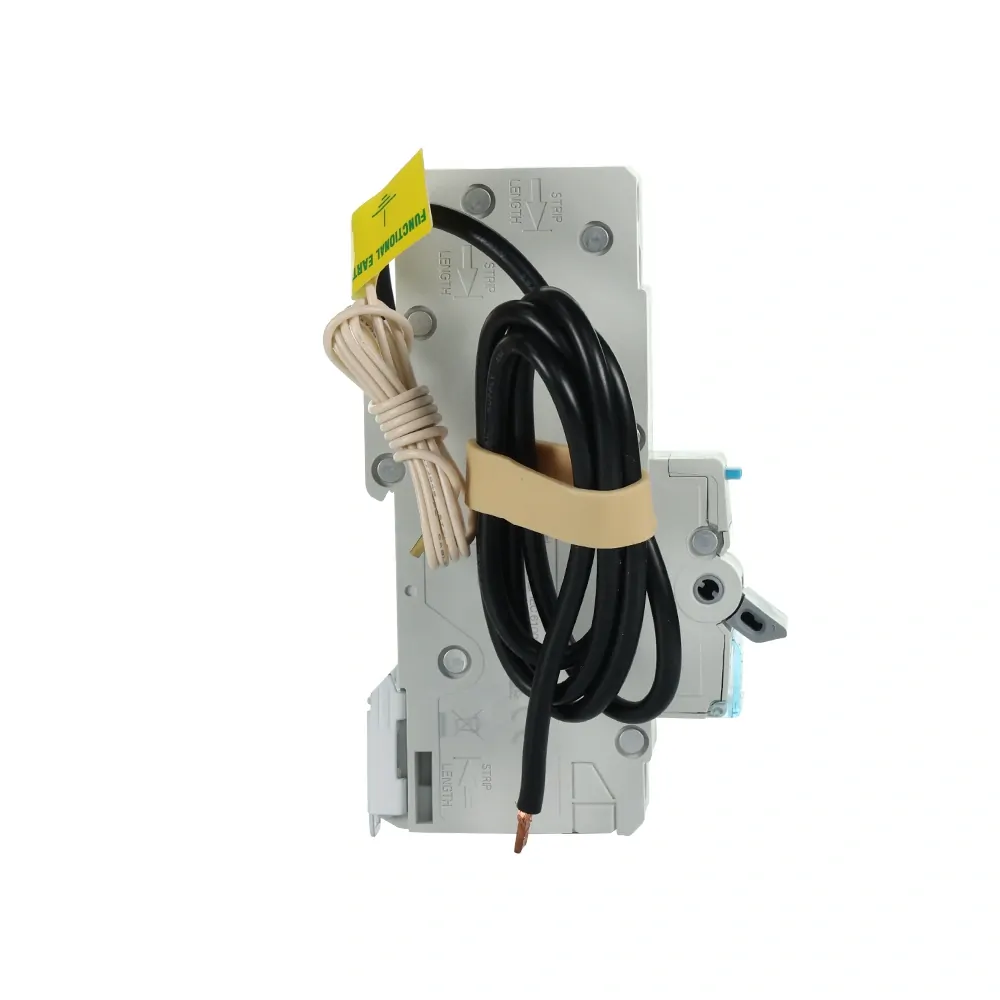

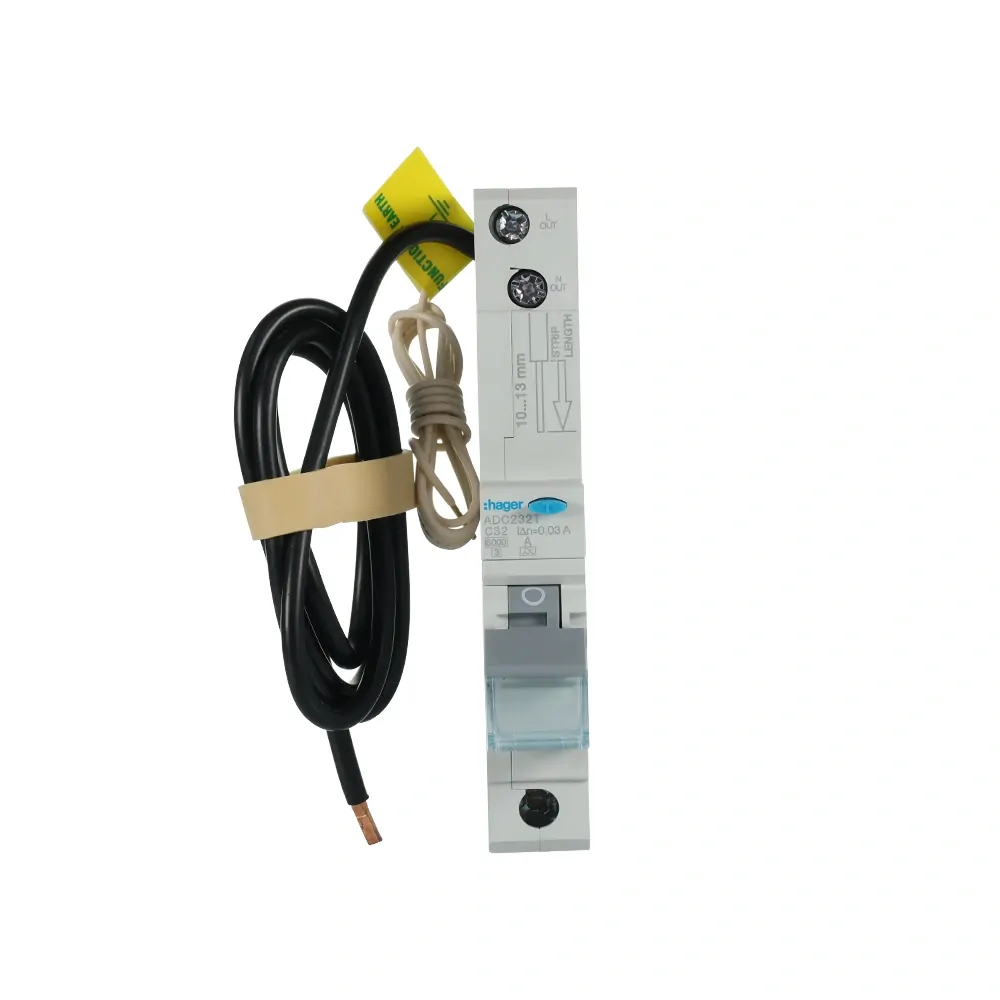

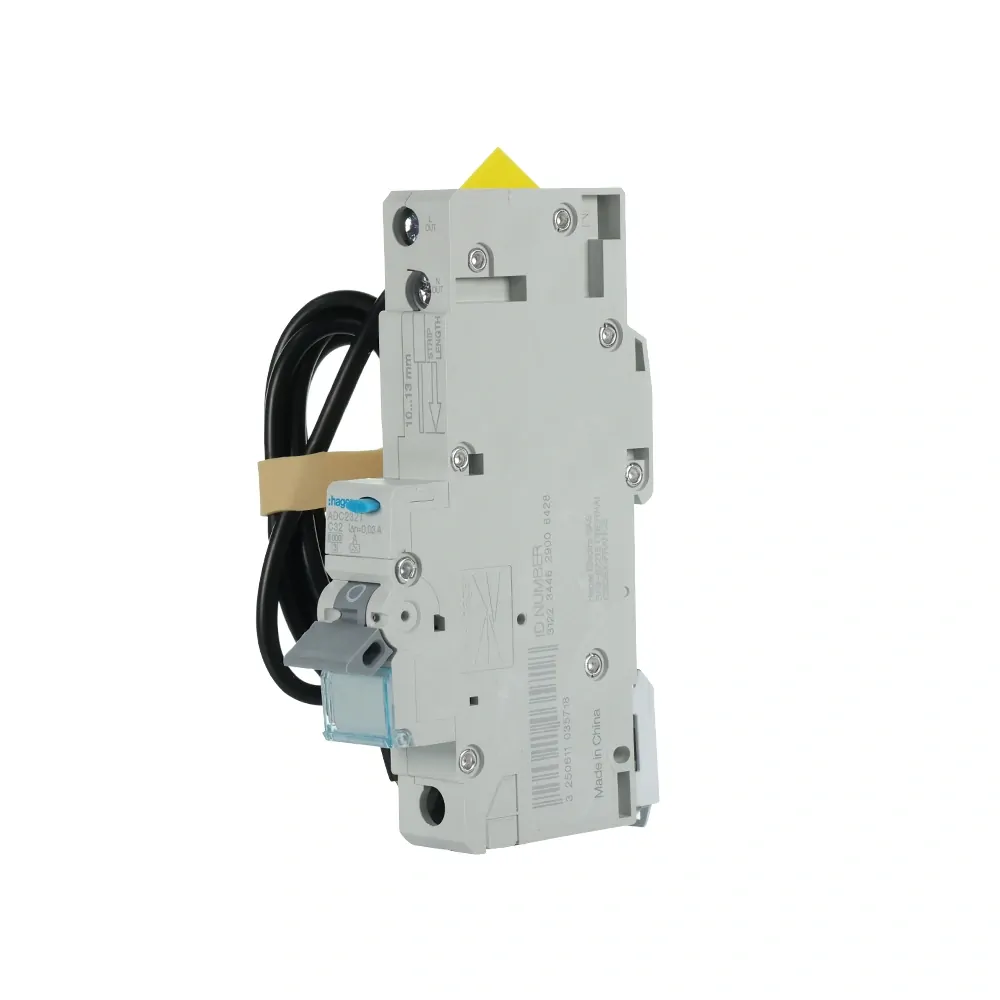

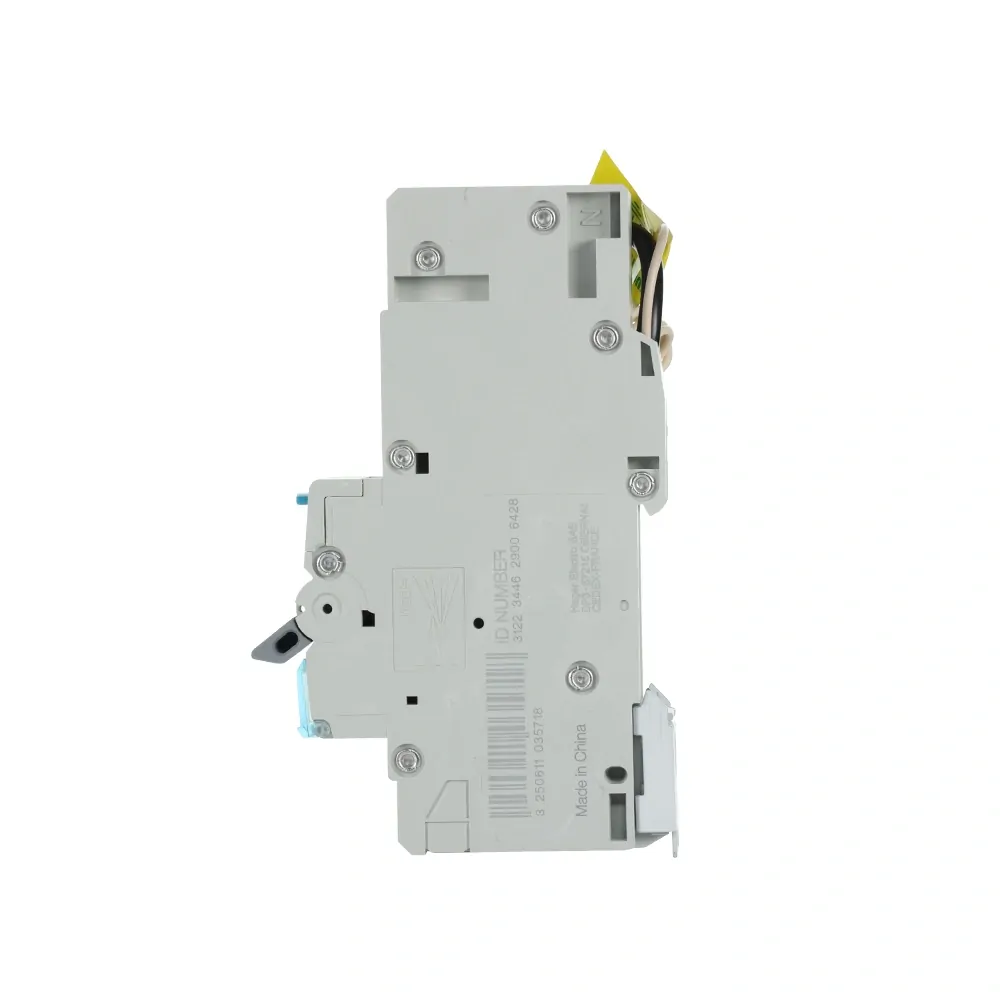

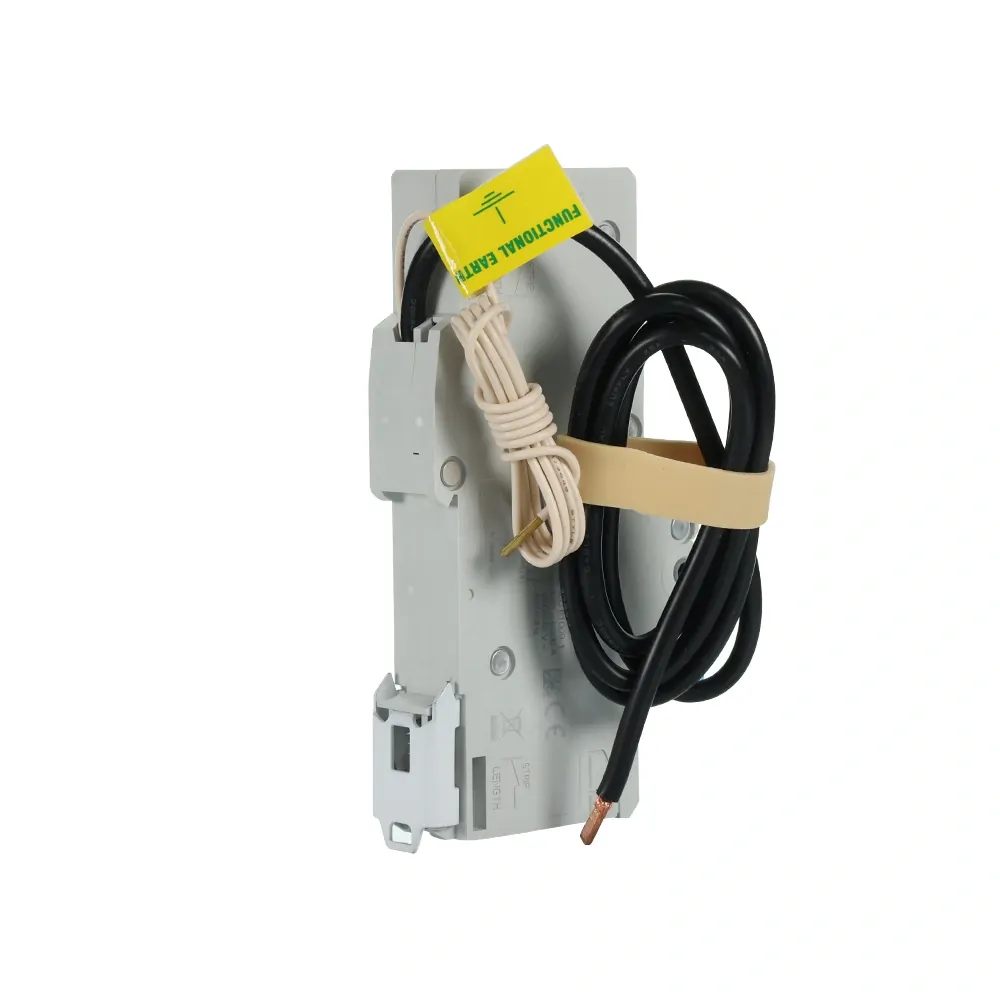

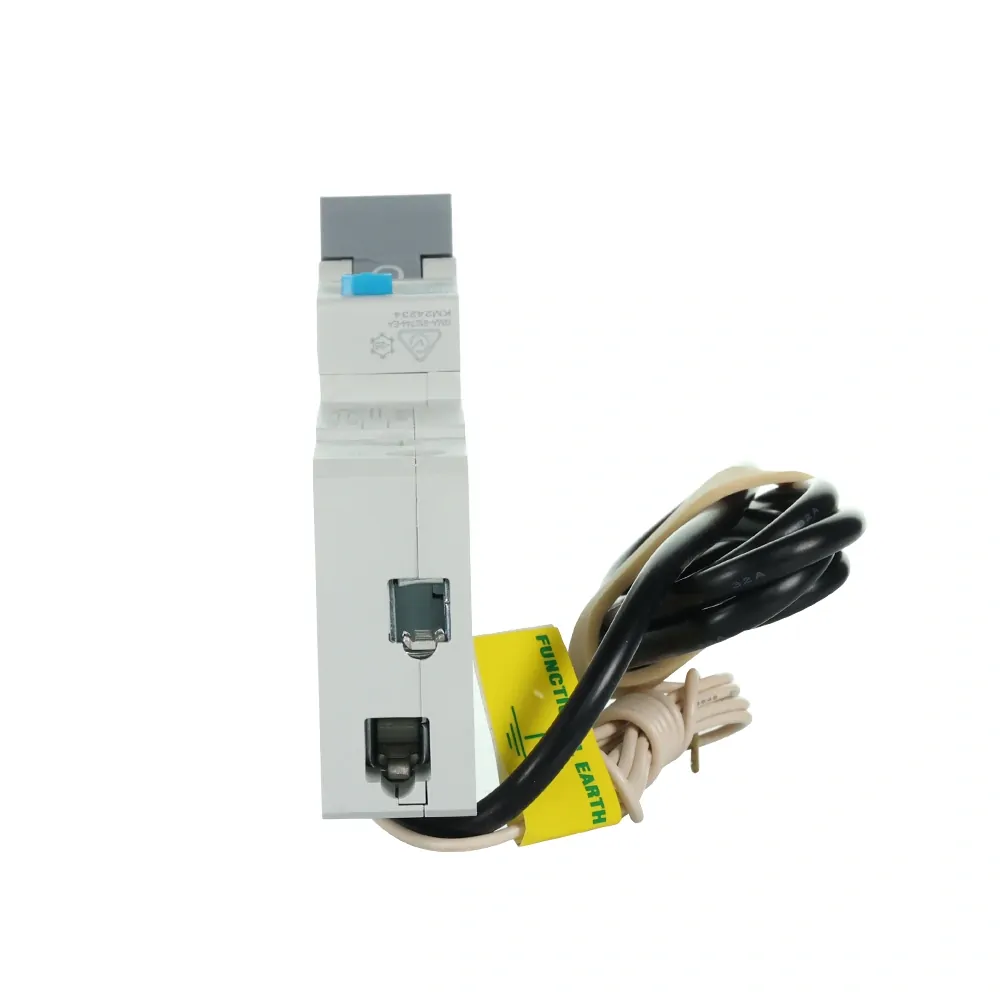

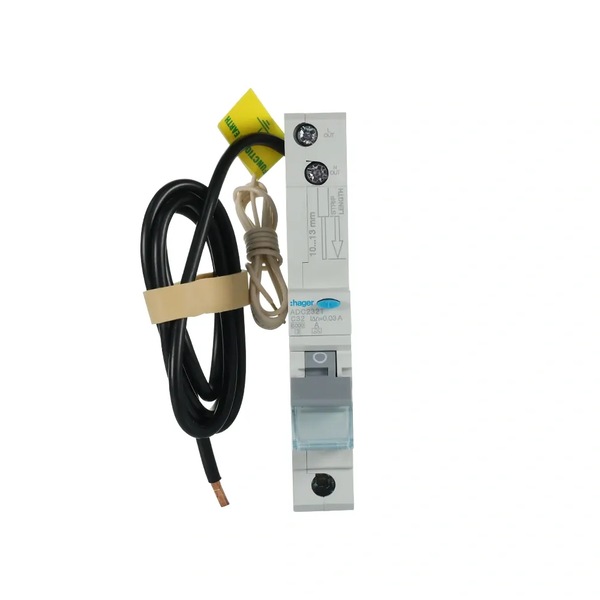

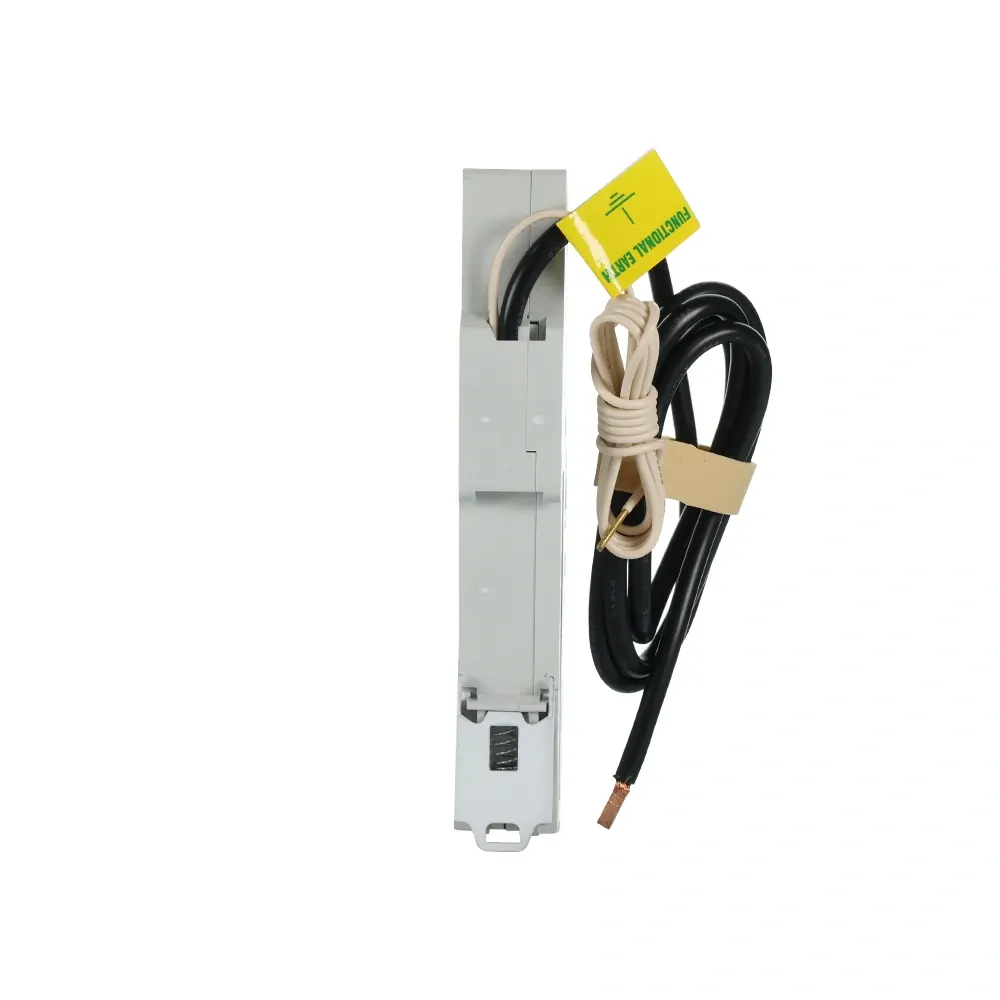

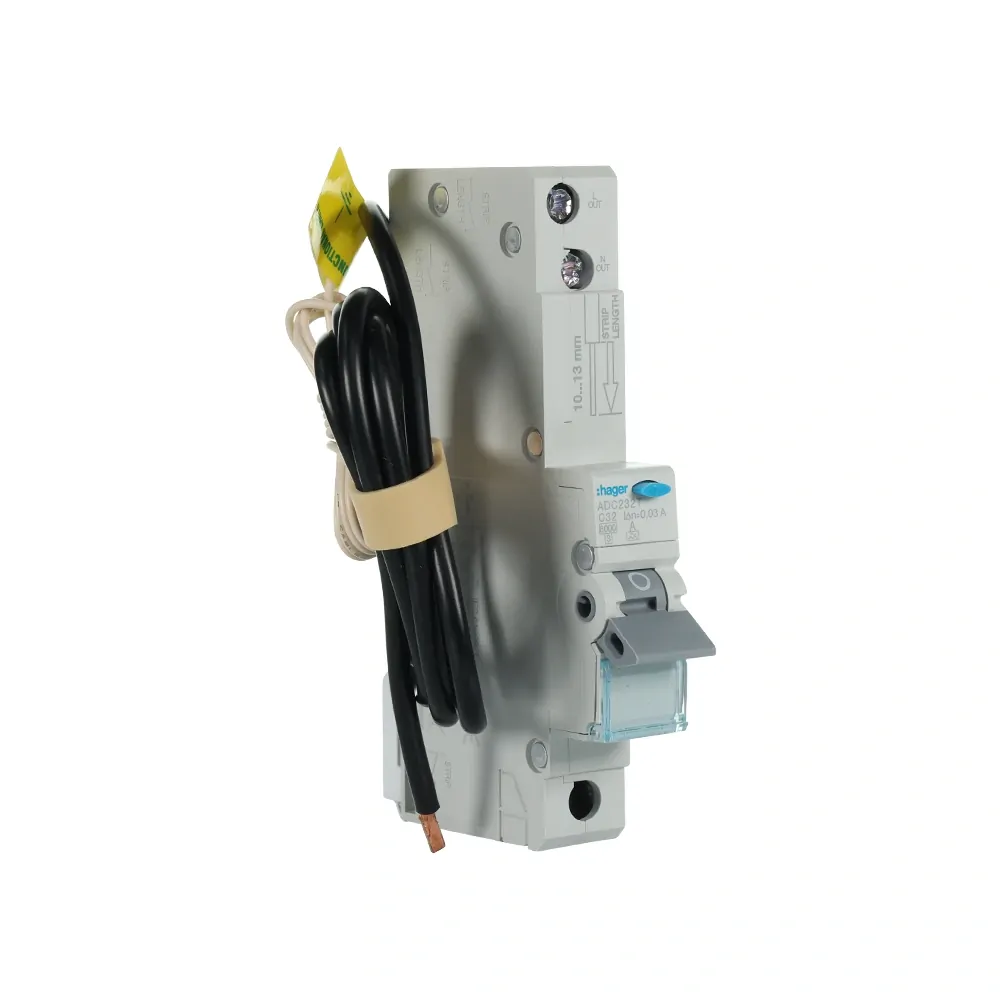

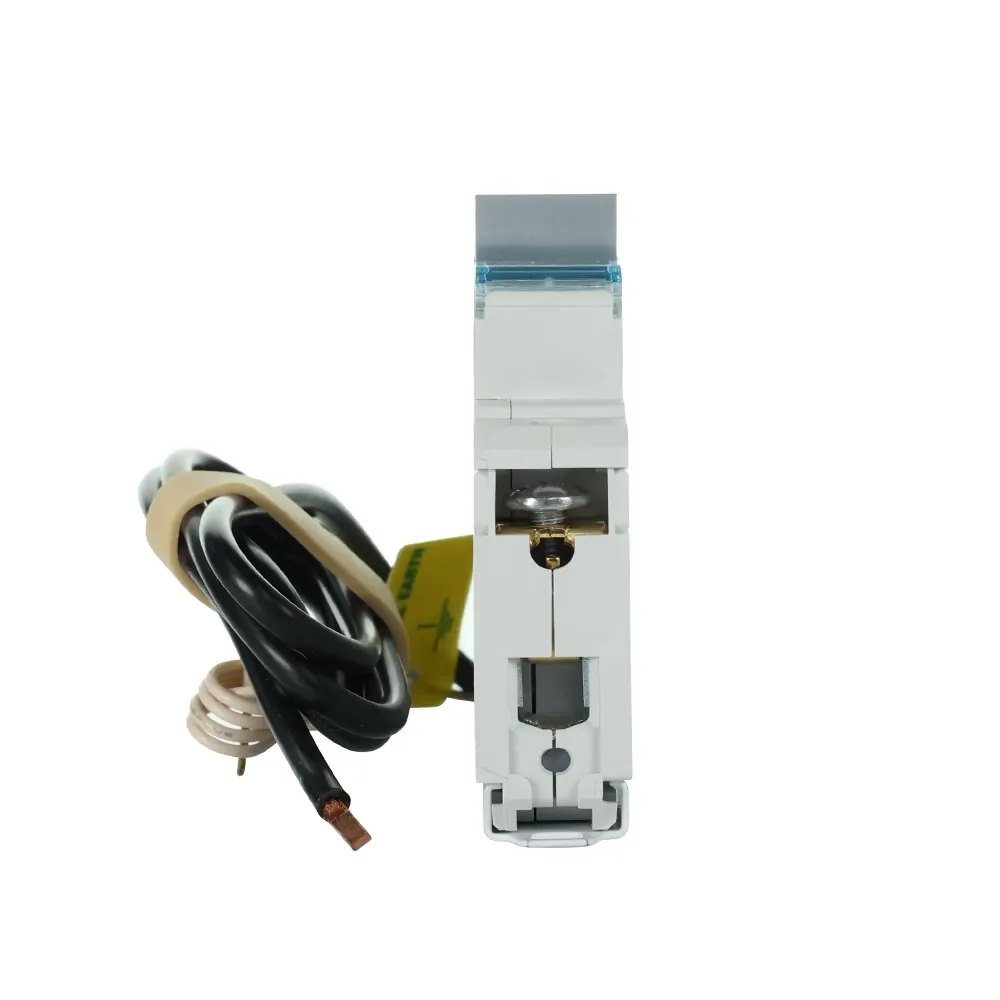

Hager ADC232T | 32A Single Pole RCBO Breaker | 30mA 6ka
The Hager ADC232T is a 32A single pole RCBO breaker designed to provide protection against overload, short circuits, and earth leakage. With a C curve and a 6kA short circuit breaking capacity, this device is ideal for a wide range of electrical applications. It offers a 30mA residual operating current and operates on 230/240V AC with 50/60Hz frequency. The RCBO is compliant with IEC 61009-1 standards and is suited for use in both residential and commercial installations.
The breaker is equipped with a DIN rail mounting system, ensuring easy installation and secure fixation. With top and bottom aligned terminals for modular devices, this RCBO offers versatility in its configuration. Additional features include a visual and audible warning for external voltage greater than 30V AC and DC, along with an auto power-off feature for added safety.
Q: What is the rated current of this breaker?
A: The Hager ADC232T is rated at 32A.
Q: What is the short circuit breaking capacity?
A: This breaker has a short circuit breaking capacity of 6kA.
Q: Is this breaker compliant with safety standards?
A: Yes, the Hager ADC232T complies with IEC 61009-1 standards for RCBO breakers.
| Specification | Details |
|---|---|
| Neutral position | Right |
| Number of protected poles | 1 |
| Number of poles | 1P |
| Type of pole | 1P |
| Fixing mode | DIN rail type O (symmetrical) |
| Curve | C |
| Number of modules | 1 |
| Top connection alignment for modular devices | Shifted terminal |
| Bottom connection alignment for modular devices | Aligned terminal |
| Rated short circuit breaking capacity Icn AC according IEC60898-1 | 6 kA |
| Rated operational voltage Ue | 230 / 240 V |
| Type of supply voltage | AC |
| Frequency | 50/60 Hz |
| Rated insulation voltage | 250 V |
| Rated impulse withstand voltage | 4000 V |
| Rated residual operating current | 30 mA |
| Rated current | 32 A |
| Withstand not tripping on 8-20 μs wave | 0.25 kA |
| Breaking and opening capacity | 6000 A |
| Min/Max thermal operation threshold | 1.13 / 1.45 In |
| Magnetic regulating current | 5 / 10 In |
| Rating current at -25°C | 42.45 A |
| Rating current at 30°C | 32 A |
| Rating current at 70°C | 25.2 A |
| Depth of installed product | 70 mm |
| Height of installed product | 115 mm |
| Width of installed product | 17.8 mm |
| Total power loss under IN | 9.9 W |
| Power loss per pole at In | 5.8 W |
| Electric endurance in number of cycles | 2000 |
| Number of mechanical operations | 10000 |
| Type of top connection for modular devices | With screw |
| Type of bottom rail clip for modular devices | Metallic isolated |
| Type of bottom connection for modular devices | BIconnect |
| Suitable for flush-mounting | Yes |
| Connection cross-section at output with screw, for flexible conductor | 1 / 16 mm² |
| Protection index IP | IP20 |
| Operating temperature | -5…40°C |
| Standards | IEC 61009-1 |
| RoHS conform | Yes |
