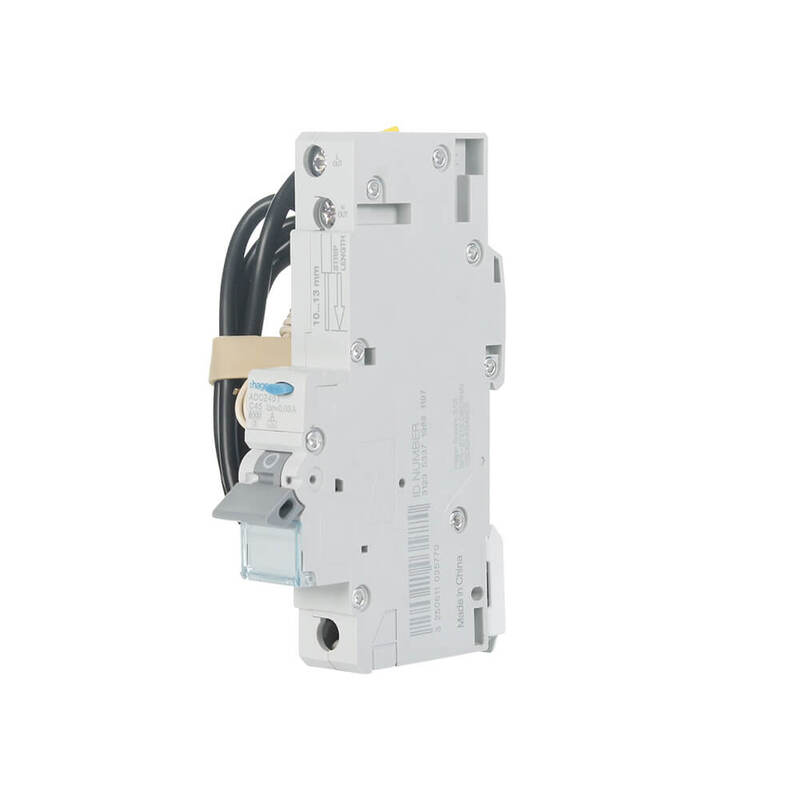

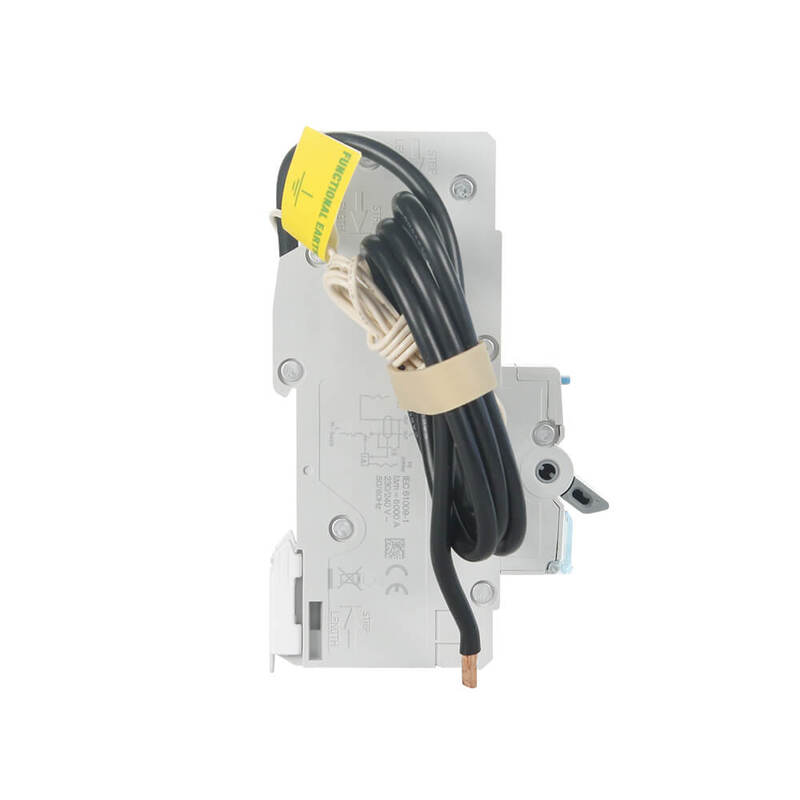

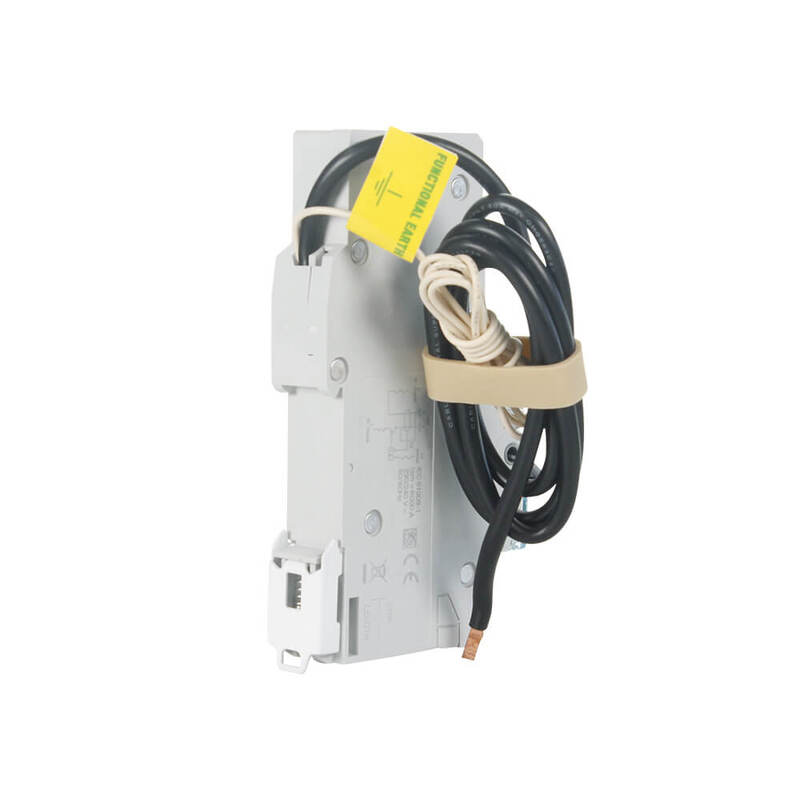

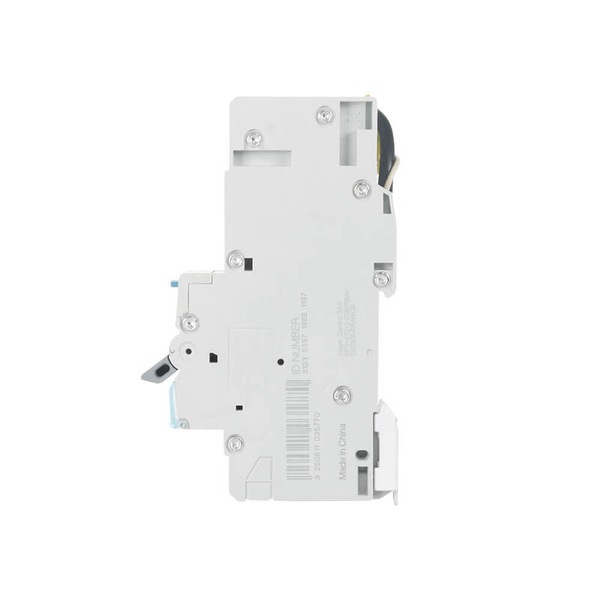

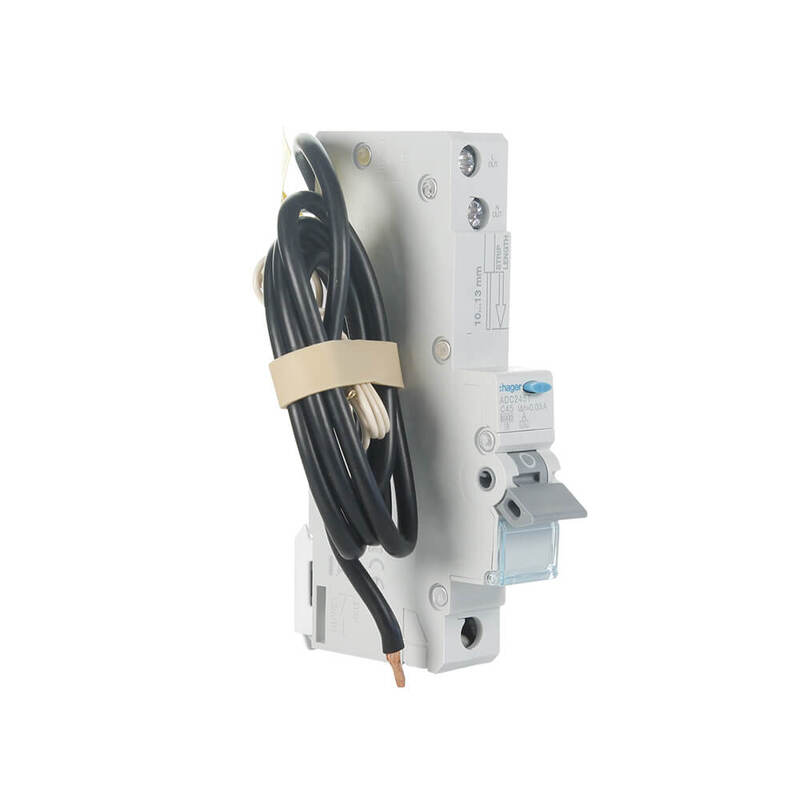

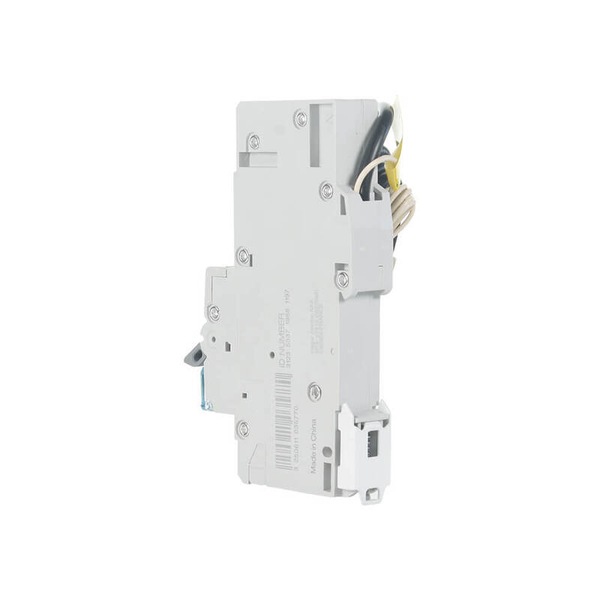

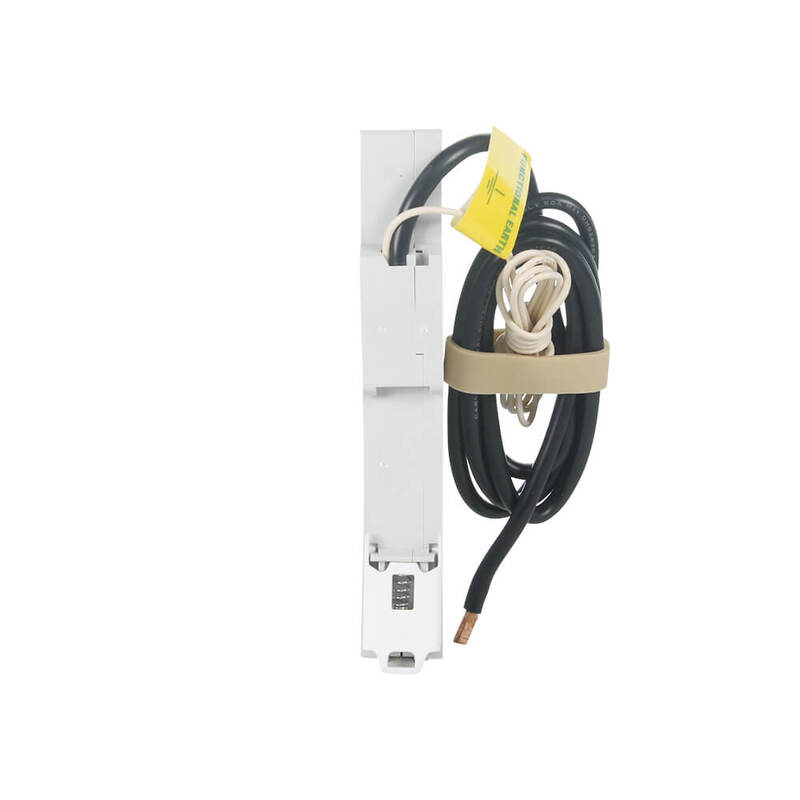

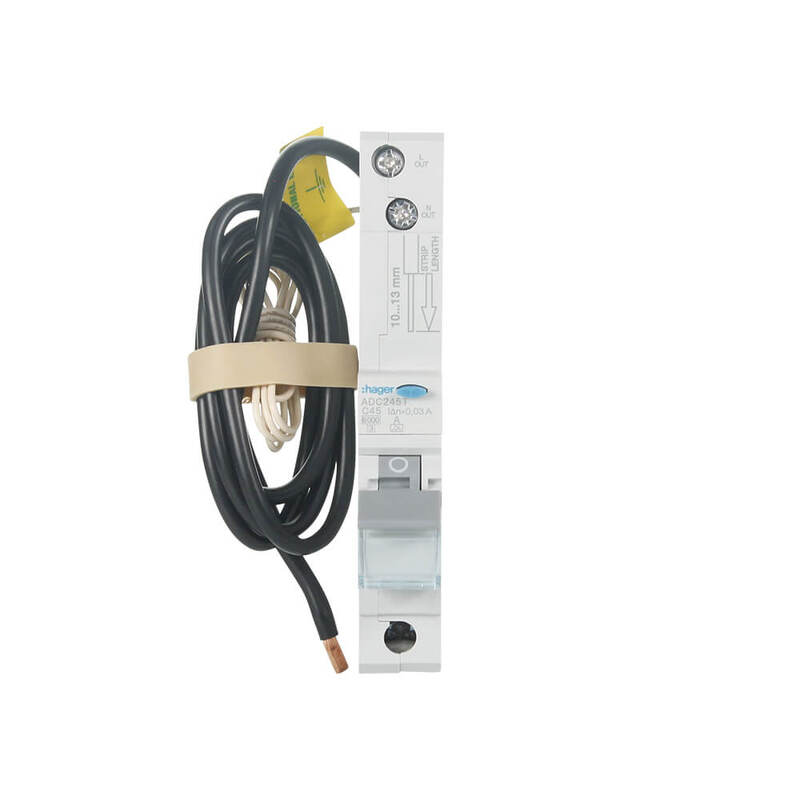

Hager ADC245T | 45A Single Pole RCBO Breaker | 30mA 6ka
Description:
The Hager ADC245T is a powerful 45A Single Pole RCBO Breaker meticulously engineered to provide superior protection in electrical circuits. Featuring a 30mA residual current sensitivity combined with a 6kA rated short circuit breaking capacity, this breaker is tailored for applications requiring higher load handling. Ideal for electricians, this device ensures the safety and reliability of electrical installations in residential, commercial, and industrial settings.
Features:
FAQ:
Q: What applications is the Hager ADC245T best suited for?
A: Its 45A rating makes it ideal for high-demand installations in both commercial and industrial environments, as well as large residential properties.
Q: How does the RCBO protect against electrical hazards?
A: The device quickly trips upon detecting residual currents of 30mA, effectively minimizing the risk of electric shocks and fire hazards.
Q: Can the Hager ADC245T be used in any climate?
A: Yes, designed to operate in temperatures ranging from -5°C to 40°C, it ensures reliable protection across various environmental conditions.
Q: Is installation of the Hager ADC245T complex?
A: With straightforward DIN rail mounting and clear connectivity options, it offers a user-friendly installation process for qualified electricians.
| Feature | Description |
|---|---|
| Neutral position | Right |
| Number of protected poles | 1 |
| Number of poles | 1 P |
| Type of pole | 1 P |
| Fixing mode | DIN rail type O (symmetrical) |
| Curve | C |
| Number of modules | 1 |
| Top connection alignment for modular devices | Shifted terminal |
| Bottom connection alignment for modular devices | Aligned terminal |
| Rated short circuit breaking capacity Icn AC according to IEC60898-1 | 6 kA |
| Rated operational voltage Ue | 230/240 V |
| Type of supply voltage | AC |
| Frequency | 50/60 Hz |
| Rated insulation voltage | 250 V |
| Rated impulse withstand voltage | 4000 V |
| Rated residual operating current | 30 mA |
| Rated current | 45 A |
| Withstand not tripping on 8-20 μs wave | 0.25 kA |
| Breaking and opening capacity | 6000 A |
| min/max threshold value of the AC thermal operation | 1.13 / 1.45 In |
| Magnetic regulating current | 5 / 10 In |
| Electric current/temperature | -25°C/55.45A ~ 70°C/41A |
| Frequency | 50/60 Hz |
| Total power loss under IN | 12.9 W |
| Power loss per pole at In | 7.5 W |
| Electric endurance in number of cycles | 2000 |
| Number of mechanical operations | 10000 |
| Standards | IEC 61009-1 |
| Protection index IP | IP20 |
| Residual current type | A |
| Operating temperature | -5…40 °C |
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
GTIN: 3250611035770
