Description:

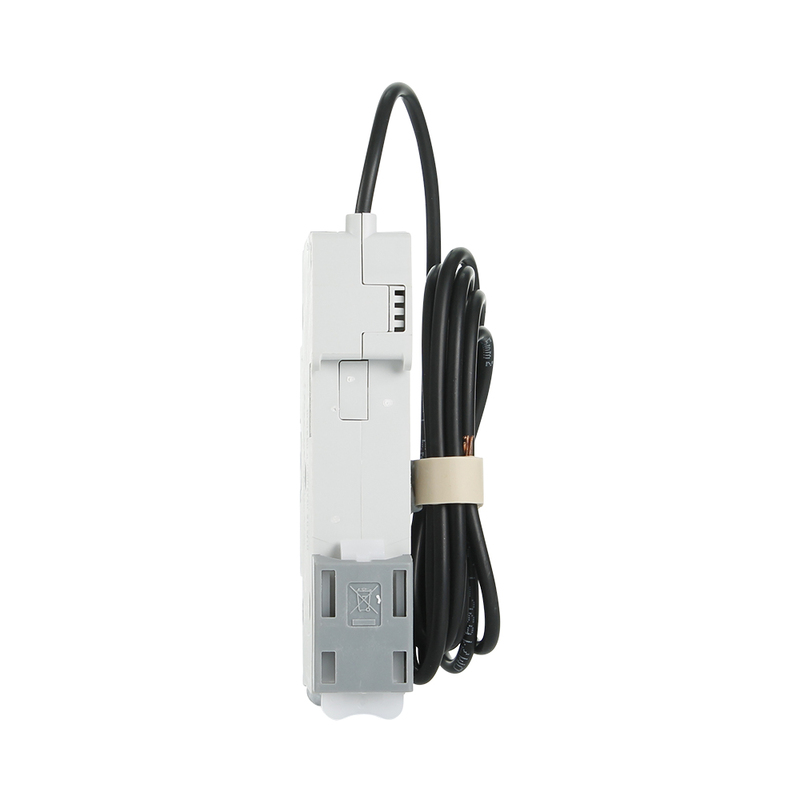

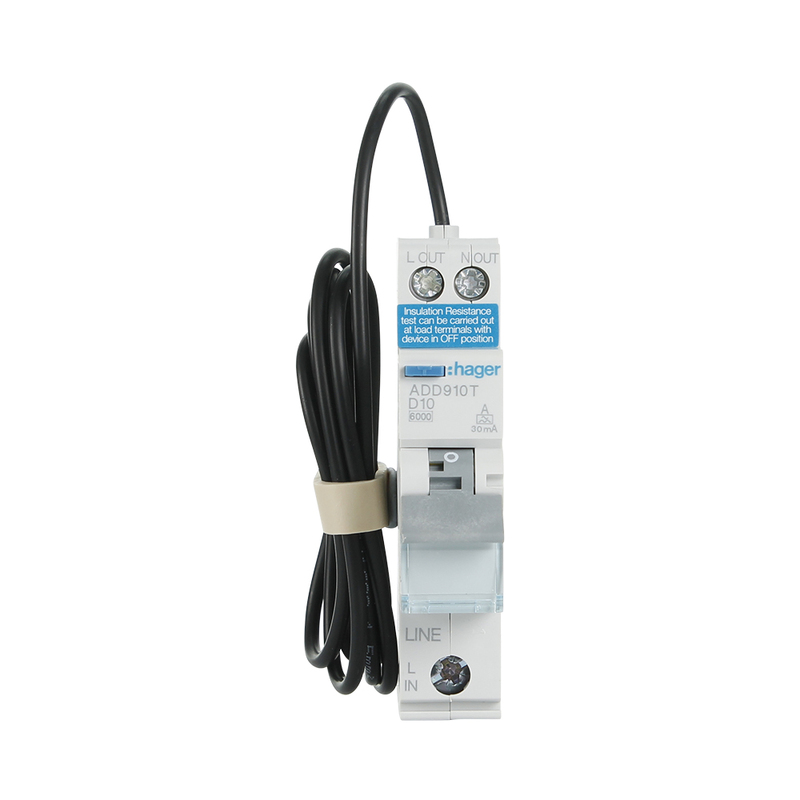

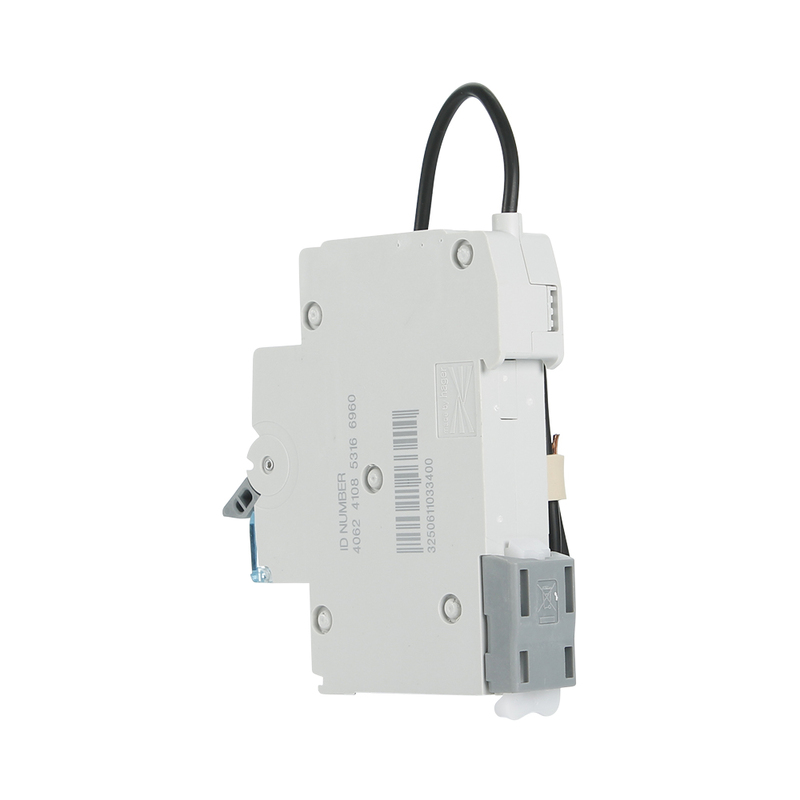

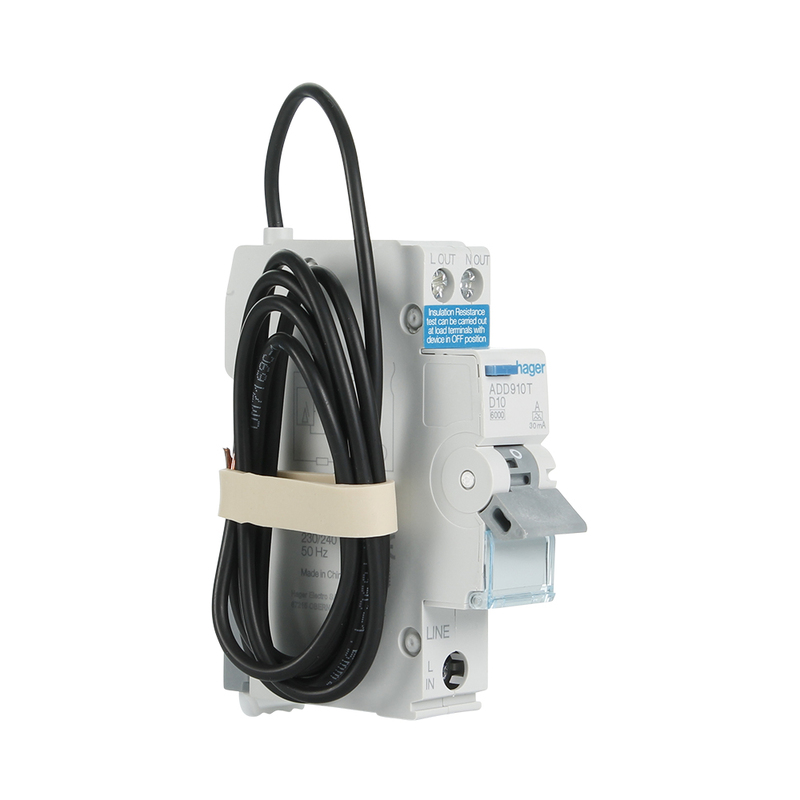

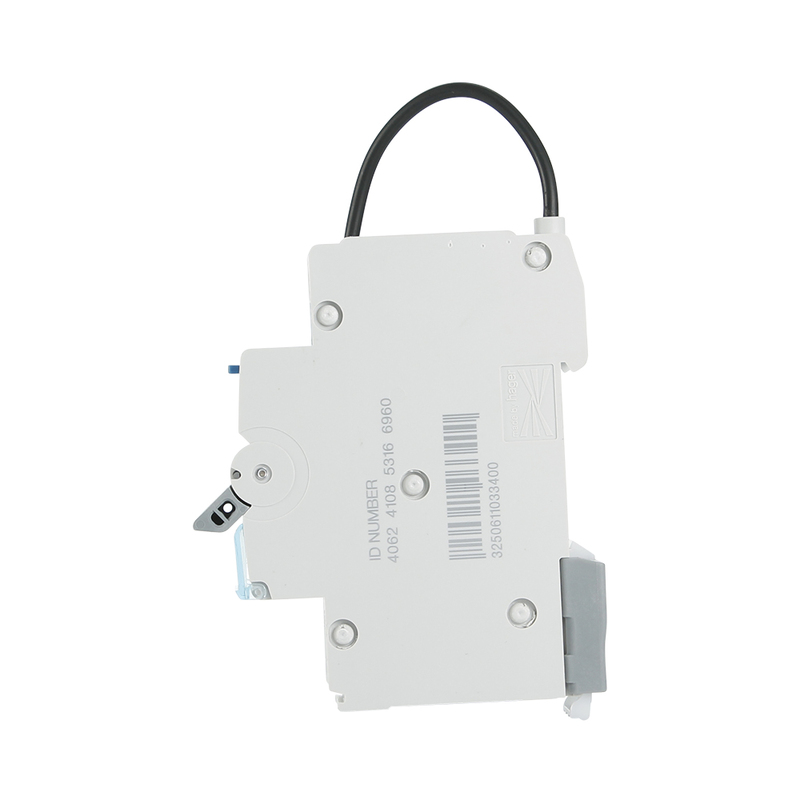

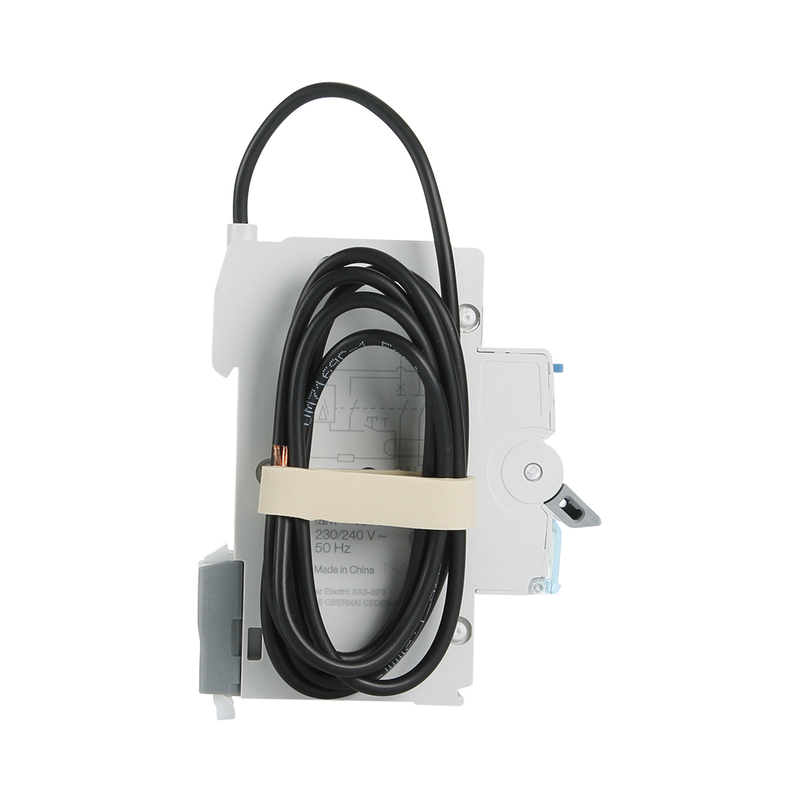

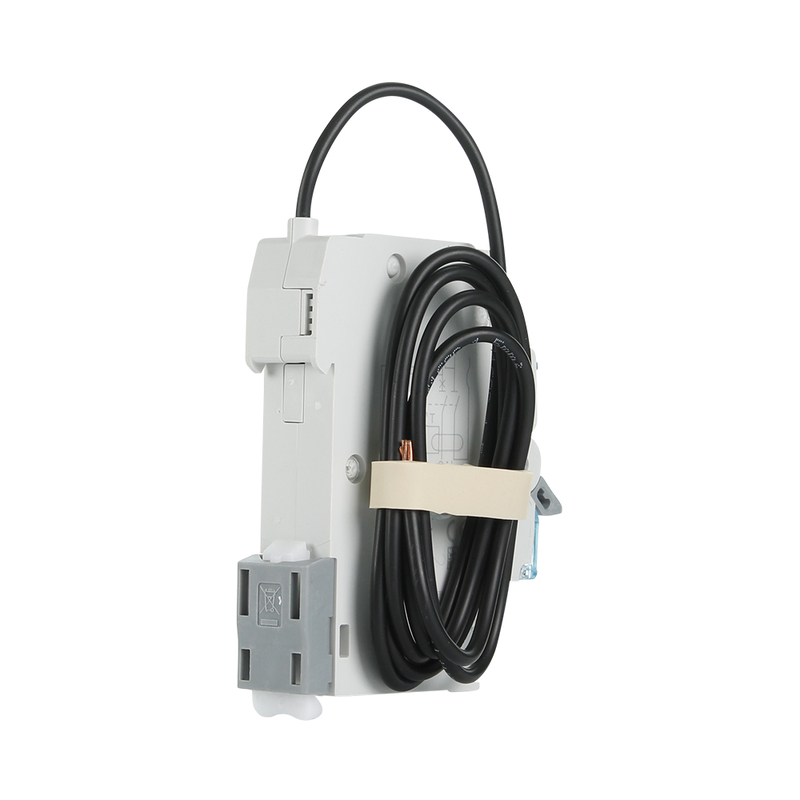

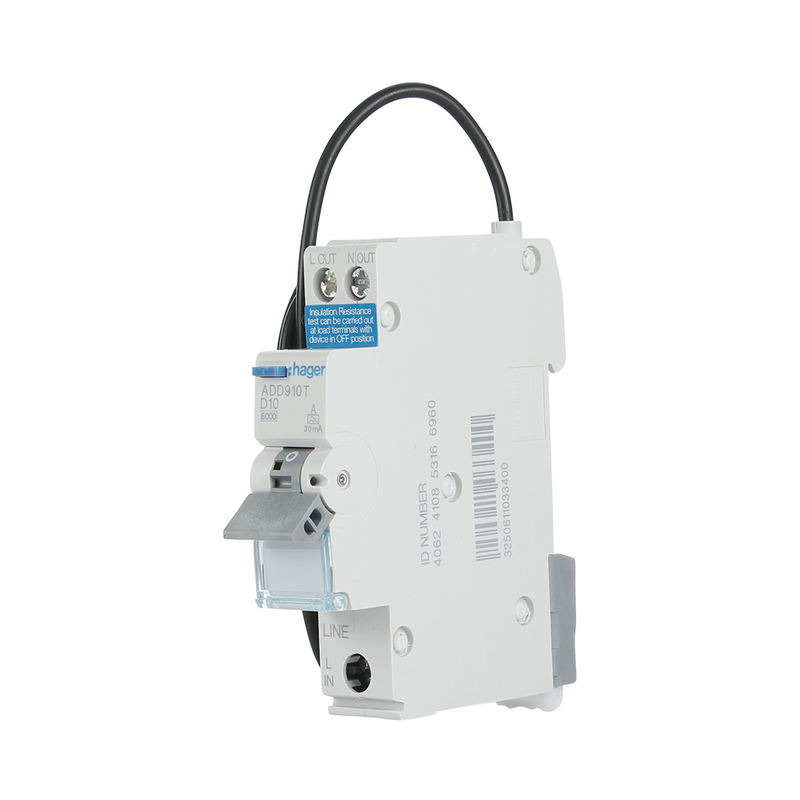

The Hager ADD910T is a D Curve 1 Pole + Neutral RCBO that protects and controls power and lighting circuits. The ADD910T RCBO is rated at 6kA and is suitable for commercial and Industrial applications.

D Curve Applications:

Designed for loads with high inrush currents. The new D curve overcurrent protection is ideal for ensuring continuity of service while offering RCD protection.

Examples include:

• Heavy machinery
• Large pumps and motors
• Some EVCS

Features:

• Number of poles: 2P
• Type of pole: 1P+N
• Rated current: 10 A
• Rated operational voltage Ue: 230 / 240 V
• Frequency: 50 Hz
• Rated residual operating current: 30 mA
• RCBO D curve din rail mounted
• Concurrently switches N-neutral
• With fault indicator
• Rated insulation voltage 440 V
• Max operating voltage 264 V
• Rated impulse withstand voltage 4 kV
• Depth of installed product: 70 mm
• Height of installed product: 85 mm
• Width of installed product: 17.7 mm
